Your Professional Linear 0-10v Led Driver Supplier
Shenzhen Jusin Technology Co., Ltd. is a nationally recognized high-tech enterprise specializing in the research, development, production, sales, and service of LED drivers. Our product portfolio includes Sensor Drivers, Dimmable LED Drivers, Linear 0-10V LED Drivers, Emergency LED Drivers, Constant Voltage LED Drivers, and more.
Customization Services (ODM/OEM)
The JusinPower team has over 13 years of expertise in designing and manufacturing LED drivers as well as providing customized solutions. In addition to Original Equipment Manufacturing (OEM), we also offer Original Design Manufacturing (ODM) services to meet diverse customer requirements.
Cutting-Edge Technology
In its early stages, our founding team focused on researching and developing management chips for LED drivers, thereby mastering core technologies in this field. We have successfully obtained numerous patents and software copyrights, demonstrating our commitment to innovation and technological advancement.
Comprehensive Certifications
Our products comply with multiple international certifications, including China CCC, UL, TUV, CE, CB, SAA, among others. Furthermore, we have achieved "ISO9001:2015" quality management system certification, ensuring consistent product quality and reliability.
Expert Team
Our team comprises seasoned professionals with an average of 10 years of experience in the LED lighting industry. With expertise spanning electronic engineering, optical design, and lighting engineering, we are equipped to deliver comprehensive technical support and tailored solutions to our clients.
Specifications
|
Input |
Efficiency |
91% |
|
Power |
100W |
|
|
Voltage |
200-480Vac |
|
|
Frequency Range (Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.99@200Vac full load |
|
|
THD (Full Load) |
<15% |
|
|
Ac Current (Max) |
0.6A@200Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
130A@480Vac |
|
|
Output |
Current (mA)/Voltage (Vdc) Power (W) |
150-200Vdc/550mA/100W |
|
Linear Regulation |
±3% |
|
|
No-Load Output Voltage |
<200V |
|
|
Start Time
|
<1S@100V |
|
|
Auxiliary Voltage |
12V/200mA |
|
|
Dimming Range |
10%-100%(optional) |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
Size
|
Length |
360 mm |
|
Width |
30 mm |
|
Height |
25 mm |
|
Weight (g) |
276g |
Types of Linear 0-10v Led Driver
The linear 0-10v LED driver produced by our company mainly include the following types:

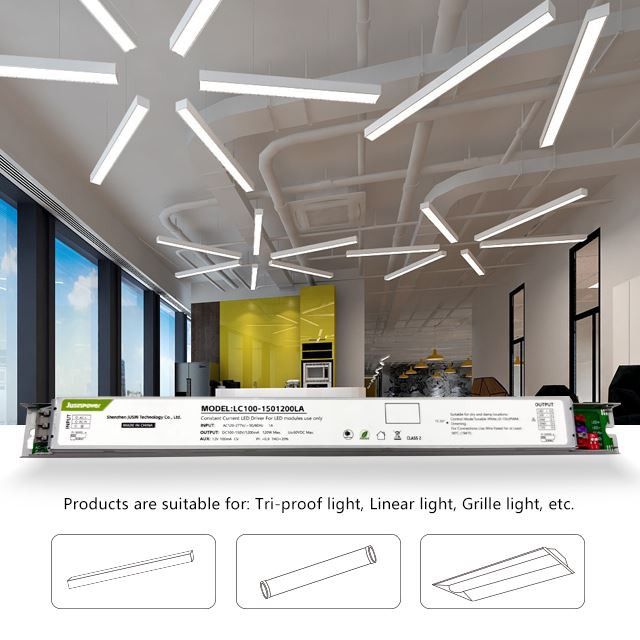

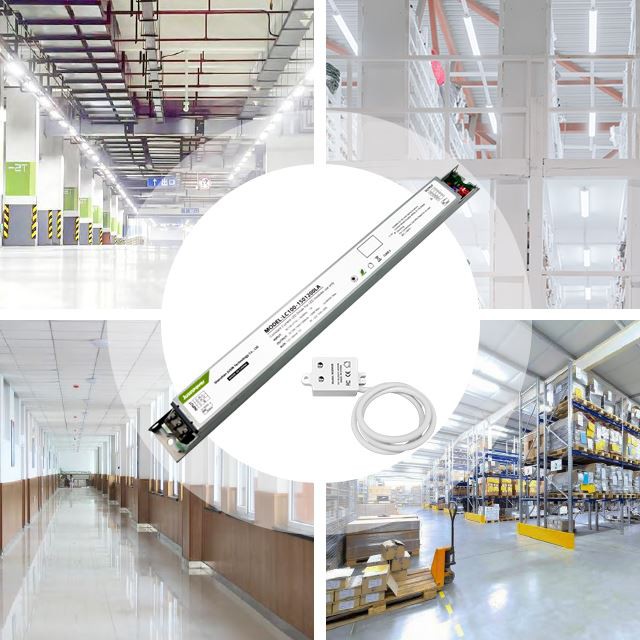

Constant Current 100w Dimmable Led Drivers
Constant current 100w dimmable led drivers maximum output power 100W, output current at 550mA. The input voltage is 200-480Vac,the power factor is 0.95.0-10V dimming,12V auxiliary design, can be matched with smart modules and sensors.

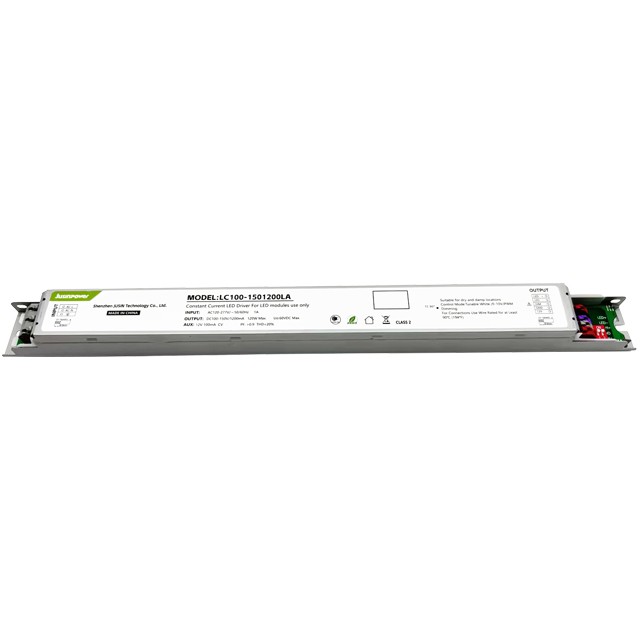

High PF Flicker Free120W Led Drivers
High PF, flicker-free LED drivers.The power factor equals 0.95.It features a compact housing design, bipolar flicker-free operation, reduced THD, and excellent precision.

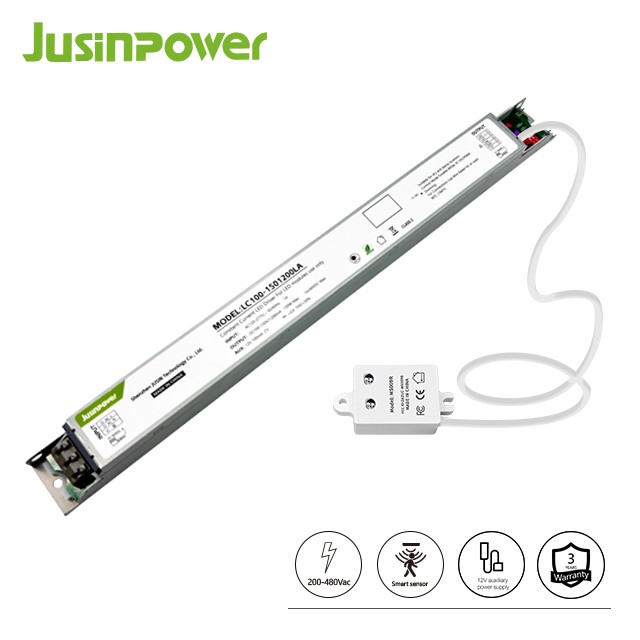

High Voltage 480Vac Input Linear Led Drivers
High Voltage Input linear led drivers,high input voltage range can be 200-480Vac ,non-isolated design. It adopts a full-frequency bipolar flicker-free design.
Advantages of Linear 0-10v Led Driver
Simple and Reliable Technology
Because it’s an analog technology, linear 0-10v LED driver is simple and reliable. There’s not much to it, so you don’t have much that can go wrong with it.
Wide Compatibility
It’s compatible with most LED products, so it’s a great technology to choose for your commercial and industrial lighting needs. It works with all kinds of LED drivers and dimmers, so you can install it in new stuff or retrofit it into your existing stuff.
Ease of Installation and Use
The wiring is easy. It’s just a 4-wire setup. You have two wires for power, and you have two low-voltage signal wires. The wiring is usually pretty straightforward, so it’s easy to instal
Precise Brightness Control
You can control the brightness of the lights from full blast to almost nothing. That means you can create the perfect mood or get the lighting just right for what you’re doing.
Energy Efficiency
When you turn down the lights, you save energy. This can save you a ton of money, especially if you have a lot of lights or you dim them a lot.
Cost-Effective Solution
Because it’s a common and standard technology, linear 0-10v LED driver is usually cheaper than other fancy dimming technologies. It doesn’t cost much to put in, and it doesn’t cost much to maintain.
No Limit on Load Size
There’s no limit to the size of the load you can control with linear 0-10v LED driver. You can control as many fixtures as you want. This is awesome for large spaces like warehouses or big commercial buildings.
Applications of Linear 0-10v Led Driver
In warehouses, factories, and big places, linear 0-10v LED driver is a great way to control the lights. You can make the lights brighter or dimmer based on the time of day, if there are people there, or what they’re doing. It saves energy and helps keep people safe.
Offices are a great place for linear 0-10v LED driver because you can set the lights to be comfy all day long. You can also save people’s eyeballs by turning the lights down. This can help people focus, be more productive, and be more comfortable. This is especially true if you have windows in your office or if you have areas in your office that need both task and ambient lighting.
In retail, lighting is critical to set the mood and show off your stuff. linear 0-10v LED driver allows you to make the lights brighter or dimmer based on the time of day, what you’re promoting, or what part of your store you want to highlight. You can save energy and make your customers happy at the same time.
Linear 0-10v LED driver is perfect for outdoor applications like parking lots, the outside of your building, and landscape lighting. You can set the lights to be brighter when people are around and turn them down when nobody’s there. That way, your parking lot stays lit up for safety, but you’re not wasting a ton of energy.
In conference rooms, auditoriums, and places where you have events, linear 0-10v LED driver is awesome. You can make the lights do what you want for your presentations, performances, or parties.
Comparison of Linear 0-10v Led Driver, DALI Led Driver and DMX Led Driver
|
Feature |
Linear 0-10v Led Driver |
DALI Led Driver |
DMX Led Driver |
|
Type of Control |
Analog |
Digital |
Digital |
|
Control Precision |
Group-level dimming (all fixtures together) |
Individual fixture control with addressable fixtures |
High-precision, multi-channel control |
|
Communication |
One-way (no feedback) |
Two-way (supports fixture status feedback) |
One-way, but external feedback systems can be added |
|
Minimum Dimming Level |
Varies by product (e.g., 10%, 1%, or 0.1%) |
Precise, down to very low levels |
Can dim to zero or minimum, depends on fixture |
|
Setup Complexity |
Simple (4-wire system) |
Moderate to high complexity, requires controllers and addressing |
High complexity, requires channel mapping and controllers |
|
Scene and Zone Control |
Limited (no scenes or zones) |
Advanced scene and zone control possible |
Advanced scenes and live transitions |
|
Ideal Applications |
Basic commercial and industrial spaces, offices, warehouses |
Complex lighting setups in offices, hospitals, hotels |
Theaters, stages, architectural lighting, entertainment |
|
Energy Efficiency |
Moderate (no automated scheduling) |
High (supports automated schedules and monitoring) |
Moderate to high (suitable for creative control) |
|
Installation Cost |
Low |
Moderate to high |
High |
|
Maintenance and Monitoring |
Basic (manual monitoring) |
Advanced (remote monitoring and diagnostics) |
Basic, though feedback systems can be integrated |
|
Best for Dynamic Effects |
No |
No |
Yes (ideal for dynamic scenes and color changes) |
|
Examples of Control Levels |
0V = off, 10V = full brightness |
Percentage-based control, programmable |
0-255 channel values, allowing granular brightness |
Ordering Process
New Project: Overall project discussion product specification definition estimate cost quotation.According to your specific needs, we can develop personalized solutions that are different from conventional standards.
R&D Design: Research and design of the prototype. Prototype functional test and verification. We have a professional R&D team and engineers of about 20 people who can provide you with full-process services from concept design to product prototype production.
Sample Release: Get customer sample approval-final modification.
Mass Production: Logistics services and Provide after-sales service.
Packaging and Shipping
|
Packaging |
Shock-absorbing foam, carton packaging |
|
Shipping |
For shipping, we often use DHL, FedEx, UPS, and TNT. For bulk order, we recommend to send goods by Air or by Sea to save your transportation cost. |
We have a 4000 square meter factory in Foshan high-tech Zone for production. Now have 3 patch production lines and 3 plug-in production lines. The production line of about 100 employees, able to reach 5 million shipments per year!
Our Certificates
FAQ
As one of the most professional linear 0-10v led driver manufacturers and suppliers in China, we're featured by quality products and good service. Please rest assured to wholesale customized linear 0-10v led driver from our factory.
Long metal case, Unipolar with strobe, tunable cct
