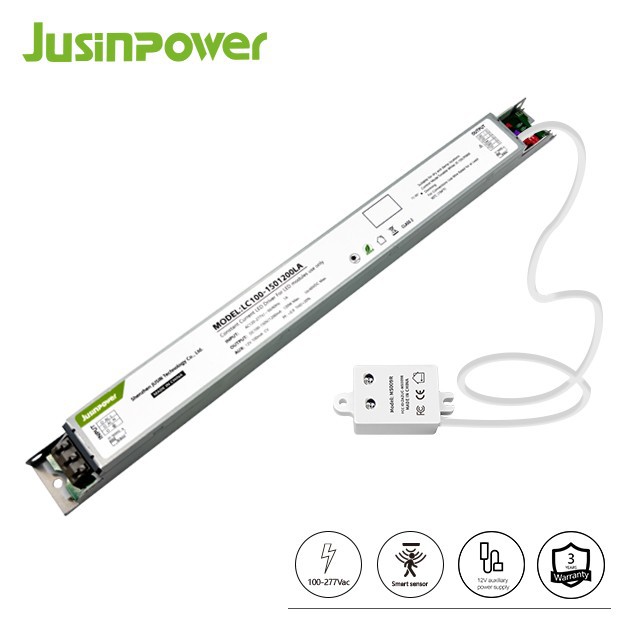

120w 0-10v dimmable led drivers
It is a 120W long strip dimming driver with 0-10V dimming,smooth dimming;dim to off,and 12V auxiliary power supply. It can be connected to smart modules and sensors.The input voltage is 100-277Vac,suitable for the EU market.Built-in constant current led driver maximum output power 120W.Best energy savings due to low stand-by losses and high efficiency,Iron shell, glue filling design,good heat dissipation,but also can adapt to power supply voltage peaks of up to 4KV,provide 3 years warranty,which is very safe and reliable.
Features：

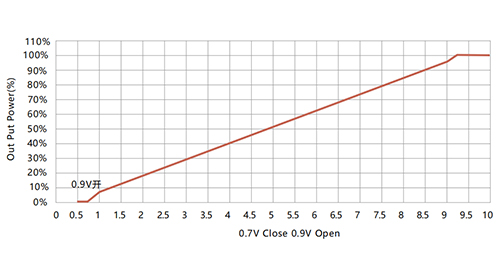

0-10V dimming
12V auxiliary power supply
100-277Vac
Smart sensor
3 Years warranty
1. 0-10V dimming
2. Max. output power 120W
3. Input voltage:100-277Vac
4.12V auxiliary power supply
5.Meet UL/TUV/CB/SAA/CE certification

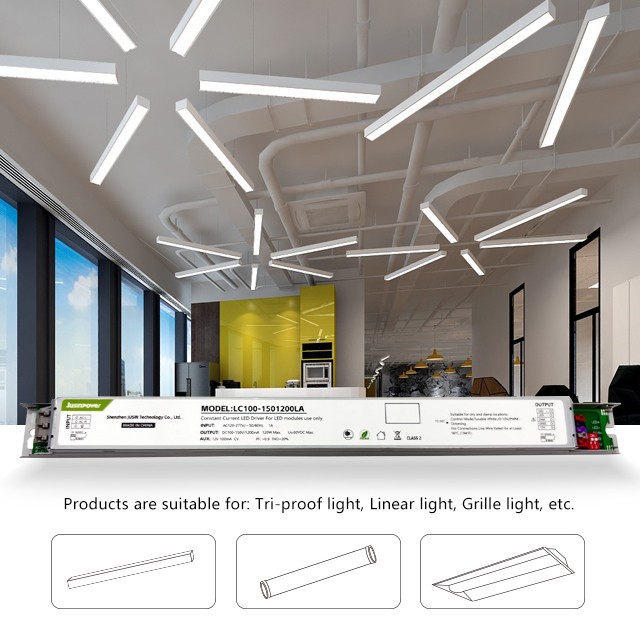

Application Scenario:

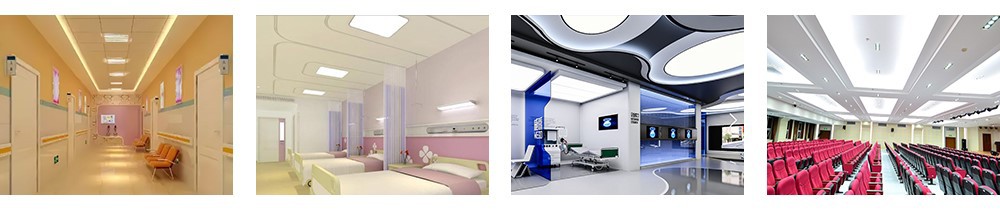

Medical facilities: Lighting requirements in hospitals, clinics and nursing institutions are extremely stringent, and linear LED drivers are used to illuminate operating rooms, wards, corridors and reception areas. They can provide clear and non-impact light.

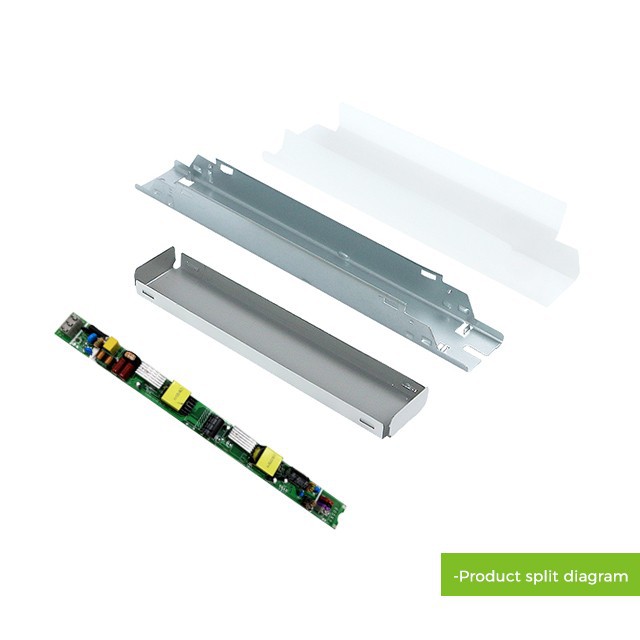

Product Details

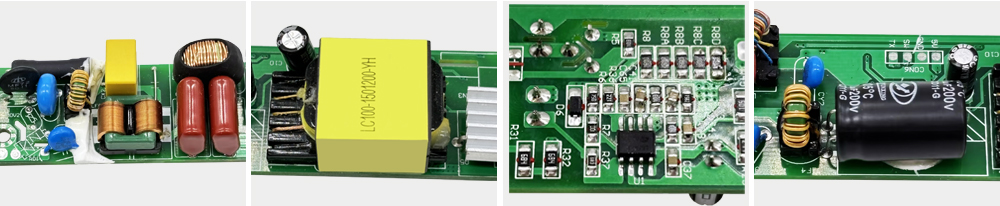

Double-sided board design, additional via-hole tinning. The cutout on the back is basically the same as the PCB, and there is no thorny feeling to the touch.

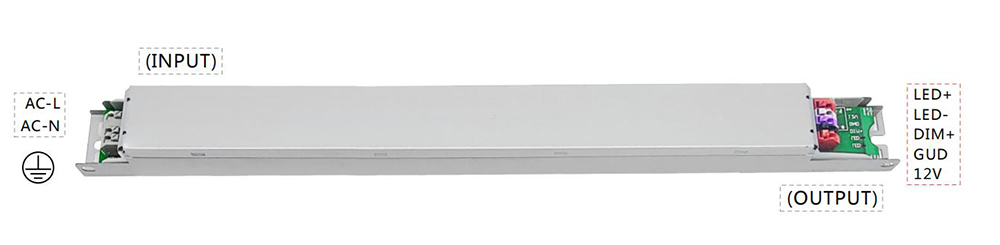

Structural size characteristics
Suitable for wires between 16-20WAG, wire twisted tin 5-8mm

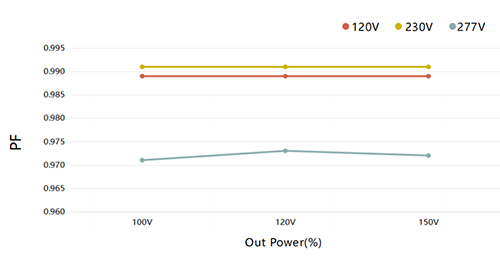

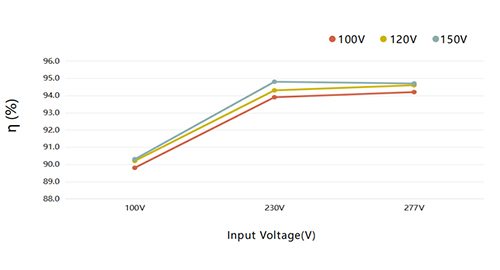

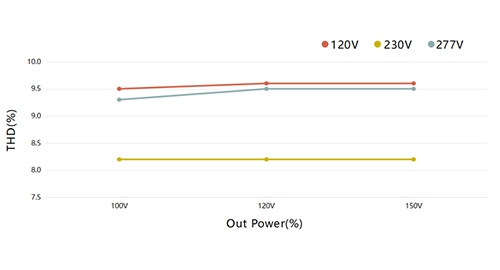

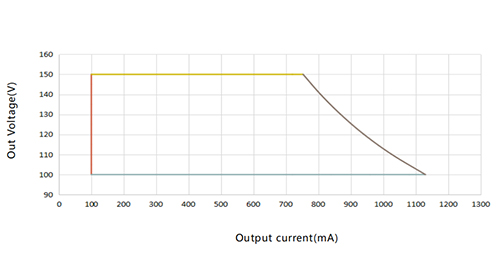

Electrical Characteristic

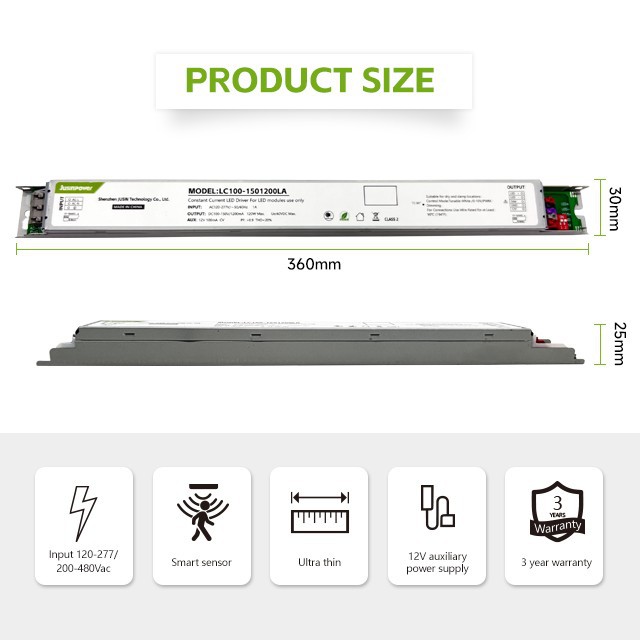

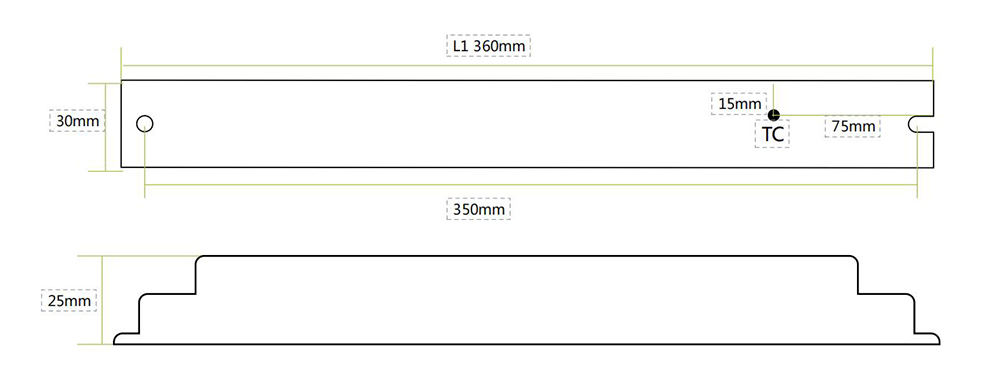

Dimension (mm)
Length: 360mm Width: 30mm Height: 25mm

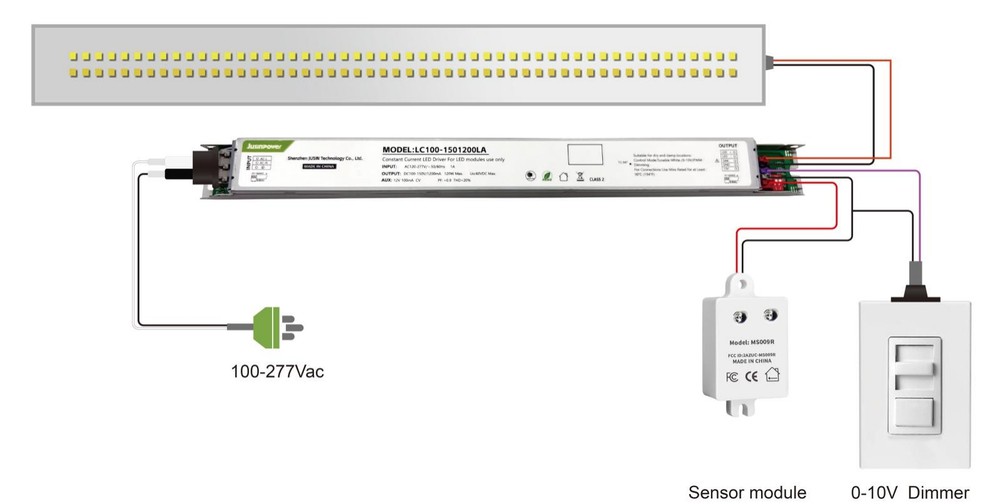

Wiring diagram
The AC input terminal is where you connect the power source from 100-277Vac mains.The DC output with 12V auxiliary, can be connected to smart module,marked with positive and negative poles, is where you connect the LED light

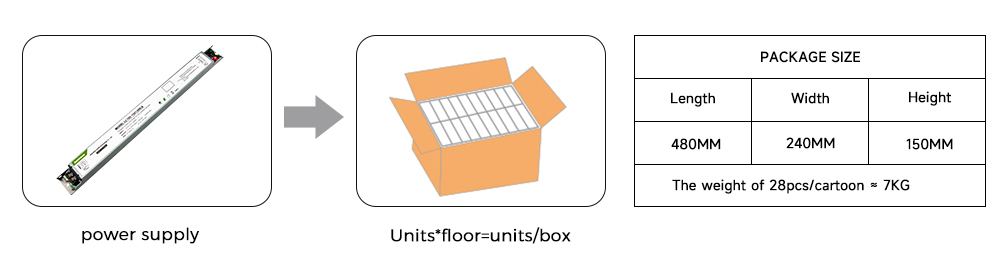

Product Packaging:
Hot Tags: 120w 0-10v dimmable led drivers, China 120w 0-10v dimmable led drivers manufacturers, suppliers, factory, constant current tunable driver, ultra wide output voltage, 1000mA 0 10v Dimming Driver, Universal Input Sensor Driver, Double Dial To Adjust The Color Temperature Driver, 3 LIGHTS AND 1 DRIVER
LC100
|
Performance |
||
|
Model |
LC100-1501200LX |
|
|
Input |
Efficiency |
94% |
|
Voltage |
100-277Vac |
|
|
Frequency Range (Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.99@100Vac full load |
|
|
≥ 0.97@277Vac full load |
||
|
THD (Full Load) |
<15% |
|
|
Ac Current (Max) |
1.2A@277Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
20A@100Vac |
|
|
28A@230Vac |
||
|
35A@277Vac |
||
|
Output |
Current (mA)/Voltage (Vdc) Power (W) |
100-150Vdc/1200mA/120W |
|
Linear Regulation |
±3% |
|
|
No-Load Output Voltage |
200V |
|
|
Start Time
|
<1S@100V |
|
|
Auxiliary Voltage |
12V/200mA |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Size |
|
|
Length |
360mm |
|
Width |
30mm |
|
Height |
25 mm |
|
Weight (g) |
276g |
|
Environmental |
|
|
Safety Standard |
UL8750 ,Class2 |
|
EMC |
Conform to FCC part 15 |
|
Operating Temperature |
-30°C to 50°C |
|
Storage Temperature, Humidity |
-40°C to 80°C,10-90%RH |
|

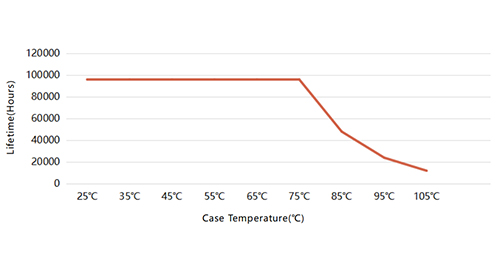

Warranty Tc |
50000Hour (s)@TC:80℃ |
|
Surge Protection |
L-N 4KV |
|
Ip Rating |
IP20 |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC100-200550HX |
100W |
200-480Vac |
150-200Vdc |
550mA |
0.9 |
Adjustable |
91% |
|
LC100-1501200LX |
120W |
100-277Vac |
100-150Vdc/ |
1200mA |
0.9 |
Adjustable |
94% |
OEM/ODM
Jusinpower team has been specializing in the design and manufacturing services of LED driver and customized products for 12 years. We can provide OEM&ODM service. According to the customer's lamp structure,required functions, parameters, certification, etc., we provide a full set of design, manufacturing and after-sales services.
OEM/ODM Service flow
1.New Project: Overall project discussion product specification definition estimate cost quotation.According to your specific needs, we can develop personalized solutions that are different from conventional standards.
2.R&D Design: research and design of the prototype.Prototype functional test and verification. We have a professional R&D team and engineers of about 20 people who can provide you with full-process services from concept design to product prototype production.
3. Sample Release: Get customer sample approval-final modification
4. Mass Production: Logistics services and Provide after-sales service
Exhibition
Every year since 2016, we have been attending Guangzhou International Lighting Exhibition and Hong Kong Exhibition in Autumn.During the exhibition, we met customers from all over the country who came to visit and learn about our products. After the customers became familiar with our products, our products were unanimously praised by customers and returned their orders.

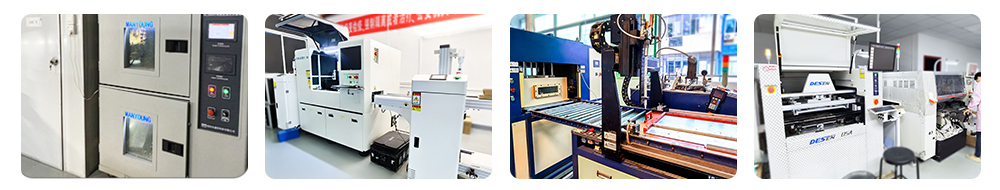

Factory
We have a 4000 square meter factory in Foshan high-tech Zone for production. At the same time, we not only have a professional R&D team of about 20 people, but also have advanced equipment to support. such as SMT machine, Automatic Gluing Machine, Aged Vehicle, Reflow Solder and so on. The production line of about 80 people, able to reach 1 million shipments per year!
|

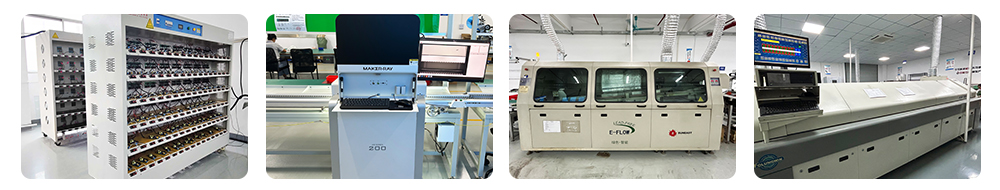

High and Low Temperature Test Equipment |
Automatic Plug-in Equipment |
Automatic Glue Filling Equipment |
SMT Equipment |
.
|
Aging Test Equipment |
AOI Detector |
Wave Soldering |
Reflow Soldering |
