60W Sensor Driver
It is a high-precision non-isolated led power supply. It adopts a full-range bipolar and flicker-free design, PWM silky dimming, and has passed TUV/CB/SAA/CE certification. The input voltage is 200-240Vac and the power factor is 0.98, suitable for EU market.
4 levels of
brightness
adjustment

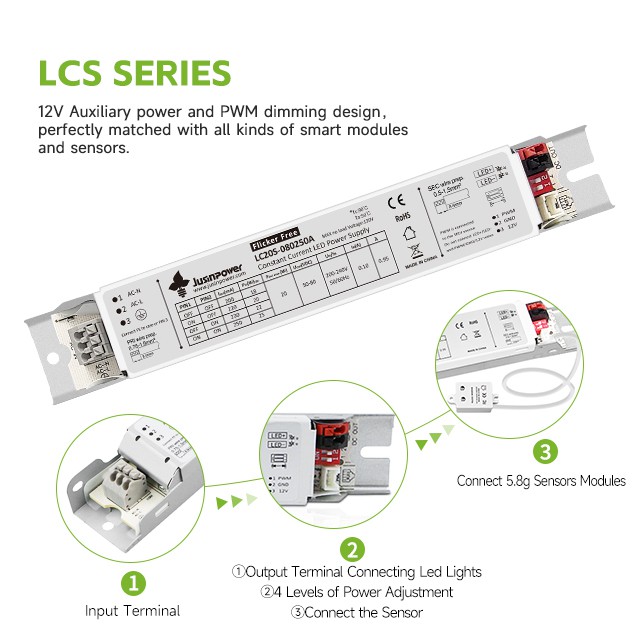

12V auxiliary
power supply
200-240Vac
External sensor
Flicker free
3 Years
warranty
1. Flicker free
2. PWM Dimming
3. TUV/CB/SAA/CE certification
Application Scenario:

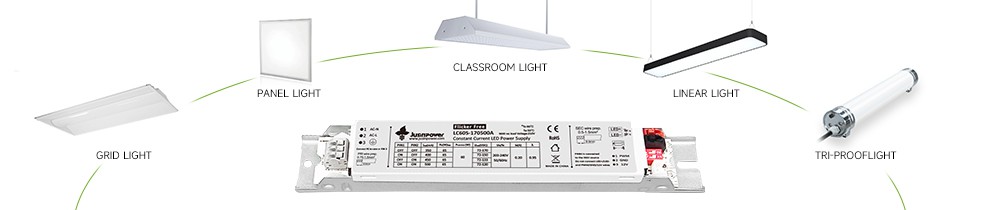

This driver is compatible with various lighting fixtures, like grid light, panel light, classroom light, linear light and tri-proof light.

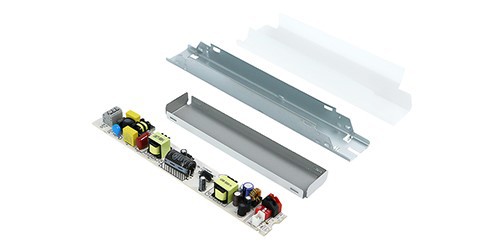

Product Details:

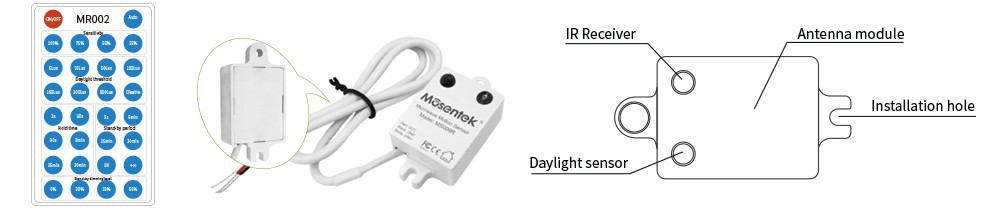

Regard The Sensor Module
Sensor Technical Specifications
|
Input |
Operating voltage |
5~24VDC |
|
Operating current |
23mA |
|
|
Output |
Output |
PWM |
|
Sensor Parameters |
Microwave frequency |
5.8GHz±75MHz |
|
Microwave power |
<0.3mW |
|
|
Sensitivity |
100%/75%/50%/25% (Refer to remote control) |
|
|
Hold time |
3s/30s/90s/3min/5min/15min/20min/30min (Refer to remote control) |
|
|
Daylight threshold |
Disable/300Lux/100Lux/50Lux/15Lux/5Lux (Refer to remote control) |
|
|
Stand-by period |
0s/5s/30s/3min/5min/15min/45min/+∞ (Refer to remote control) |
|
|
Stand-by dimming level |
10%/20%/30%/50% (Refer to remote control) |
|
|
Mounting height |
Max.9m (Ceiling mounted) |
|
|
Detection range |
Radius 4-5m (Ceiling mounted 6m) |
|
|
Operating temperature |
-35℃~70℃ |
|
|
Warranty |
5 years |
|
|
Other |
Default setting: Sensitivity 100%, Hold time 3s, Daylight threshold disable, Stand-by period 0s. |
|

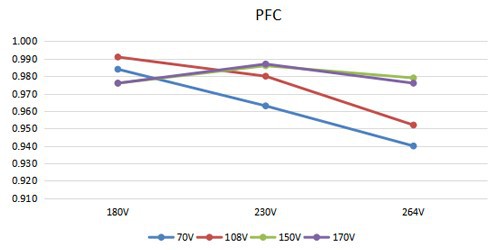

Electrical Characteristic:
Hot Tags: 60w sensor driver, China 60w sensor driver manufacturers, suppliers, factory, tuya system driver, bluetooth controllable, 75W Sensor Driver, T8 tunable white, CE LED Sensor Driver, Suitable for narrow assembly spaces
LC60S
|
Performance |
||
|
Model |
LC60S-170500 |
|
|
Input |

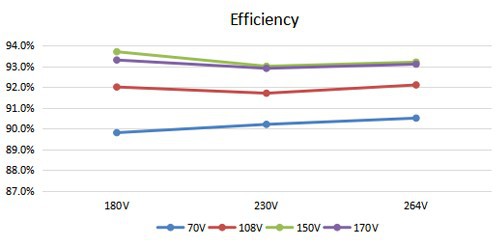

Efficiency |
93%@220Vac full load |
|
Voltage |
200-240Vac |
|
|
Frequency Range(Hz) |
50Hz |
|
|
Power Factor |
≥ 0.95@230Vac full load |
|
|
THD(full load) |
<10%@230Vac full load |
|
|
AC Current(max) |
0.33A@230Vac full load |
|
|
Standby power |
<1W |
|
|
Inrush current (cold engine start) max |
9.12A@230Vac |
|
|
peak value |
10.05A@230Vac |
|
|
Leakage current (max) |
0.09mA |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
72-170Vdc/500mA/60W |
|
Current ripple |
<10% |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<190V |
|
|
Start Time |
<1S@230V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Dimming range |
10%-100%(optional) |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|

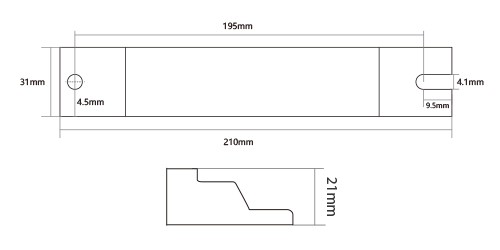

Physical |
|
|
Length |
199 mm |
|
Width |
31 mm |
|
Height |
21.5 mm |
|
Mounting Length |
196mm |
|
Weight (g) |
159.5g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE /TUV/3C/CB/SAA certificate |
|

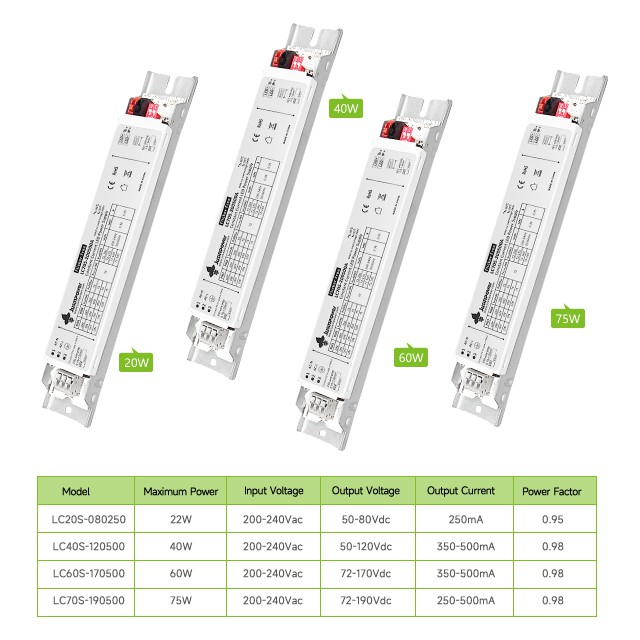

Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC20S-080250 |
22W |
200-240Vac |
50-80Vdc |
250mA |
0.9 |
Adjustable |
84% |
|
LC40S-120500 |
40W |
200-240Vac |
50-120Vdc |
350-500mA |
0.9 |
Adjustable |
89% |
|
LC60S-170500 |
60W |
200-240Vac |
72-170Vdc |
350-500mA |
0.9 |
Adjustable |
92% |
|
LC70S-190500 |
75W |
200-240Vac |
72-190Vdc |
250-500mA |
0.9 |
Adjustable |
92% |
Inspection
Jusinpower has more than 10 years of experience in designing and manufacturing lighting power supply. Our matured verification process and through QC control system will ensure your products are sustainable and high-quality. Moreover, our experienced engineers and persevered sales representatives will be the best backup team for your company.

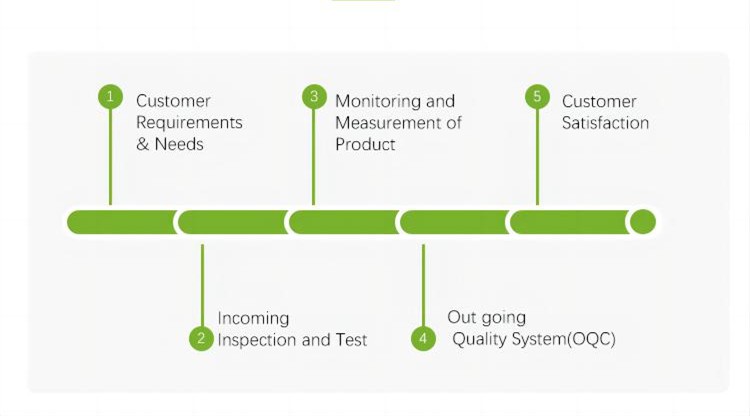

QC Process Flow Chart
Advantage
CUTTING-EDGE: Shenzhen Jusin Technology Co, Ltd, established in2012, is a national high-tech enter-is a national high-tech enter-development, production,sales and service of LED driver.
RELIABLE: A reliable partner that delivers outstanding and solid LED outstanding and driver power.
PROFESSIONAL: A professional and experienced R&D and guaranteed the excellent products.
Certificate
Have passed the "ISO9001:2015" quality management system certification and national High-tech enterprise certificate.
The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, CE, CB, SAA, FCC, CCC.
