Non-Isolated Constant Current Driver With 12V Auxiliary Driver
With the development of science and technology, people are increasingly pursuing the convenience of life. This non-isolated constant current driver with a 12V auxiliary driver can be connected to Wi-Fi, Bluetooth, etc., and matched with various smart modules and sensors, allowing you to adjust the brightness and color temperature of LED lamps more conveniently.
3 levels of
color temperature
adjustment
3 levels of
brightness
Adjustment
120-347Vac
12V auxiliary
power supply
5 Years
warranty
1. <0.5s to start

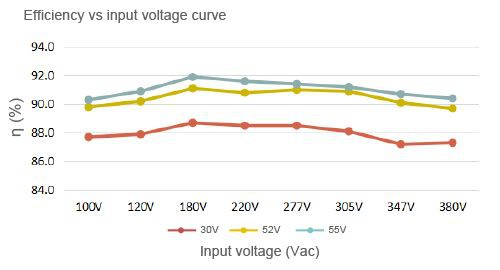

2. Efficiency 91%
3. 12V auxiliary power supply design
Application Scenario:

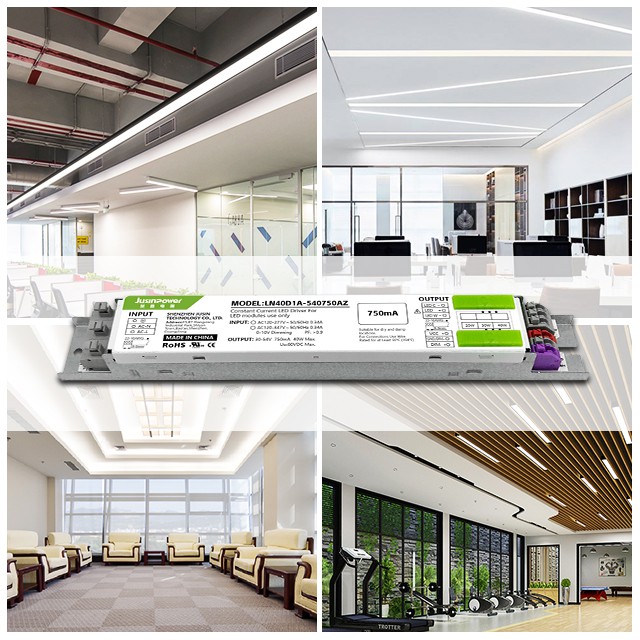

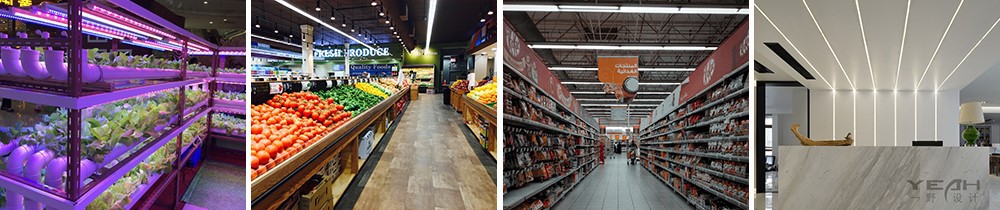

The non-isolated constant current driver with 12V auxiliary driver suitable for line lights, plant lights, panel lights, etc. It has passed FCC ROHS certification.
Product Details:

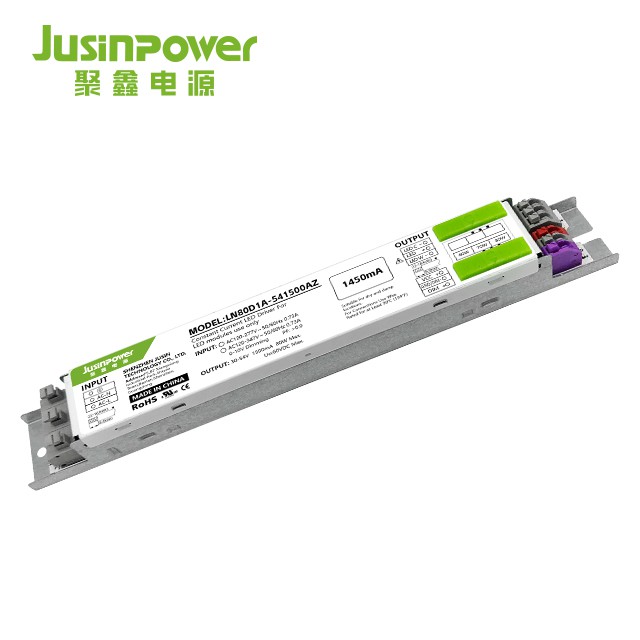

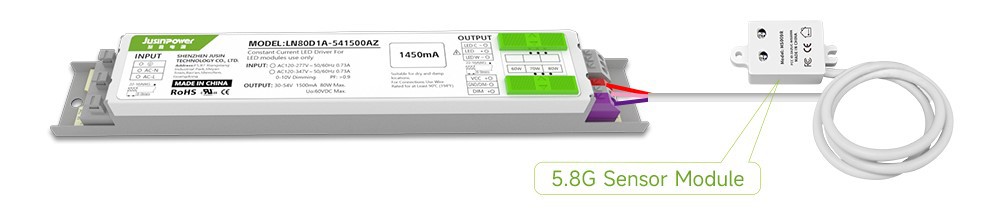

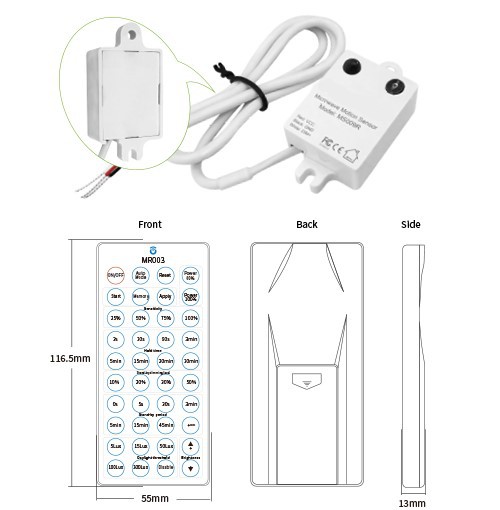

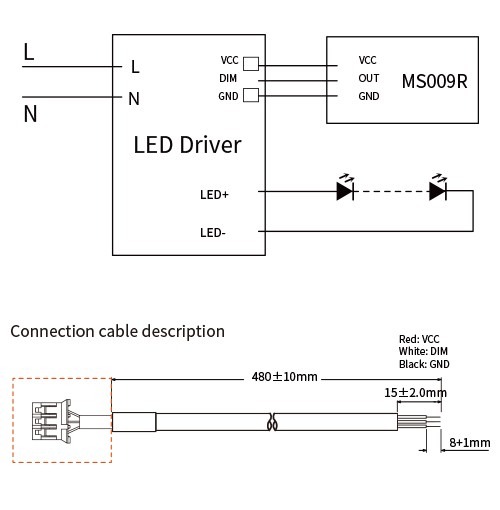

Its 12V auxiliary power supply design allows it to perfectly match various smart modules and sensors on the market
APPLICATION
ON/OFF Function:

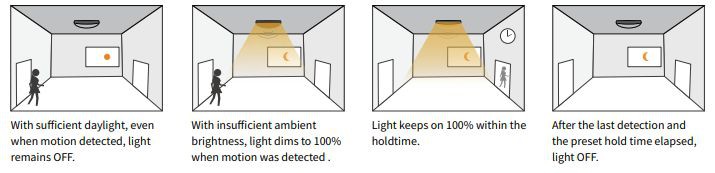

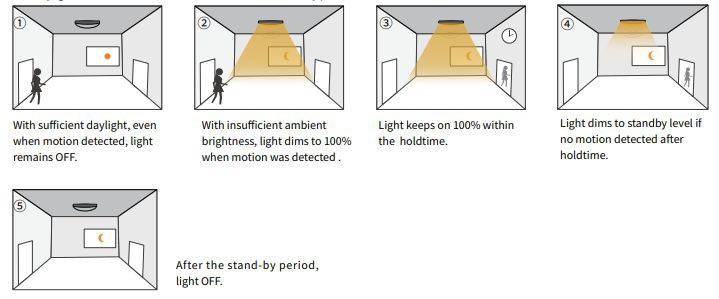

1.The daylight threshold is set to "300Lux/100Lux/50Lux/15Lux/5Lux, stand-by period is set to "0s".

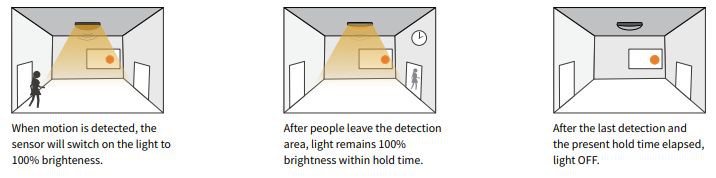

2.The daylight threshold is set to "Disable". Light on when detect movement, after people leave, light off after stand-by period.
Dimmable Control/Corridor Function:
The daylight threshold is set to "10Lux/25Lux/50Lux, stand-by period is set to "5s/30s/3min/5min/45min".
Electrical Characteristics:

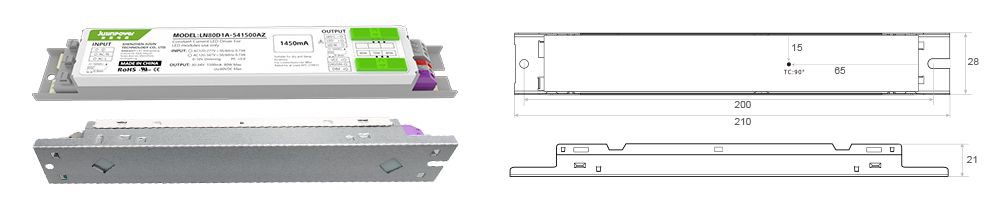

Dimension (mm)
Length: 210mm Width: 28mm Height: 21mm
Hot Tags: non-isolated constant current driver with 12v auxiliary driver, China non-isolated constant current driver with 12v auxiliary driver manufacturers, suppliers, factory, 1000mA led driver, push dimming, 120-277Vac, suitable for tri proof light, 70W tunable white, 1 10V dimmer
LN80
LN80D1A
|
Performance |
||
|
Model |
LN80D1A-541500AZ |
|
|
Input |
Efficiency |
91%@230Vac full load |
|
Voltage |
120-277Vac(standard) |
|
|
120-347Vac(optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@347Vac full load |
|
|
THD(full load) |
<20%@120Vac full load |
|
|
AC Current(max) |
0.8A@120Vac full load |
|
|
Standby power |
<1W |
|
|
Inrush current (cold engine start) max |
30A@120Vac |
|
|
70A@277Vac |
||
|
100A@347Vac |
||
|
Leakage current (max) |
<0.75mA@347V |
|
|
Output |

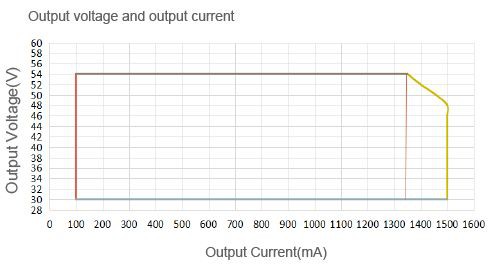

Current(mA)/Voltage (VDC) Power(W) |
30-54Vdc/1500mA/75W |
|
Channel |
1 output |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Function |
Dimming method |
0-10V 0.5V OFF /0.7V OPEN |
|
Dimming current |
<1mA@10V <2mA@0.7V |
|
|
Dimming range |
7%-100% (standard) |
|
|
Color temperature |
Three gears adjustable |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
210 mm |
|
Width |
28 mm |
|
Height |
21 mm |
|
Mounting Length |
195mm |
|
Weight (g) |
154g |
|
Environmental |
|
|
Safety standard |
UL8750 ,Class1 |
|
EMC emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE/FCC/UL certificate |
|

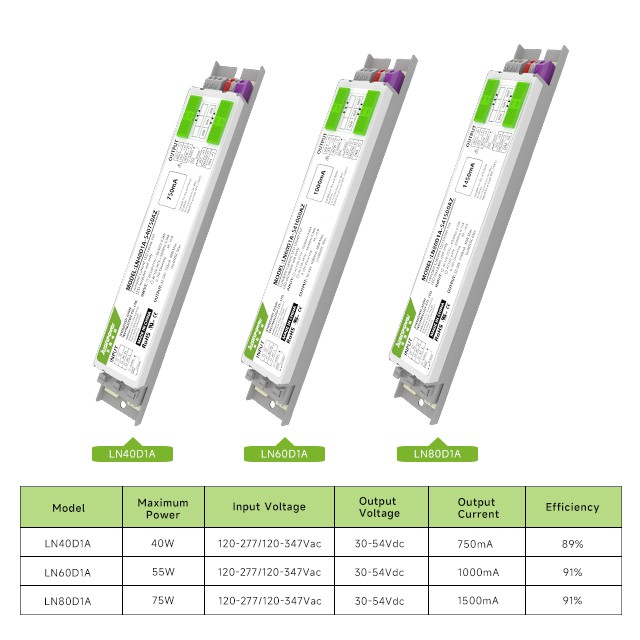

Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Vol tage |
Output Current |
Power Factor |
Power Regulation |
Color temperature |
Efficiency |
|
LN40D1A-54XXXXYZ |
36W |
120-277/120-347Vac |
30-54Vdc |
750mA |
0.9 |
Adjustable |
Adjustable |
89% |
|
LN60D1A-54XXXXYZ |
55W |
120-277/120-347Vac |
30-54Vdc |
1000mA |
0.9 |
Adjustable |
Adjustable |
91% |
|
LN80D1A-54XXXXYZ |
75W |
120-277/120-347Vac |
30-54Vdc |
1500mA |
0.9 |
Adjustable |
Adjustable |
91% |
