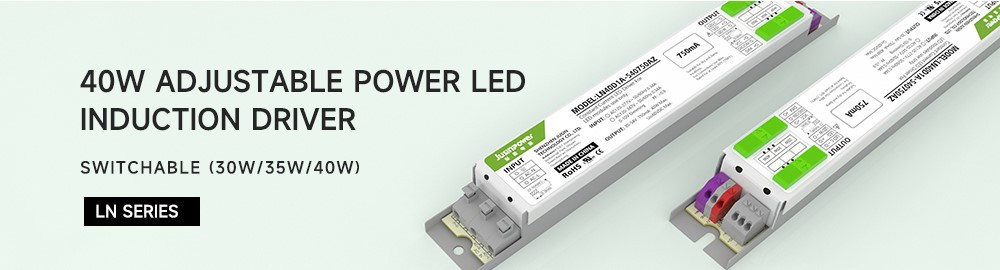

40W Adjustable Power LED Induction Driver
The 40W adjustable power led induction driver is a led power supply that can adjust the power by dialing the code. It has passed RoHS certification and has overload protection to ensure the trouble-free operation of this product. In addition to 40W, there are 55W and 75W to choose from.
3 levels of
color temperature
adjustment
3 levels of
brightness
Adjustment
120-347Vac
12V auxiliary
power supply
5 Years
warranty
1. Overload protection
2. Switchable (30w/35w/40w)
3. RoHS certificate
4. Dial to adjust the power

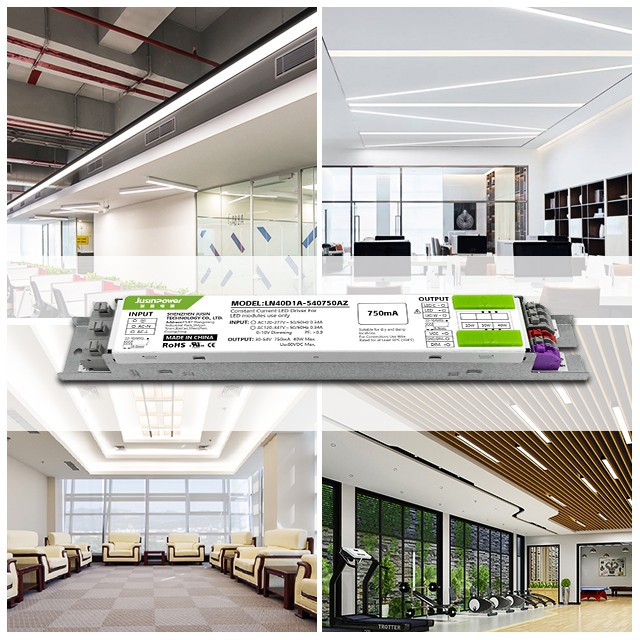

Application Scenario:
It Suitable for LED lights in narrow spaces such as line lights, tri-proof lights, plant lights, grille lights, etc.
Product Details:

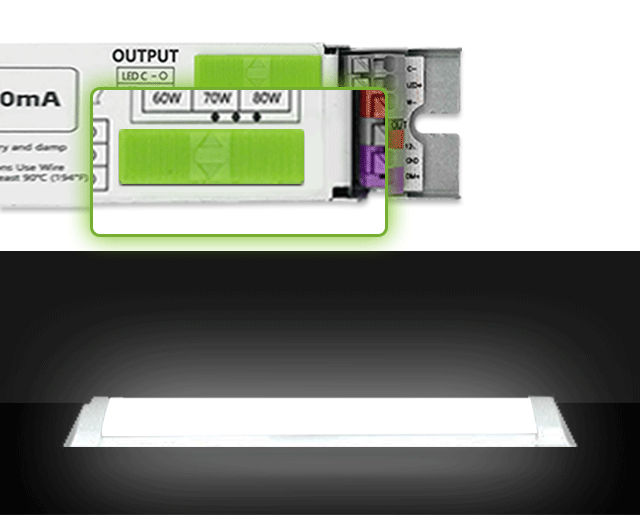

The power can be adjusted by dialing the code

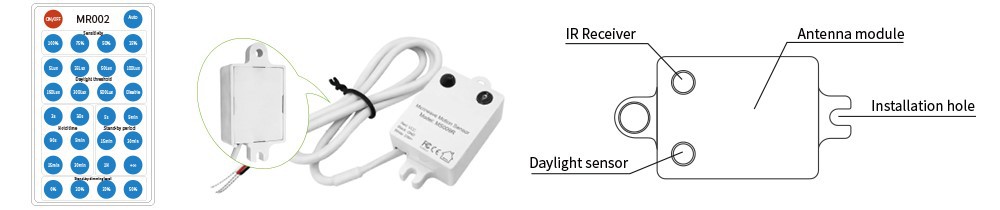

Description Of the Controller Section
Programmable one key commission remote controller
Controller Parameters
|
Key |
Function |
|
|
On/Off |
Setting the light permanent ON or OFF without motion mode |
|
|
Auto |
Switch to sensor mode and restore the latest sensor setting |
|
|
Reset |
Turn the sensor in a default setting (3s hold time, 0s stand-by period, lux disable, 100% sensitivity). |
|
|
Power (80%/100%) |
Quick setting the power output in 80% or 100% |
|
|
Brightness (+/-) |
Long press this button to set the power from 20% to 100%, available in permanent ON mode or in sensor mode. |
|
|
Start |
Program Mode |
1. Press Start to program mode, then select the ①Sensitivity ② Hold time ③Standby dimming level ④Standby period ⑤Daylight threshold to setting. 2. Press Memory to save the parameters ①-⑤ had selected in step 1 3. Press Apply to transmit the ①-⑤ parameters to the target sensor. Remark: After press Start, you need to press any of ①-⑤ parameter button within 30S, the time window between press any button is 30S, it will quit program mode if no any button is pressed within 30S. |
|
Memory |
Save Setting |
|
|
Apply |
One Key Apply |
|
|
Sensitivity |
In this area, movement will be detected and able to trigger the sensor. 100% detection area is also known as the strongest sensitivity. |
|
|
Hold Time |
The period of light keeping 100% brightness after moving objects leave the detection area. |
|
|
Stand-by Dimming Level |
The dimming level in the standby period. |
|
|
Stand-by Period |
The period of light keeping low output before it's completely switched off. When it's preset as "+∞", the light always keeps at low output if no movement in the detection area and doesn't turn off. |
|
|
Daylight Threshold |
Definition of the ambient brightness; only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it's preset as "disable", the sensor will detect motion regardless the ambient brightness. |
|
High Quality Raw Materials and Exquisite Technology

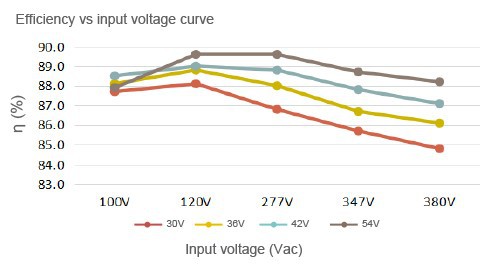

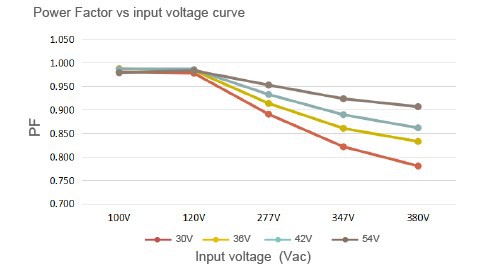

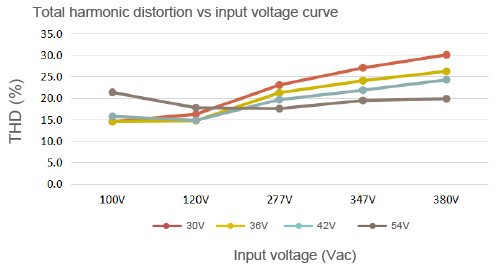

Electrical Characteristics:

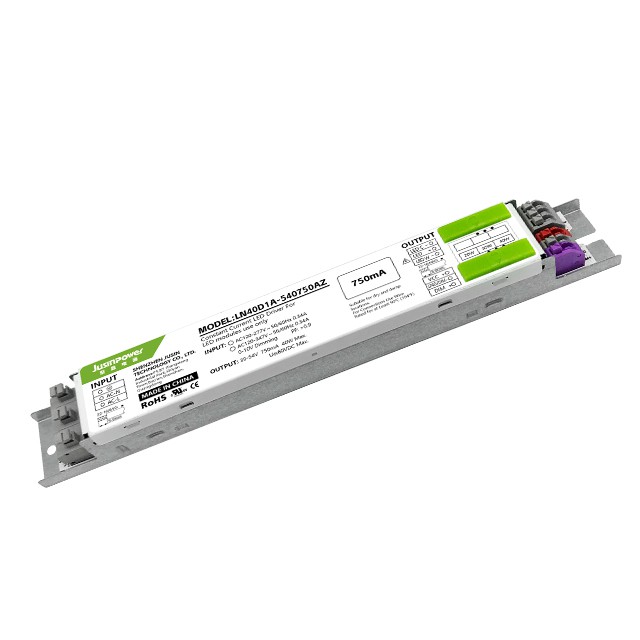

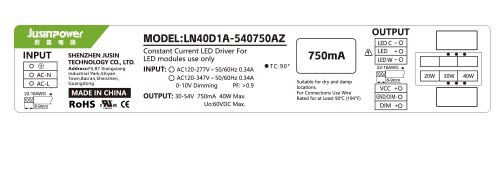

Product Label

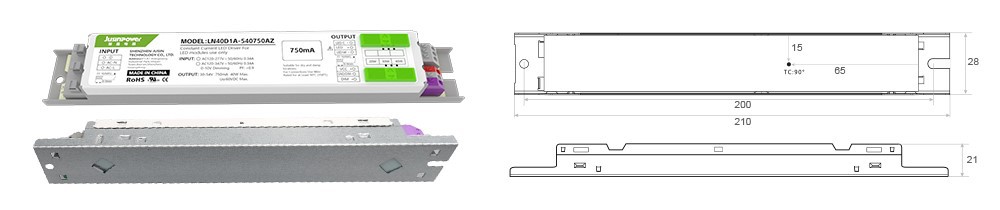

Dimension (mm)
Length: 210mm Width: 28mm Height: 21mm

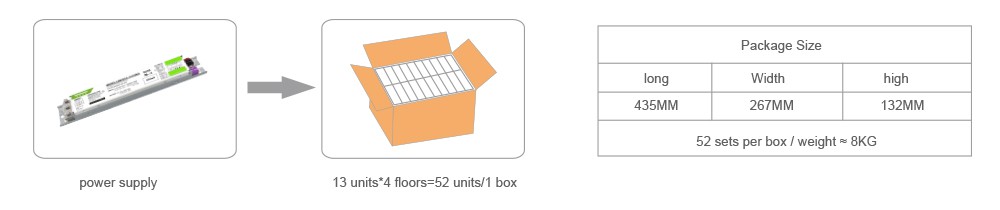

Product Packaging:
Hot Tags: 40w adjustable power LED induction driver, China 40w adjustable power LED induction driver manufacturers, suppliers, factory, smart modules and sensors, 40W Adjustable Power LED Induction Driver, wiring 0 10v dimming led, flicker free led lights, dimmable led power supply, pwm dimming ac

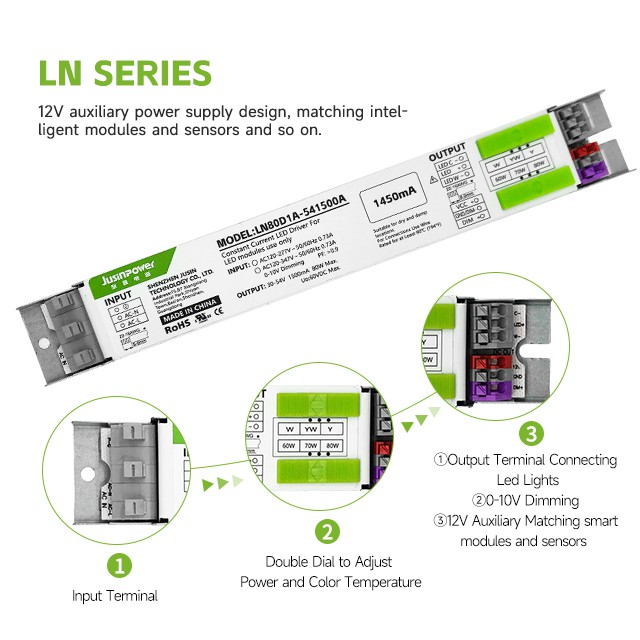

LN series
LN40D1A
|
Performance |
||
|
Model |
LN40D1A-540750AZ |
|
|
Input |
Efficiency |
89%@230Vac full load |
|
Voltage |
120-277Vac(standard) |
|
|
120-347Vac(optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@347Vac full load |
|
|
THD(full load) |
<20%@120Vac full load |
|
|
AC Current(max) |
0.34A@120Vac full load |
|
|
Standby power |
<1W |
|
|
Inrush current (cold engine start) max |
25A@120Vac |
|
|
60A@277Vac |
||
|
80A@347Vac |
||
|
Leakage current (max) |
<0.75mA@347V |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
30-54Vdc/750mA/40W |
|
Channel |
1 output |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Function |
Dimming method |
0-10V 0.5V OFF /0.7V OPEN |
|
Dimming current |
<1mA@10V <2mA@0.7V |
|
|
Dimming range |
7%-100% (standard) |
|
|
Color temperature |
Three gears adjustable |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
210 mm |
|
Width |
28 mm |
|
Height |
21 mm |
|
Mounting Length |
195mm |
|
Weight (g) |
154g |
|
Environmental |
|
|
Safety standard |
UL8750 ,Class1 |
|
EMC emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE/FCC/UL certificate |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Color temperature |
Efficiency |
|
LN40D1A-54XXXXYZ |
36W |
120-277/120-347Vac |
30-54Vdc |
750mA |
0.9 |
Adjustable |
Adjustable |
89% |
|
LN60D1A-54XXXXYZ |
55W |
120-277/120-347Vac |
30-54Vdc |
1000mA |
0.9 |
Adjustable |
Adjustable |
91% |
|
LN80D1A-54XXXXYZ |
75W |
120-277/120-347Vac |
30-54Vdc |
1500mA |
0.9 |
Adjustable |
Adjustable |
91% |
