Non-Isolated Flicker Free Sensor Driver
The non-isolated and flicker-free sensor driver is a led power supply with an input voltage of 200-240Vac, and the current can be independently selected between 250mA and 500mA by dialing the code, which makes it suitable for LED lamps with different currents.
111It has passed TUV, CB, SAA certification, and there are four maximum power options of 22W, 40W, 60W, and 75W.
4 levels of
brightness
adjustment
12V auxiliary
power supply
200-240Vac
External sensor
Flicker free
3 Years
warranty
1. No flicker
2. 3 years warranty
3. Output Current 250-500mA
4. Passed TUV, CB, SAA certification
Application Scenario:

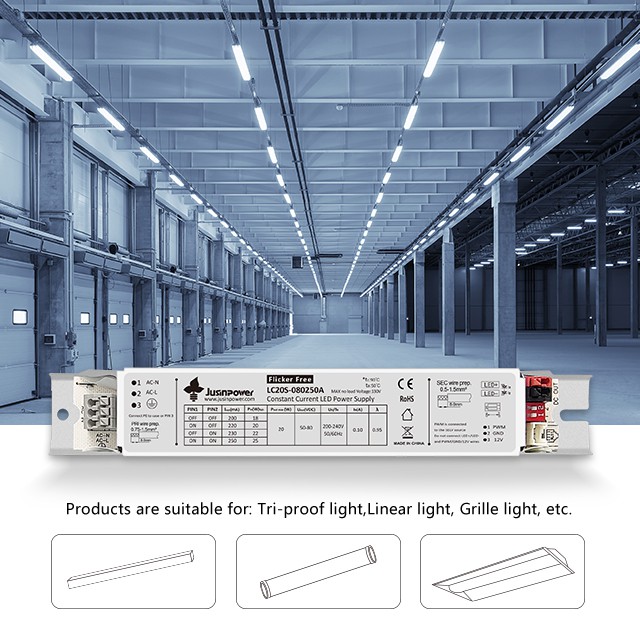

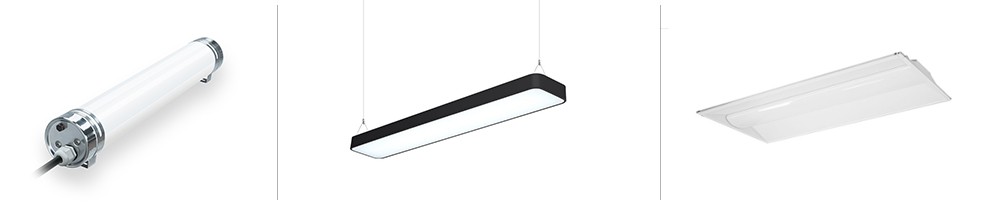

The non- isolated flicker free sensor drivers are suitable for: Tri-proof light, Linear light, Grille light, etc.
Product Details:
It adopts a full series of two-stage flicker-free design, allowing you to better protect your eyes when studying and working.
About The Specifications and Parameters of The Sensor Module and Controller in The Driver.
Sensor Technical Parameters
|
Input |
Operating voltage |
5~24VDC |
|
Operating current |
23mA |
|
|
Output |
Output |
PWM |
|
Sensor Parameters |
Microwave frequency |
5.8GHz±75MHz |
|
Microwave power |
<0.3mW |
|
|
Sensitivity |
100%/75%/50%/25% (Refer to remote control) |
|
|
Hold time |
3s/30s/90s/3min/5min/15min/20min/30min (Refer to remote control) |
|
|
Daylight threshold |
Disable/300Lux/100Lux/50Lux/15Lux/5Lux (Refer to remote control) |
|
|
Stand-by period |
0s/5s/30s/3min/5min/15min/45min/+∞ (Refer to remote control) |
|
|
Stand-by dimming level |
10%/20%/30%/50% (Refer to remote control) |
|
|
Mounting height |
Max.9m (Ceiling mounted) |
|
|
Detection range |
Radius 4-5m (Ceiling mounted 6m) |
|
|
Operating temperature |
-35℃~70℃ |
|
|
Warranty |
5 years |
|
|
Other |
Default setting: Sensitivity 100%, Hold time 3s, Daylight threshold disable, Stand-by period 0s. |
|

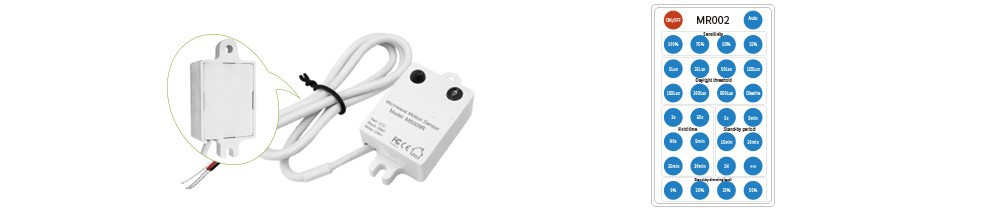

Technical Parameters of The Controller
|
Key |
Function |
|
|
On/Off |
Setting the light permanent ON or OFF without motion mode |
|
|
Auto |
Switch to sensor mode and restore the latest sensor setting |
|
|
Reset |
Turn the sensor in a default setting (3s hold time, 0s stand-by period, lux disable, 100% sensitivity). |
|
|
Power (80%/100%) |
Quick setting the power output in 80% or 100% |
|
|
Brightness (+/-) |
Long press this button to set the power from 20% to 100%, available in permanent ON mode or in sensor mode. |
|
|
Start |
Program Mode |
1. Press Start to program mode, then select the ①Sensitivity ② Hold time ③Standby dimming level ④Standby period ⑤Daylight threshold to setting. 2. Press Memory to save the parameters ①-⑤ had selected in step 1 3. Press Apply to transmit the ①-⑤ parameters to the target sensor. Remark: After press Start, you need to press any of ①-⑤ parameter button within 30S, the time window between press any button is 30S, it will quit program mode if no any button is pressed within 30S. |
|
Memory |
Save Setting |
|
|
Apply |
One Key Apply |
|
|
Sensitivity |
In this area, movement will be detected and able to trigger the sensor. 100% detection area is also known as the strongest sensitivity. |
|
|
Hold Time |
The period of light keeping 100% brightness after moving objects leave the detection area. |
|
|
Stand-by Dimming Level |
The dimming level in the standby period. |
|
|
Stand-by Period |
The period of light keeping low output before it's completely switched off. When it's preset as "+∞", the light always keeps at low output if no movement in the detection area and doesn't turn off. |
|
|
Daylight Threshold |
Definition of the ambient brightness; only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it's preset as "disable", the sensor will detect motion regardless the ambient brightness. |
|

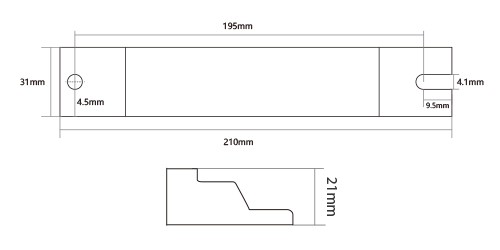

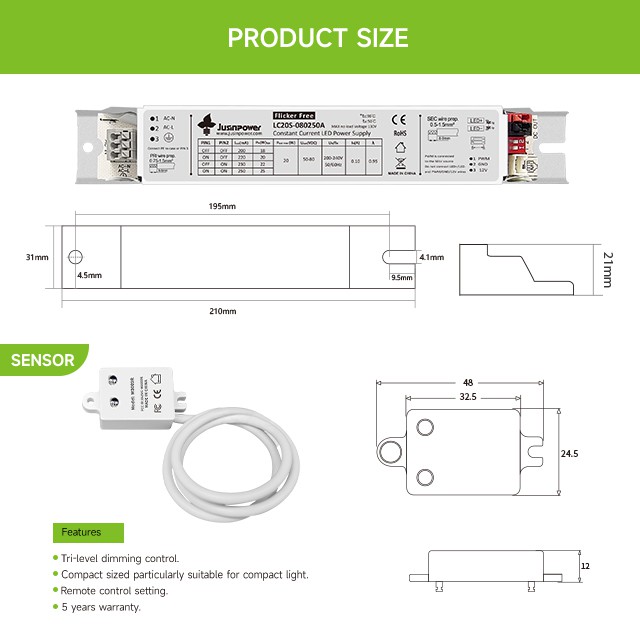

Dimension (mm)
Length: 199mm Width: 31mm Height: 21.5mm

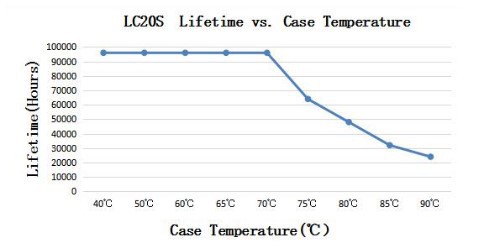

Products Life Curve
When the operating temperature of the drive is between 40℃ and 70℃, its service life can reach 98,000 hours.
Protection Features
1.Input Over Current Protection
The LN series incorporates a primary AC line fuse for input over current protection to prevent damage to the LED driver.
2.Short Circuit and Over Current Protection
The LN series is protected against short-circuit such that a short from any output to retum shall not result in a fire hazard or shock hazardThe driver shall hiccup as a result of a short circuit or over current fault. Removal of the fault will return the diver to within normal operation.The driver shall recover, with no damage, from a short across the output for an indefinite period of time.
3.Internal Over temperature Protection
The LN series has a temperature protection function on the main chip. Drives can hiccup due to excessive temperatures. Lowering thetemperature can return the drive to normal operation.
4.0utput Open Load Protection
When the LED load is removed, the output voltage of the LN series is typically limited to the maximum output voltage of each model
Hot Tags: non-isolated flicker free sensor driver, China non-isolated flicker free sensor driver manufacturers, suppliers, factory, 40W tunable white, fricker free, LED Driver with Adjustable Three Color Temperatures, 3CCT warm light, Non isolated Constant Current Driver with 12V Auxiliary Driver, Smart Tunable White Driver
LC20S
|
Performance |
||
|
Model |
LC20S-800250 |
|
|
Input |
Efficiency |
85%@220Vac full load |
|
Voltage |
200-240Vac |
|
|
Frequency Range(Hz) |
50Hz |
|
|
Power Factor |
≥ 0.95@230Vac full load |
|
|
THD(full load) |
<20%@230Vac full load |
|
|
AC Current(max) |
0.1A@230Vac full load |
|
|
Standby power |
<1W |
|
|
Inrush current (cold engine start) max |
9.8A@230Vac |
|
|
peak value |
10.05A@230Vac |
|
|
Leakage current (max) |
0.11mA |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
50-80Vdc/250mA/20W |
|
Current ripple
|
<5% |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<100V |
|
|
Start Time
|
<1S@230V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Dimming range |
10%-100%(optional) |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
199 mm |
|
Width |
31 mm |
|
Height |
21.5 mm |
|
Mounting Length |
196mm |
|
Weight (g) |
143.5g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE /TUV/3C/CB/SAA certificate |
|

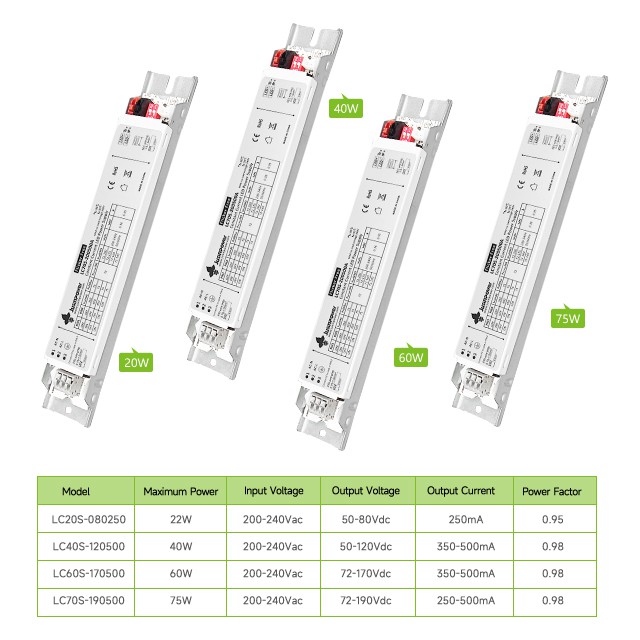

Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC20S-080250 |
22W |
200-240Vac |
50-80Vdc |
250mA |
0.9 |
Adjustable |
84% |
|
LC40S-120500 |
40W |
200-240Vac |
50-120Vdc |
350-500mA |
0.9 |
Adjustable |
89% |
|
LC60S-170500 |
60W |
200-240Vac |
72-170Vdc |
350-500mA |
0.9 |
Adjustable |
92% |
|
LC70S-190500 |
75W |
200-240Vac |
72-190Vdc |
250-500mA |
0.9 |
Adjustable |
92% |
