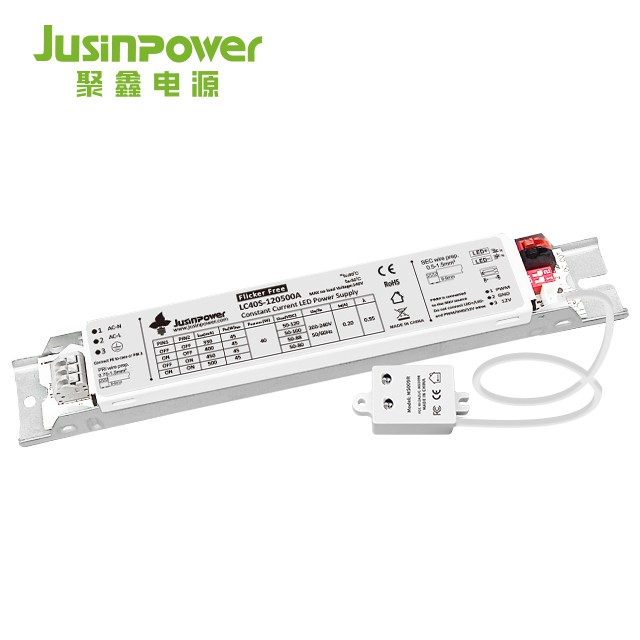

Bipolar Flicker-Free Sensor Driver
It is an efficient LED power supply certified by TUV/CE/CCC/CB/SAA. It features a bipolar flicker-free design that ensures consistent full-spectrum illumination, enhancing clarity and color contrast for human comfort and well-being.
4 levels of
brightness
adjustment
12V auxiliary
power supply
200-240Vac
External sensor
Flicker free
3 Years
warranty

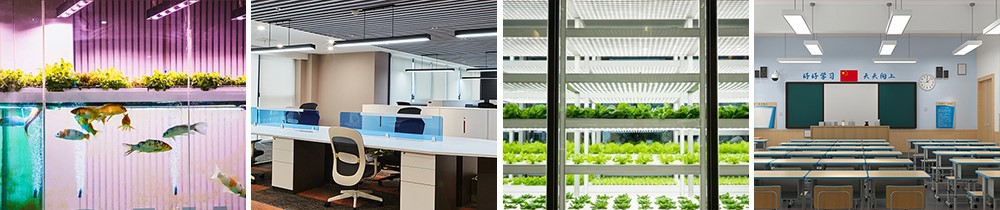

Application Scenario:
Industrial Lighting: Factory, Warehouse, etc.
Commercial Lighting: Office, Supermarket, etc.
Public Lighting: Residence, Hospital, School, Metro station, etc.

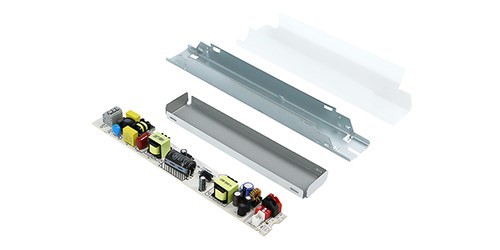

Product Details:
It features a comprehensive two-stage flicker-free design, providing better eye protection during study and work.

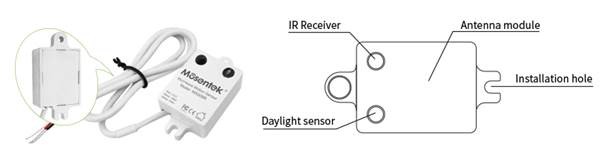

About The Sensor Module

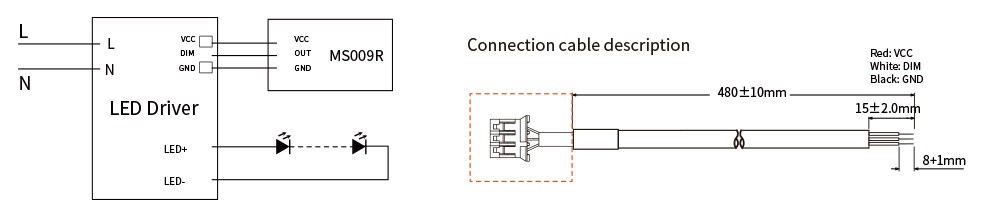

Wiring Diagram
The two ends of the product are connected, one end is the AC input terminal, the other end is the DC output and dimming signal input terminal, LED+ and LED- are connected to the positive and negative poles of the LED light respectively; DIM is connected to 0-10V; GND Ground.

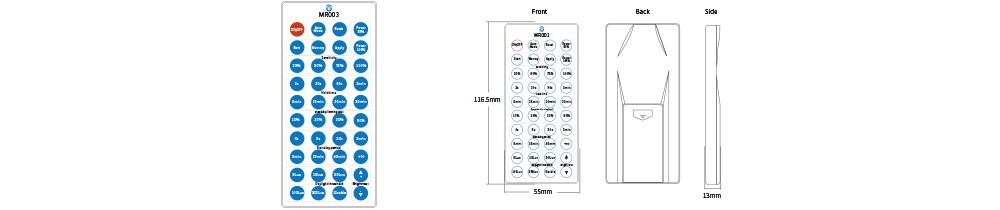

About The Controller Module-Programmable One Key Commission Remote Controller

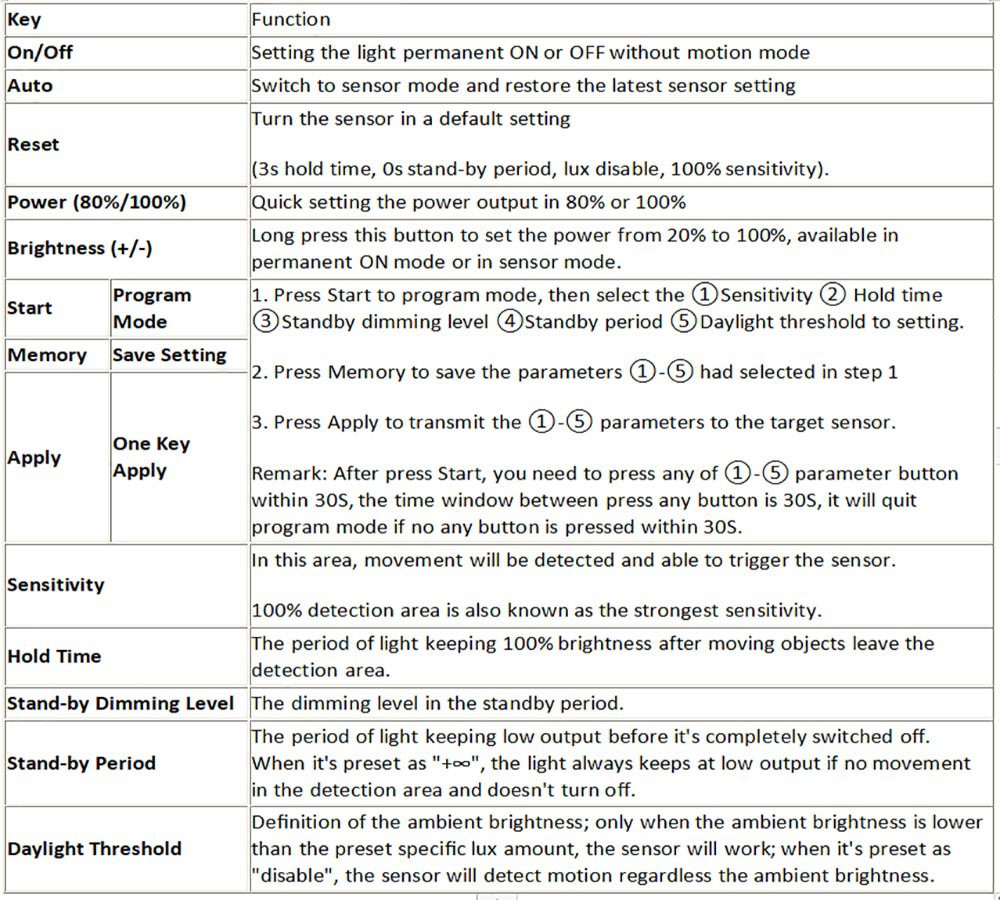

Technical Parameters of The Controller
Electrical characteristic:
Hot Tags: bipolar flicker-free sensor driver, China bipolar flicker-free sensor driver manufacturers, suppliers, factory, thin led light fixtures, 1 10V dimmer, No flicker led driver, Long Strip Smart Dimming LED Driver, FCC certification, 40 power source
LC40S
|
Performance |
||
|
Model |
LC40S-120500 |
|
|
Input |

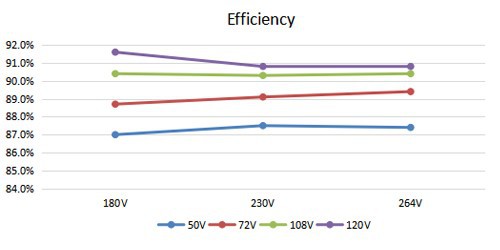

Efficiency |
90%@220Vac full load |
|
Voltage |
200-240Vac |
|
|
Frequency Range(Hz) |
50Hz |
|
|
Power Factor |
≥ 0.95@230Vac full load |
|
|
THD(full load) |
<10%@230Vac full load |
|
|
AC Current(max) |
0.23A@230Vac full load |
|
|
Standby power |
<1w |
|
|
Inrush current (cold engine start) max |
10.27A@230Vac |
|
|
peak value |
11.22A@230Vac |
|
|
Leakage current (max) |
0.09mA |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
50-120Vdc/500mA/40W |
|
Current ripple |
<5% |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<140V |
|
|
Start Time |
<1S@230V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Dimming range |
10%-100%(optional) |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|

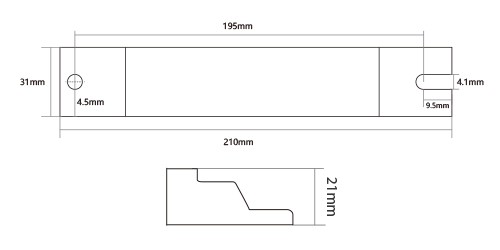

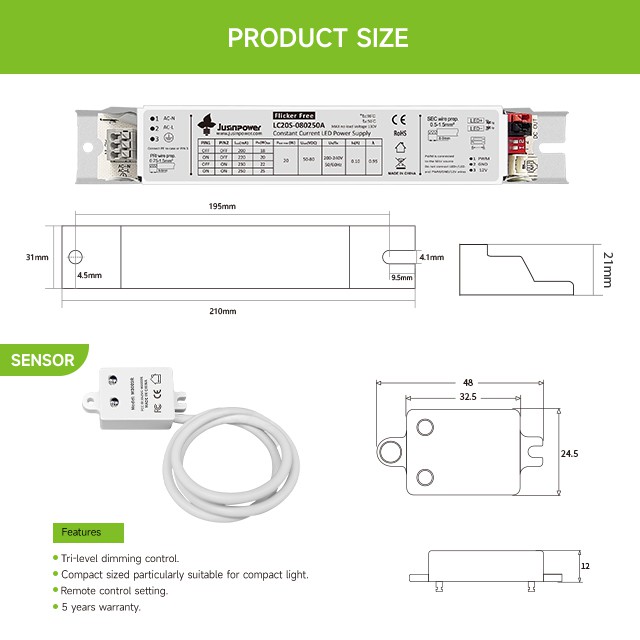

Physical |
|
|
Length |
199 mm |
|
Width |
31 mm |
|
Height |
21.5 mm |
|
Mounting Length |
196mm |
|
Weight (g) |
141.5g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|

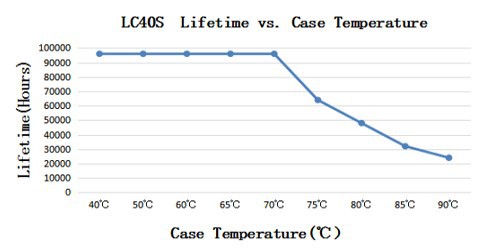

Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE /TUV/3C/CB/SAA certificate |
|

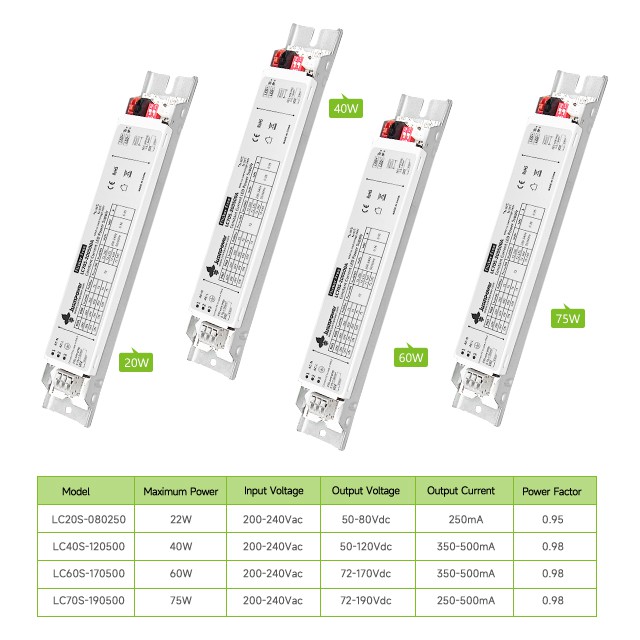

Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC20S-080250 |
22W |
200-240Vac |
50-80Vdc |
250mA |
0.9 |
Adjustable |
84% |
|
LC40S-120500 |
40W |
200-240Vac |
50-120Vdc |
350-500mA |
0.9 |
Adjustable |
89% |
|
LC60S-170500 |
60W |
200-240Vac |
72-170Vdc |
350-500mA |
0.9 |
Adjustable |
92% |
|
LC70S-190500 |
75W |
200-240Vac |
72-190Vdc |
250-500mA |
0.9 |
Adjustable |
92% |
