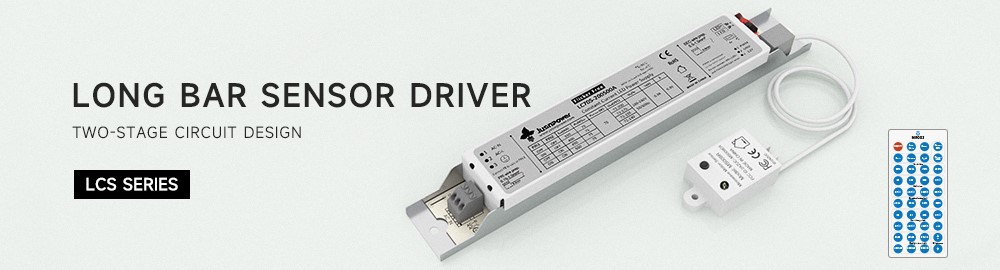

Long Bar Sensor Driver
The long bar sensor driver is a single-voltage input non-isolated induction power supply. It is designed with a long metal shell and has good heat dissipation function, which greatly improves the reliability of the product and prolongs the service life. It features a two-stage circuit design, and its slim size makes it ideal for narrow assembly spaces.
4 levels of
brightness
adjustment
12V auxiliary
power supply
200-240Vac
External sensor
Flicker free
3 Years
warranty
1. Slim size
2. Long metal case
3. Two-stage circuit design
4. Suitable for narrow spaces
Application Scenario:

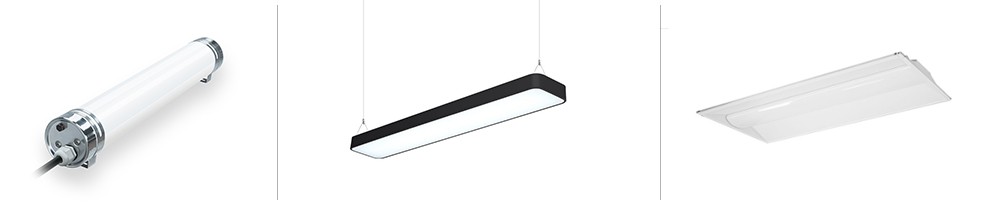

The long bar sensor drivers are are compatible with a range of fixtures, including tri-proof lights, linear lights, grille lights, and more.
Product Details:

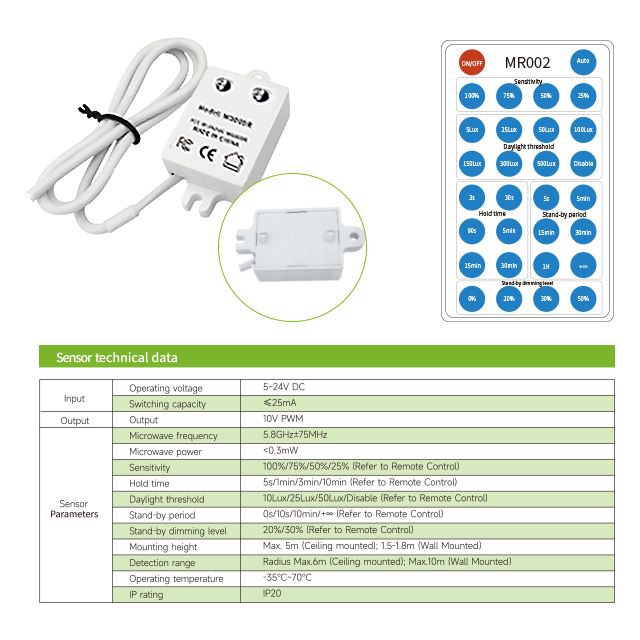

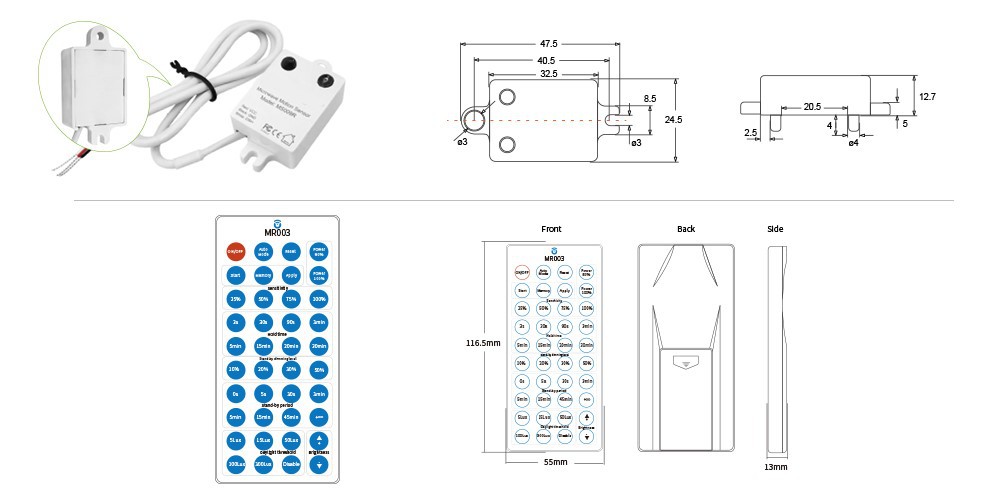

About The Sensor and Controller Module-Programmable One-Key Commission Remote Control

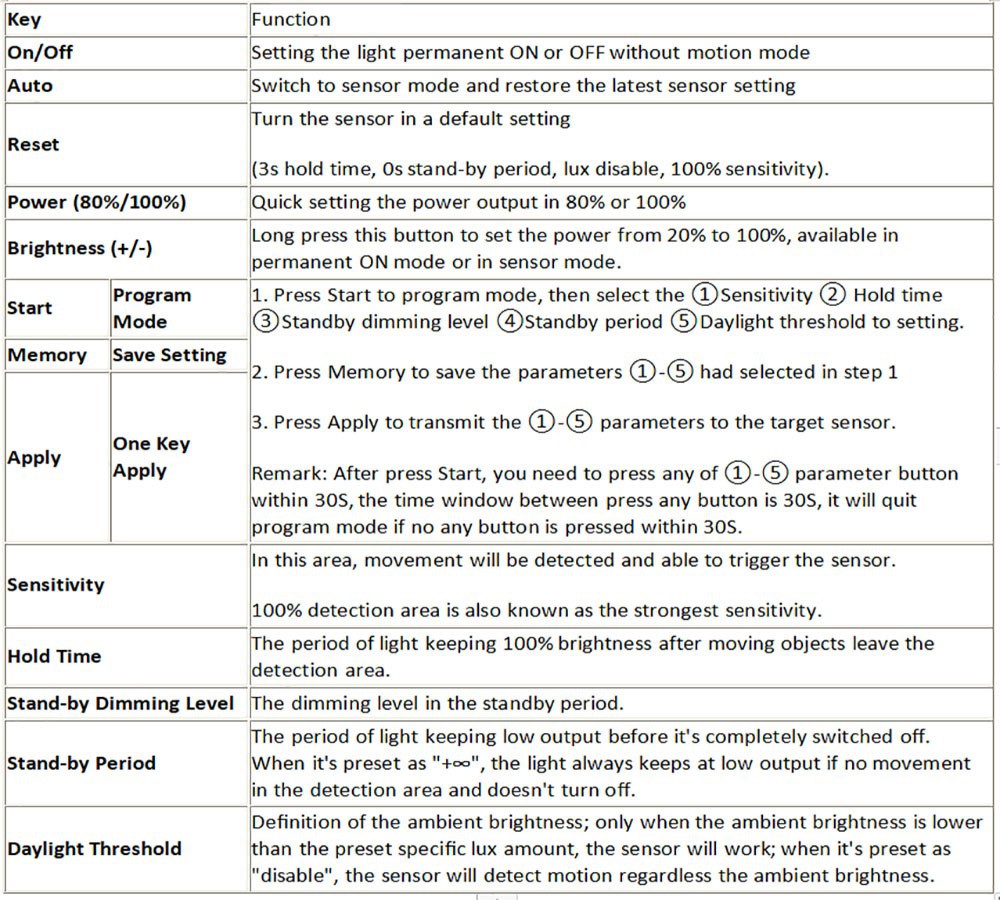

Technical Parameters of The Controller
|
|
|
|
|
|
Electrical Characteristic:
Hot Tags: long bar sensor driver, China long bar sensor driver manufacturers, suppliers, factory, Dimmable LED Driver, Low level dimming, Non segregated driver, push dimming, wiring 0 10v dimming led, 230Vac input
LC40S
|
Performance |
||
|
Model |
LC40S-120500 |
|
|
Input |
Efficiency |
90%@220Vac full load |
|
Voltage |
200-240Vac |
|
|
Frequency Range(Hz) |
50Hz |
|
|

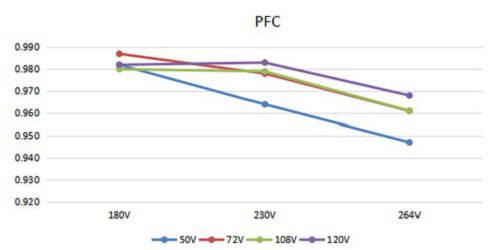

Power Factor |
≥ 0.95@230Vac full load |
|
|

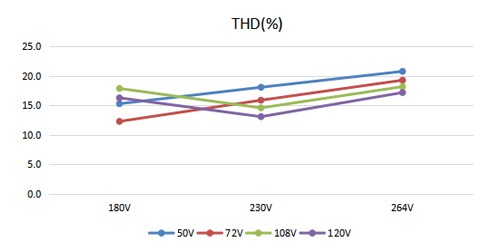

THD(full load) |
<10%@230Vac full load |
|
|
AC Current(max) |
0.23A@230Vac full load |
|
|
Standby power |
<1w |
|
|
Inrush current (cold engine start) max |
10.27A@230Vac |
|
|
peak value |
11.22A@230Vac |
|
|
Leakage current (max) |
0.09mA |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
50-120Vdc/500mA/40W |
|
Current ripple |
<5% |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<140V |
|
|
Start Time |
<1S@230V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Dimming range |
10%-100%(optional) |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|

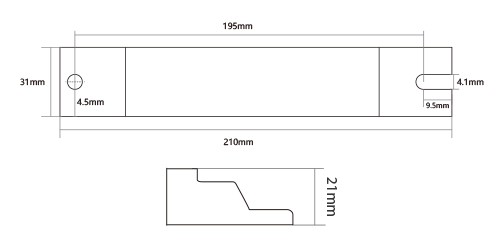

Physical |
|
|
Length |
199 mm |
|
Width |
31 mm |
|
Height |
21.5 mm |
|
Mounting Length |
196mm |
|
Weight (g) |
141.5g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|

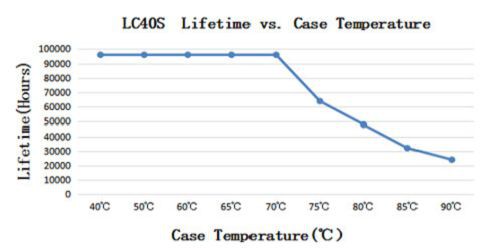

Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE /TUV/3C/CB/SAA certificate |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC20S-080250 |
22W |
200-240Vac |
50-80Vdc |
250mA |
0.9 |
Adjustable |
84% |
|
LC40S-120500 |
40W |
200-240Vac |
50-120Vdc |
350-500mA |
0.9 |
Adjustable |
89% |
|
LC60S-170500 |
60W |
200-240Vac |
72-170Vdc |
350-500mA |
0.9 |
Adjustable |
92% |
|
LC70S-190500 |
75W |
200-240Vac |
72-190Vdc |
250-500mA |
0.9 |
Adjustable |
92% |
