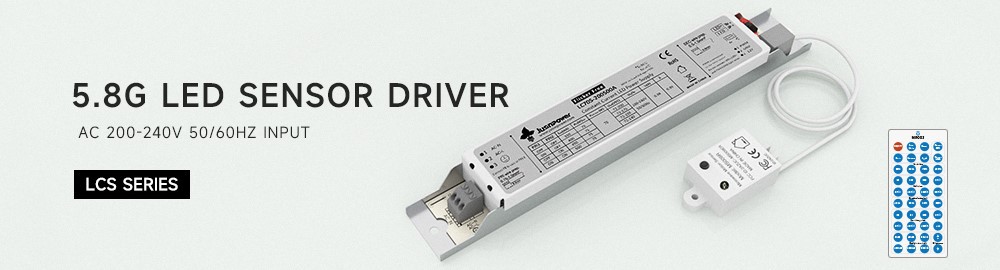

5.8G LED Sensor Driver
The 5.8g LED sensor driver is equipped with a 12V auxiliary power supply and a microwave sensor, offering seamless compatibility with diverse intelligent modules and sensors. With infrared remote control, lamp parameters can be individually set without the need for code pairing, enhancing control convenience and widening the range. Users can independently select the output current via the DIP switch.
The main function of this driver is maintaining a constant and adequate light inside the cabin also when the people is inside or the lift shutdown.
An integrated sensor switch on the lamp to 100% when the elevator is running and detects the presence of people, while when it is stationary and doesn't detects any presence automatically the flow drops to 10% - 20% - 30% - 50% according to the setting set.
4 levels of
brightness
adjustment
12V auxiliary
power supply
200-240Vac
External sensor
Flicker free
3 Years
warranty
1. 5.8GHz microwave motion sensor with dimmable function
2. Constant current output
3. AC 200-240V 50/60Hz input
Application Scenario:

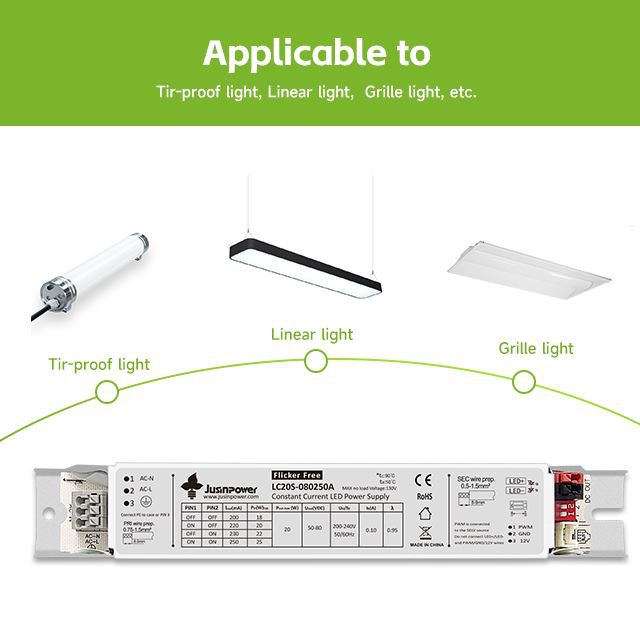

5.8G LED sensor driver is compatible with various fixtures like tri-proof lights, linear lights, and grille lights. It finds applications in areas such as parking lots, warehouses, corridors, and similar environments.

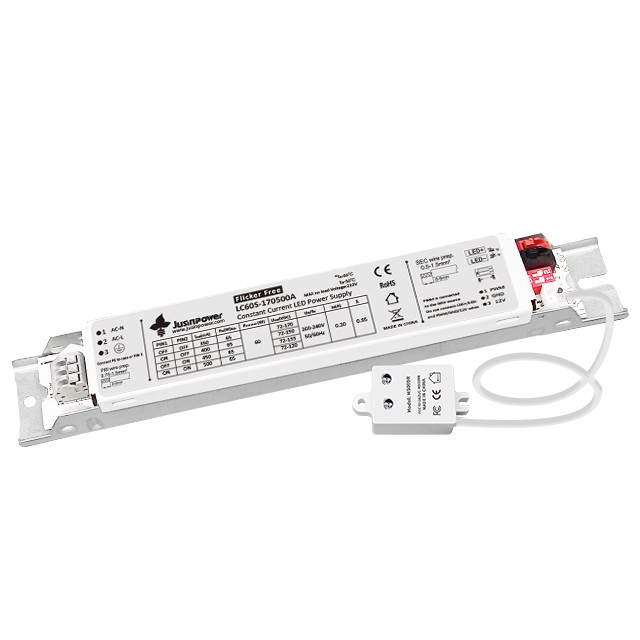

Product Details:

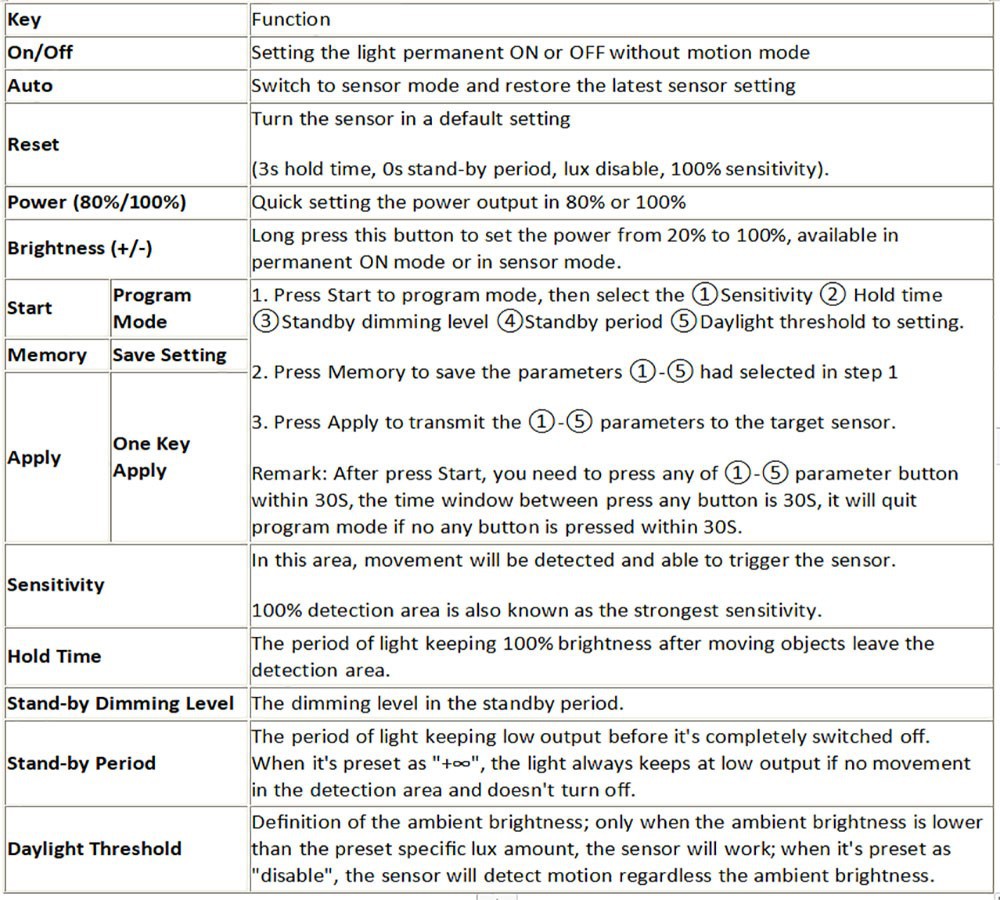

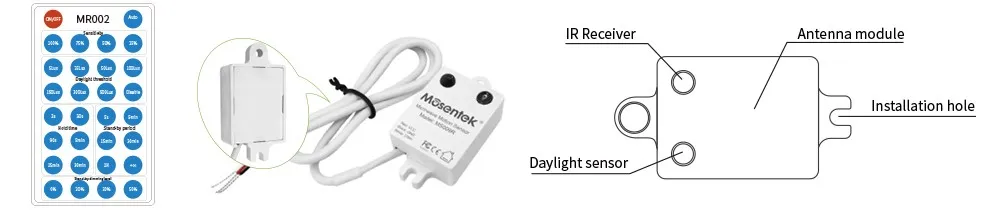

About The Specifications and Parameters of The Sensor Module and Controller in The Driver

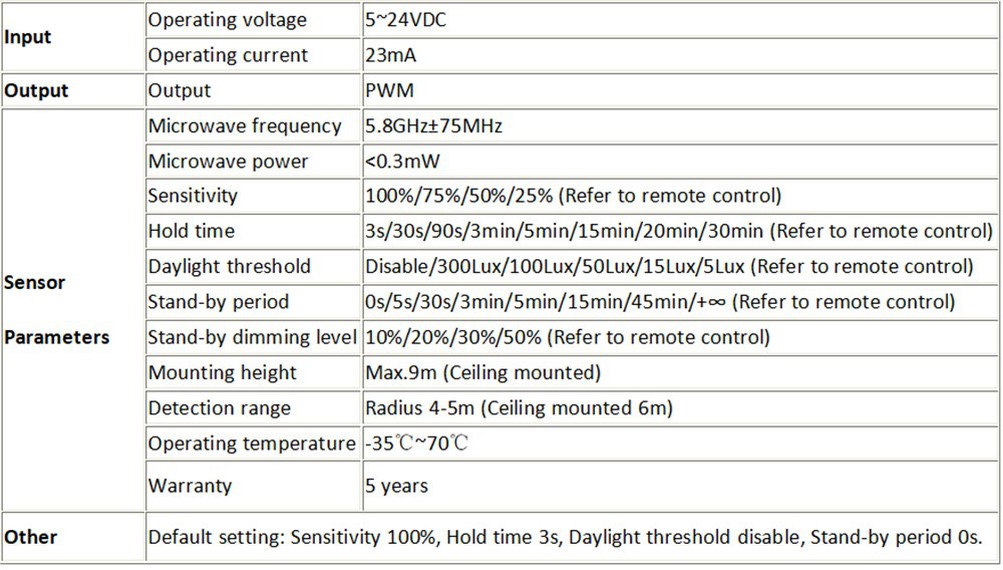

Sensor Technical Parameters
Technical Parameters of The Controller

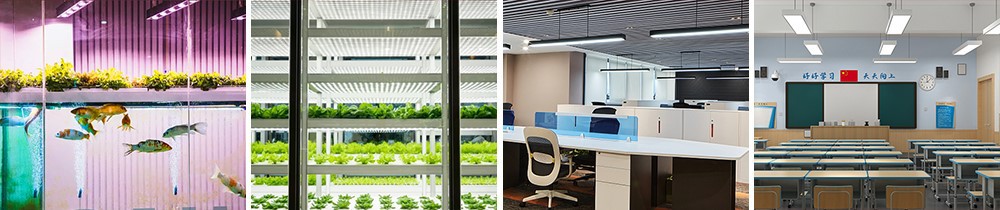

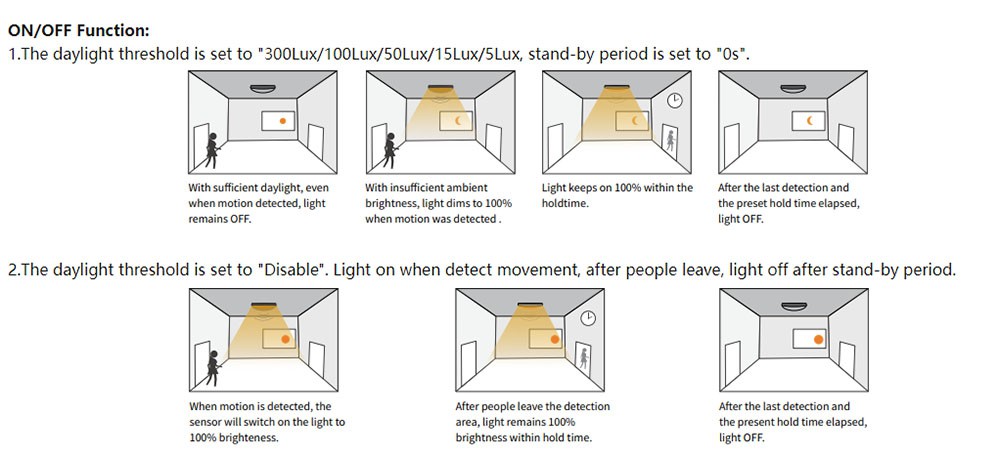

Application

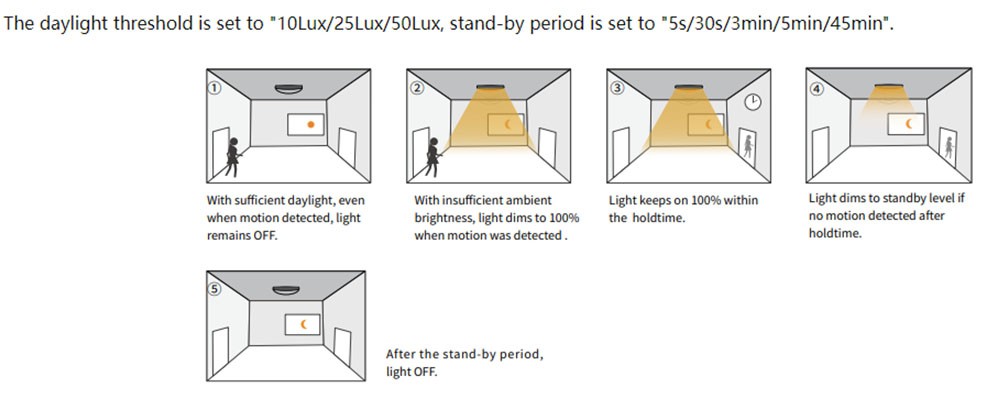

Dimmable Control/Corridor Function:

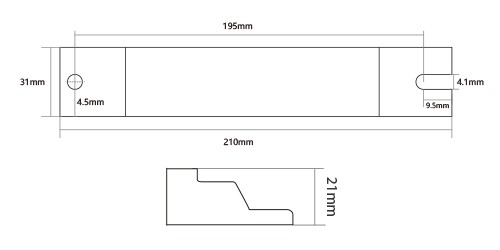

Dimension (mm)
Length: 199mm Width: 31mm Height: 21.5mm
Hot Tags: 5.8g LED sensor driver, China 5.8g LED sensor driver manufacturers, suppliers, factory, led panel driver, 120-277Vac, DIP adjustment, Double Dial To Adjust The Color Temperature Driver, 1000mA led driver, wifi lamp
LC60S
|
Performance |
||
|
Model |
LC60S-170500 |
|
|
Input |
Efficiency |
93%@220Vac full load |
|
Voltage |
200-240Vac |
|
|
Frequency Range(Hz) |
50Hz |
|
|
Power Factor |
≥ 0.95@230Vac full load |
|
|
THD(full load) |
<10%@230Vac full load |
|
|
AC Current(max) |
0.33A@230Vac full load |
|
|
Standby power |
<1W |
|
|
Inrush current (cold engine start) max |
9.12A@230Vac |
|
|
peak value |
10.05A@230Vac |
|
|
Leakage current (max) |
0.09mA |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
72-170Vdc/500mA/60W |
|
Current ripple |
<10% |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<190V |
|
|
Start Time |
<1S@230V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Dimming range |
10%-100%(optional) |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
199 mm |
|
Width |
31 mm |
|
Height |
21.5 mm |
|
Mounting Length |
196mm |
|
Weight (g) |
159.5g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE /TUV/3C/CB/SAA certificate |
|

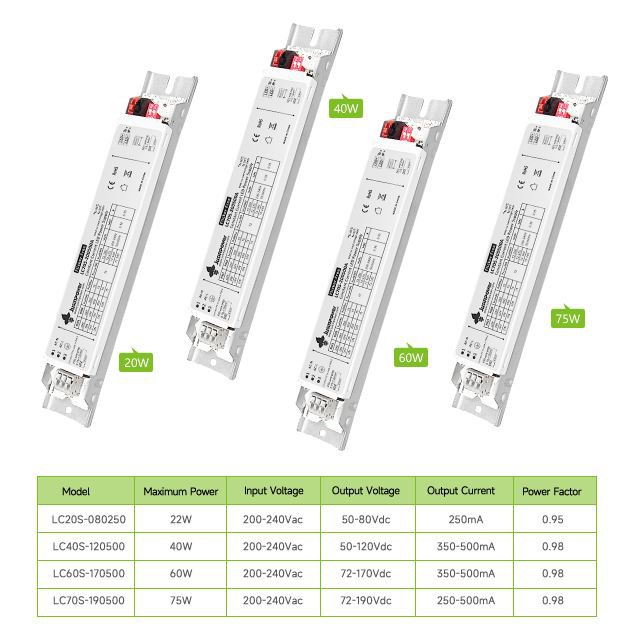

Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC20S-080250 |
22W |
200-240Vac |
50-80Vdc |
250mA |
0.9 |
Adjustable |
84% |
|
LC40S-120500 |
40W |
200-240Vac |
50-120Vdc |
350-500mA |
0.9 |
Adjustable |
89% |
|
LC60S-170500 |
60W |
200-240Vac |
72-170Vdc |
350-500mA |
0.9 |
Adjustable |
92% |
|
LC70S-190500 |
75W |
200-240Vac |
72-190Vdc |
250-500mA |
0.9 |
Adjustable |
92% |
OEM/ODM
Jusinpower team has been specializing in the design and manufacturing services of LED driver and customized products for 12 years. We can provide OEM&ODM service. According to the customer's lamp structure,required functions, parameters, certification, etc., we provide a full set of design, manufacturing and after-sales services.
OEM/ODM Service flow
1.New Project: Overall project discussion product specification definition estimate cost quotation.According to your specific needs, we can develop personalized solutions that are different from conventional standards.
2.R&D Design: research and design of the prototype.Prototype functional test and verification. We have a professional R&D team and engineers of about 20 people who can provide you with full-process services from concept design to product prototype production.
3. Sample Release: Get customer sample approval-final modification
4. Mass Production: Logistics services and Provide after-sales service
Advantage
CUTTING-EDGE: Shenzhen Jusin Technology Co, Ltd, established in2012, is a national high-tech enter-is a national high-tech enter-development, production,sales and service of LED driver.
RELIABLE: A reliable partner that delivers outstanding and solid LED outstanding and driver power.
PROFESSIONAL: A professional and experienced R&D and guaranteed the excellent products.
Certificate
Have passed the "ISO9001:2015" quality management system certification and national High-tech enterprise certificate.
The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, CE, CB, SAA, FCC, CCC.
