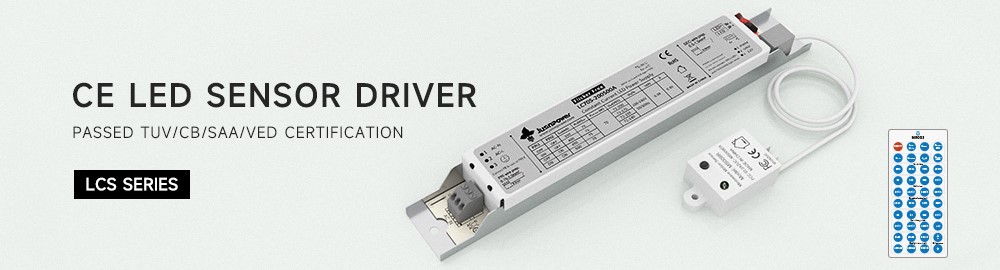

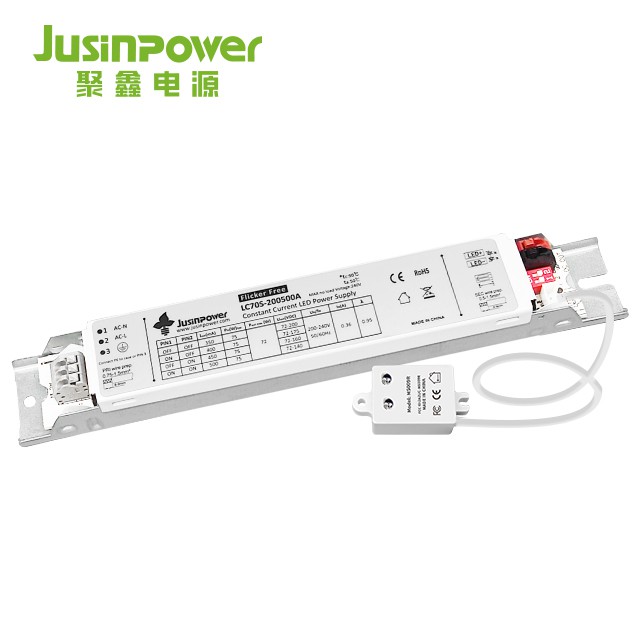

CE LED Sensor Driver
The CE led sensor driver is a led power supply with an input voltage of 200-240Vac suitable for the European market. It has passed TUV/CB/SAA/VED certification, with a maximum efficiency of 93%, low harmonics of 10%, PF>0.95, and a wide output voltage range 50-190Vdc.
A device comprising an LED driver and motion sensor is designed for all LED sources driven by constant current.
Its primary purpose is to ensure consistent and sufficient lighting within the cabin, even when occupied or during lift shutdown.
The integrated sensor activates the lamp to 100% brightness when the elevator is in operation and detects the presence of individuals. Conversely, when the elevator is stationary and no presence is detected, the light intensity automatically decreases to preset levels of 10%, 20%, 30%, or 50% based on the configured settings.
4 levels of
brightness
adjustment
12V auxiliary
power supply
200-240Vac
External sensor
Flicker free
3 Years
warranty
1. Input Voltage 200-240Vac
2. Suitable for EU market
3. Passed TUV/CB/SAA/VED certification

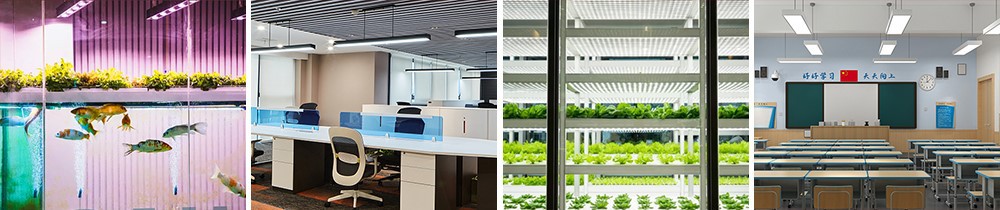

Application Scenario:
Industrial Lighting: Factory, Warehouse, etc.
Commercial Lighting: Office, Supermarket, etc.
Public Lighting: Residence, Hospital, School, Metro station, etc.

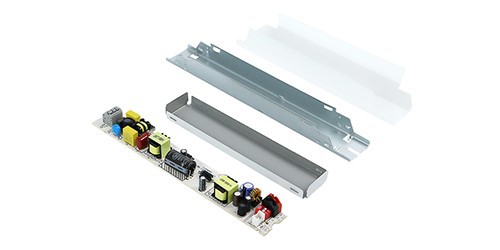

Product Details:

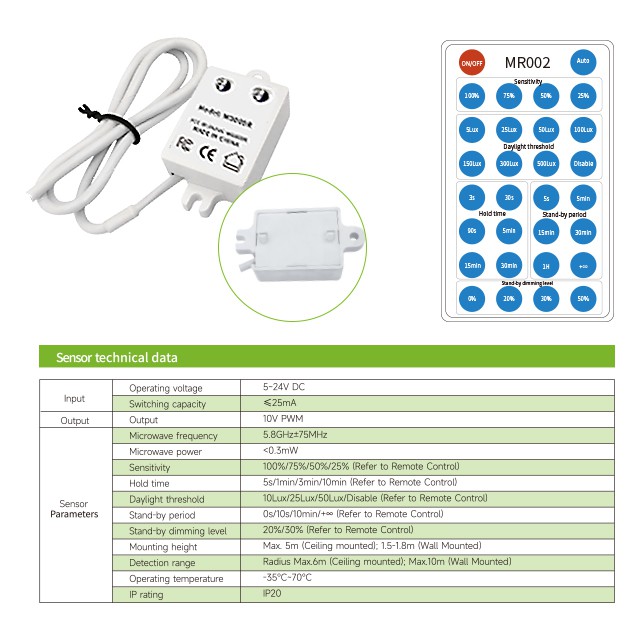

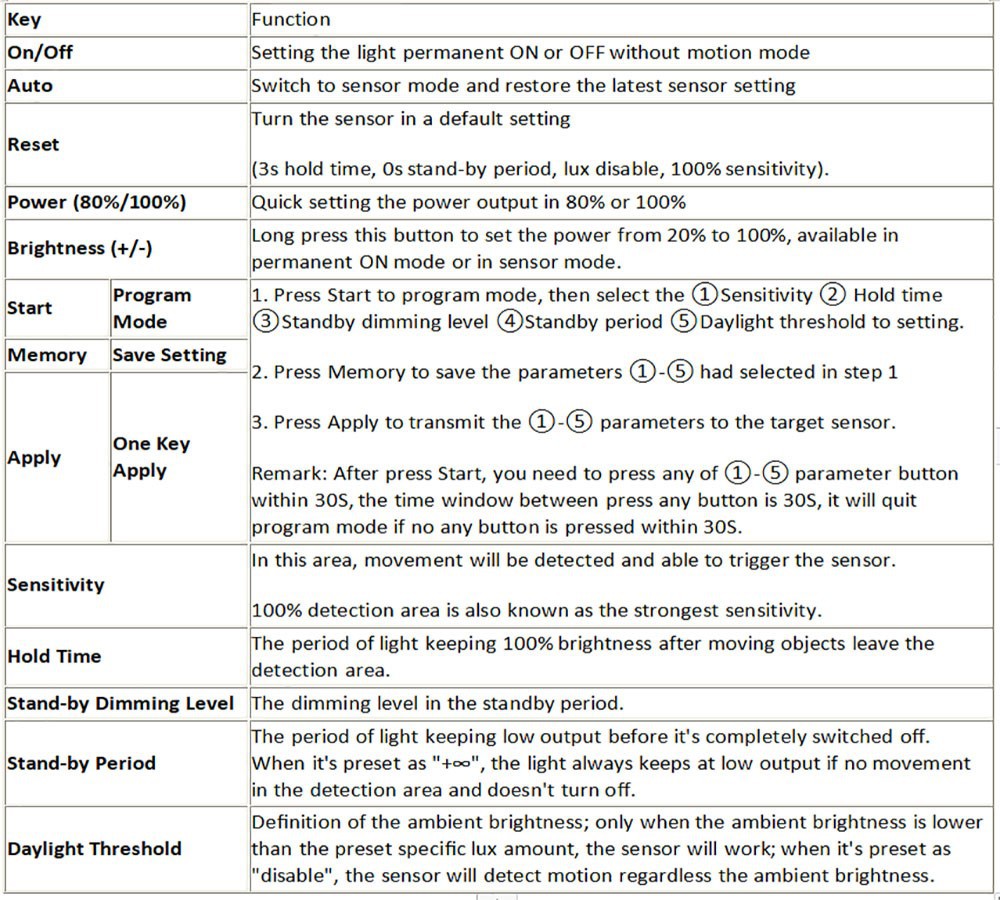

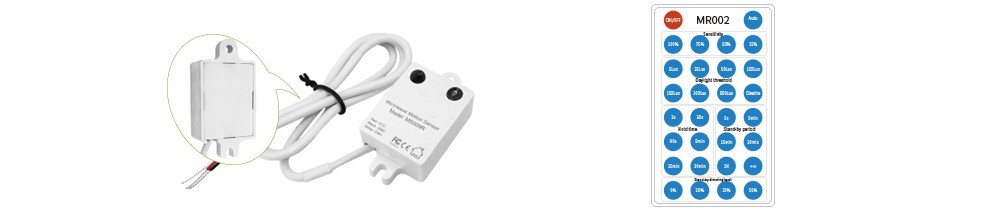

Concerning The Sensor Module and Controller Specifications within the Driver
Technical Parameters of The Controller

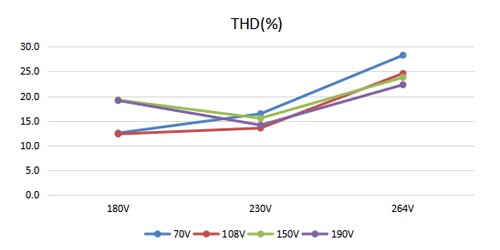

Electrical characteristic:
Hot Tags: ce LED sensor driver, China ce LED sensor driver manufacturers, suppliers, factory, 4500k dimmable, slim led strip driver, long strip driver, UL CUL FCC, Maximum voltage 347V, 4500K medium brightness
LC75S
|
Performance |
||
|
Model |
LC70S-190500 |
|
|
Input |

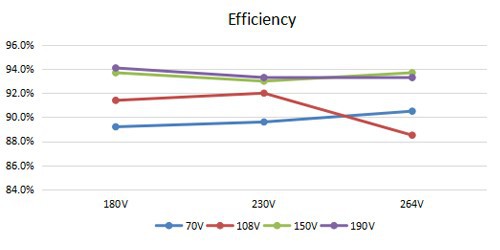

Efficiency |
93%@220Vac full load |
|
Voltage |
200-240Vac |
|
|
Frequency Range(Hz) |
50Hz |
|
|
Power Factor |
≥ 0.95@230Vac full load |
|
|
THD(full load) |
<10%@230Vac full load |
|
|
AC Current(max) |
0.38A@230Vac full load |
|
|
Standby power |
<1W |
|
|
Inrush current (cold engine start) max |
9.71A@230Vac |
|
|
Peak Vaule |
10.17A@230Vac |
|
|
Leakage current (max) |
0.08mA |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
72-190Vdc/500mA/60W |
|
Current ripple |
<5% |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<210V |
|
|
Start Time
|
<1S@230V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Dimming range |
10%-100%(optional) |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|

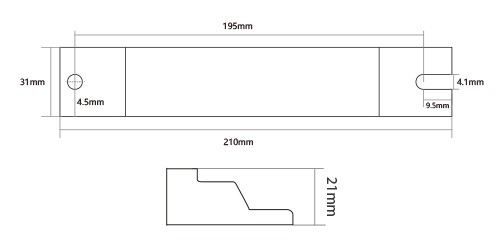

Physical |
|
|
Length |
199 mm |
|
Width |
31 mm |
|
Height |
21.5 mm |
|
Mounting Length |
196mm |
|
Weight (g) |
150.5g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE /TUV/CCC/CB/SAA certificate |
|

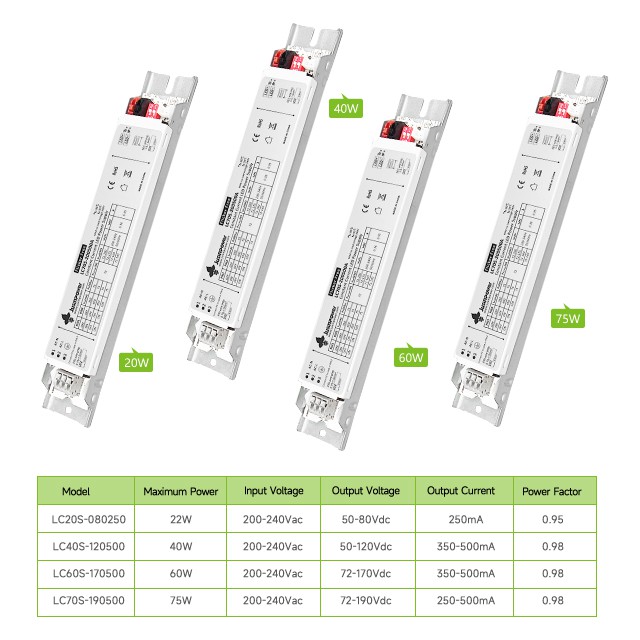

Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC20S |
22W |
200-240Vac |
50-80Vdc |
250mA |
0.9 |
Adjustable |
84% |
|
LC40S |
40W |
200-240Vac |
50-120Vdc |
350-500mA |
0.9 |
Adjustable |
89% |
|
LC60S |
60W |
200-240Vac |
72-170Vdc |
350-500mA |
0.9 |
Adjustable |
92% |
|
LC70S |
75W |
200-240Vac |
72-190Vdc |
250-500mA |
0.9 |
Adjustable |
92% |
