Your Professional Non-Isolated Tube Driver Supplier
Shenzhen Jusin Technology Co., Ltd. is a nationally recognized high-tech enterprise specializing in the research, development, production, sales, and service of LED drivers. Our product portfolio includes Sensor Drivers, Dimmable LED Drivers, Linear 0-10V LED Drivers, Emergency LED Drivers, Constant Voltage LED Drivers, and more.
Customization Services (ODM/OEM)
The JusinPower team has over 13 years of expertise in designing and manufacturing LED drivers as well as providing customized solutions. In addition to Original Equipment Manufacturing (OEM), we also offer Original Design Manufacturing (ODM) services to meet diverse customer requirements.
Cutting-Edge Technology
In its early stages, our founding team focused on researching and developing management chips for LED drivers, thereby mastering core technologies in this field. We have successfully obtained numerous patents and software copyrights, demonstrating our commitment to innovation and technological advancement.
Comprehensive Certifications
Our products comply with multiple international certifications, including China CCC, UL, TUV, CE, CB, SAA, among others. Furthermore, we have achieved "ISO9001:2015" quality management system certification, ensuring consistent product quality and reliability.
Expert Team
Our team comprises seasoned professionals with an average of 10 years of experience in the LED lighting industry. With expertise spanning electronic engineering, optical design, and lighting engineering, we are equipped to deliver comprehensive technical support and tailored solutions to our clients.
Specifications
|
Model |
Max power |
Input voltage |
Output voltage |
Output current |
Efficiency |
Power factor |
Size(mm) |
Meet with |
Remark |
|
T025W |
25W |
100-277Vac |
52-72Vdc |
≤300mA |
0.92 |
0.92 |
L216*W17*H11 |
EMC |
Flicker free |
|
T028W |
32W |
110-277Vac |
52-72Vdc |
≤450mA |
0.91 |
0.95 |
L230*W17.2*H11 |
EMC |
Flicker free |
|
T026 |
56W |
100-240Vac |
52-72Vdc |
≤800mA |
0.92 |
0.95 |
L330*W17.2*H10 |
EMC |
Flicker free |
|
T026W |
50W |
100-277Vac |
52-70Vdc |
≤800mA |
0.92 |
0.95 |
L470*W19*H10 |
EMC |
Flicker free |
Environmental Requirements for Non-Isolated Tube Driver
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-20°C to 85°C |
|
Surge protection |
L-N 0.5KV |
|
Surge protection(Optional) |
2.5KV(T025S Model ) |
|
Product Net Weight |
22g |
Types of Non-Isolated Tube Driver
The non-isolated tube drivers produced by our company mainly include the following types:

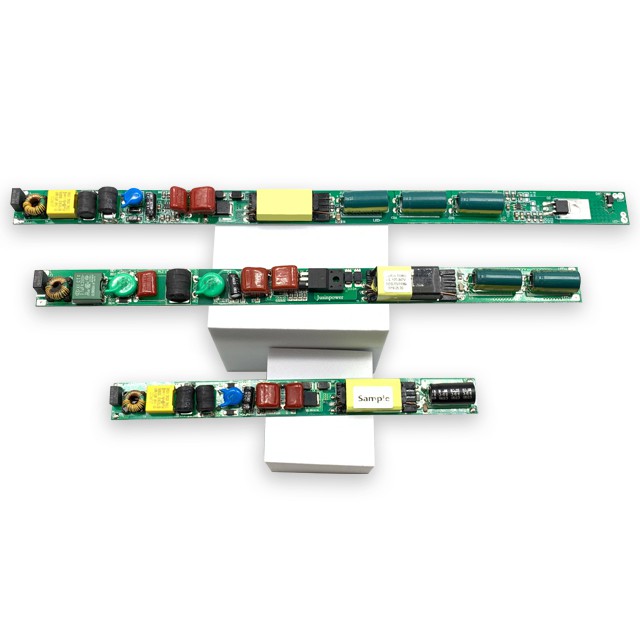

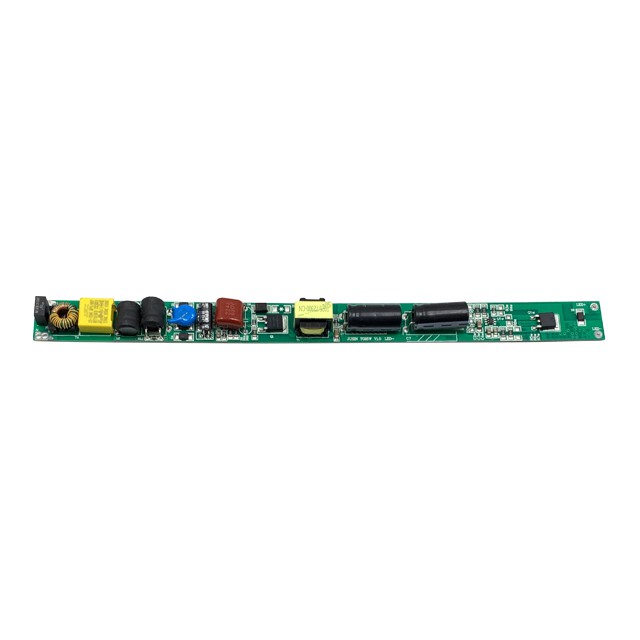

Non-Isolated Driver For Linear Lights
This driver is designed specifically for linear lights and is compliant with EMC standards. It has a wide input voltage range and offers full protection against potential electrical hazards.

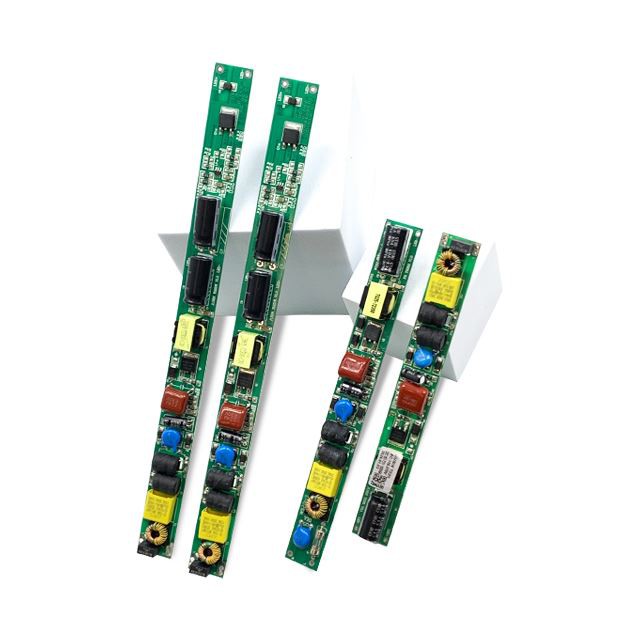

Flicker Free Non-Isolated Tube Driver
With an input range from 100-277VAC, this LED driver provides reliable performance and eliminates the annoying flicker associated with many other drivers.

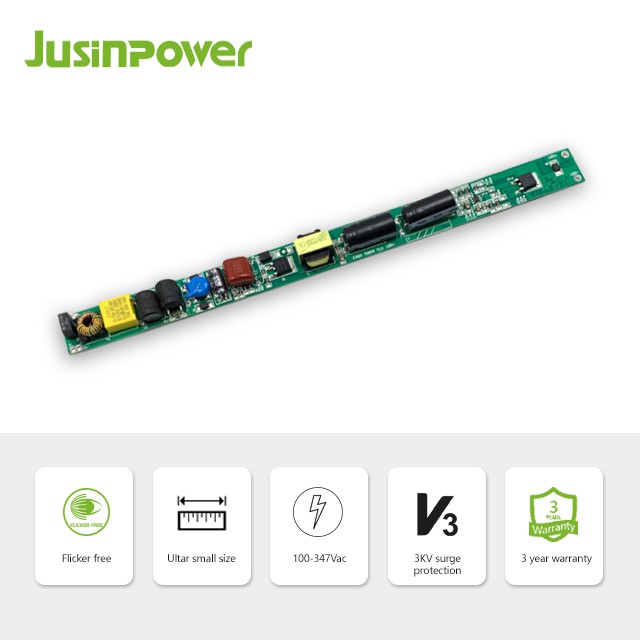

Slim Non-Isolated Tube Driver

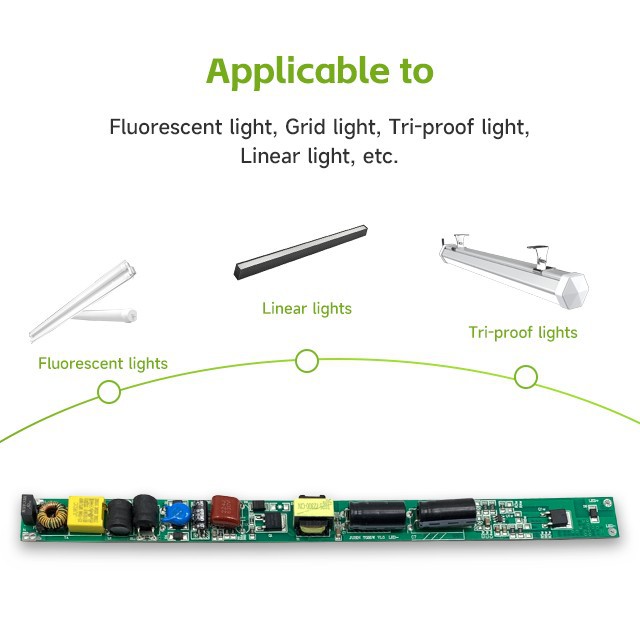

Ultra-thin non-isolated tube driver that caters to a wide range of lighting needs, such as fluorescent lamps, grille lights, tri-proof lamps, and linear light.
Advantages of Non-Isolated Tube Driver
Cost-effective
One of the major benefits of non-isolated tube drivers is their cost-effectiveness. Non-isolated drivers do not require any isolation transformer or other peripheral components, which makes them a cheaper option for many LED lighting applications.
Smaller size
Non-isolated tube drivers are smaller and lighter than isolated drivers, making them easier to be integrated into a wide range of LED lighting fixtures. This can be especially beneficial in space-limited applications, such as moving lighting or portable lighting devices.
Higher efficiency
Non-isolated tube drivers are more efficient than isolated ones, creating less energy loss or lower operating costs. This is due to the removal of the isolation transformer, which can create extra electrical losses and reduce efficiency.
Easy integration
Thanks to the faster response to the dimming control signal, non-isolated tube drivers are easy to integrate with a wider range of control and dimming systems, making them a versatile option for many LED lighting applications.
Lower EMI
Non-isolated tube drivers are typically less sensitive to electromagnetic interference (EMI) than isolated drivers, because the isolation transformer in isolated drivers creates more EMI that can interfere with external electronics or systems. Non-isolated drivers do not have this issue, making them a better choice in applications where EMI is a concern.
Better thermal management
Non-isolated tube drivers typically have better thermal management than isolated drivers because they do not require the extra space needed for the isolation transformer, which can lead to better heat dissipation and a longer lifespan for the driver.
Precautions for Using Non-Isolated Tube Drivers
Efficiency and thermal. Non-isolated drivers have the advantage of efficiency compared with conventional isolated drivers. But it does not mean efficiency is not important. Better efficiency means lower power loss and less heat generation thus the LED driver can have a longer life and higher reliability with a better thermal situation.
Dimming performance. Using a lower-cost driver does not mean we have to sacrifice performance. Smooth dimming with either 0-10V or DALI or DMX control compatibility is important for stadium lights, especially the fast dimming response.
Find the right input voltage range for different countries.
Try to use the high LED voltage to achieve the best efficiency.
Utilize the LED board with higher insulation. 3kV insulation voltage is suggested.
Do adequate insulation for the whole luminaire to make sure that all the points that can be touched by the human body are safe and able to pass the insulation test.
New Project
Overall project discussion product specification definition estimate cost quotation.According to your specific needs, we can develop personalized solutions that are different from conventional standards.
R&D Design
Research and design of the prototype. Prototype functional test and verification.
Sample Release
Get customer sample approval-final modification.
Mass Production
Logistics services and Provide after-sales service.
Packaging and Shipping
|
Packaging |
Standard export packing, or customized packing as your request .From production to shipment of a series of processes, we will carry out strict inspection over and over again to ensure the quality of goods. Bare board series of products we will set a layer of blister protection shell, to ensure that the goods are not damaged during transportation. |
|
Shipping |
We have a variety of shipping options to choose from:express(DHL, FEDEX, UPS, TNT, EMS）air, sea. If your order is not big, we can send them to you by TNT, DHL, FEDEX, UPS or EMS etc. If your order is big, we'll advise you to use Air or Sea shipping through your nominated forwarder agent. Our long-term cooperated agent is also available. |
We have a 4000 square meter factory in Foshan high-tech Zone for production. Now have 3 patch production lines and 3 plug-in production lines. The production line of about 100 employees, able to reach 5 million shipments per year!
Our Certificates
FAQ
As one of the most professional non-isolated tube driver manufacturers and suppliers in China, we're featured by quality products and good service. Please rest assured to wholesale customized non-isolated tube driver from our factory.
