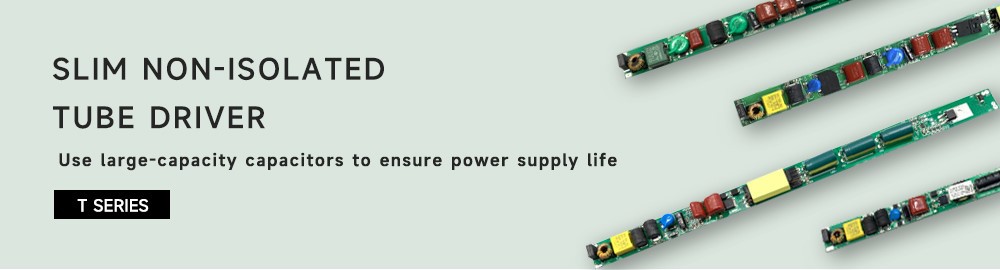

Slim Non-isolated Tube Driver

Ultra-thin non-isolated tube driver that caters to a wide range of lighting needs, such as fluorescent lamps, grille lights, tri-proof lamps, and linear light. The driver is designed to ensure a flicker-free experience, providing consistent and reliable lighting for long-term use.

Top Features and Benefits:


Ultra small thin	Short circuit protection	Over temperature protection	Over voltage protection

1.No flicker

2.Suit for T5,T8,T10 tube light

3.High-performance

4.Use large-capacity capacitors to ensure power supply life

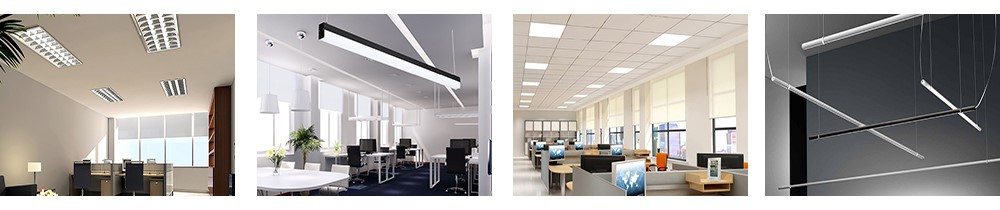

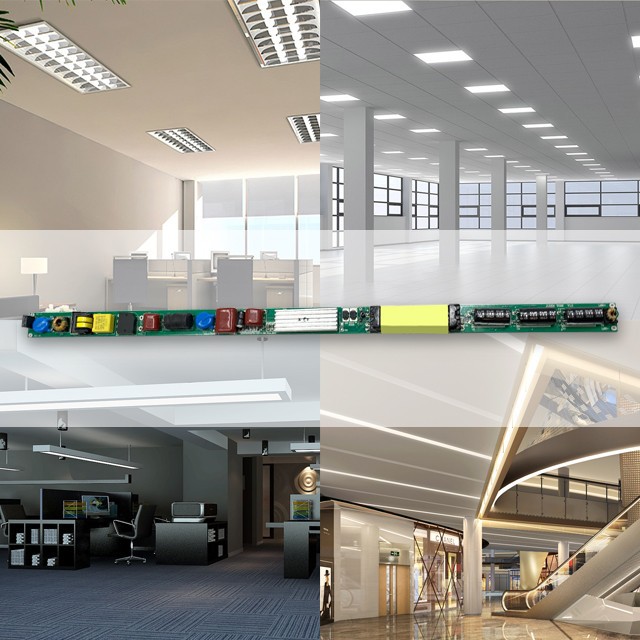

Application Scenario:

The built-in linear driver is ideal for a variety of lighting scenarios and applications utilizing LED strips.

product-1000-210

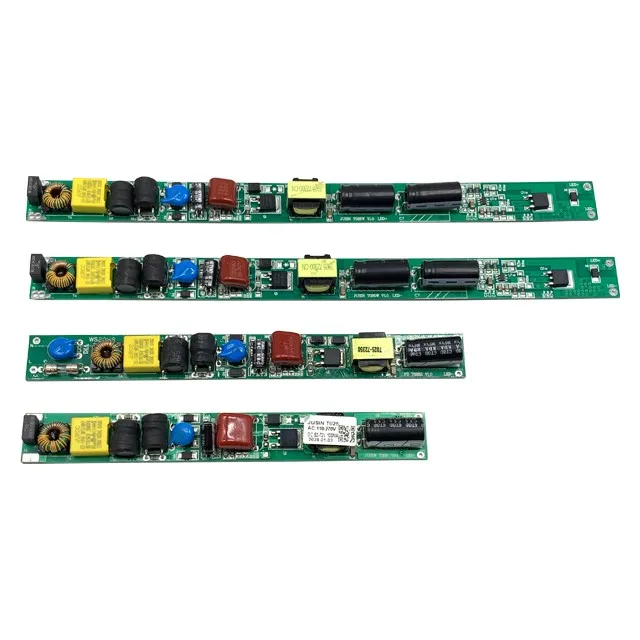

Product Details:

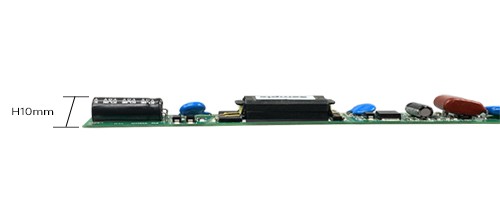

Ultra small size,the height is only 10 mm

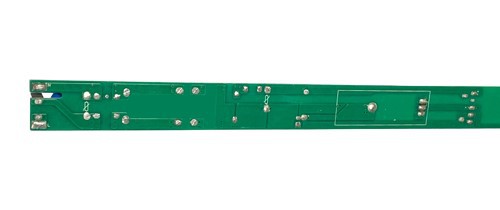

Copper foil thickness is about 1oz

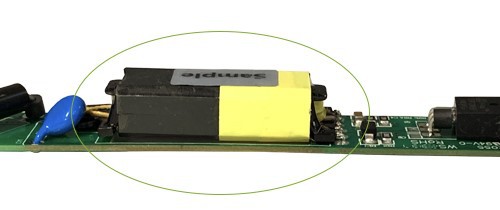

The design features of the transformer are controlled in a compact height of 10mm.

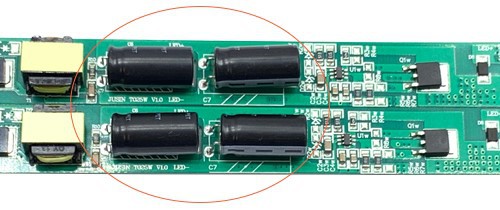

Use SAMXON SK electrolytic capacitors, which have a service life of up to 10,000 hours

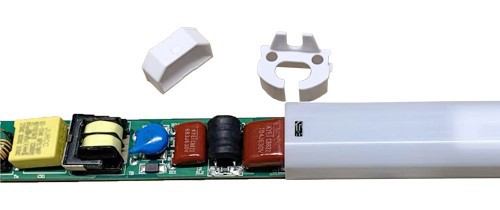

LED lamp covers can effectively protect the circuits and optoelectronic components of LED lamps and extend the service life of LED lamps.

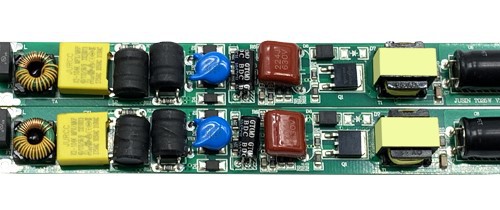

The EMC part ensures that the electronic equipment or system operates stably in the electromagnetic environment and does not cause interference or generate disturbance to other surrounding equipment or systems.

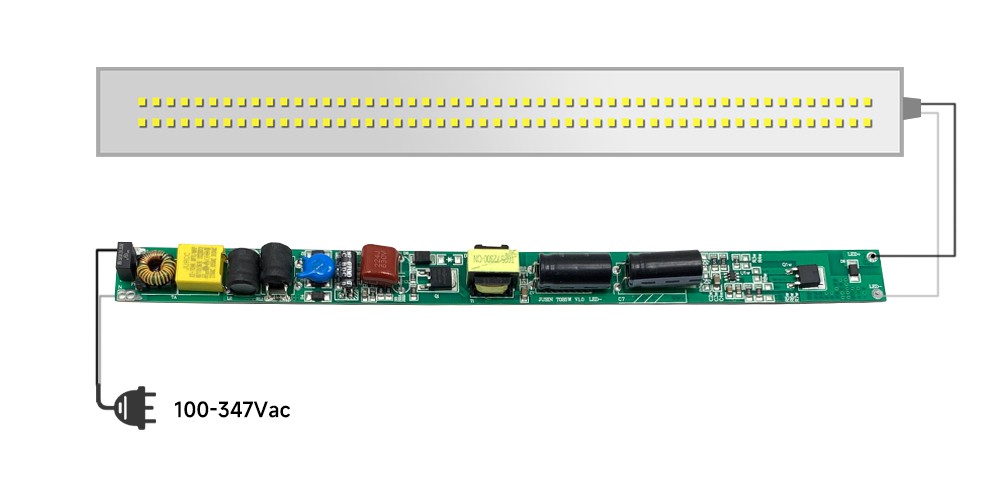

Wiring Instructions:

AC input terminals are used to connect to 100-347 volt AC power, while DC output terminals labeled positive and negative are used to connect LED lights

product-1000-504

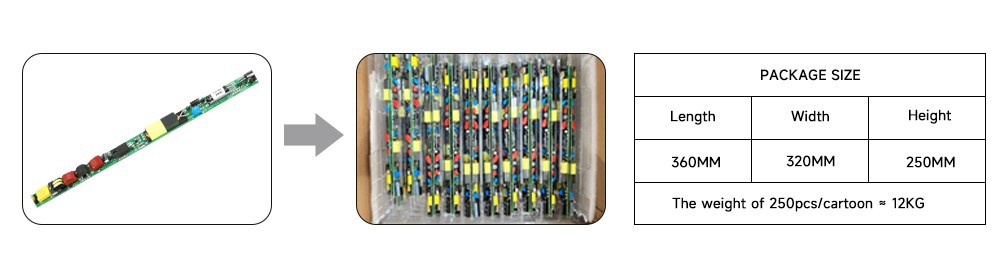

Product Packaging:

product-1000-270

Hot Tags: slim non-isolated tube driver, China slim non-isolated tube driver manufacturers, suppliers, factory, slim led strip driver, long strip driver, dimmable led power supply, 40W Sensor Driver, double polar, Color Blending applications

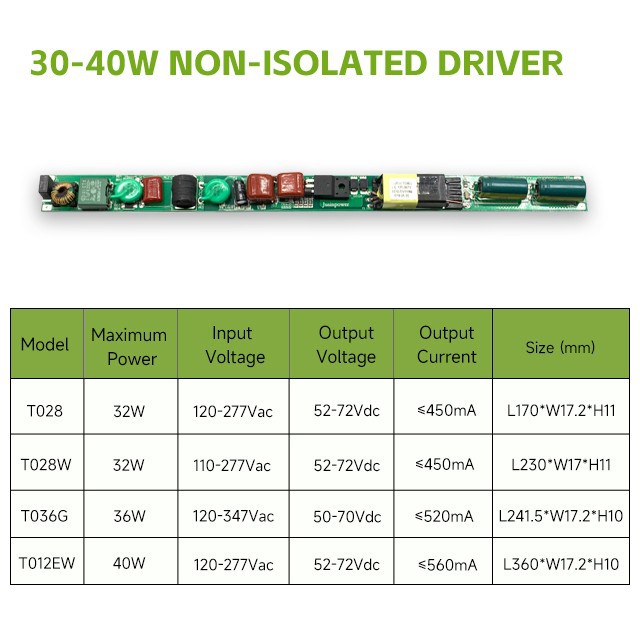

T028 T028W T036G T012EW

Performance
Model	T028 T028W T036G T012EW
Input Voltage	120-277 Vac
Input Current Max	0.28A@120Vac Full load(32W) 0.39@220Vac Full load(36W)
Input Power Max	32-40W
Input Frequency	50/60Hz
Power Factor	> 0.95
Output Voltage (Refer to Driver Operating Range)	52-72Vdc
Max. Output Current	450mA(32w)/560mA(40W)
Output Power	32-40W
Power Efficiency	90%@220Vac Input,Output72V/450mA
No flicker	Optional(T028W T012EWModel)
Input Line Regulation	±3%
Adjustment Rat	±3 %
Over Temperature	When temperature is too high,shut down the output, Recovers automatically
Over load	Hiccup,when the output power exceeds ,then, recovers automatically after fault removed
Short Circuit	Close output,recovers automatically after fault removed

Environmental
Operating Temperature	-20°C to 50°C
Storage Temperature	-20°C to 85°C
Surge protection	L-N 0.5KV
Product Net Weight	31g

Series
Model	Max power	Input voltage	Output voltage	Output current	Efficiency	Power factor	Size(mm)	Meet with	Remark
T025	25W	100-240Vac	52-72Vdc	≤300mA	0.91	0.92	L138W17.2H11	EMC
T025W	25W	100-277Vac	52-72Vdc	≤300mA	0.92	0.92	L216W17H11	EMC	Flicker free
T025S	25W	100-240Vac	52-72Vdc	≤300mA	0.91	0.92	L158W17.2H11	EMC	2.5KV surge
T025G	25W	100-347Vac	50-72Vdc	≤250mA	0.91	0.90	L138W17.2H11	EMC	347Vac input
T028	32W	120-277Vac	52-72Vdc	≤450mA	0.92	0.95	L170W17.2H11	EMC
T028W	32W	110-277Vac	52-72Vdc	≤450mA	0.91	0.95	L230W17.2H11	EMC	Flicker free
T036	36W	120-347Vac	50-70Vdc	≤520mA	0.92	0.90	L241.5W17.2H10	EMC	347Vac input
T012	42W	180-240Vac	30-84Vdc	≤600mA	0.92	0.95	L197W17.2H10	EMC
T012E	42W	180-240Vac	30-84Vdc	≤600mA	0.92	0.95	L267W17.2H10	EMC
T012EW	40W	120-277Vac	52-72Vdc	≤560mA	0.91	0.95	L360W17.2H10	EMC
T026	56W	100-240Vac	52-72Vdc	≤800mA	0.92	0.95	L330W17.2H10	EMC	Flicker free
T026W	50W	100-277Vac	52-70Vdc	≤800mA	0.92	0.95	L470W19H10	EMC	Flicker free
