Our company was established in 2012 and is a national high-tech enterprise. We mainly take charge of R&D, production, sales, and service of LED drivers. We have over 1000 clients worldwide and over 3 million output every year. Our products have been sold worldwide, such as in Thailand and USA.
Custom Service
We can customize the lamp structure, required functions, parameters, etc. Also, we provide OEM&ODM services and a one-stop solution including a full design, manufacturing, and after-sales.
Complete Certification
The company has passed the "ISO9001:2015" quality management system certification as well as the certificate of national high-tech enterprise. The products are compatible with multi-national certifications, including China CQC certification and international UL, CUL, TUV, ROHS, CE, CB, SAA, FCC, CCC, etc.
Strong Production Ability
With a 4000 square meters factory in Foshan high-tech Zone, the company has 3 patch production lines and 3 plug-in production lines. There are around 100 employees and the annual capacity reaches 5 million shipments. Not only does the company have a professional R&D team of about 20 people, but also has advanced equipment to support such as SMT machines, automatic gluing machines, aged vehicles, reflow solder, and so on.
Professional Team
Most of the R&D team has 10 years of experience in the LED lighting industry. The team covers professionals from multiple fields including electronic engineering, optical design, and lighting engineering, providing comprehensive technical support to customers.
Smart Dimming LED Driver For Global Market
The product has 5 levels of brightness and 5 color temperature to adjust. With two output channels, it can offer smooth color temperature and brightness adjustment. Also, this product is flicker-free and equipped with 12V auxiliary power supply.
LED Driver With Adjustable Three Color Temperatures
It is an non-isolated driver with single-channel output. It has 3 stages of brightness and color temperature, including 3000K low brightness, 4500K medium brightness and 6000K high brightness. Meanwhile, users can easily adjust the light by dial switch.
0 10V Dimming Driver Suitable For Tri-Proof Lights
Tri-proof light is a special light made of special protective materials, waterproof, dust-proof, and anti-corrosion. Tri-proof means "Waterproof" "Dust-proof" and "Anti-corrosion". With a compact design and small size, it is compatible for narrow spaces.
The product has a long metal shell, which is not only enhances the overall aesthetic appeal but also acts as an efficient heat sink, dissipating heat generated by the driver during operation. The 347V 0 10V dimming driver ensures consistent performance and long-term durability.
It is a constant current power with 3 levels of color temperature and brightness. It is suitable for line lights, plant lights, and grille lights. The adjustable brightness level is a standout feature of this power source. With the ability to dial down the intensity, users can avoid glare and eye strain.
Non-Isolated 0-10v Dimming Driver
The non-isolated 0-10V dimming driver stands out as a remarkable full-voltage input LED power supply. As an electrical device, it offers a seamless connection between the load terminal and the input terminal, eliminating the need for a bulky transformer.
This power supply is designed with a high power factor and maximum efficiency, making it an ideal choice for high-power LED lighting systems. With a maximum efficiency of 87%, it ensures minimal energy loss and maximum light output, thus contributing to energy conservation and cost reduction.
Double DIP Power Adjustment Constant Current LED Driver
The driver's power factor reaches an impressive 0.9, indicating a high level of power utilization and minimal energy waste. Moreover, the efficiency of this LED driver surpasses the 85% mark. This high efficiency means that a majority of the input power is converted into useful output power, rather than being lost as heat or other forms of energy dissipation.
Double Dial To Adjust The Color Temperature Driver
This device features dual-channel output and employs a bipolar flicker-free design, ensuring smooth and consistent color temperature adjustments. The dual-channel output of the driver allows for precise control over the intensity and color temperature of the light source. By dialing the appropriate settings, users can switch between 3000K cold light, 4500K mixed light, and 6000K warm light color temperature adjustments.
LED dimmable drivers are essential components that regulate the electrical current and voltage supplied to LED lights. They ensure that the LEDs receive the correct power levels for optimal performance and longevity. Isolated LED drivers provide electrical isolation between the input and output sides. This isolation adds an extra layer of safety, making them ideal for applications where electrical protection is crucial, such as in commercial or industrial settings.
Benefits of Dimmable Isolated Driver
High Safety
With electrical isolation between the output and input terminals, isolated LED drivers offer enhanced safety by significantly reducing the risk of electric shock, ensuring user safety.
Strong Interference Resistance
Electrical isolation prevents interference signals from the input side propagating to the output side, enhancing the driver's resistance to interference and ensuring stable operation of LED fixtures.
Wide Applicability
Isolated LED drivers are suitable for various applications, particularly those requiring high electrical safety standards, such as residential and commercial lighting.
Enhanced Safety
The isolation protects against electric shocks and reduces the risk of electrical damage to the LED fixtures.
Noise Reduction
Isolation helps minimize electrical noise, ensuring cleaner power output and reducing interference with other sensitive electronic devices.
Voltage Regulation
Isolated drivers offer better voltage regulation, maintaining a stable output voltage even when the input voltage fluctuates.
Features of LED Drivers
Voltage Regulation
When LEDs require a specific voltage to operate effectively and safely, LED drivers regulate and stabilize the voltage supplied to the LEDs, ensuring that they receive the correct voltage range for optimal performance and longevity.
Protection and Safety
LED drivers incorporate various protection features to safeguard the LEDs and the driver itself. These features can include over-voltage protection, over-current protection, short-circuit protection, and temperature monitoring. LED drivers ensure the safe and reliable operation of the LED lighting system.
Compatibility with Electronic Control Systems
LED drivers often have compatibility with electronic control systems, such as lighting control protocols (e.g., DALI, DMX) or smart home automation systems. This enables integration and synchronization of LED lighting with other devices or systems, providing enhanced functionality and control.
Current Control
LEDs are current-driven devices, meaning they require a constant current to operate efficiently. LED drivers manage the current flow to the LEDs, providing a consistent and steady current to ensure uniform brightness, color accuracy, and reliability.
Compatibility
LED drivers bridge the gap between the electrical system and the LED lighting fixtures. They ensure compatibility by converting the input voltage from the power source (e.g., AC mains) to the appropriate voltage and current levels needed by the LEDs.
Energy Efficiency
LED drivers contribute to energy efficiency by converting the power supply to a lower voltage and regulating the current flow. They minimize energy losses and optimize power consumption, allowing LEDs to operate at their highest efficiency levels.
Dimming and Control
LED drivers enable dimming and control capabilities for LED lighting systems. They provide the necessary circuitry to facilitate smooth dimming functionality, allowing users to adjust the brightness and create different lighting atmospheres.
Universal
A universal dimmable driver welcomes all types of dimmer switches.
Magnetic
Magnetic dimmable drivers have a black metal enclosure. They have plugins that secure installation and have been reliable choices for most. If you're using one, you need an LED light-compatible dimmer switch.
Electronic
Electronic drivers are usually slim and enclosed in blue metals. They come in handy for external applications. You also need an LED light-compatible switch for this type.
Common Signs That Your Dimmable LED Driver Needs Replacement
Your Lights are Either too Dim or too Bright.
Under-driving happens when the dimmer switch does not send enough power to your lights, causing them to be much lower than you intend. Overdriving creates the opposite effect: Too much power goes to the LED lights, causing them to become too bright. The inability to properly regulate the voltage going to the lights can negatively impact their lifespan. Consequently, you could end up needing to replace other components more quickly if you do not replace the dimmable LED driver.
You Can Hear a Humming Noise Coming from the Dimmable Driver.
Incandescent and fluorescent lights often emit a buzzing sound. LED lights and components do not have the moving parts that generate this sound. However, an LED driver could start to hum if it's not working correctly. If the humming noise is faint, you may be able to ignore it for a while. However, if the humming noise gets louder or more pronounced, you should replace your dimmable driver as soon as possible.
The Dimmable LED Driver is Hot to the Touch.
Like all electronic devices, dimmable drivers generate heat when used. However, they should not get too hot to the touch. If your driver is hot enough that it's uncomfortable to keep your hand on it for more than a few seconds, there is something wrong. This issue could be due to a defective driver or another problem with your lighting system. In any case, you should have a professional look at it as soon as possible. Note that excessive heat is always a fire hazard.
Sparking or Emitting Smoke.
These are clear signs of trouble and could spark a fire. In the presence of smoke, it might be difficult to tell exactly what has led to the problem, but you should address it immediately. Hire professionals to assess the system and determine the best way forward. This is also a fire hazard.
Your Dimmable LED Driver is Leaking Liquids.
Liquid might seem like a safety hazard to encounter, but not when it comes to electricity. You may leak into the building which has caused water to get into the system. Condensation from nearby air conditioning units and vents could also be to blame. If you discover moisture with outdoor systems, double-check whether the driver has an IP rating for water resistance.
Assess Your Lighting Needs
Before diving into technical specifics, start by pinpointing your primary lighting purpose. Is your aim to create a calm ambiance in a lounge or to light up a workspace? Different lighting purposes might need different drivers. For instance, mood lighting in a lounge or restaurant may greatly benefit from a 24v dimmable LED driver, which offers both adaptability in brightness and the subtle nuances required for creating an atmosphere.
Determine the Total Wattage
It's vital to understand the combined power consumption of all your LEDs. This gives you a baseline when selecting your driver. Always opt for an LED driver whose maximum wattage exceeds the total wattage of your lights. This safety buffer ensures the driver isn't constantly operating at its limit, which can affect longevity.
Understand the Wiring Configuration
LEDs can be wired in multiple ways - series or parallel being the most common. Series configurations might best benefit from constant current drivers, as they ensure each LED gets the same current. Conversely, parallel configurations, like those commonly seen in LED strips, often require constant voltage drivers. Your choice should reflect this underlying structure.
Check for Dimming Capabilities
Dimming isn't just a luxury feature; for many, it's a necessity. If you require varying light intensities, ensure your LED driver supports dimming functionalities. However, take note: not every dimmable LED driver meshes well with all dimming technologies. Always check for compatibility, especially if you already have a dimming system in place.
Protection Features
LEDs, while robust in many ways, are sensitive to certain conditions like surges or overheating. Choosing drivers that come with built-in protective measures against over-voltage, over-current, and thermal anomalies can be a game-changer. This not only extends the life of the driver but also offers added security to your LEDs.
Consider Environmental Conditions
An LED setup beside a pool, for instance, has different requirements than one inside a living room. If your LEDs will face outdoor conditions, humidity, or potential water exposure, waterproof or moisture-resistant drivers become indispensable.
Size and Placement
LED drivers aren't one-size-fits-all. Depending on your intended location-be it inside a cabinet, behind a fixture, or in a concealed panel-size and design can influence your choice. Consider the dimensions and the aesthetics of the driver, especially if it will be in a visible location.
Consult LED Specifications
LED manufacturers often provide valuable guidelines or driver recommendations. These aren't mere suggestions; they're based on extensive testing and can provide a clear pathway to optimal performance.
Future-Proofing
Your current needs might evolve. Perhaps you'll want more lights during a renovation or a redesign. When selecting a driver, consider any future changes you might make to your LED setup. A driver with some extra capacity can save costs in the long run.
Certifications
We are a LED drive manufacturer headquartered in Shenzhen city, China. We have set up a branch in Taiwan, and possess a 4000 square meters factory.
Frequently Asked Questions
Hot Tags: isolated 0 10v dimming driver, China isolated 0 10v dimming driver manufacturers, suppliers, factory, Dim to Warm, bipolar current driver, motion sensor led driver, Three levels of color temperature, radar led sensor driver, 3 LIGHTS AND 1 DRIVER
AI I series
AI60D1B
|
Performance |
|
|
Input Voltage |
100-277 Vac |
|
Input Current Max |
0.46A |
|
Input Power Max |
50W |
|
Input Frequency |
50/60Hz |
|
Power Factor |
> 0.9 @ max load |
|
THD Max |
< 15 % @ max load |
|
Output Voltage (Refer to Driver Operating Range) |
30-43Vdc |
|
Max. Output Current |
1300mA |
|
Output Power |
56W |
|
Power Efficiency |
88% |
|
Input Line Regulation |
±5% |
|
Adjustment Rat |
±5% |
|
No Flicker |
Optional |
|
Inrush Current* Peak / >10% Duration |
277V: 10A / 1.49ms |
|
Physical |
|
|
Length |
212 mm |
|
Width |
31.2 mm |
|
Height |
27.6 mm |
|
Mounting Length |
200mm |
|
Weight (g) |
230g |
|
Environmental |
|
|
Safety Standard |
UL8750, Class2 |
|
EMC Emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-20°C to 85°C |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Location Rating |
UL Dry & Damp |
|
Surge Protection |
L-N 1KV, L-N-FG 2KV |
|
Certificate |
CE/UL/FCC certificate |
|

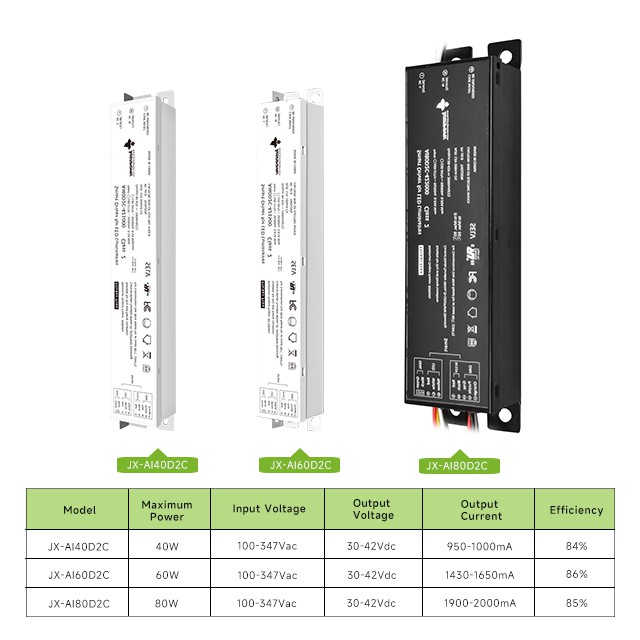

Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Regulation |
Efficiency |
Size |
Certificate |
|
JX-AI40D1B |
40W |
100-277Vac |
30-42Vdc |
920mA |
External dip switch |
86% |
L213*W32*H27 |
UL FCC CLASSII |
|
120-347Vac |
30-40Vdc |
1000mA |
||||||
|
JX-AI50D1B |
50W |
100-277 Vac |
30-43Vdc |
1300mA |
External dip switch |
88% |
L212*W31.2*H27.6 |
UL FCC CLASSII |
|
JX-AI60D1C |
60W |
100-277Vac 120-347Vac |
30-42Vdc 30-40Vdc |
1200mA 1500mA |
External dip switch |
86% |
L213*W32*H27 |
UL FCC CLASSII |
|
75W |
200-240Vac |
30-40Vdc |
1700mA |
NO |
87% |
L213*W32*H27 |
UL FCC CLASSII |
|
|
JX-AI120D1C |
120W |
100-277Vac |
30-48Vdc |
2500mA |
NO |
86% |
L241.3*W43.4*H30 |
UL FCC CLASSII |
