Isolated Smart Dimmable Led Drivers
The isolated smart dimmable led driver has a 5-12V auxiliary power supply design, and can use smart modules such as Bluetooth Wi-Fi or sensors to adjust the light, and can choose a flicker-free design. This driver has obtained UL, FCC, CCC certification, and uses a class Ⅱ power supply.
Top Features and Benefits:
|
|
|
|
|
|
120-347Vac |
12V auxiliary power supply |
Flicker free |
5 Years Warranty |
1. Smart lighting system
2. No flicker
3. Bluetooth/Wi-fi to adjust the light

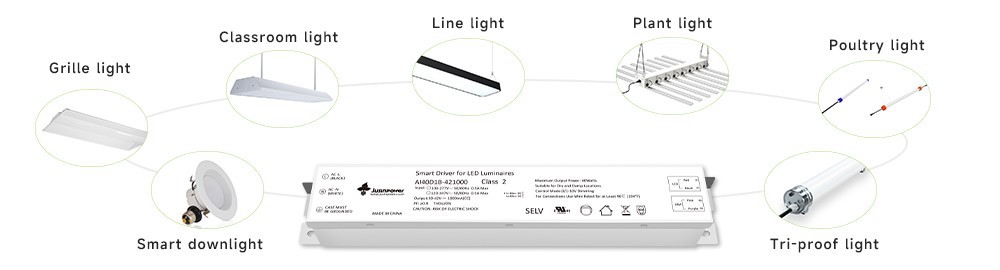

Application Scenario:
The isolated smart dimmable led drivers suitable for grille light, line light, plant light and so on.
Product Details:
Flicker-free design - protects the human body and brings a more comfortable feeling to the eyes

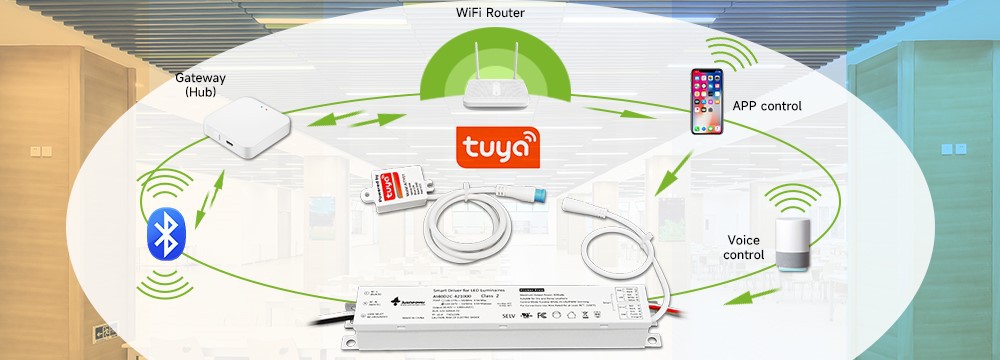

It has a 5-12V auxiliary power supply design, and can use smart modules such as Bluetooth Wi-Fi or sensors to adjust the light.
Electrical Characteristics:

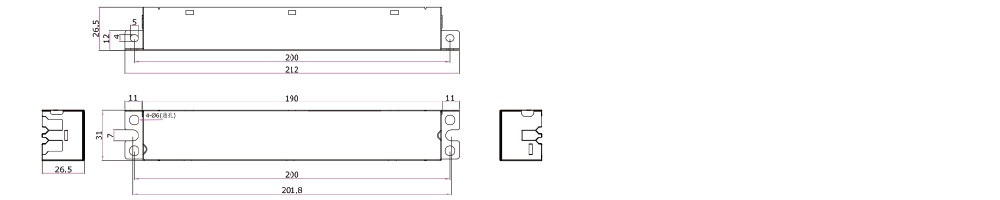

Dimension (mm)
Length: 212mm Width: 31.2mm Height: 28mm

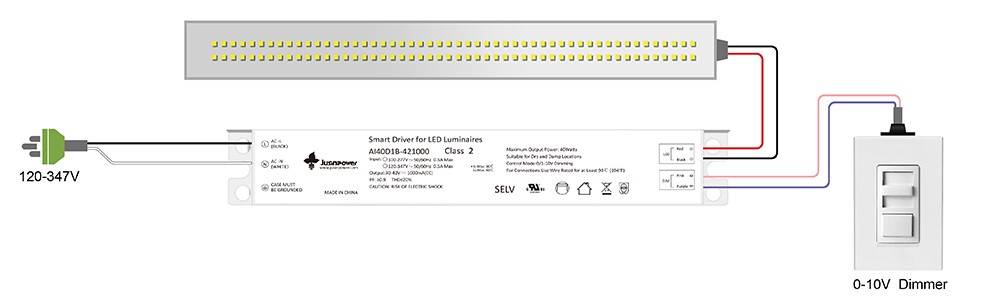

Wiring Diagram
The product has two sets of wiring at one end, one set of four wires. One end is the AC input end, which is connected to the mains, and the other end is the DC output end. LED+ and LED- are connected to the positive and negative poles of the LED lights respectively.
Hot Tags: isolated smart dimmable LED drivers, China isolated smart dimmable LED drivers manufacturers, suppliers, factory, 4500k dimmable, Class II power source, THD 20 , 60W, wifi lamp, smart dimmer for led lights
AI I series
AI I series

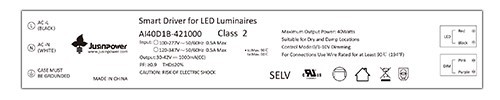

AI40D1B-421000(1-10V)
|
Performance |
|
|
Input Voltage |
100-277 Vac |
|
Input Current Max |
0.48A |
|
Input Power Max |
40W |
|
Input Frequency |
50/60Hz |
|
Power Factor |
> 0.9 @ max load |
|

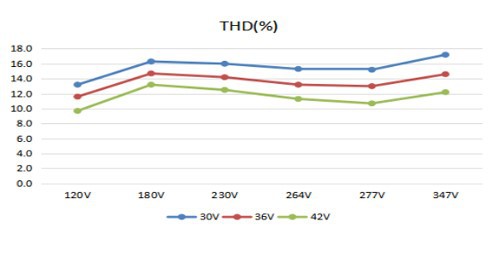

THD Max |
< 18 % @ max load |
|
Output Voltage (Refer to Driver Operating Range) |
30-42Vdc |
|
Max. Output Current |
1000mA |
|
Output Power |
42W |
|

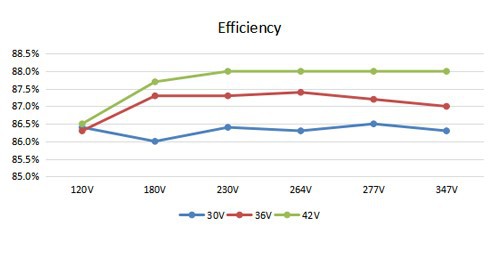

Power Efficiency |
86% |
|
Input Line Regulation |
±3% |
|
Adjustment Rat |
±3 % |
|
No Flicker |
Optional |
|
Inrush Current* Peak / >10% Duration |
277V: 10A / 1.49ms |
|
Physical |
|
|
Length |
212 mm |
|
Width |
31.2 mm |
|
Height |
27.6 mm |
|
Mounting Length |
200mm |
|
Weight (g) |
230g |
|
Environmental |
|
|
Safety Standard |
UL8750, Class2 |
|
EMC Emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-20°C to 85°C |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Location Rating |
UL Dry & Damp |
|
Surge Protection |
L-N 1KV, L-N-FG 2KV |
|
Certificate |
CE/UL/FCC certificate |
|

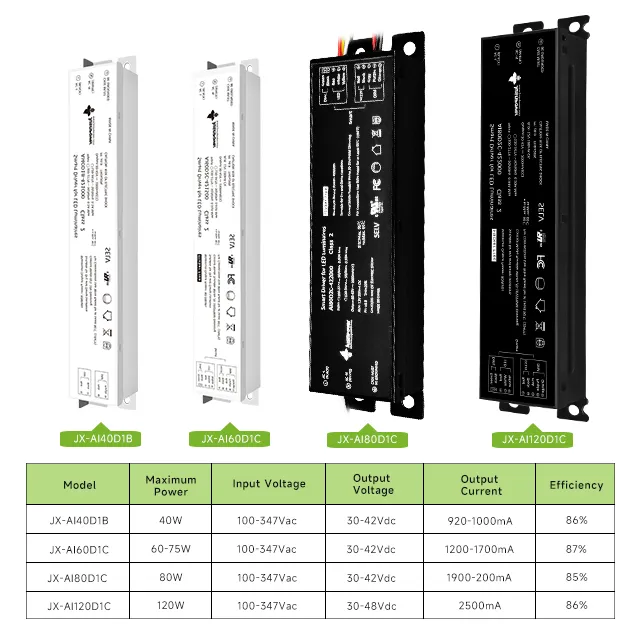

Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Regulation |
Efficiency |
Size |
Certificate |
|
JX-AI40D1B |
40W |
100-277Vac |
30-42Vdc |
920mA |
External dip switch |
86% |
L213*W32*H27 |
UL FCC CLASSII |
|
120-347Vac |
30-40Vdc |
1000mA |
||||||
|
JX-AI50D1B |
50W |
100-277 Vac |
30-43Vdc |
1300mA |
External dip switch |
88% |
L212*W31.2*H27.6 |
UL FCC CLASSII |
|
JX-AI60D1C |
60W |
100-277Vac 120-347Vac |
30-42Vdc 30-40Vdc |
1200mA 1500mA |
External dip switch |
86% |
L213*W32*H27 |
UL FCC CLASSII |
|
75W |
200-240Vac |
30-40Vdc |
1700mA |
NO |
87% |
L213*W32*H27 |
UL FCC CLASSII |
|
|
JX-AI120D1C |
120W |
100-277Vac |
30-48Vdc |
2500mA |
NO |
86% |
L241.3*W43.4*H30 |
UL FCC CLASSII |
