Slim Strip Dimmable Isolated Driver

The slim strip dimmable isolated driver is an ultra-thin led driver with 0-10V dimming signal isolation, which has perfect dimming function and can provide an output voltage of 30 to 48V, suitable for thin led lamps and narrow assembly spaces.

Top Features and Benefits:


120-347Vac	12V auxiliary power supply	Flicker free	5 Years Warranty

1. 0-10V dimmable

2. Slim strip

3. Suitable for narrow assembly spaces

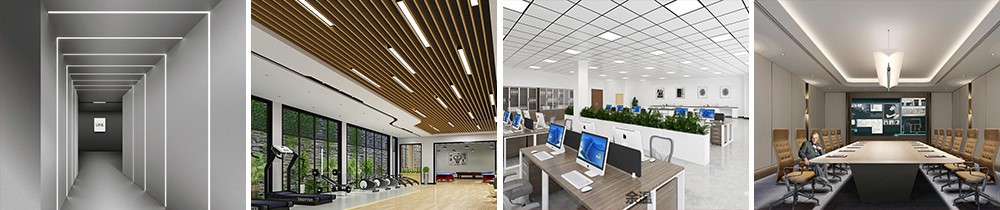

Application Scenario:

The slim strip dimmable isolated driver suitable for linear light, panel light, tri-proof light, etc.

product-1000-210

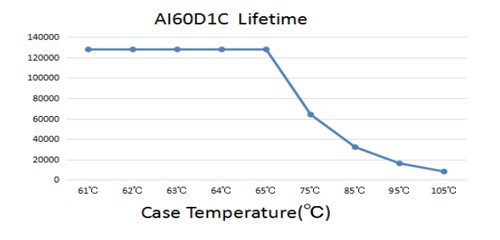

Life Curve:

When the operating temperature of the drive is kept between 61℃ and 65℃, its working life can reach the maximum value of 130,000 hours.

product-500-240

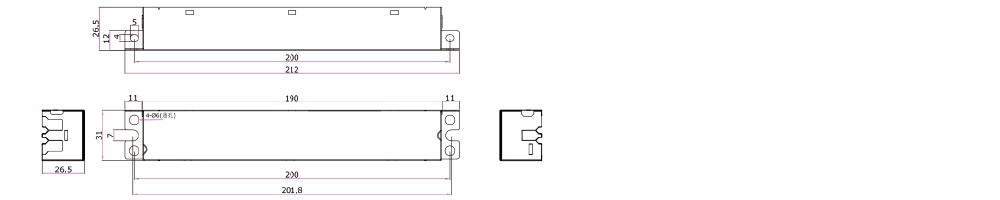

Dimension (mm)

Length:212mm Width:31.2mm Height:28mm

product-1000-200

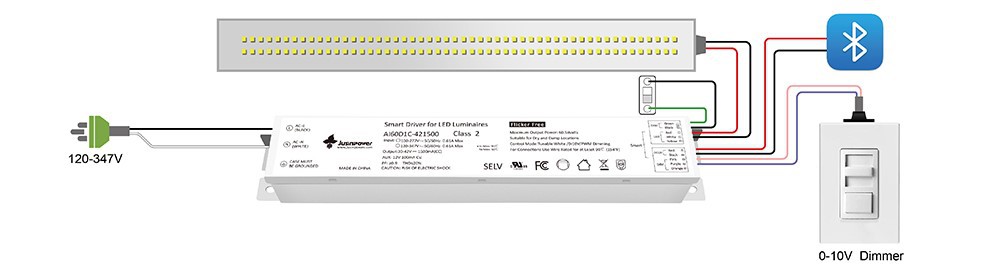

Wiring Diagram

product-1000-270

One end of the product is connected with two groups of wires, one group of four wires, one end is AC input terminal, the other end is DC output terminal and dimming signal input terminal, led + and led – are respectively connected with LED lamp positive and negative; DM + and DM – are respectively connected with 0-10 dimmer positive and negative.

Hot Tags: slim strip dimmable isolated driver, China slim strip dimmable isolated driver manufacturers, suppliers, factory, 0 10 volt dimming, Casambi LED Driver, smart dimmer for led lights, 4500k dimmable, 1200mA, 120 347 200 240Vac

AI I series

AI60D1B

Performance
Input Voltage	100-277 Vac
Input Current Max	0.46A
Input Power Max	50W
Input Frequency	50/60Hz
Power Factor	> 0.9 @ max load
THD Max	< 15 % @ max load
Output Voltage (Refer to Driver Operating Range)	30-43Vdc
Max. Output Current	1300mA
Output Power	56W
Power Efficiency	88%
Input Line Regulation	±5%
Adjustment Rat	±5%
No Flicker	Optional
Inrush Current* Peak / >10% Duration	277V: 10A / 1.49ms

Physical
Length	212 mm
Width	31.2 mm
Height	27.6 mm
Mounting Length	200mm
Weight (g)	230g

Environmental
Safety Standard	UL8750, Class2
EMC Emission	Meets FCC part 15
Operating Temperature	-20°C to 50°C
Storage Temperature	-20°C to 85°C
Warranty Tc	85°C max for 50k Hr Life
Location Rating	UL Dry & Damp
Surge Protection	L-N 1KV, L-N-FG 2KV
Certificate	CE/UL/FCC certificate

Series Driver
Model	Max Power	Input Voltage	Output Voltage	Output Current	Power Regulation	Efficiency	Size	Certificate
JX-AI40D1B	40W	100-277Vac	30-42Vdc	920mA	External dip switch	86%	L213W32H27	UL FCC CLASSII
JX-AI40D1B	40W	120-347Vac	30-40Vdc	1000mA	External dip switch	86%	L213W32H27	UL FCC CLASSII
JX-AI50D1B	50W	100-277 Vac	30-43Vdc	1300mA	External dip switch	88%	L212W31.2H27.6	UL FCC CLASSII
JX-AI60D1C	60W	100-277Vac 120-347Vac	30-42Vdc 30-40Vdc	1200mA 1500mA	External dip switch	86%	L213W32H27	UL FCC CLASSII
JX-AI60D1C	75W	200-240Vac	30-40Vdc	1700mA	NO	87%	L213W32H27	UL FCC CLASSII
JX-AI120D1C	120W	100-277Vac	30-48Vdc	2500mA	NO	86%	L241.3W43.4H30	UL FCC CLASSII
