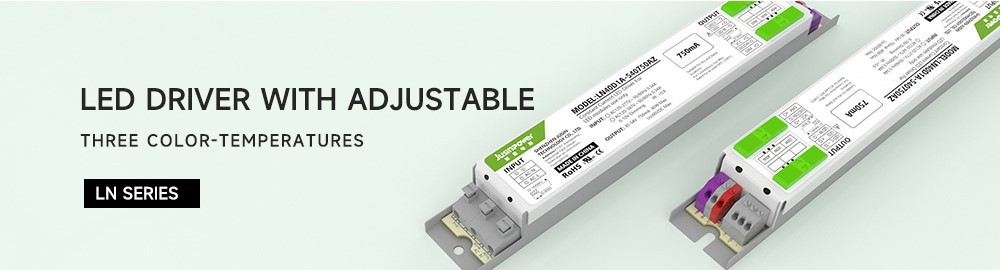

LED Driver With Adjustable Three Color-Temperatures

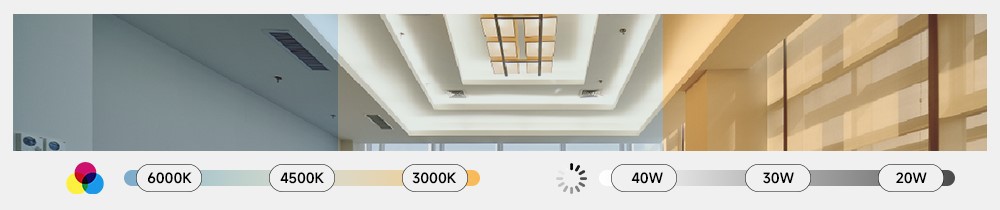

The led driver with adjustable three color-temperatures is a non-isolated power supply with an input voltage of 120-347Vac and a single-channel output, which can be adjusted to 3000K low brightness, 4500K medium brightness and 6000K high brightness through the dial switch.
3 levels of
color temperature
adjustment
3 levels of
brightness
Adjustment
120-347Vac
12V auxiliary
power supply
5 Years
warranty
1. Non-isolated
2. Single-channel output
3. 3-stage dimming
Application Scenario:

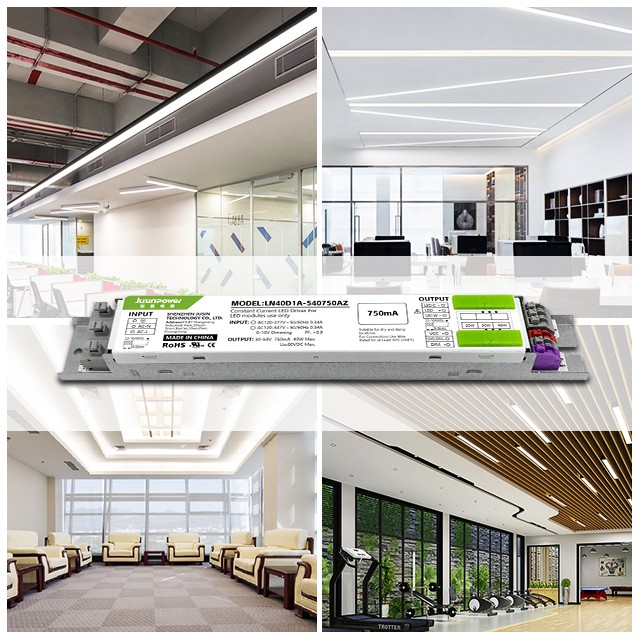

The led driver with adjustable three-color temperatures suitable for line lights, tri-proof lights, plant lights, grille lights, etc. It can adjust the color temperature in three levels: 3000K, 4500K, and 6000K.

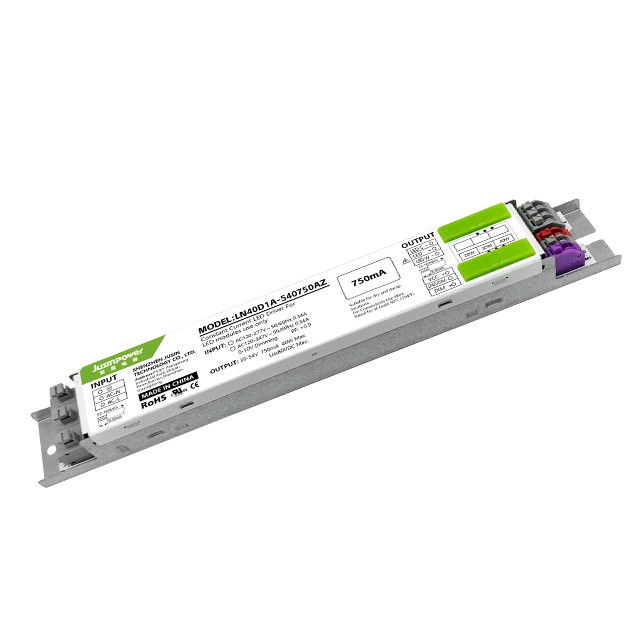

Product Details:

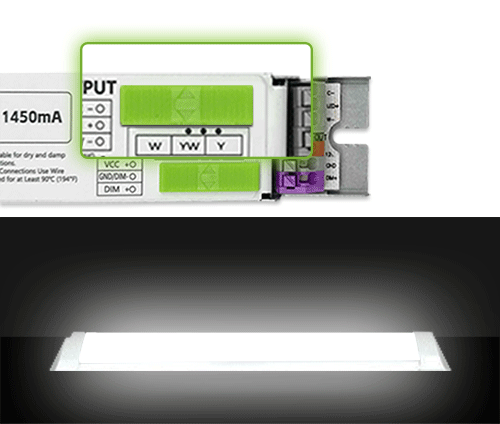

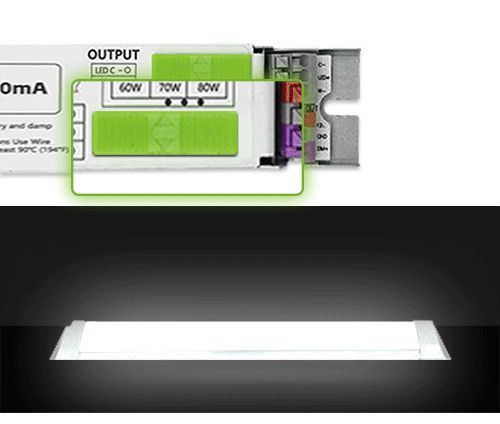

How to adjust color temperature?
Just gently turn the dial to adjust the color temperature.
If you want to adjust the changes in brightness, you can do this by adjusting the power of the driver with another dial.
High Quality Raw Materials and Exquisite Technology

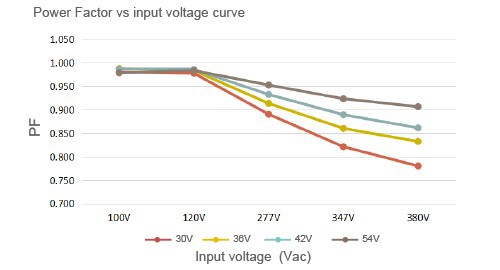

Electrical Characteristics:

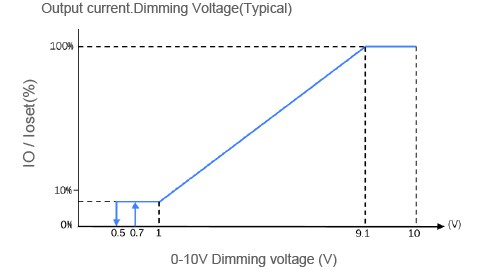

0-10V dimming, when adjusted to 9.1V and above, the light brightness is the brightest.

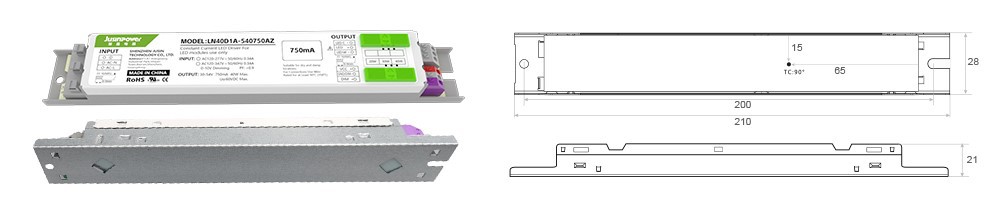

Dimension (mm)
Length: 210mm Width: 28mm Height: 21mm

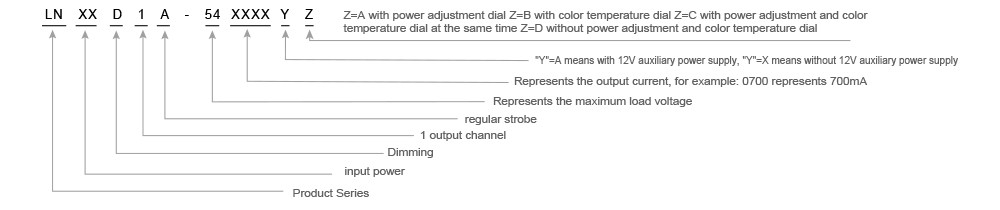

Model Coding Rules of LN Series

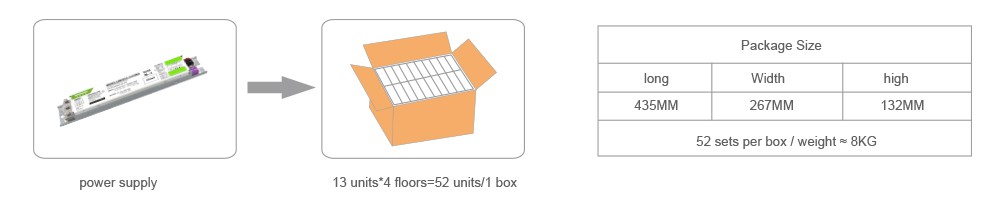

Product Packaging:
Hot Tags: LED driver with adjustable three color temperatures, China LED driver with adjustable three color temperatures manufacturers, suppliers, factory, output current 1500mA, suitable for EU market, smart light lamp, slim led strip driver, 3000k selectable, no strobe flash
LN series
LN40D1A
|
Performance |
||
|
Model |
LN40D1A-540750AZ |
|
|
Input |
Efficiency |
89%@230Vac full load |
|
Voltage |
120-277Vac(standard) |
|
|
120-347Vac(optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@347Vac full load |
|
|

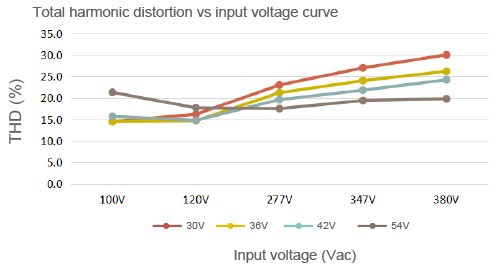

THD(full load) |
<20%@120Vac full load |
|
|
AC Current(max) |
0.34A@120Vac full load |
|
|
Standby power |
<1W |
|
|
Inrush current (cold engine start) max |
25A@120Vac |
|
|
60A@277Vac |
||
|
80A@347Vac |
||
|
Leakage current (max) |
<0.75mA@347V |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
30-54Vdc/750mA/40W |
|
Channel |
1 output |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Function |
Dimming method |
0-10V 0.5V OFF /0.7V OPEN |
|
Dimming current |
<1mA@10V <2mA@0.7V |
|
|
Dimming range |
7%-100% (standard) |
|
|
Color temperature |
Three gears adjustable |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
210 mm |
|
Width |
28 mm |
|
Height |
21 mm |
|
Mounting Length |
195mm |
|
Weight (g) |
154g |
|
Environmental |
|
|
Safety standard |
UL8750 ,Class1 |
|
EMC emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE/FCC/UL certificate |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Color temperature |
Efficiency |
|
LN40D1A-54XXXXYZ |
36W |
120-277/120-347Vac |
30-54Vdc |
750mA |
0.9 |
Adjustable |
Adjustable |
89% |
|
LN60D1A-54XXXXYZ |
55W |
120-277/120-347Vac |
30-54Vdc |
1000mA |
0.9 |
Adjustable |
Adjustable |
91% |
|
LN80D1A-54XXXXYZ |
75W |
120-277/120-347Vac |
30-54Vdc |
1500mA |
0.9 |
Adjustable |
Adjustable |
91% |
Inspection
Jusinpower has more than 10 years of experience in designing and manufacturing lighting power supply. Our matured verification process and through QC control system will ensure your products are sustainable and high-quality. Moreover, our experienced engineers and persevered sales representatives will be the best backup team for your company.
QC Process Flow Chart
Company Profile
Shenzhen JUSIN Technology Co.,Ltd.,established in 2012,is a national high-tech enterprise integrating research and development, production, sales and service of LED driver.Headquartered in Shenzhen,China,We have set up a branch in Taiwan,and have a 4000 square meter factory in Foshan high-tech Zone for production.In the 10 years since its establishment, all JUSIN family have continuously created value for nearly 1000 partners around the world by responding the market demands rapid and accurate,high-quality products and perfect services,and have passed the "ISO9001:2015" quality management system certification.
Certificate
Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate. The products are compatible with multi-national certifications, including China CQC certification and international cUL, SAA, TUV, CE, CB, SAA, FCC, CCC.
