Double Dial to Adjust the Color Temperature Driver
The double dial to adjust the color temperature driver has dual-channel output and adopts a bipolar flicker-free design, which can realize personalized application scenarios such as 3000K cold light, 4500K mixed light and 6000K warm light color temperature adjustment and up and down lighting.
5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment

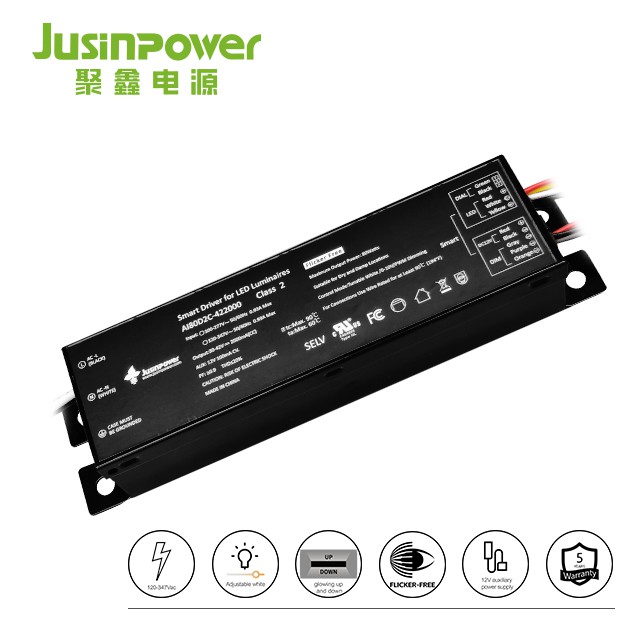

Adjustable white
Flicker free
12V auxiliary
power supply
glowing up
and down
1. Flicker free

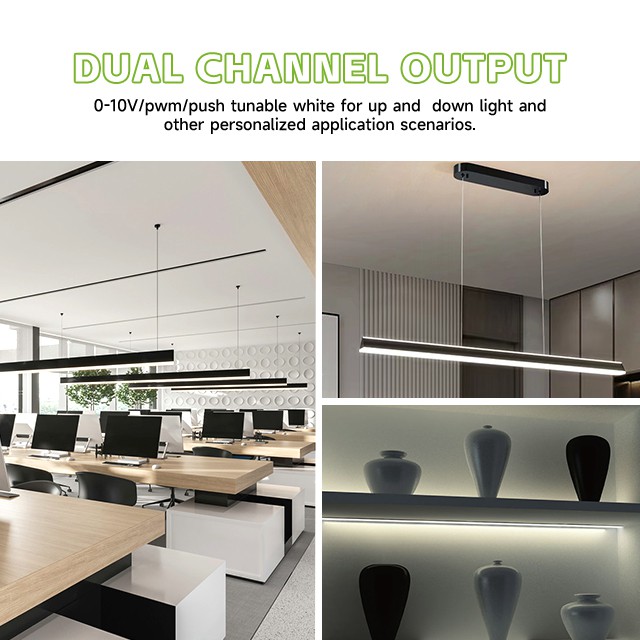

2. Dual output
3. Realize up and down light

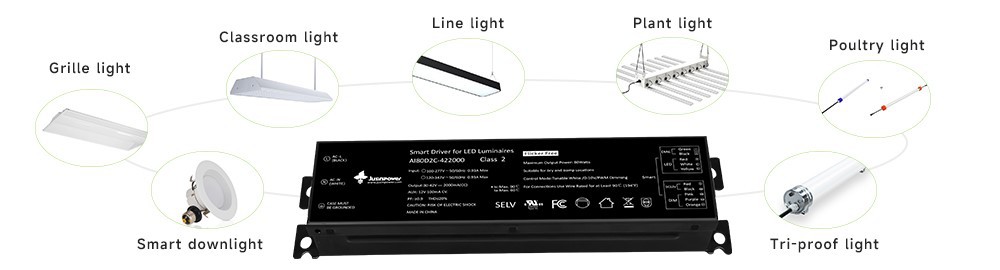

Application Scenario:
The double dial to adjustment the color temperature driver suitable for smart downlight, panel light, linear light poultry light and so on.

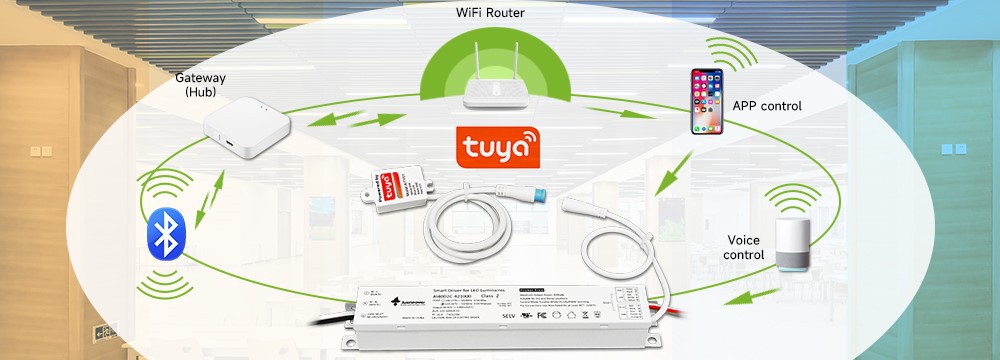

The 5-12V auxiliary power supply design allows it to match various smart modules such as mobile app control, Wi-Fi, Bluetooth, sensor Tuya, etc.

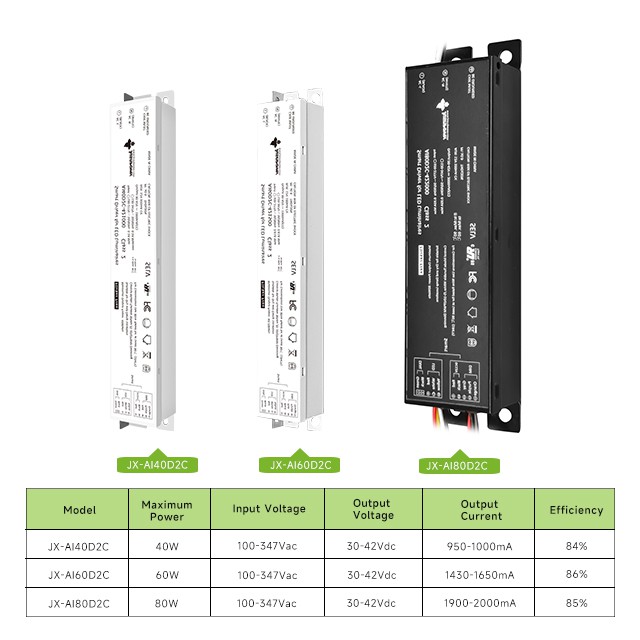

Product Details:

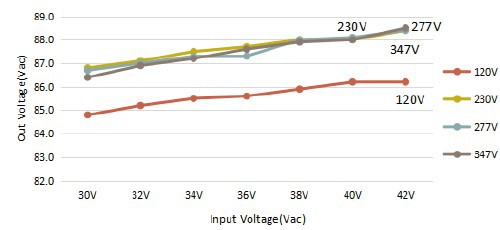

Electrical Characteristic:

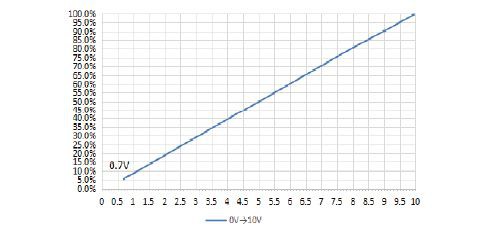

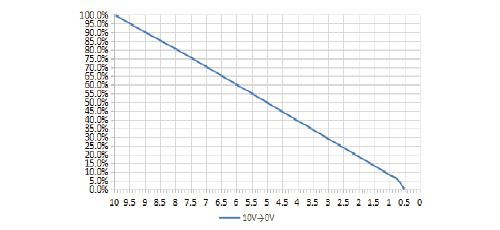

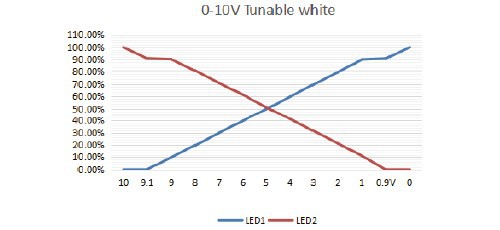

The light is off when the voltage is adjusted to 0.5V. At 0.7V, it appears slightly bright.

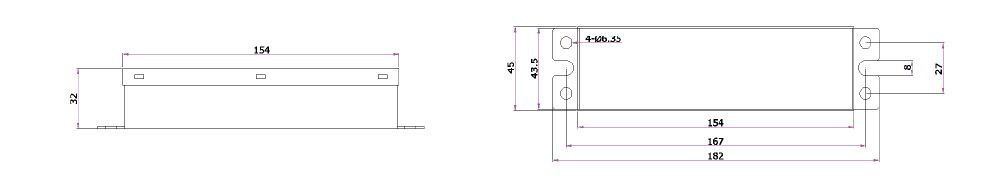

Dimension (mm)
Length: 182mm Width: 45mm Height: 32mm

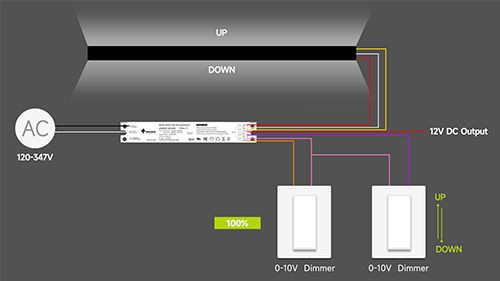

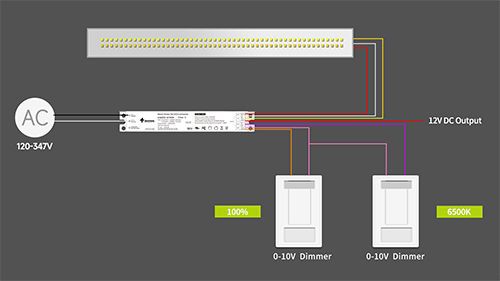

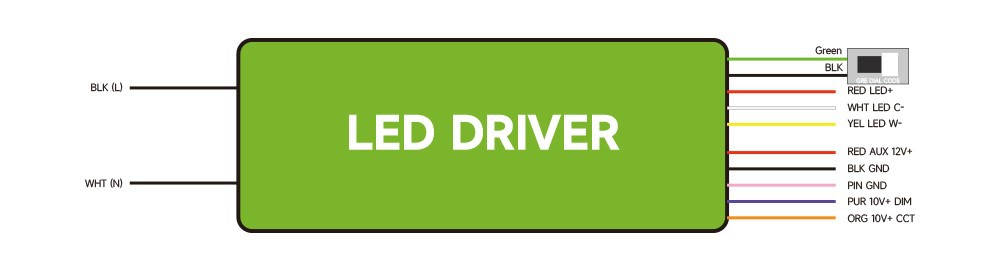

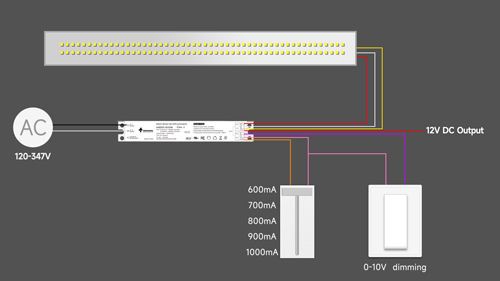

Wiring Diagram
★ AC input ：
UL1015 18AWG 105℃ 600V 230mm Black-L White-N
★ DC output：
UL1007 20AWG 80℃ 300V 230mm Red V+; White C-; Yellow W-
★ D I M:
UL1007 22AWG 80℃ 300V 230mm Purple DIM+ ; Pink DIM- ;Orange CCT-
★ Dial code(Power regulation)：
UL1007 22AWG 80℃ 300V 230mm Green ; Black

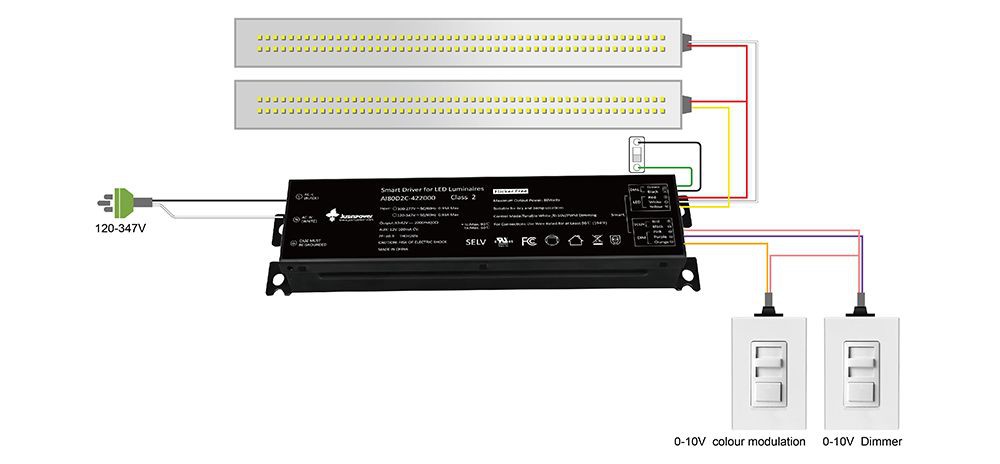

Two ends of the product are connected, one end is AC input terminal, the other end is DC output terminal and light modulation signal input terminal, V+, V1-, V2-respectively are connected with the positive and negative poles of LED lamp; DIM is connected with 0-10V positive adjustment brightness, CCT is connected with 0-10V positive adjustment color temperature, VCC is supplied with 5V (or 12V) power supply, GND grounding.
