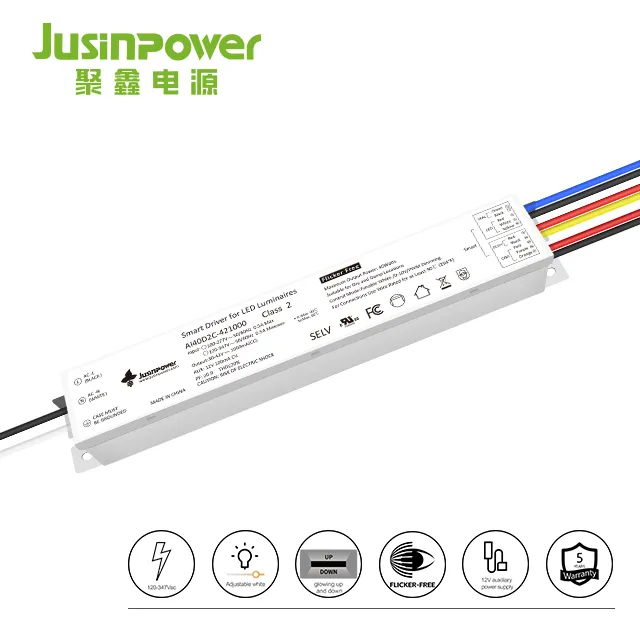

Smart Dimming Led Driver for Global Market
Input voltage 100-277/120-347Vac, the smart dimming led driver for global market is specially designed for led lighting and tunable white application, mixing two channels to achieve the smoothest color temperature adjustment and brightness adjustment, bring the most comfortable feeling to the eyes.
Top Features and Benefits:
5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment
Adjustable white
Flicker free
12V auxiliary
power supply
glowing up
and down
1. Input voltage 100-277/120-347Vac
2. Tunable white
3. CCC/UL/FCC certification

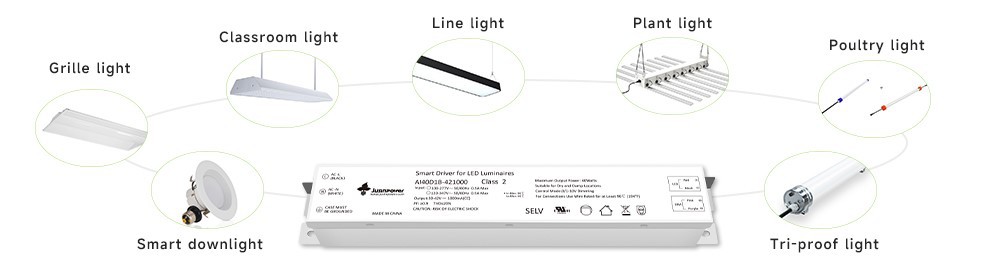

Application Scenario:

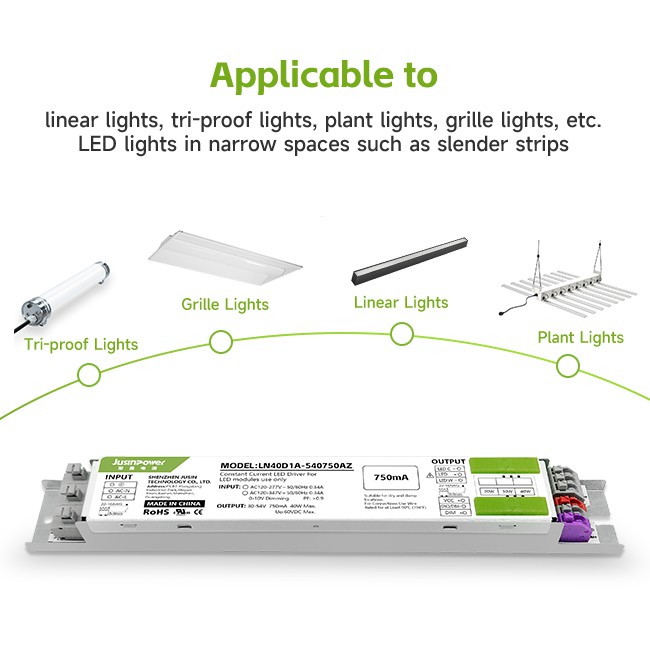

The smart dimming led driver for global market suitable for linear light, plant light, classroom light, etc.
Security Protection & Global Availability
120-347V input voltage for worldwide use. The metal shell design can effectively improve the heat dissipation capacity and also protect the power supply itself. The power supply is equipped with short circuit, overload, and overvoltage protection, which effectively prevents damage to circuit components caused by circuit failure, extends the service life of dimming equipment and lamps, and is safer and more worry-free!
Product Details:
Electrical Characteristics:

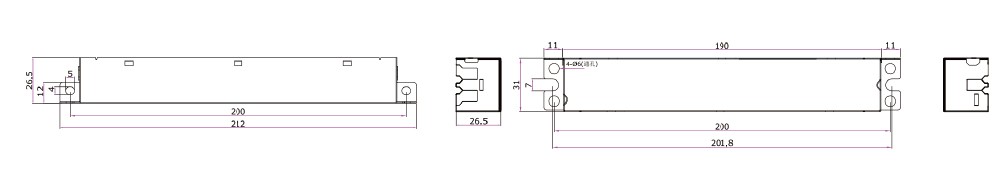

Dimension (mm)
Length: 213mm Width: 32mm Height: 27mm
Product Label

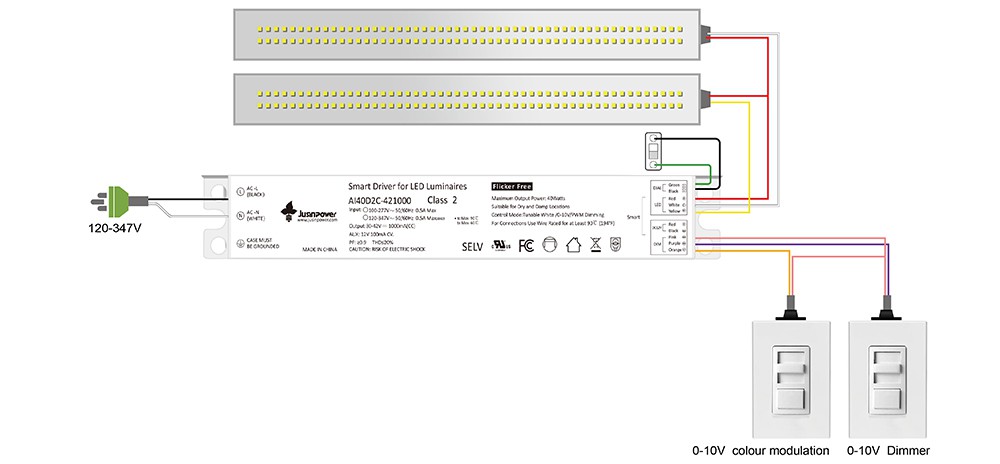

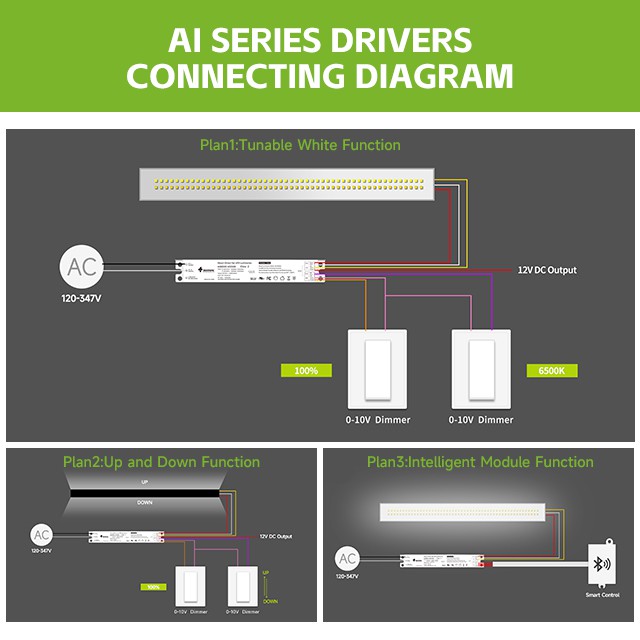

Wiring Diagram
Two ends of the product are connected, one end is AC input terminal, the other end is DC output terminal and light modulation signal input terminal, V+, V1-, V2-respectively are connected with the positive and negative poles of LED lamp; DIM is connected with 0-10V positive adjustment brightness, CCT is connected with 0-10V positive adjustment color temperature, VCC is supplied with 5V (or 12V) power supply, GND grounding.
Hot Tags: smart dimming LED driver for global market, China smart dimming LED driver for global market manufacturers, suppliers, factory, wifi lamp, automatic led sensor light, bipolar led driver, 75W power source, output current 2 5A, 1 10v Dimming Driver
AI I series
AI40D2C-421000 (0-10V)
|
Performance |
|
|
Input Voltage |
120-347 Vac |
|
Input Current Max |
0.5A |
|
Input Power Max |
45W |
|
Input Frequency |
50/60Hz |
|

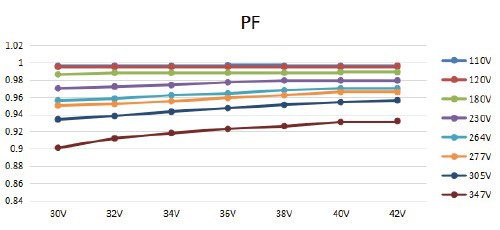

Power Factor |
> 0.9 @ max load |
|
THD max |
< 20 % @ max load |
|

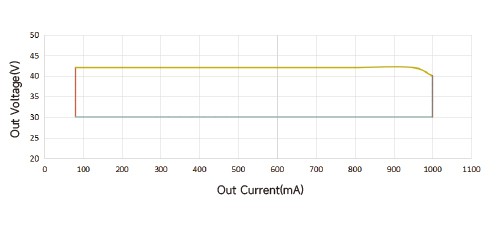

Output Voltage (Refer to Driver Operating Range) |
30-42Vdc |
|
Max. Output Current |
1000mA |
|
AUX Power |
12V 100mA |
|
Output Power |
40W |
|

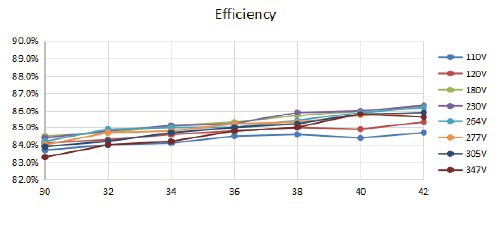

Power Efficiency |
86%@347V max load |
|
Input Line Regulation |
±5 % |
|
Adjustment Rat |
±5 % |
|
Output Current Ripple |
<10% (Pk-Pk/avg) |
|
Inrush Current* Peak / >10% Duration |
347V: 50A / 160uS |
|
Physical |
|
|
Length |
213 mm |
|
Width |
32 mm |
|
Height |
27 mm |
|
Mounting Length |
200mm |
|
Weight (g) |
230g |
|
Series Driver |
|||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Dimension(mm) |
Efficiency |
Size |
Power Regulation |
Certificate |
|
JX-AI40D2C |
40W |
100-277Vac |
30-42Vdc |
950mA |
201.8,200,7 |
84% |
L213*W32*H27 |
External dip switch |
UL FCC CLASSII |
|
120-347Vac |
30-40Vdc |
1000mA |
|||||||
|
JX-AI60D2C |
60W |
100-277Vac 120-347Vac |
30-42Vdc |
1430mA |
201.8,200,7 |
86% |
L213*W32*H27 |
External dip switch |
UL FCC CLASSII |
|
30-40Vdc |
1500mA |
||||||||
|
30-36Vdc |
1650mA |
||||||||
|
JX-AI80D2C |
80W |
100-277Vac |
30-42Vdc |
1900mA |
167,167,8 |
85% |
L182*W45*H32 |
External dip switch |
UL FCC CLASSII |
|
120-347Vac |
30-40Vdc |
2000mA |
|||||||
|
Environmental |
|
|
Safety standard |
UL8750 ,Class2 |
|
EMC emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-20°C to 85°C |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Location Rating |
UL Dry & Damp |
|
Surge protection |
L-N 1KV , L-N-FG 2KV |
|
Certificate |
UL/FCC certificate |
Inspection
Jusinpower has more than 10 years of experience in designing and manufacturing lighting power supply. Our matured verification process and through QC control system will ensure your products are sustainable and high-quality. Moreover, our experienced engineers and persevered sales representatives will be the best backup team for your company.

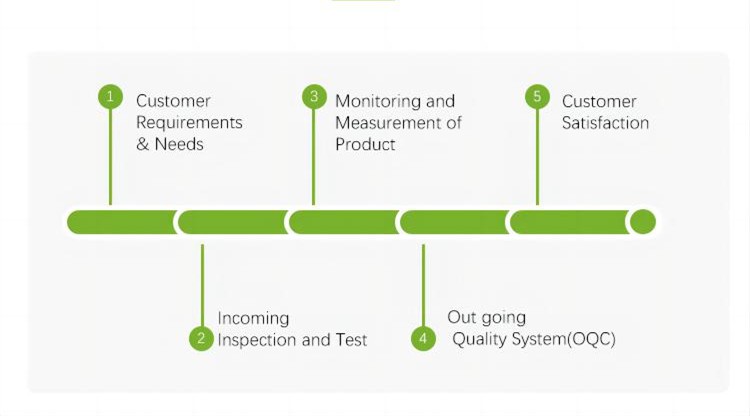

QC Process Flow Chart
