0-10V Tunable White LED Driver
The 0-10V tunable white LED driver features a universal input voltage range of 120-347Vac, making it compatible worldwide. Its extended metal shell enhances heat dissipation, thereby significantly enhancing product reliability and longevity. Ideal for various applications including panel lights, uplights, downlights, linear lights, floor lights, and more.

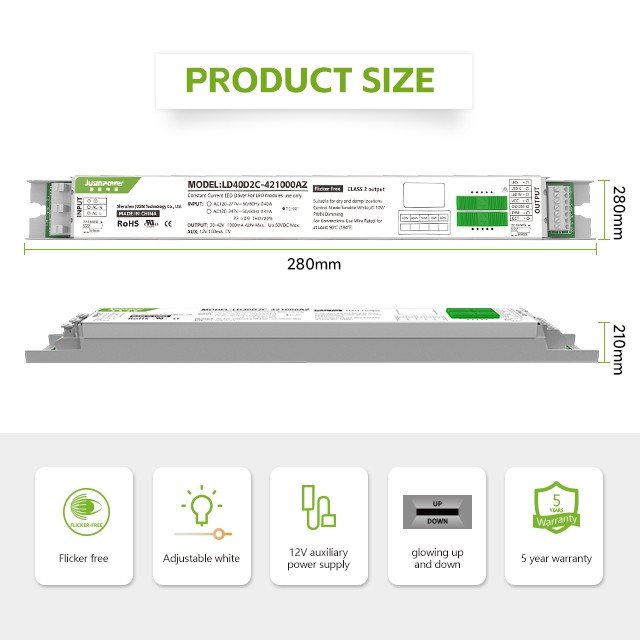

Top Features and Benefits:
5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment
Adjustable white
Flicker free
12V auxiliary
power supply
glowing up
and down
1.Flicker-free&Radiation-free
2.Over Temperature Protection
3.Compatible with many lighting fixtures and control systems
4.5years warranty
Application Scenario:
Customizable color temperature and power settings make it suitable for various fixtures such as panel lights, uplights, downlights, linear lights, and floor lights.

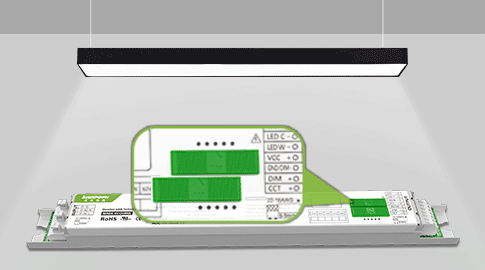

3 kinds of scene intelligence
The 0-10V tunable white LED driver can be allocated according to unnecessary needs to realize power adjustment, brightness adjustment, color temperature adjustment and other functions respectively, and flexibly supports three common scenarios.
Electrical Characteristic:

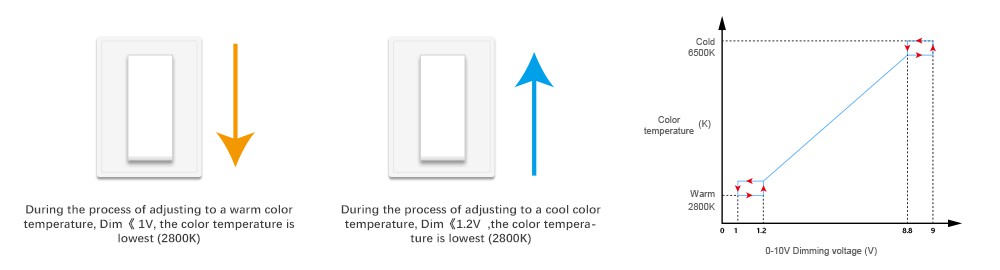

When adjusting to a warm color temperature, the lowest temperature of 2800K is achieved at Dim<1V. Similarly, when adjusting to a cool color temperature, the lowest temperature of 2800K is reached at Dim<1.2V.

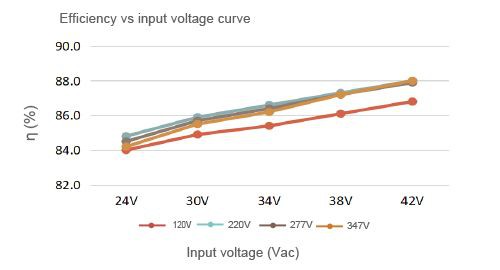

When the input voltage reaches 120V and the output voltage is 34V, the efficiency can be as high as 85%.

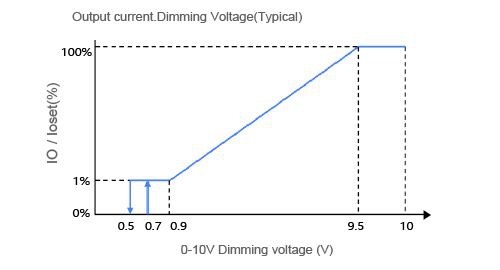

At 0.7V adjustment, brightness registers at 1%, increasing gradually with wattage until reaching 100% brightness at 9.5V. Similarly, at 10V, brightness remains at 100%. Conversely, reducing wattage to 0.5 results in 0% brightness.

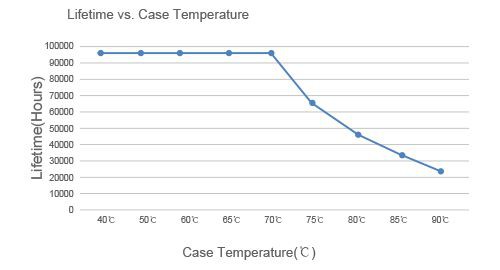

The relationship between enclosure temperature and lifespan is significant. With a shell temperature ranging from 40°C to 70°C, the product can sustain a lifespan of approximately 96,000 hours.

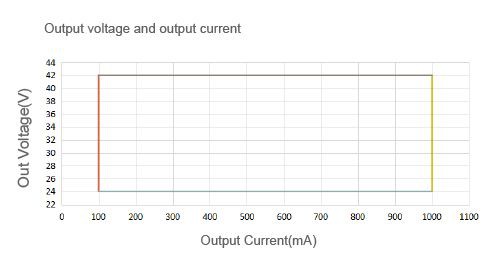

Within the output voltage range, the maximum output power does not exceed 55W.

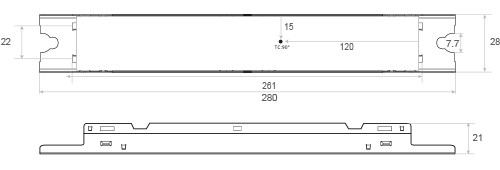

Dimension(mm):
Length:280mm Width: 28mm Height:21mm

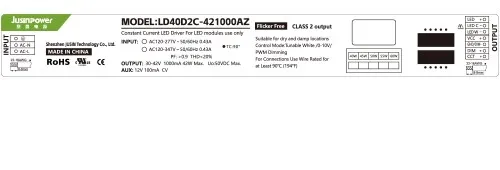

Product Label:

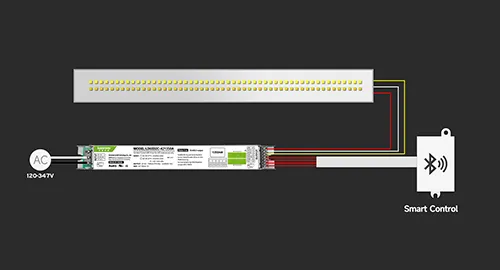

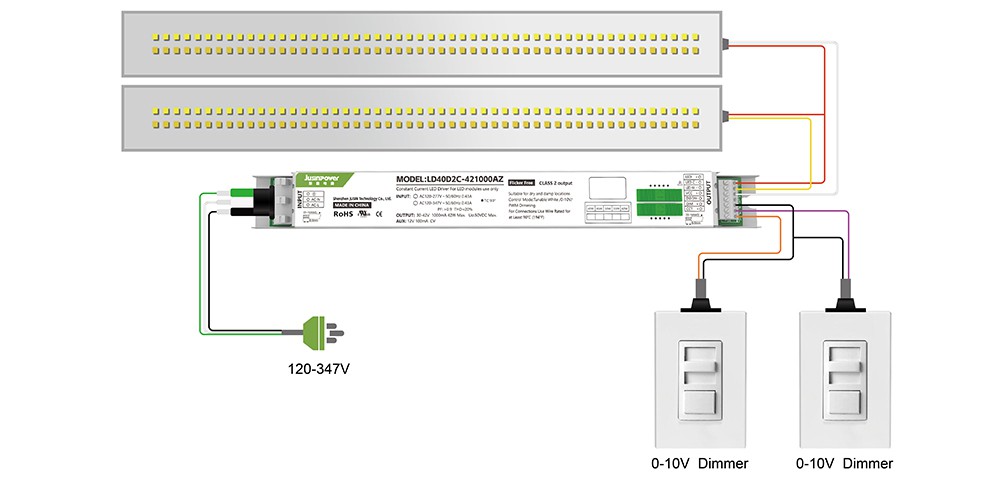

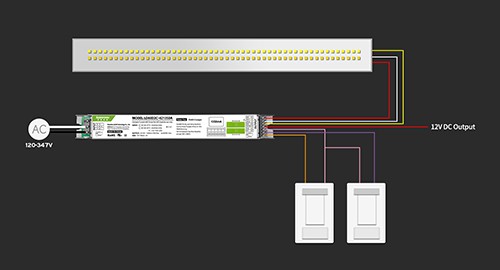

Wiring Instructions:

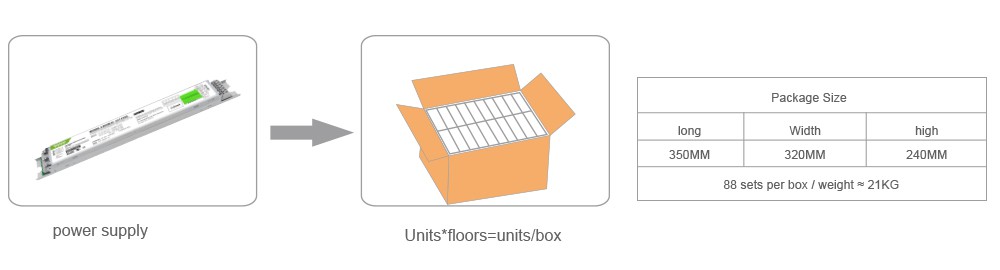

Product Packaging:
Hot Tags: 0-10v tunable white LED driver, China 0-10v tunable white LED driver manufacturers, suppliers, factory, 5 CCT LED Driver, five color temperature switch, No flicker led driver, tuya led driver, sensor module, suitable for tri proof light
LD series
LD40D2C-421000AZ
|
Performance |
||
|
Model |
LD40D2C-421000AZ |
|
|
Input |
Efficiency |
87%@220Vac full load |
|
Voltage |
120-277Vac(standard) |
|
|
120-347Vac(optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@347Vac full load |
|
|
THD(full load) |
<10%@120Vac full load |
|
|
AC Current(max) |
0.65A@120Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (cold engine start)Max |
20A@120Vac |
|
|
28A@277Vac |
||
|
30A@347Vac |
||
|
Leakage Current (max) |
55W |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
30-42Vdc/1000mA/42W |
|
Current Ripple |
<10% |
|
|
Channel |
Dual output |
|
|
Linear Regulation |
±5% |
|
|
No-load Output Voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
Auxiliary Voltage |
12V/100mA |
|
|
Function |
Dimming Method |
0-10V 0.5V OFF /0.7V OPEN |
|
Dimming Current |
<1mA@10V <2mA@0.7V |
|
|
Dimming Range |
1%-100% (standard) |
|
|
10%-100%(optional) |
||
|
Power |
5 adjustable |
|
|
Color Temperature |
5 adjustable (optional) |
|
|
stepless dimming (standard) |
||
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
280 mm |
|
Width |
28 mm |
|
Height |
21 mm |
|
Mounting Length |
261mm |
|
Weight (g) |
238g |
|
Environmental |
|
|
Safety Standard |
Ul8750 ,Class2 |
|
EMC Emission |
Meets Fcc Part 15 |
|
Operating Temperature |
-20°C To 50°C |
|
Storage Temperature,Humidity |
-20°C To 85°C,20-90%Rh |
|
Case Temperature |
Tc=90℃ |
|
Warranty Tc |
85°C Max For 50k Hr Life |
|
Surge Protection |
L-N 1Kv , L/N-Fg 2Kv |
|
IP Rating |
IP20 |
|
Material |
Iron Shell |
|

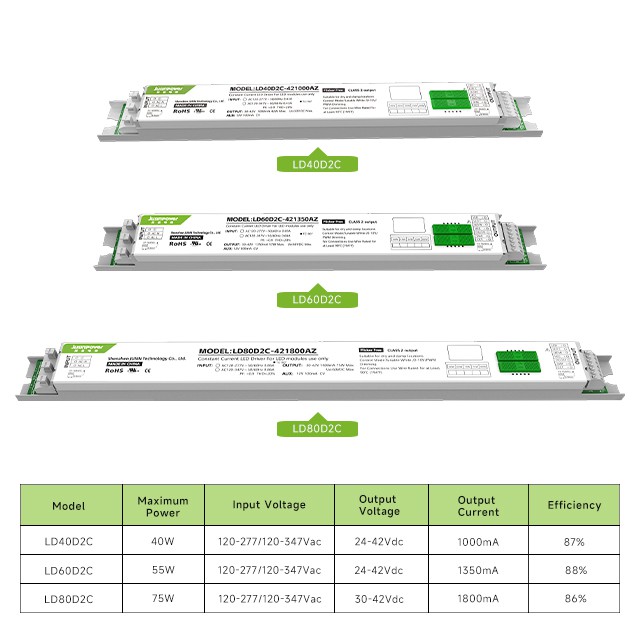

Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Color temperature |
Efficiency |
|
LD40D2C-42XXXXYZ |
40W |
120-277/120-347Vac |
24-42Vdc |
1000mA |
0.9 |
Adjustable |
Adjustable |
87% |
|
LD60D2C-42XXXXYZ |
55W |
120-277/120-347Vac |
24-42Vdc |
1350mA |
0.9 |
Adjustable |
Adjustable |
88% |
|
LD80D2C-42XXXXYZ |
75W |
120-277/120-347Vac |
30-42Vdc |
1800mA |
0.9 |
Adjustable |
Adjustable |
86% |
