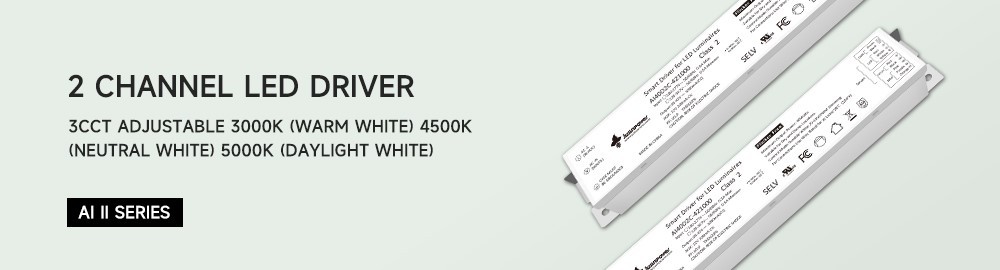

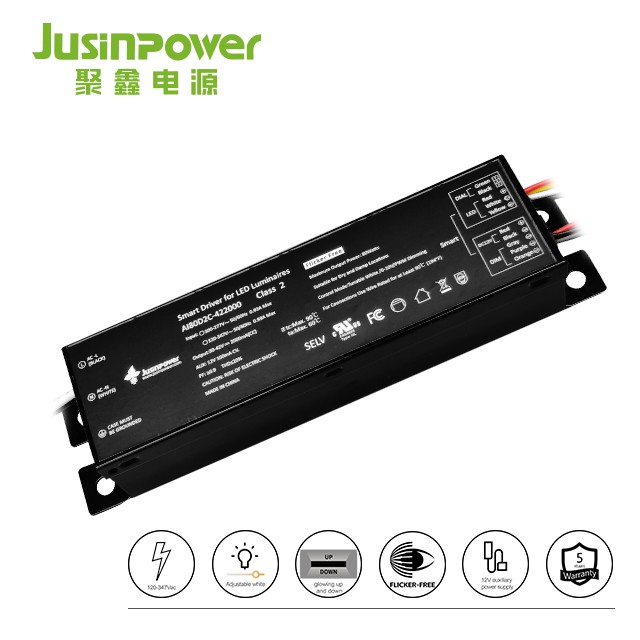

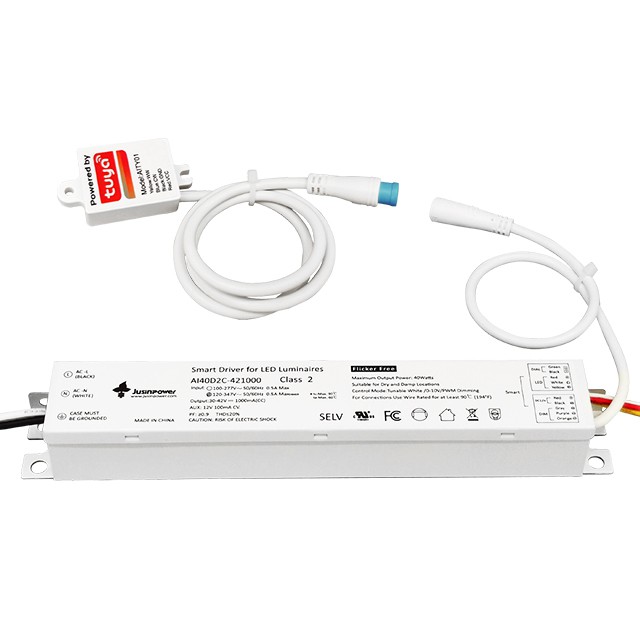

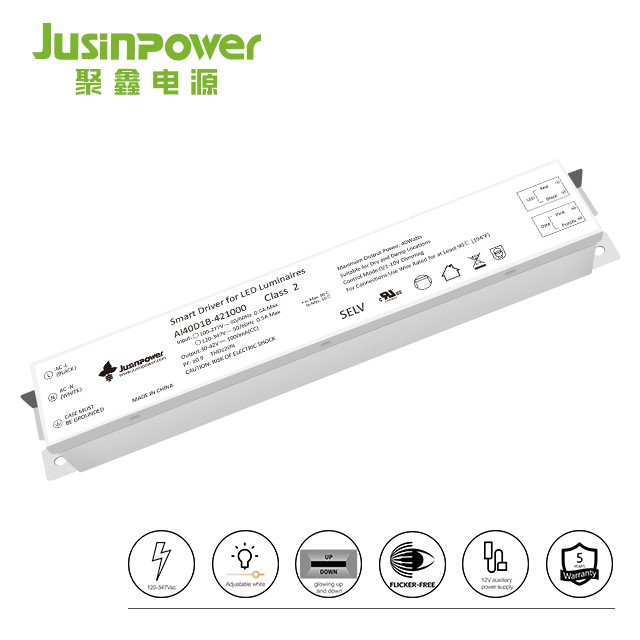

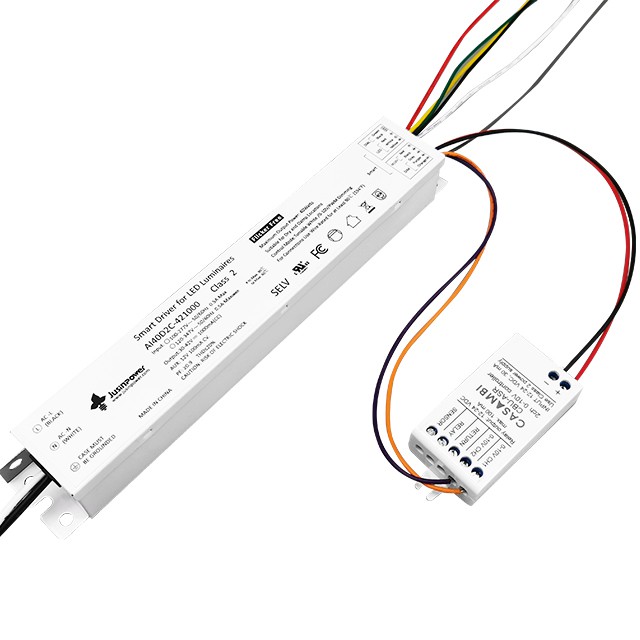

2 Channel LED Driver

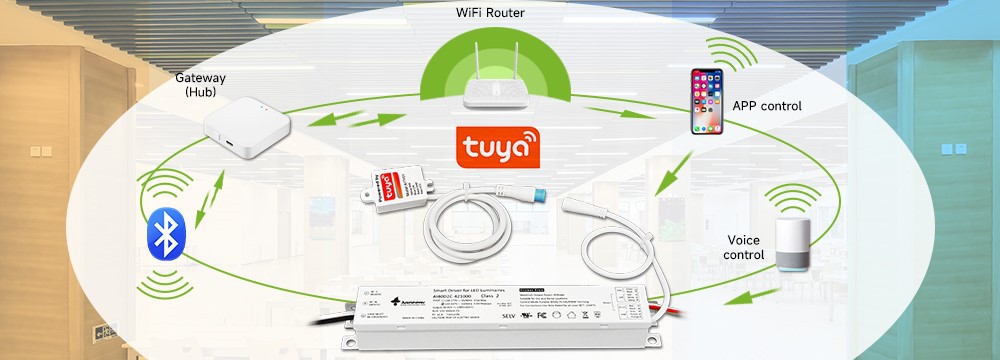

2 channel led driver can adjust the brightness and color temperature of the lamps, and provide different brightness and color temperature according to different scenarios, and the light switching can transition smoothly. The high-end smart home system is equipped with a dimmable lighting system as standard, and is connected through networks such as wifi or ZigBee.

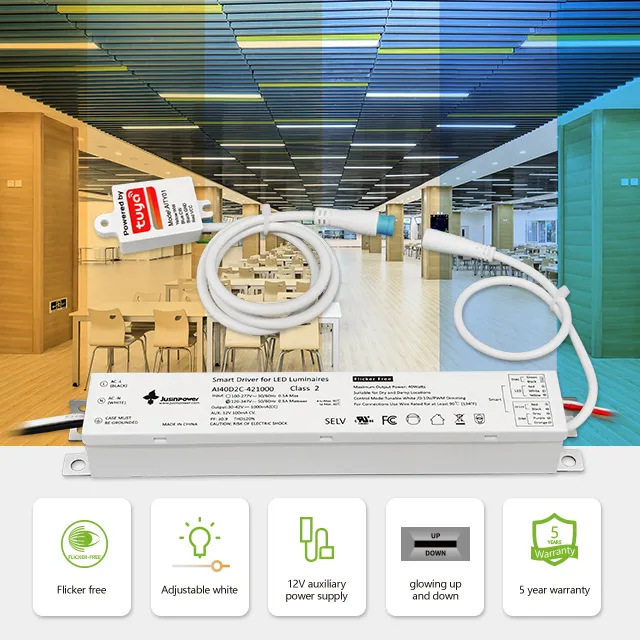

Top Features and Benefits:
5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment
Adjustable white
Flicker free
12V auxiliary
power supply
glowing up
and down
1.Min dimming 1%
2.Ultra-wide output voltage
3.Dual-channel CCT tuning and color mixing
4.3CCT adjustable 3000K (warm white) 4500K (neutral white) 5000K (daylight white)
3 scene modes
Application:

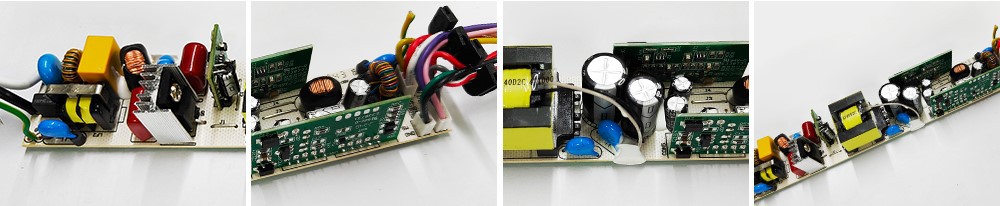

Product Details:

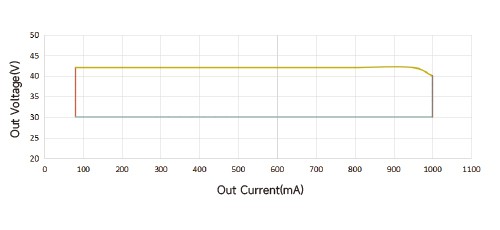

Driver Opeating Range
The output voltage and current of the 2 channel led driver are stable.

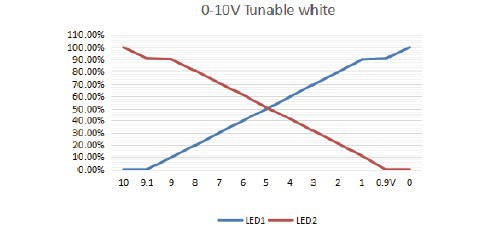

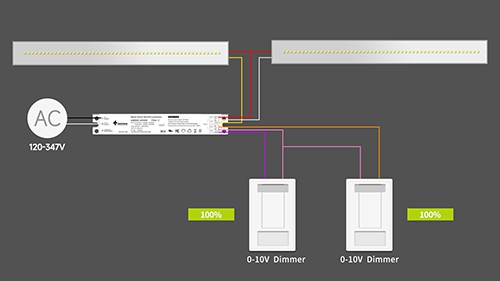

0-10V Tunable white
Adjust the brightness freely, flexible and agile.

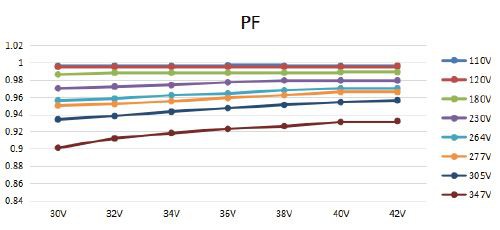

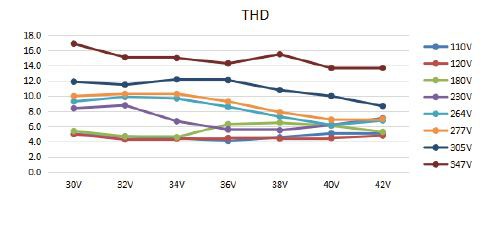

Performance: Total Harmonic Distortion, & Power Factor:
The 2 channel led driver has high PF and low THD.

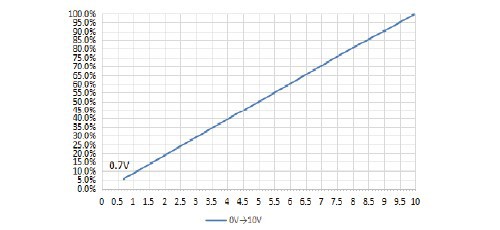

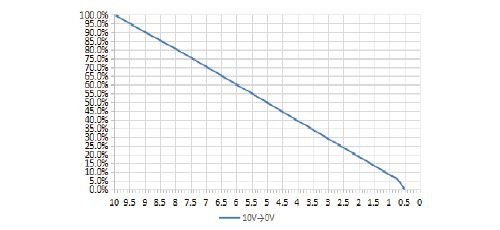

0-10V/10-0V Dimming
The light is off when the voltage is adjusted to 0.5V. At 0.7V, it appears slightly bright.

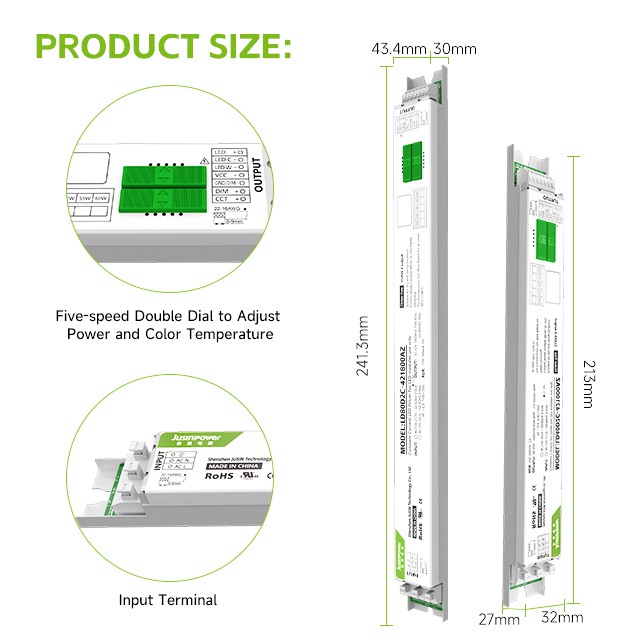

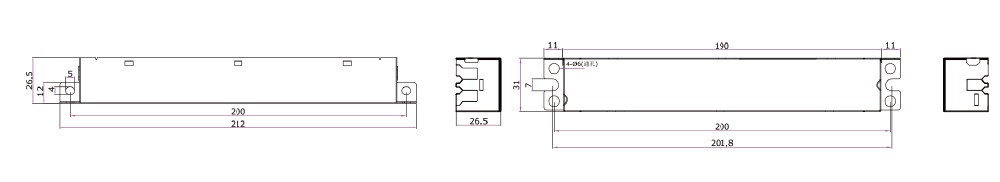

Dimensional Diagram (mm):
Length: 213mm Width: 32mm Height: 27mm
Product Label:

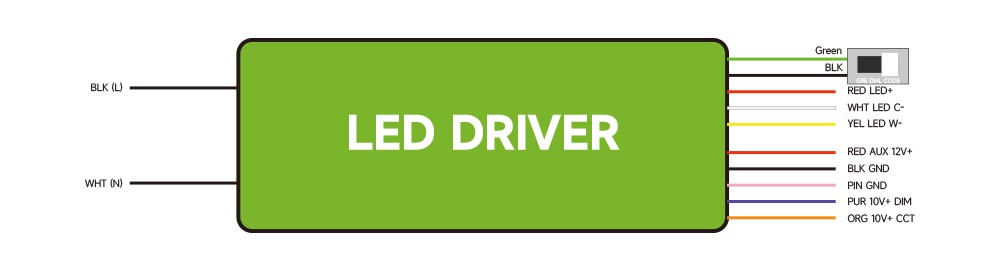

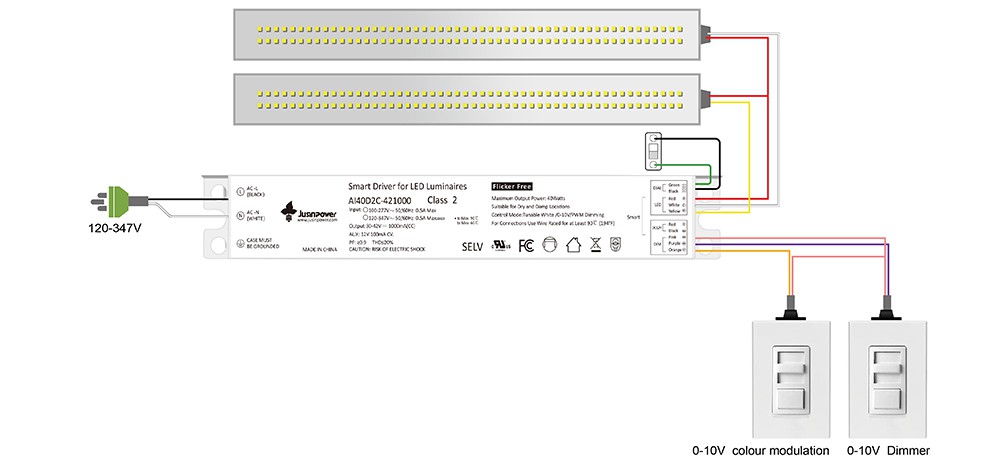

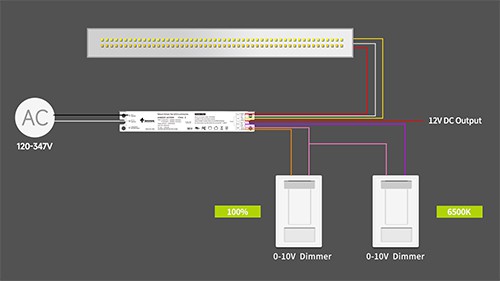

Wiring Diagram
★ AC input ：
UL1015 18AWG 105℃ 600V 230mm Black-L White-N
★ DC output：
UL1007 20AWG 80℃ 300V 230mm Red V+; White C-; Yellow W-
★ D I M:
UL1007 22AWG 80℃ 300V 230mm Purple DIM+; Pink DIM-; Orange CCT-
★ Dial code(Power regulation)：
UL1007 22AWG 80℃ 300V 230mm Green ; Black
Hot Tags: 2 channel LED driver, China 2 channel LED driver manufacturers, suppliers, factory, constant current tunable driver, Slim Strip Dimmable Isolated Driver, Light Management System, smart module, Wireless Dimmable LED Driver, 3 stage dimming
AI II series
AI40D2C-421000 (0-10V)
|
Performance |
|
|
Input Voltage |
120-347 Vac |
|
Input Current Max |
0.5A |
|
Input Power Max |
45W |
|
Input Frequency |
50/60Hz |
|
Power Factor |
> 0.9 @ max load |
|
THD max |
< 20 % @ max load |
|
Output Voltage (Refer to Driver Operating Range) |
30-42Vdc |
|
Max. Output Current |
1000mA |
|
AUX Power |
12V 100mA |
|
Output Power |
40W |
|
Power Efficiency |
86%@347V max load |
|
Input Line Regulation |
±5 % |
|
Adjustment Rat |
±5 % |
|
Output Current Ripple |
<10% (Pk-Pk/avg) |
|
Inrush Current* Peak / >10% Duration |
347V: 50A / 160uS |
|
Physical |
|
|
Length |
213 mm |
|
Width |
32 mm |
|
Height |
27 mm |
|
Mounting Length |
200mm |
|
Weight (g) |
230g |
|

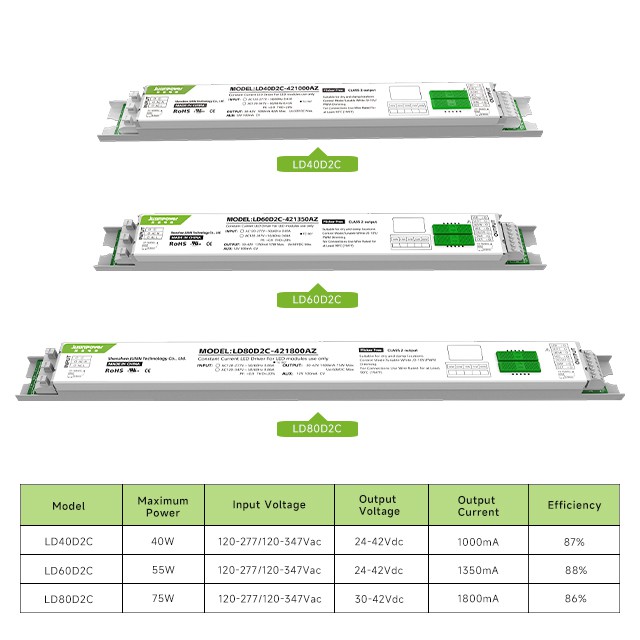

Series Driver |
|||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Dimension(mm) |
Efficiency |
Size |
Power Regulation |
Certificate |
|
JX-AI40D2C |
40W |
100-277Vac |
30-42Vdc |
950mA |
201.8,200,7 |
84% |
L213*W32*H27 |
External dip switch |
UL FCC CLASSII |
|
120-347Vac |
30-40Vdc |
1000mA |
|||||||
|
JX-AI60D2C |
60W |
100-277Vac 120-347Vac |
30-42Vdc |
1430mA |
201.8,200,7 |
86% |
L213*W32*H27 |
External dip switch |
UL FCC CLASSII |
|
30-40Vdc |
1500mA |
||||||||
|
30-36Vdc |
1650mA |
||||||||
|
JX-AI80D2C |
80W |
100-277Vac |
30-42Vdc |
1900mA |
167,167,8 |
85% |
L182*W45*H32 |
External dip switch |
UL FCC CLASSII |
|
120-347Vac |
30-40Vdc |
2000mA |
|||||||
|
Environmental |
|
|
Safety standard |
UL8750 ,Class2 |
|
EMC emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-20°C to 85°C |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Location Rating |
UL Dry & Damp |
|
Surge protection |
L-N 1KV , L-N-FG 2KV |
|
Certificate |
UL/FCC certificate |
Packing Delivery
Standard export packing, or customized packing as your request. From production to shipment of a series of processes, we will carry out strict inspection over and over again to ensure the quality of goods. Bare board series of products we will set a layer of blister protection shell, to ensure that the goods are not damaged during transportation.
Certificate
Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate. The products are compatible with multi-national certifications, including China CQC certification and international cUL, SAA, TUV, CE, CB, SAA, FCC, CCC.
Factory
We have a 4000 square meter factory in FoShan high-tech Zone for production.At the same time we not only have a professional R&D team of about 20 people, but also have advanced equipment to support. such as SMT machine,Automatic Gluing Machine,aged vehicle,reflow solder and so on.The production line of about 80 people, able to reach 1 million shipments per year!
-
