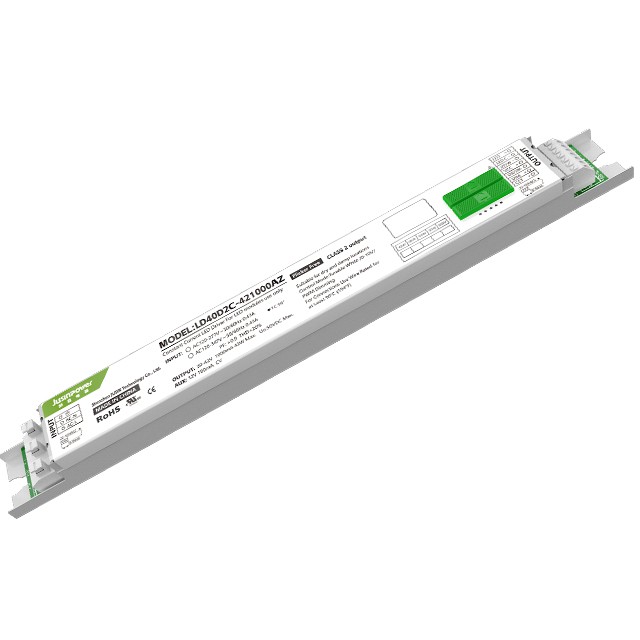

Smart Tunable White Driver
With the implementation of the global concept of energy conservation and environmental protection and the support of national industry policies, Led lighting manufacturers are moving towards the layout of digital intelligent dimming and regulation of lamps and lanterns.Smart Tunable White Driver is an isolated constant current power supply.Customers can adjust the power and color temperature through the DIP switch that comes with the power supply or an external dimmer.
Top Features and Benefits:
5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment
Adjustable white
Flicker free
12V auxiliary
power supply
glowing up
and down
Features：
1.12V auxiliary power supply design
2.stepless adjustment of color temperature.
3.1% deep dimming
4.5years warranty

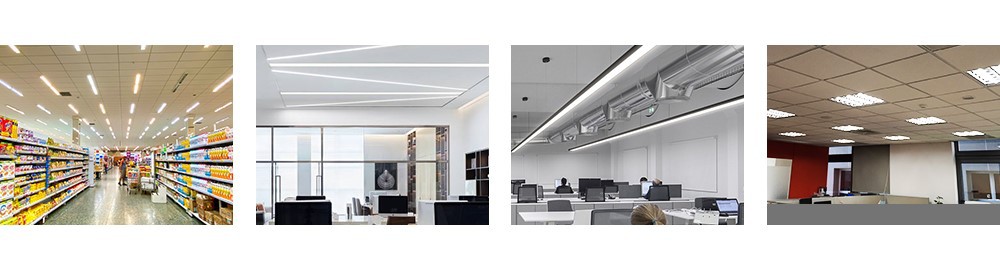

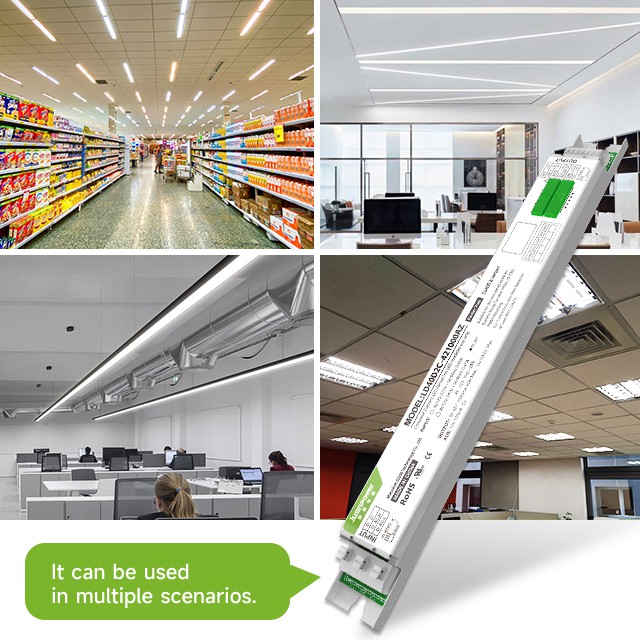

Application Scenario:

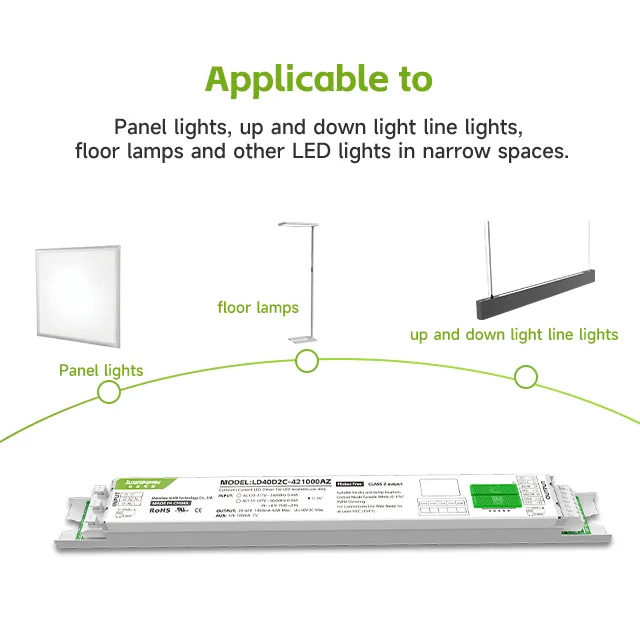

Color temperature and power can be customized. It can suitable for panel lights, up and down light line lights, floor flights, etc.

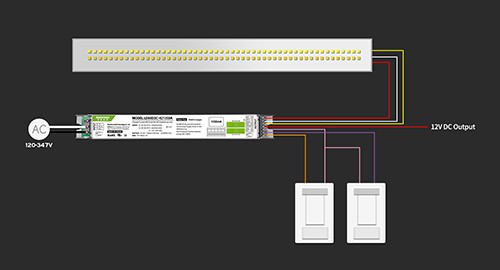

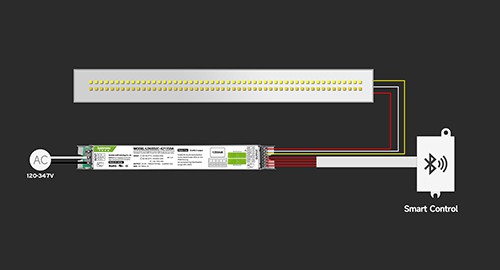

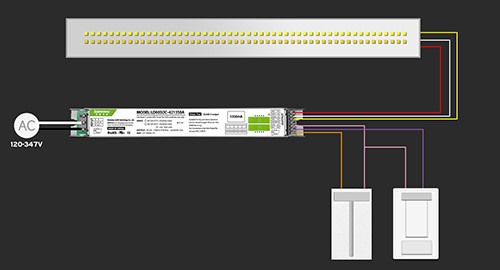

4 kinds of scene intelligence
Smart Tunable White Driver has built-in high-performance MCU chip, through the unique software algorithm of Jusinpower R & D team, the power supply has 2 signal receiving ports and 2 dip control ports. It can be allocated according to unnecessary needs, respectively to achieve power adjustment, brightness adjustment, color temperature adjustment and other functions, flexibly support 4 common scenarios.
Electrical characteristic:

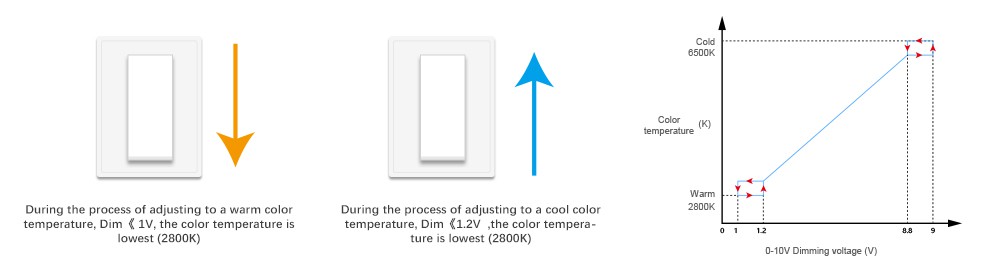

During the process of adjusting to a warm color temperature.Dim<1V, the color temperature is lowest(2800K)
During the process of adjusting to a cool color temperature.Dim<1.2V, the color temperature is lowest(2800K)

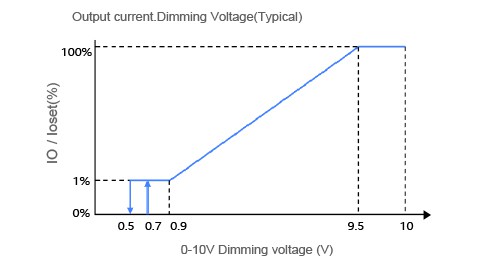

When adjusted to 0.7V, there is 1% brightness. The brightness becomes brighter as the wattage increases, reaching 100% brightness at 9.5V. 10V is also 100% brightness. When the wattage is reduced to 0.5, the brightness is 0%.

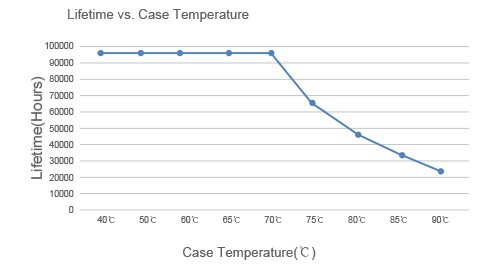

Enclosure temperature and life are closely related. The temperature of the shell is 40℃-70℃, and the life can be maintained at about 96,000 hours.

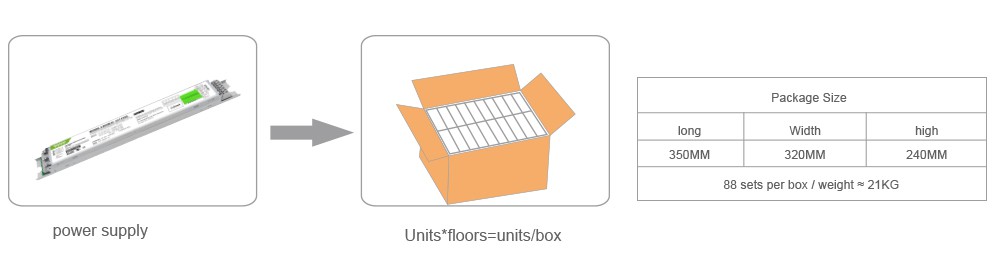

Product Packaging:
Hot Tags: smart tunable white driver, China smart tunable white driver manufacturers, suppliers, factory, 1 10v Dimming Driver, tunable light, 30-54Vdc, 5 CCT LED Driver, step dimmer, 5 8G LED Sensor Driver
LD series

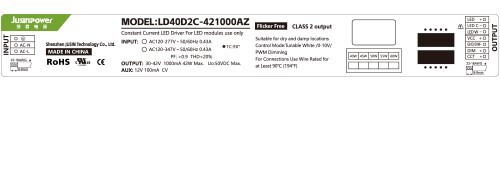

LD40D2C-421000AZ
|
Performance |
||
|
Model |
LD40D2C-421000AZ |
|
|
Input |
Efficiency |
87%@220Vac full load |
|
Voltage |
120-277Vac(standard) |
|
|
120-347Vac(optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@347Vac full load |
|
|
THD(full load) |
<10%@120Vac full load |
|
|
AC Current(max) |
0.65A@120Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (cold engine start)Max |
20A@120Vac |
|
|
28A@277Vac |
||
|
30A@347Vac |
||
|
Leakage Current (max) |
55W |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
30-42Vdc/1000mA/42W |
|
Current Ripple |
<10% |
|
|
Channel |
Dual output |
|
|
Linear Regulation |
±5% |
|
|
No-load Output Voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
Auxiliary Voltage |
12V/100mA |
|
|
Function |
Dimming Method |
0-10V 0.5V OFF /0.7V OPEN |
|
Dimming Current |
<1mA@10V <2mA@0.7V |
|
|
Dimming Range |
1%-100% (standard) |
|
|
10%-100%(optional) |
||
|
Power |
5 adjustable |
|
|
Color Temperature |
5 adjustable (optional) |
|
|
stepless dimming (standard) |
||
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|

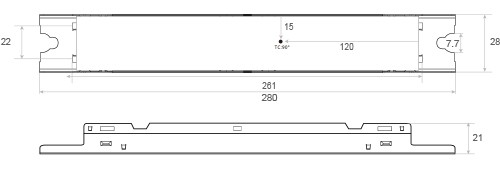

Physical |
|
|
Length |
280 mm |
|
Width |
28 mm |
|
Height |
21 mm |
|
Mounting Length |
261mm |
|
Weight (g) |
238g |
|
Environmental |
|
|
Safety Standard |
Ul8750 ,Class2 |
|
EMC Emission |
Meets Fcc Part 15 |
|
Operating Temperature |
-20°C To 50°C |
|
Storage Temperature,Humidity |
-20°C To 85°C,20-90%Rh |
|
Case Temperature |
Tc=90℃ |
|
Warranty Tc |
85°C Max For 50k Hr Life |
|
Surge Protection |
L-N 1Kv , L/N-Fg 2Kv |
|
IP Rating |
IP20 |
|
Material |
Iron Shell |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Color temperature |
Efficiency |
|
LD40D2C-42XXXXYZ |
40W |
120-277/120-347Vac |
24-42Vdc |
1000mA |
0.9 |
Adjustable |
Adjustable |
87% |
|
LD60D2C-42XXXXYZ |
55W |
120-277/120-347Vac |
24-42Vdc |
1350mA |
0.9 |
Adjustable |
Adjustable |
88% |
|
LD80D2C-42XXXXYZ |
75W |
120-277/120-347Vac |
30-42Vdc |
1800mA |
0.9 |
Adjustable |
Adjustable |
86% |
