Led Driver 2 line CCT
Different illuminance scenes evoke various emotions in individuals based on color temperature. Lower color temperatures provide comfort in low illuminance settings, while higher color temperatures impart a cooler sensation. The LED Driver 2 line CCT features a smart module that can optionally integrate with a Tuya system. It finds extensive application in venues such as exhibition halls, museums, offices, and factories. Users can tailor brightness and color temperature to suit diverse scene requirements.
Features：
5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment
Adjustable white
Flicker free
12V auxiliary
power supply
glowing up
and down
1.Programmable Design
2.No strobe, Smooth dimming
3.Double dial to adjust power and color temperature.
4.Luminance dimming,Color dimming,Max output
Application Scenario:
Suitable for LED lights in narrow spaces such as line lights, tri-proof lights, plants lights, grille lights, etc.
Color temperature and power can be customized. It can suitable for panel lights up and down light, line lights, floor flights, etc.
3 kinds of scene intelligence
The Led Driver 2 line CCT incorporates a high-performance MCU chip and employs Jusinpower's proprietary software algorithm. Equipped with 2 signal receiving ports and 2 dip control ports, it offers customizable allocation to meet various requirements. This allows for power adjustment, brightness adjustment, color temperature adjustment, and other functions, accommodating three common scenarios with flexibility.
Electrical characteristic:

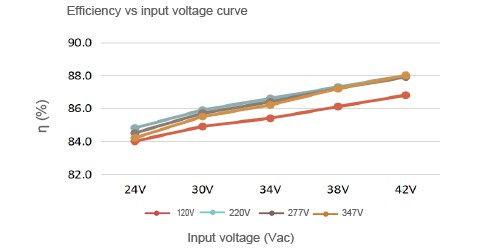

When the input voltage reaches 120V and the output voltage is 38V, the efficiency can be as high as 86%.

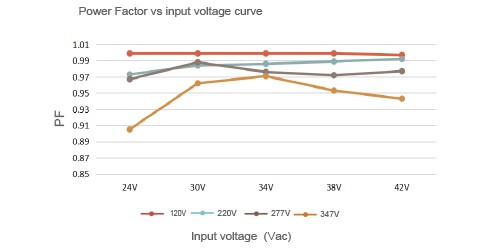

When the input voltage is 277V and the output voltage is 38V, the PF is 0.97.

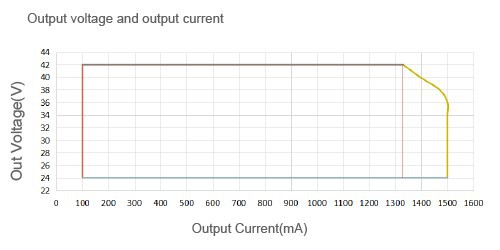

Within the output voltage range, the maximum output power does not exceed 56W.
Wiring Instructions:

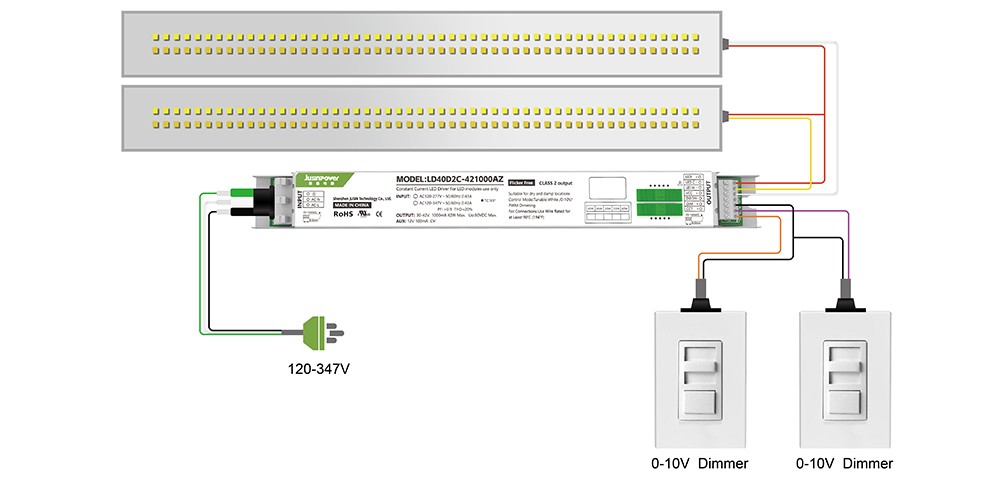

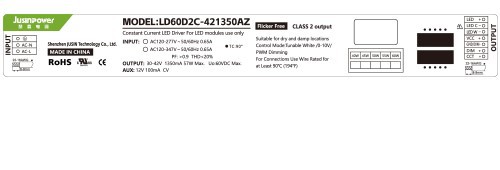

The product features two connecting ends: one serves as the AC input terminal, while the other functions as the DC output and dimming signal input terminal. The output can be linked to two separate sets of lamp beads. LED V+ acts as the common positive pole, whereas LED C- and LED W- represent the individual negative poles of the module. DIM connects to one set of independent 0-10V positive poles, while CCT connects to another set of independent 0-10V positive poles. Additionally, 12V connects to the module's positive pole, while GND serves as the common negative pole.
Hot Tags: LED driver 2 line cct, China LED driver 2 line cct manufacturers, suppliers, factory, input 347Vac, Linear Tunable White LED Driver, non isolated driver, Three levels of color temperature, thin led light fixtures, wifi lamp
LD series

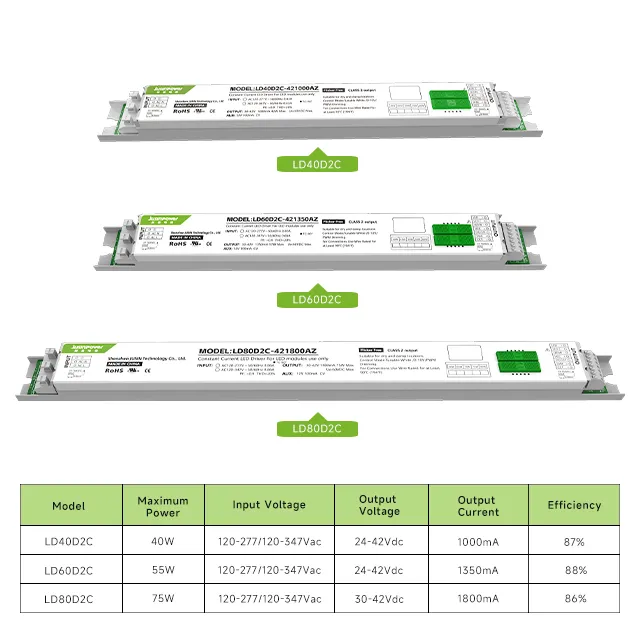

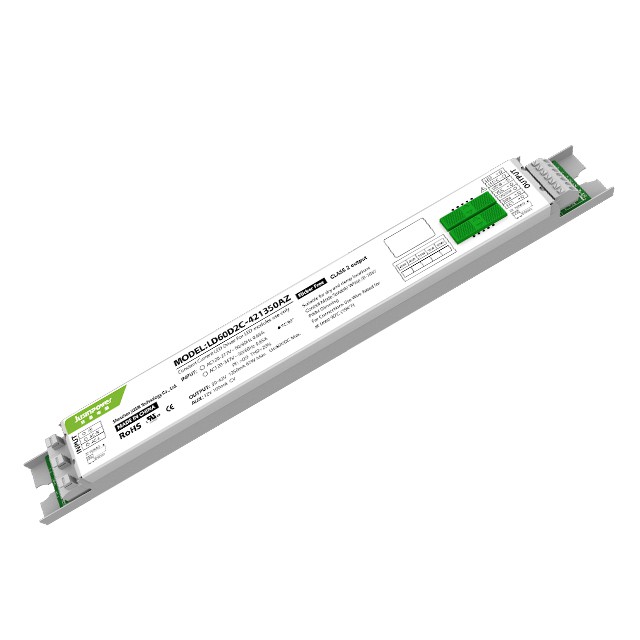

LD60D2C
|
Performance |
||
|
Model |
LD60D2C-421350A |
|
|
Input |
Efficiency |
88%@220Vac Full Load |
|
Voltage |
120-277Vac(Standard) |
|
|
120-347Vac(Optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@347Vac Full Load |
|
|
THD(Full Load) |
<10%@120Vac Full Load |
|
|
Ac Current(Max) |
0.65A@120Vac Full Load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
32A@120Vac |
|
|
58A@277Vac |
||
|
70A@347Vac |
||
|
Leakage Current (Max) |
55W |
|
|
Output |
Current(Ma)/Voltage (Vdc) Power(W) |
24-42Vdc/1800ma60W |
|
Current Ripple |
<10% |
|
|
Channel |
Dual Output |
|
|
Linear Regulation |
±5% |
|
|
No-Load Output Voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
Auxiliary Voltage |
12V/100ma |
|
|
Function |
Dimming Method |
0-10V 0.5V Off /0.7V Open |
|
Dimming Current |
<1ma@10V ;<2ma@0.7V |
|
|
Dimming Range |
1%-100% (Standard) |
|
|
10%-100%(Optional) |
||
|
Power |
5 Adjustable |
|
|
Color Temperature |
5 Adjustable (Optional) |
|
|
Stepless Dimming (Standard) |
||
|
Protection |
Over Temperature |
When Temperature Is Too High,Shut Down The Output, Recovers Automatically |
|
Over Load |
Hiccup,When The Output Power Exceeds,Then,Recovers Automatically After Fault Removed |
|
|
Short Circuit |
Close Output,Recovers Automatically After Fault Removed |
|
|

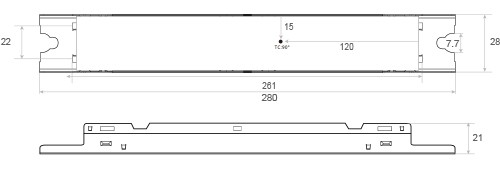

Physical |
|
|
Length |
280 mm |
|
Width |
28 mm |
|
Height |
21 mm |
|
Mounting Length |
261mm |
|
Weight (g) |
238g |
|
Environmental |
|
|
Safety Standard |
Ul8750 ,Class2 |
|
EMC Emission |
Meets Fcc Part 15 |
|
Operating Temperature |
-20°C To 50°C |
|
Storage Temperature,Humidity |
-20°C To 85°C,20-90%Rh |
|
Case Temperature |
Tc=90℃ |
|
Warranty Tc |
85°C Max For 50k Hr Life |
|
Surge Protection |
L-N 1Kv , L/N-Fg 2Kv |
|
IP Rating |
Ip20 |
|
Material |
Iron Shell |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Color temperature |
Efficiency |
|
LD40D2C-42XXXXYZ |
40W |
120-277/120-347Vac |
24-42Vdc |
1000mA |
0.9 |
Adjustable |
Adjustable |
87% |
|
LD60D2C-42XXXXYZ |
55W |
120-277/120-347Vac |
24-42Vdc |
1350mA |
0.9 |
Adjustable |
Adjustable |
88% |
|
LD80D2C-42XXXXYZ |
75W |
120-277/120-347Vac |
30-42Vdc |
1800mA |
0.9 |
Adjustable |
Adjustable |
86% |
