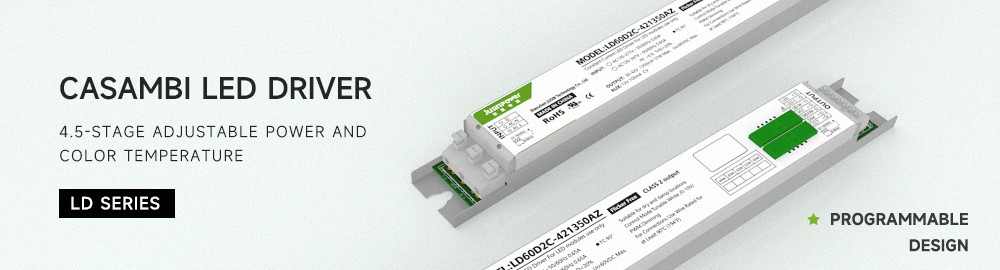

Casambi LED Driver
This driver is developed based on the Casambi module and can be controlled through the Casambi APP. Users can automatically adjust the color temperature to the desired level in a smooth and uniform manner, and precisely control the output current and brightness of the lamp; they can also adjust the speed of brightness change to achieve the effect of switching lights on and off gradually. Conventional LED main lighting fixtures can be driven by this power supply, and ordinary LED lights can be transformed into smart lighting fixtures in seconds. Casambi enables Bluetooth mesh-based lighting control without the need for a wired gateway or Wi-Fi network connection.

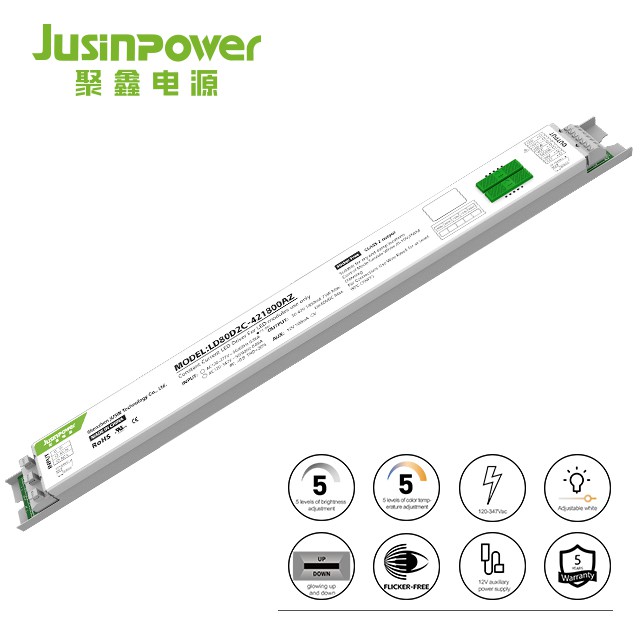

Features：
5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment
Adjustable white
Flicker free
12V auxiliary
power supply
glowing up
and down
1.Bluetooth Controllable
2.Multifunctional Constant Current

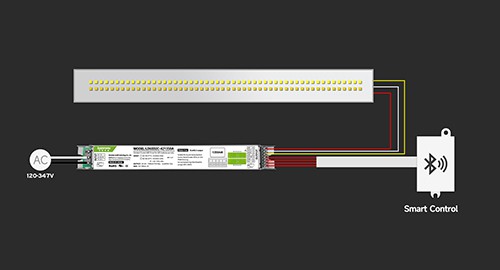

3.Casambi Wireless Lighting Control
4.5-stage Adjustable Power and Color Temperature
Application Scenario:
The color temperature and power can be customized, making it suitable for panel lights, up and down lights, linear lights, floor lights, and more.

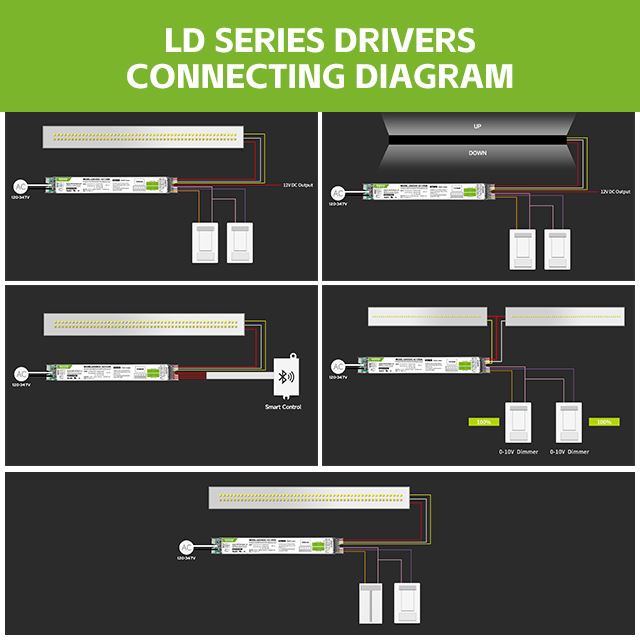

4 kinds of scene intelligence
The driver has built-in high-performance MCU chip, through the unique software algorithm of Jusinpower R&D team, the power supply has 2 signal receiving ports and 2 dip control ports. It can be allocated according to unnecessary needs, respectively to achieve power adjustment, brightness adjustment, color temperature adjustment and other functions, flexibly support 4 common scenarios.
Electrical characteristic:

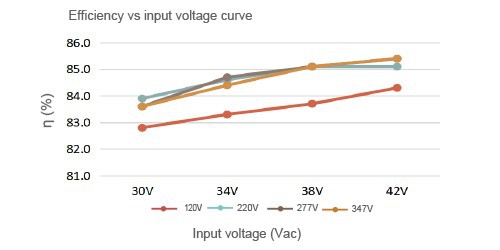

When the input voltage reaches 277V and the output voltage is 38V, the efficiency can be as high as 85%.

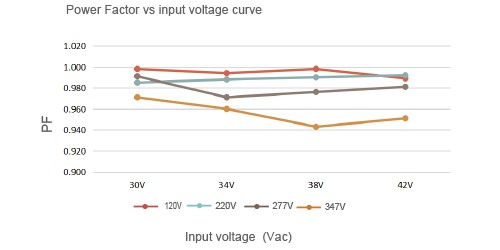

When the input voltage is 277V and the output voltage is 34V, the PF is 0.97.

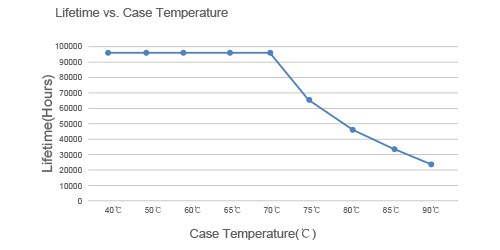

The enclosure temperature and lifespan are closely connected. With a shell temperature range of 40°C to 70°C, the lifespan can be sustained at approximately 96,000 hours.

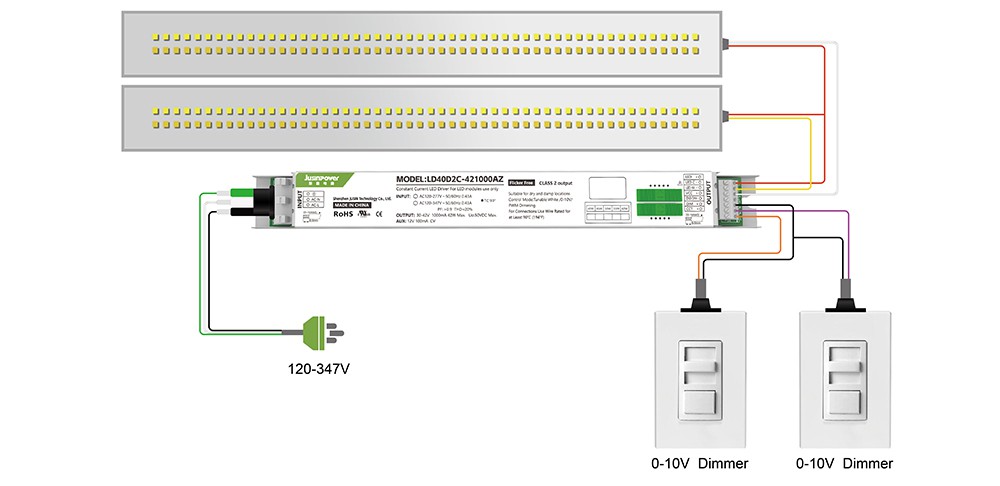

wiring instructions:

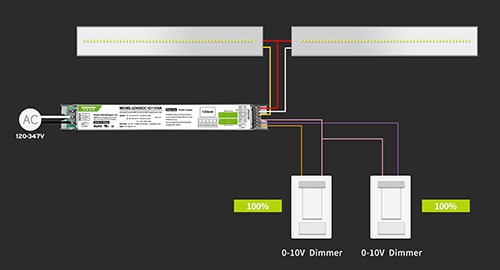

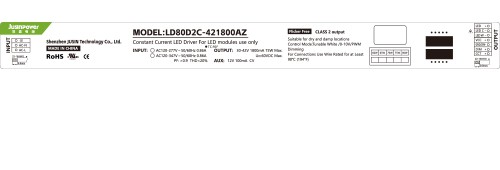

The product has connections at both ends: one end is the AC input terminal, while the other end is for DC output and dimming signal input. The output can be connected to two separate sets of lamp beads, with LED V+ being the common positive pole. LED C- and LED W- are independent negative poles for the two sets of lamp beads. The DIM terminal connects to a separate set of 0-10V positive dimming signals, and the CCT terminal connects to another separate set of 0-10V positive color temperature control signals. The 12V terminal is connected to the positive pole of the module, and GND serves as the common negative pole.
Hot Tags: casambi LED driver, China casambi LED driver manufacturers, suppliers, factory, 120-277Vac, 1000mA 0 10v Dimming Driver, multifunctional constant current, input 277Vac, 0 10V Tunable White LED Driver, pwm dimming ac
LD series
LD80D2C
|
Performance |
||
|
Model |
LD80D2C-421800A |
|
|
Input |
Efficiency |
86%@220Vac Full Load |
|
Voltage |
120-277Vac(Standard) |
|
|
120-347Vac(Optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@347Vac Full Load |
|
|
THD(Full Load) |
<10%@120Vac Full Load |
|
|
Ac Current(Max) |
0.86A@120Vac Full Load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
32A@120Vac |
|
|
58A@277Vac |
||
|
70A@347Vac |
||
|
Leakage Current (Max) |
55W |
|
|
Output |
Current(ma)/Voltage (Vdc) Power(W) |
30-42Vdc/1800ma75W |
|
Current Ripple |
<10% |
|
|
Channel |
Dual Output |
|
|
Linear Regulation |
±5% |
|
|
No-Load Output Voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
Auxiliary Voltage |
12V/100ma |
|
|
Function |
Dimming Method |
0-10V 0.5V Off /0.7V Open |
|
Dimming Current |
<1ma@10V <2ma@0.7V |
|
|
Dimming Range |
1%-100% (Standard) |
|
|
10%-100%(Optional) |
||
|
Power |
5 Adjustable |
|
|
Color Temperature |
5 Adjustable (Optional) |
|
|
Stepless Dimming (Standard) |
||
|
Protection |
Over Temperature |
When Temperature Is Too High,Shut Down The Output, Recovers Automatically |
|
Over Load |
Hiccup,When The Output Power Exceeds,Then,Recovers Automatically After Fault Removed |
|
|
Short Circuit |
Close Output,Recovers Automatically After Fault Removed |
|
|
Physical |
|
|
Length |
360 mm |
|
Width |
30 |
|
Height |
26 mm |
|
Mounting Length |
34mm |
|
Weight (g) |
416g |
|
Environmental |
|
|
Safety standard |
UL8750 ,Class2 |
|
EMC emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE/FCC/UL certificate |
|

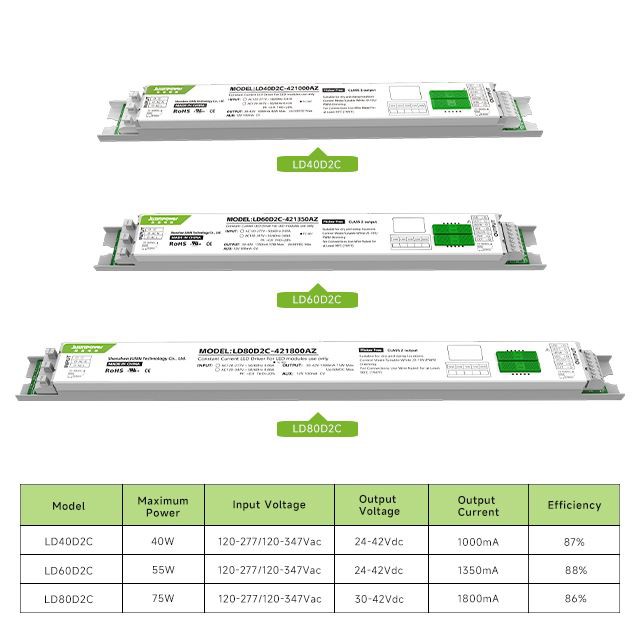

Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Color temperature |
Efficiency |
|
LD40D2C-42XXXXYZ |
40W |
120-277/120-347Vac |
24-42Vdc |
1000mA |
0.9 |
Adjustable |
Adjustable |
87% |
|
LD60D2C-42XXXXYZ |
55W |
120-277/120-347Vac |
24-42Vdc |
1350mA |
0.9 |
Adjustable |
Adjustable |
88% |
|
LD80D2C-42XXXXYZ |
75W |
120-277/120-347Vac |
30-42Vdc |
1800mA |
0.9 |
Adjustable |
Adjustable |
86% |
