Linear Tunable White LED Driver
Linear tunable white led driver are designed for application in a wide range of scenarios,which can configure output parameters via dimming lines.Full voltage input, the highest voltage can reach 347V. Providing dual channels to adjust power and color temperature.We support both standard and custom versions to meet different OEM 's needs.

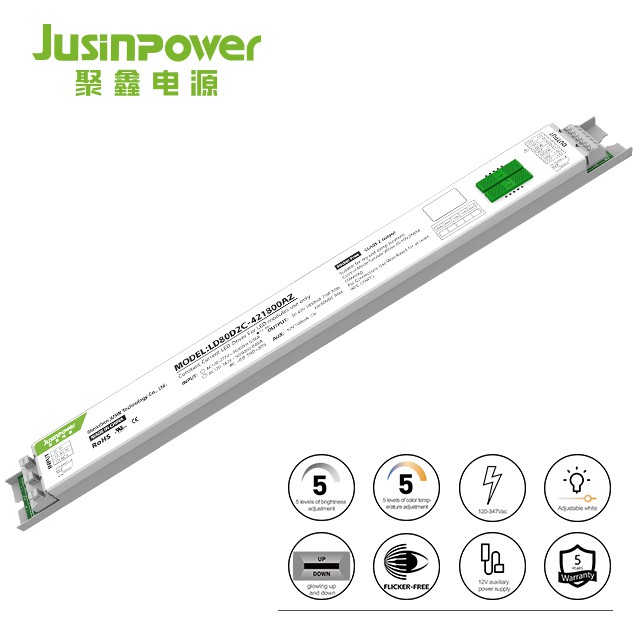

Features：
5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment
Adjustable white
Flicker free
12V auxiliary
power supply
glowing up
and down
1.Color temperature and power can be customized
2.High efficiency, Flicker Free Operation
3.Output short circuit protection
4.Average Rated Life 50,000 hrs
Application Scenario:
Suitable for LED lights in narrow spaces such as line lights, tri-proof lights, plants lights, grille lights, etc.
Color temperature and power can be customized. It can suitable for panel lights up and down light, line lights, floor flights, etc.

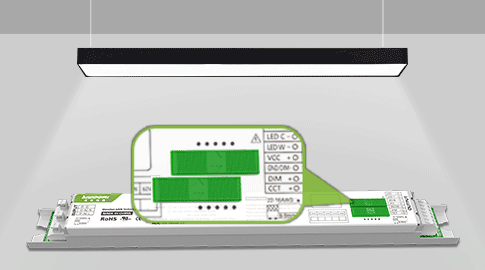

4 kinds of scene intelligence
Linear tunable white led driver has built-in high-performance MCU chip, through the unique software algorithm of Jusinpower R & D team, the power supply has 2 signal receiving ports and 2 dip control ports. It can be allocated according to unnecessary needs, respectively to achieve power adjustment, brightness adjustment, color temperature adjustment and other functions, flexibly support 4 common scenarios.
Electrical characteristic:

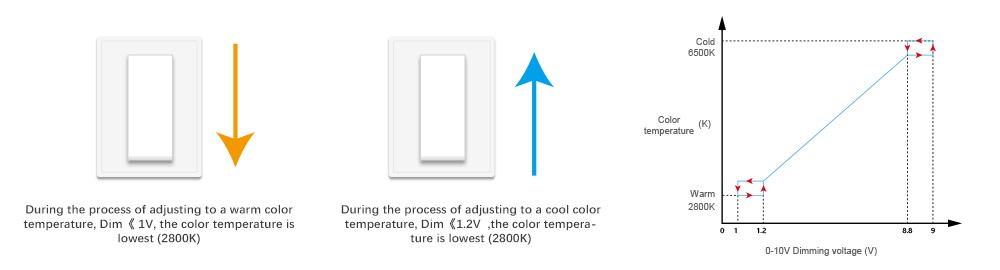

During the process of adjusting to a warm color temperature.Dim<1V, the color temperature is lowest(2800K)
During the process of adjusting to a cool color temperature.Dim<1.2V, the color temperature is lowest(2800K)

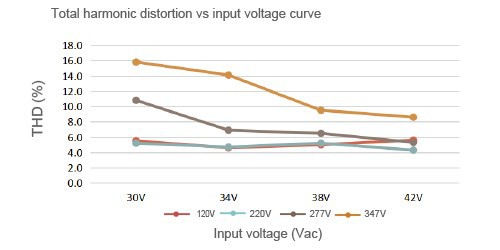

When the input voltage reaches 120V and the output 38V, the THD is 5%.

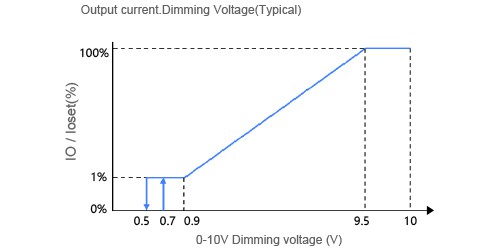

When adjusted to 0.7V, there is 1% brightness. The brightness becomes brighter as the wattage increases, reaching 100% brightness at 9.5V. 10V is also 100% brightness. When the wattage is reduced to 0.5, the brightness is 0%.
Within the output voltage range, the maximum output power does not exceed 56W.

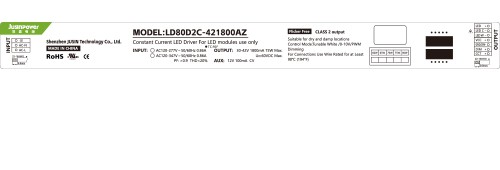

Wiring Instructions:

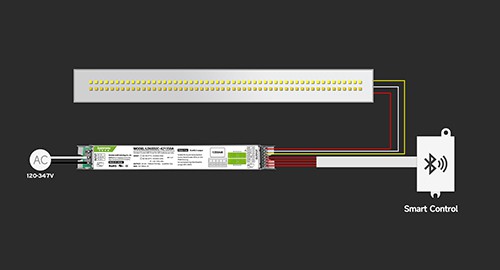

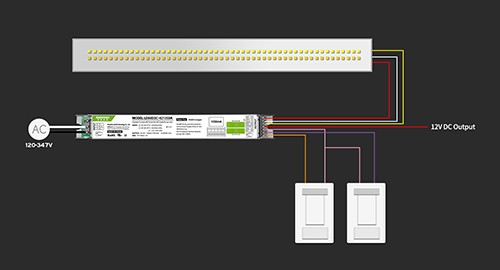

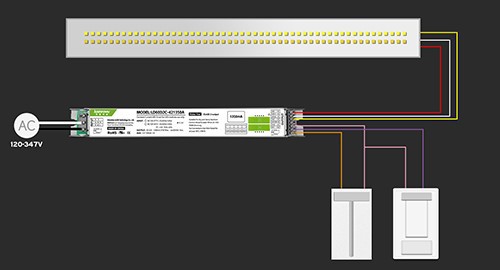

The two ends of the product are connected, one end is the AC input terminal, the other end is the DC output and dimming signal input end, the output can be connected to two

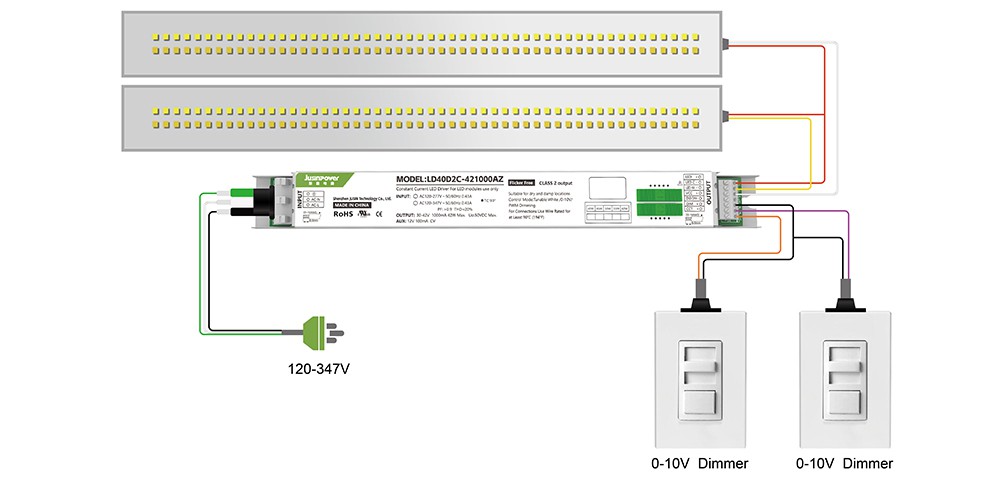

independent sets of lamp beads, LED V+ is a common positive pole, LED C- /LED W- are independent The two negative poles of the module, DIM is connected to a set of independent 0-10V positive poles, CCT is connected to a set of independent 0-10V positive poles, 12V is connected to the positive pole of the module, and GND is the common negative pole.
Cautions:
1. Good heat dissipation conditions prolong product life. Please install the product in a well-ventilated environment.
2. This product should be debugged and installed by qualified personnel, please do not repair it by yourself.
Hot Tags: linear tunable white LED driver, China linear tunable white LED driver manufacturers, suppliers, factory, Long metal case, 3 LIGHTS AND 1 DRIVER, 920mA, 1700mA, efficiency 92 , wifi lamp
LD series
LD80D2C
|
Performance |
||
|
Model |
LD80D2C-421800A |
|
|
Input |
Efficiency |
86%@220Vac Full Load |
|
Voltage |
120-277Vac(Standard) |
|
|
120-347Vac(Optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@347Vac Full Load |
|
|
THD(Full Load) |
<10%@120Vac Full Load |
|
|
Ac Current(Max) |
0.86A@120Vac Full Load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
32A@120Vac |
|
|
58A@277Vac |
||
|
70A@347Vac |
||
|
Leakage Current (Max) |
55W |
|
|
Output |
Current(ma)/Voltage (Vdc) Power(W) |

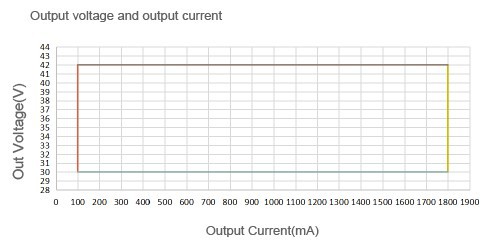

30-42Vdc/1800ma75W |
|
Current Ripple |
<10% |
|
|
Channel |
Dual Output |
|
|
Linear Regulation |
±5% |
|
|
No-Load Output Voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
Auxiliary Voltage |
12V/100ma |
|
|
Function |
Dimming Method |
0-10V 0.5V Off /0.7V Open |
|
Dimming Current |
<1ma@10V <2ma@0.7V |
|
|
Dimming Range |
1%-100% (Standard) |
|
|
10%-100%(Optional) |
||
|
Power |
5 Adjustable |
|
|
Color Temperature |
5 Adjustable (Optional) |
|
|
Stepless Dimming (Standard) |
||
|
Protection |
Over Temperature |
When Temperature Is Too High,Shut Down The Output, Recovers Automatically |
|
Over Load |
Hiccup,When The Output Power Exceeds,Then,Recovers Automatically After Fault Removed |
|
|
Short Circuit |
Close Output,Recovers Automatically After Fault Removed |
|
|

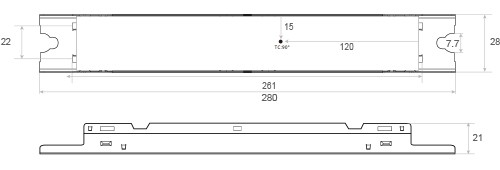

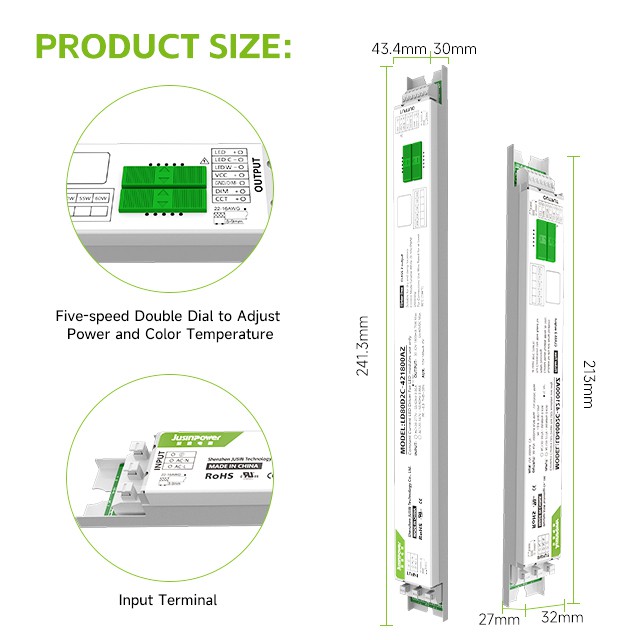

Physical |
|
|
Length |
360 mm |
|
Width |
30 |
|
Height |
26 mm |
|
Mounting Length |
34mm |
|
Weight (g) |
416g |
|
Environmental |
|
|
Safety standard |
UL8750 ,Class2 |
|
EMC emission |
Meets FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE/FCC/UL certificate |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Color temperature |
Efficiency |
|
LD40D2C-42XXXXYZ |
40W |
120-277/120-347Vac |
24-42Vdc |
1000mA |
0.9 |
Adjustable |
Adjustable |
87% |
|
LD60D2C-42XXXXYZ |
55W |
120-277/120-347Vac |
24-42Vdc |
1350mA |
0.9 |
Adjustable |
Adjustable |
88% |
|
LD80D2C-42XXXXYZ |
75W |
120-277/120-347Vac |
30-42Vdc |
1800mA |
0.9 |
Adjustable |
Adjustable |
86% |
