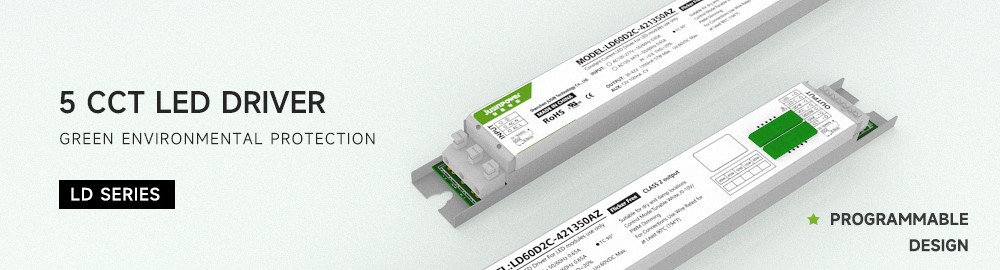

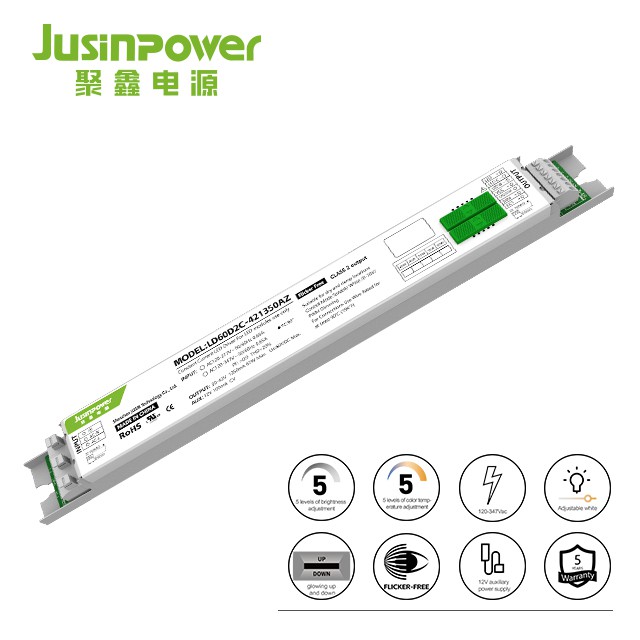

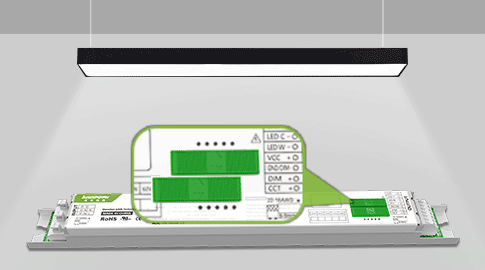

5 CCT LED Driver
It has two sets of 0-10V dimming channels and two sets of independent output channels and has the function of 12V auxiliary power supply. Including over-voltage protection, short-circuit protection, and over-temperature protection to ensure the trouble-free operation of this product. This is suitable for dry and damp locations.
Features：

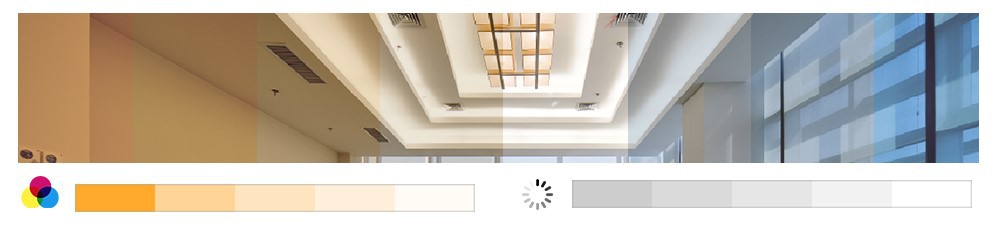

5 levels of
color temperature
adjustment
5 levels of
brightness
Adjustment
Adjustable white
Flicker free
12V auxiliary
power supply
glowing up
and down
1.Class 2 power supply
2.Green Environmental Protection
3.Different Occasions, Different Colors are the Same Choice
4.Dual channels, stepless adjustment of color temperature

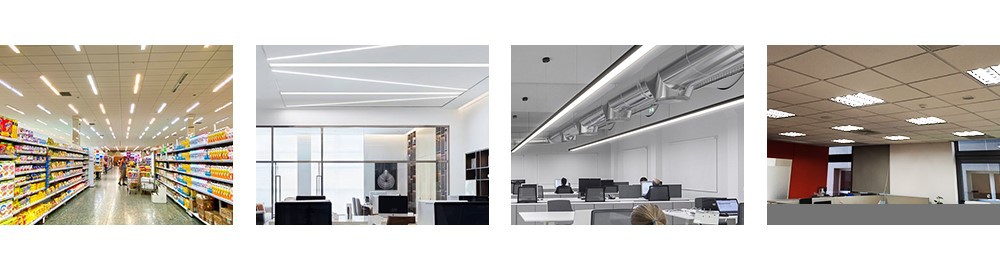

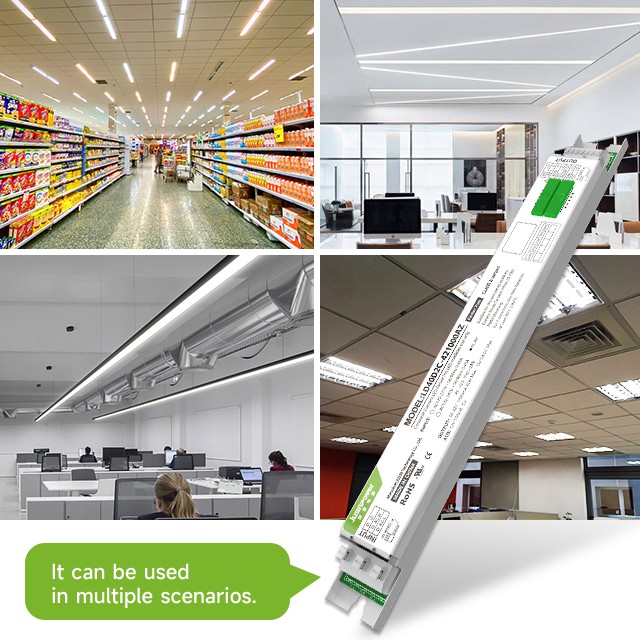

Application Scenario:
Ideal for LED lighting installations in confined areas like linear lights, waterproof lights, horticultural lights, and grid lights.
Customization options include color temperature and power adjustment, making it suitable for various applications such as panel lights, downlights, linear lights, and floor lights.

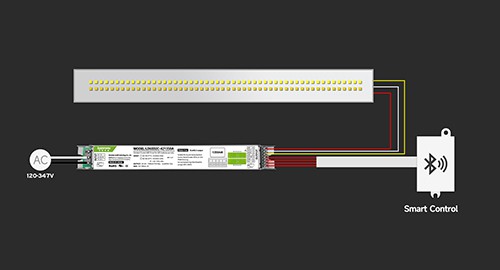

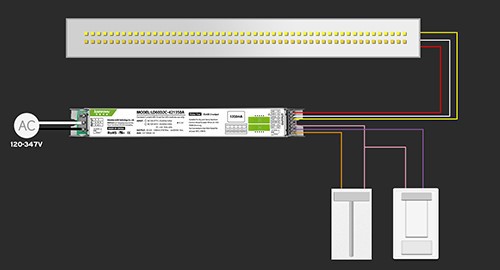

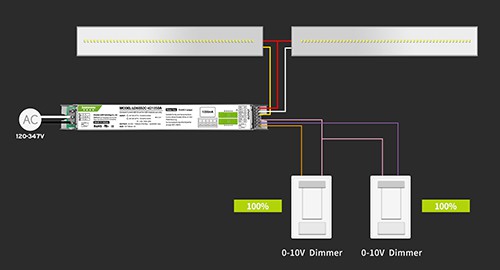

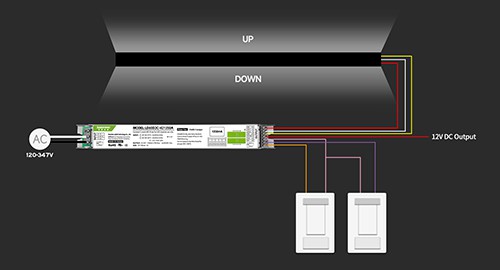

6 kinds of scene intelligence

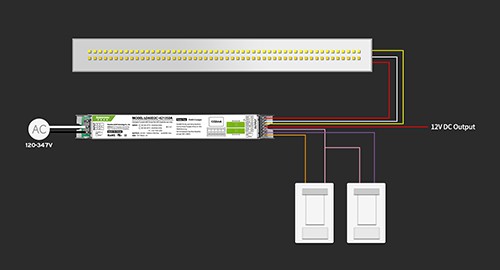

The 5 CCT LED driver integrates a high-performance MCU chip and utilizes Jusinpower's proprietary software algorithm. With 2 signal receiving ports and 2 dip control ports, it offers flexible allocation for power adjustment, brightness adjustment, and color temperature adjustment, catering to various needs. This versatile driver can seamlessly support six common scenarios.

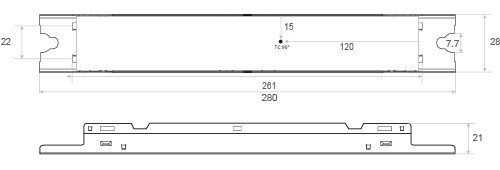

Dimension(mm):
Length:280mm Width: 28mm Height:21mm
Product Label:
Electrical Characteristic

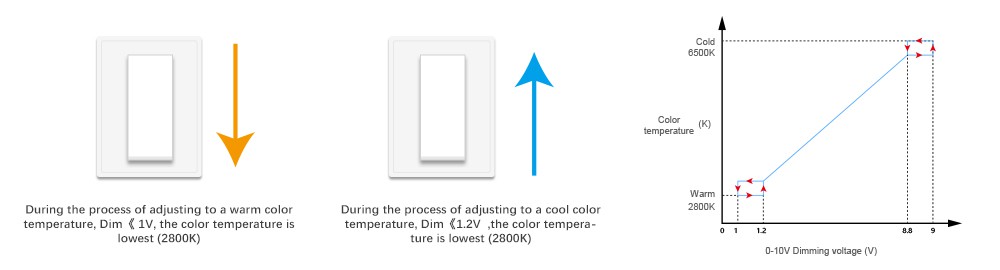

During the process of adjusting to a warm color temperature.Dim<1V, the color temperature is lowest(2800K)
During the process of adjusting to a cool color temperature.Dim<1.2V, the color temperature is lowest(2800K)

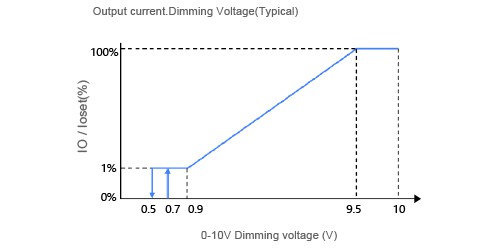

At 0.7V adjustment, brightness is at 1%, gradually increasing with wattage until it reaches 100% brightness at 9.5V. At 10V, brightness remains at 100%. Decreasing wattage to 0.5 results in 0% brightness.

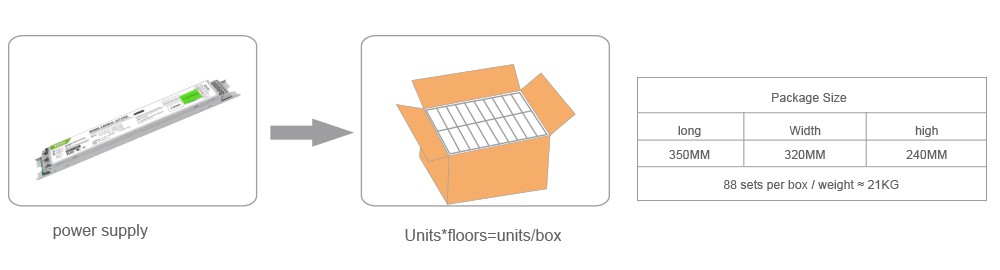

Product Packaging:
Hot Tags: 5 cct LED driver, China 5 cct LED driver manufacturers, suppliers, factory, non isolated driver, Strip smart dimming, tunable linear light driver, 0 5s to start, 75w dimmable led driver, slim size driver
LD series
LD60D2C
|
Performance |
||
|
Model |
LD60D2C-421350A |
|
|
Input |
Efficiency |
88%@220Vac Full Load |
|
Voltage |
120-277Vac(Standard) |
|
|
120-347Vac(Optional) |
||
|
Frequency Range(Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.9@347Vac Full Load |
|
|
THD(Full Load) |
<10%@120Vac Full Load |
|
|
Ac Current(Max) |
0.65A@120Vac Full Load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
32A@120Vac |
|
|
58A@277Vac |
||
|
70A@347Vac |
||
|
Leakage Current (Max) |
55W |
|
|
Output |

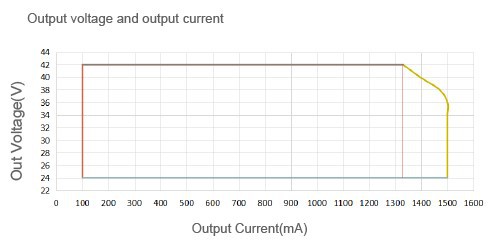

Current(Ma)/Voltage (Vdc) Power(W) |
24-42Vdc/1800ma60W |
|
Current Ripple |
<10% |
|
|
Channel |
Dual Output |
|
|
Linear Regulation |
±5% |
|
|
No-Load Output Voltage |
<60V |
|
|
Start Time |
<0.5S@347V <1S@120V |
|
|
Auxiliary Voltage |
12V/100ma |
|
|
Function |
Dimming Method |
0-10V 0.5V Off /0.7V Open |
|
Dimming Current |
<1ma@10V ;<2ma@0.7V |
|
|
Dimming Range |
1%-100% (Standard) |
|
|
10%-100%(Optional) |
||
|
Power |
5 Adjustable |
|
|
Color Temperature |
5 Adjustable (Optional) |
|
|
Stepless Dimming (Standard) |
||
|
Protection |
Over Temperature |
When Temperature Is Too High,Shut Down The Output, Recovers Automatically |
|
Over Load |
Hiccup,When The Output Power Exceeds,Then,Recovers Automatically After Fault Removed |
|
|
Short Circuit |
Close Output,Recovers Automatically After Fault Removed |
|
|
Physical |
|
|
Length |
280 mm |
|
Width |
28 mm |
|
Height |
21 mm |
|
Mounting Length |
261mm |
|
Weight (g) |
238g |
|
Environmental |
|
|
Safety Standard |
Ul8750 ,Class2 |
|
EMC Emission |
Meets Fcc Part 15 |
|
Operating Temperature |
-20°C To 50°C |
|
Storage Temperature,Humidity |
-20°C To 85°C,20-90%Rh |
|
Case Temperature |
Tc=90℃ |
|

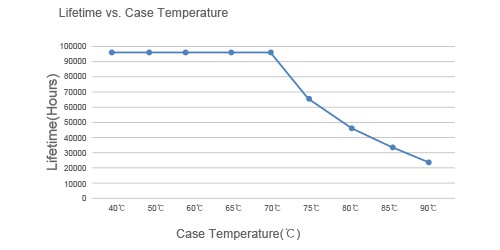

Warranty Tc |
85°C Max For 50k Hr Life |
|
Surge Protection |
L-N 1Kv , L/N-Fg 2Kv |
|
IP Rating |
Ip20 |
|
Material |
Iron Shell |
|

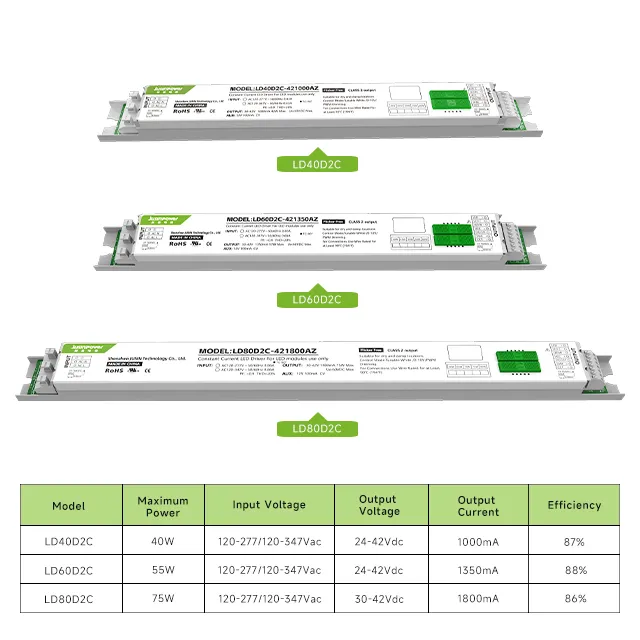

Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Color temperature |
Efficiency |
|
LD40D2C-42XXXXYZ |
40W |
120-277/120-347Vac |
24-42Vdc |
1000mA |
0.9 |
Adjustable |
Adjustable |
87% |
|
LD60D2C-42XXXXYZ |
55W |
120-277/120-347Vac |
24-42Vdc |
1350mA |
0.9 |
Adjustable |
Adjustable |
88% |
|
LD80D2C-42XXXXYZ |
75W |
120-277/120-347Vac |
30-42Vdc |
1800mA |
0.9 |
Adjustable |
Adjustable |
86% |
FAQ
Q1. Are you a manufacturer or trading company?
A1. We are a professional manufacturer of producing led drivers for more than 10 years.
Q2. What is your MOQ?
A2. Our MOQ is 200pcs. But can be negotiable based on different models
Q3. What is your delivery time ?
A3. Our delivery time is 7-20 days which is depended on models and quantity.
Q4. Do you accept OEM/ODM?
A4. Yes. We accept OEM/ODM. And one of our advantage is doing customized drivers for customers.
Q5. Service
A5. We have a professional service team to solve all the questions and problems. No worry about the after-sales service.
Q6. How about your R&D capability?
A6. We have professional engineers for certificates and research&development.
We have passed cUL, FCC, SAA, TUV, ROHS, CE, CB, CCC.
Advantage
CUTTING-EDGE: Shenzhen Jusin Technology Co, Ltd, established in2012, is a national high-tech enter-is a national high-tech enter-development, production,sales and service of LED driver.
RELIABLE: A reliable partner that delivers outstanding and solid LED outstanding and driver power.
PROFESSIONAL: A professional and experienced R&D and guaranteed the excellent products.
Certificate
Have passed the "ISO9001:2015" quality management system certification and national High-tech enterprise certificate.
The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, CE, CB, SAA, FCC, CCC.
