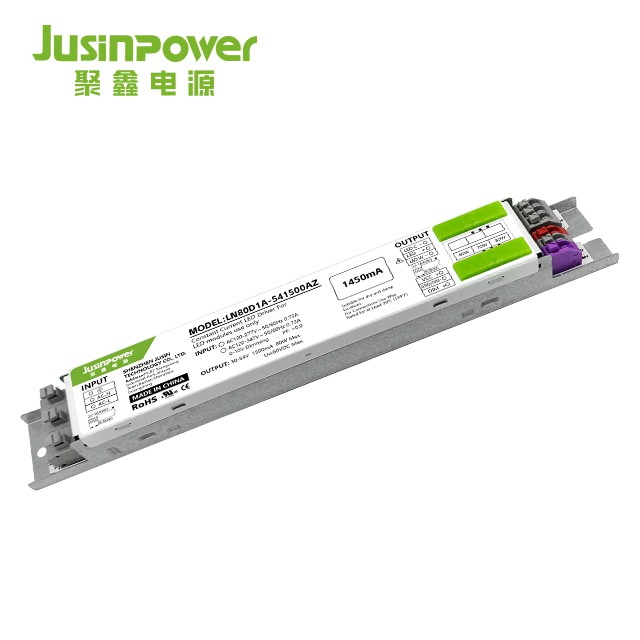

3CCT LED Driver

The 3cct led driver is a LED light power supply that can adjust three color temperatures. It has three adjustable levels of low brightness, medium brightness and high brightness. It can emit light up and down. The dimming range is 7%-100%. trouble-free operation.

3 levels of
color temperature

adjustment

3 levels of
brightness

Adjustment

120-347Vac

12V auxiliary
power supply

5 Years
warranty

1. 3CCT white trim

2. 3 levels of color temperature

3. Can shine up and down

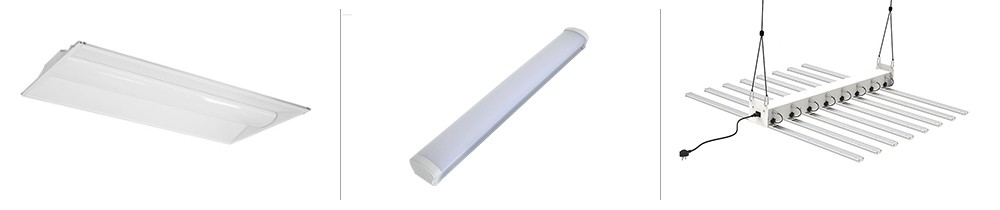

Application Scenario:

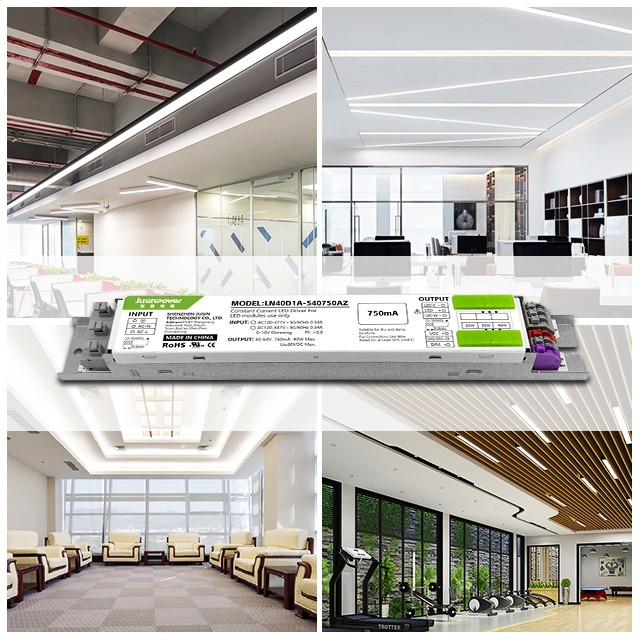

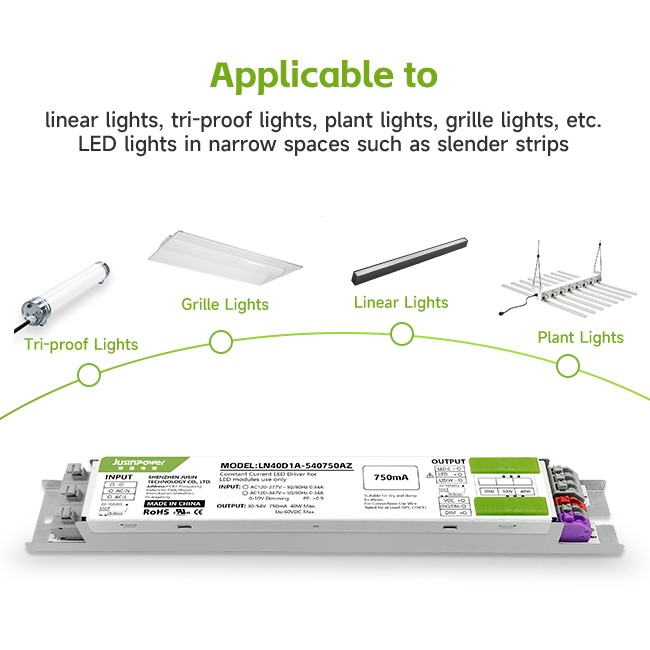

The 3CCT led driver suitable for LED lights in narrow spaces such as line lights, tri-proof lights, plant lights, grille lights and so on.

product-1000-210

Product Details:

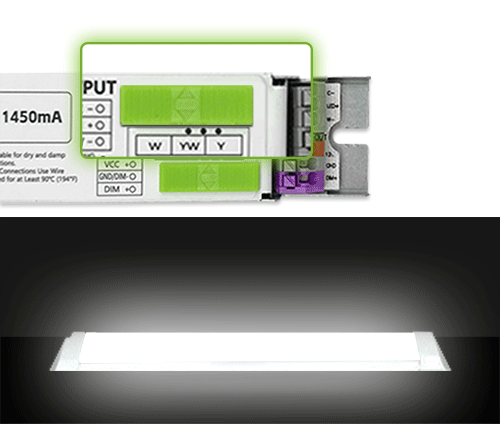

3CCT LED driver has dual dials, which can adjust the power and color temperature (3000K, 4500K, 6000K)

Adjust color temperature via dial

product-500-424

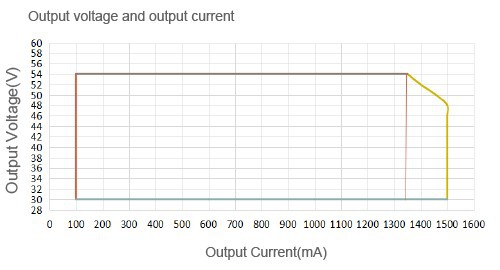

Electrical Characteristics:

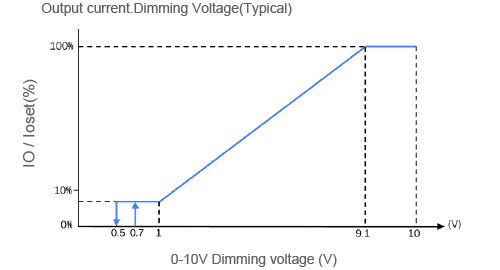

0-10V dimming, when adjusted to 1V and below, the brightness of the light is lower than 10%.

When the output voltage is 30V, the output current is 1500mA. Note: within the output voltage range, the maximum output power does not exceed 55W.

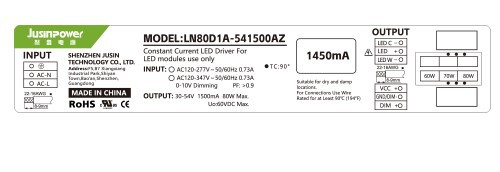

Product Label

product-500-172

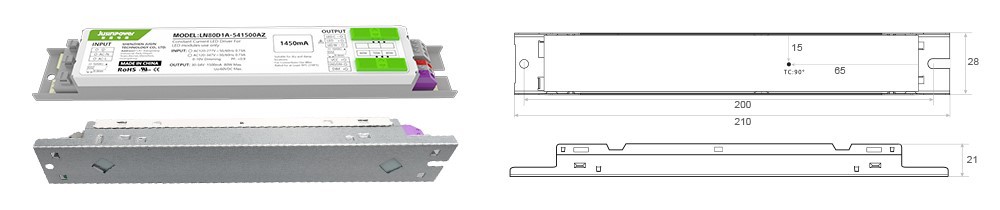

Dimension (mm)

Length: 210mm Width: 28mm Height: 21mm

product-1000-210

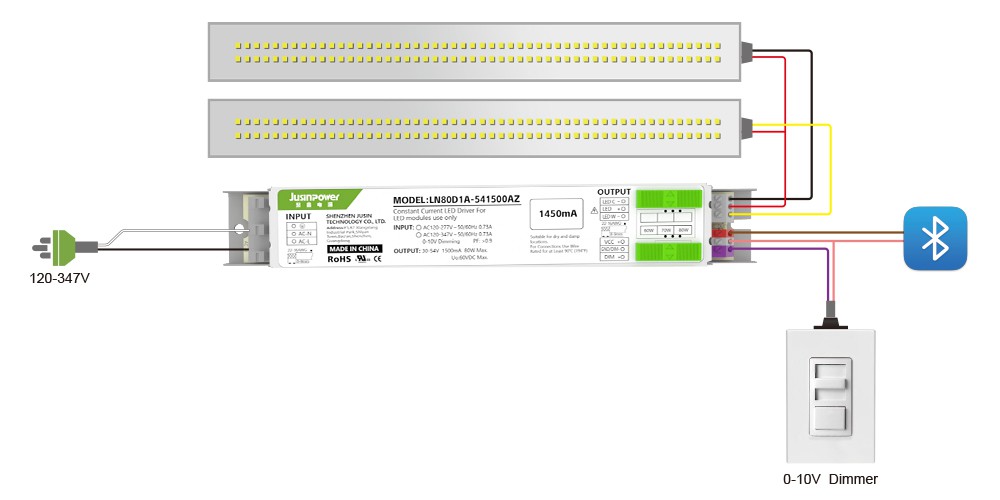

Wiring Instructions:

product-1000-500

The two ends of the product are connected, one end is the AC input terminal, the other end is the DC output and dimming signal input end, LED+, LED C-/LED W- are respectively connected to the positive pole of the LED light; DIM+ is connected to 0-10V; VCC is connected to the 12V auxiliary module for power supply, GND/DIM- grounded.

Hot Tags: 3cct LED driver, China 3cct LED driver manufacturers, suppliers, factory, wide output voltage 50 190Vdc, 3CCT, suitable for tri proof light, bipolar current driver, 3000K dimmable, input 277Vac

LN80

LN80D1A

Performance
Model	LN80D1A-541500AZ
Input	Efficiency	91%@230Vac full load
	Voltage	120-277Vac(standard)
	Voltage	120-347Vac(optional)
	Frequency Range(Hz)	50/60Hz
	Power Factor	≥ 0.9@347Vac full load
	THD(full load)	<20%@120Vac full load
	AC Current(max)	0.8A@120Vac full load
	Standby power	<1W
	Inrush current (cold engine start) max	30A@120Vac
		70A@277Vac
		100A@347Vac
	Leakage current (max)	<0.75mA@347V
Output	Current(mA)/Voltage (VDC) Power(W)	30-54Vdc/1500mA/75W
	Channel	1 output
	Linear Regulation	±5%
	No-load output voltage	<60V
	Start Time	<0.5S@347V <1S@120V
	auxiliary voltage	12V/100mA
Function	Dimming method	0-10V 0.5V OFF /0.7V OPEN
	Dimming current	<1mA@10V <2mA@0.7V
	Dimming range	7%-100% (standard)
	Color temperature	Three gears adjustable
Protection	Over Temperature	When temperature is too high,shut down the output, Recovers automatically
	Over load	Hiccup, when the output power exceeds ,then,recovers automatically after fault removed
	Short Circuit	Close output,recovers automatically after fault removed

Physical
Length	210 mm
Width	28 mm
Height	21 mm
Mounting Length	195mm
Weight (g)	154g

Environmental
Safety standard	UL8750 ,Class1
EMC emission	Meets FCC part 15
Operating Temperature	-20°C to 50°C
Storage Temperature,Humidity	-20°C to 85°C,20-90%RH
Case Temperature	TC=90℃
Warranty Tc	85°C max for 50k Hr Life
Surge protection	L-N 1KV , L/N-FG 2KV
IP Rating	IP20
Material	Iron shell
Certificate	CE/FCC/UL certificate

Series Driver
Model	Max Power	Input Voltage	Output Voltage	Output Current	Power Factor	Power Regulation	Color temperature	Efficiency
LN40D1A-54XXXXYZ	36W	120-277/120-347Vac	30-54Vdc	750mA	0.9	Adjustable	Adjustable	89%
LN60D1A-54XXXXYZ	55W	120-277/120-347Vac	30-54Vdc	1000mA	0.9	Adjustable	Adjustable	91%
LN80D1A-54XXXXYZ	75W	120-277/120-347Vac	30-54Vdc	1500mA	0.9	Adjustable	Adjustable	91%

FAQ

Q1. Are you a manufacturer or trading company?

A1. We are a professional manufacturer of producing led drivers for more than 10 years.

Q2. What is your MOQ?

A2. Our MOQ is 200pcs. But can be negotiable based on different models

Q3. What is your delivery time ?

A3. Our delivery time is 7-20 days which is depended on models and quantity.

Q4. Do you accept OEM/ODM?

A4. Yes. We accept OEM/ODM. And one of our advantage is doing customized drivers for customers.

Q5. Service

A5. We have a professional service team to solve all the questions and problems. No worry about the after-sales service.

Q6. How about your R&D capability?

A6. We have professional engineers for certificates and research&development.

We have passed cUL, FCC, SAA, TUV, ROHS, CE, CB, CCC.

Company Profile

Shenzhen JUSIN Technology Co.,Ltd.,established in 2012,is a national high-tech enterprise integrating research and development, production, sales and service of LED driver.Headquartered in Shenzhen,China,We have set up a branch in Taiwan,and have a 4000 square meter factory in Foshan high-tech Zone for production.In the 10 years since its establishment, all JUSIN family have continuously created value for nearly 1000 partners around the world by responding the market demands rapid and accurate,high-quality products and perfect services,and have passed the "ISO9001:2015" quality management system certification.

Factory

We have a 4000 square meter factory in FoShan high-tech Zone for production.At the same time we not only have a professional R&D team of about 20 people, but also have advanced equipment to support. such as SMT machine,Automatic Gluing Machine,aged vehicle,reflow solder and so on.The production line of about 80 people, able to reach 1 million shipments per year!
