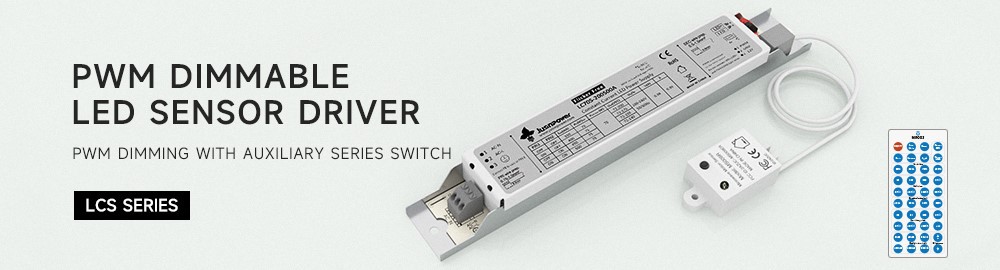

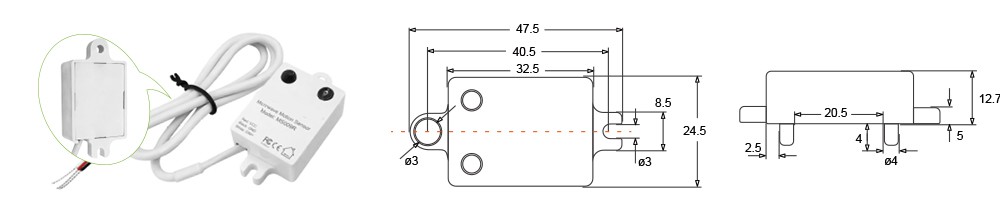

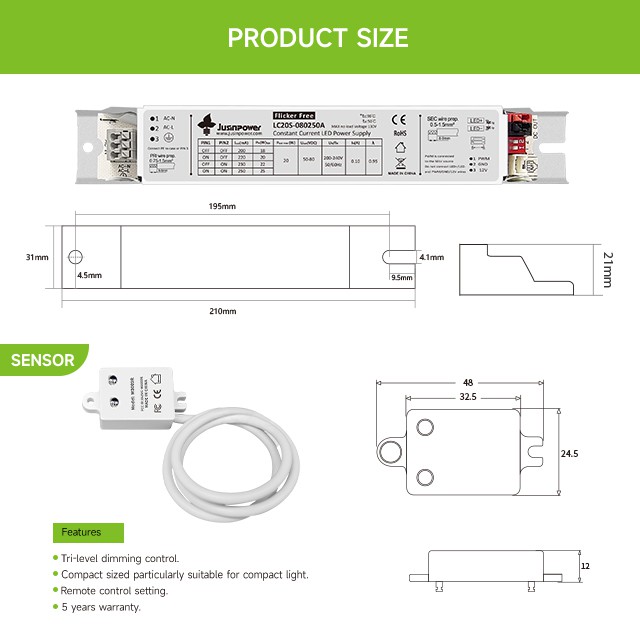

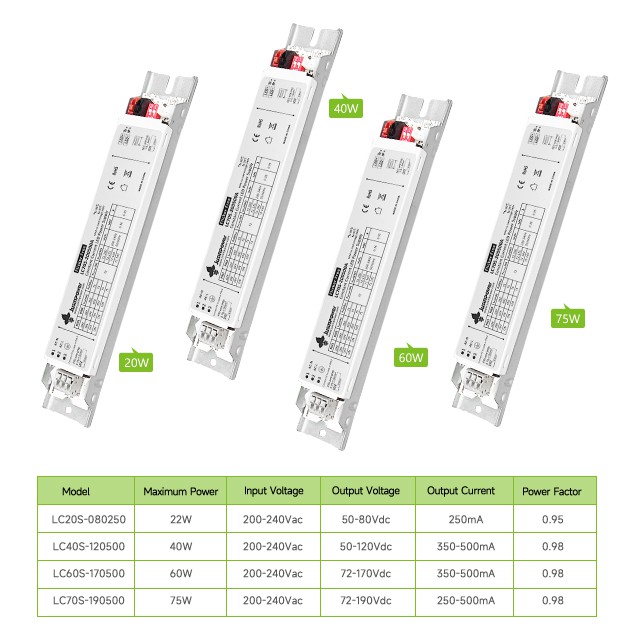

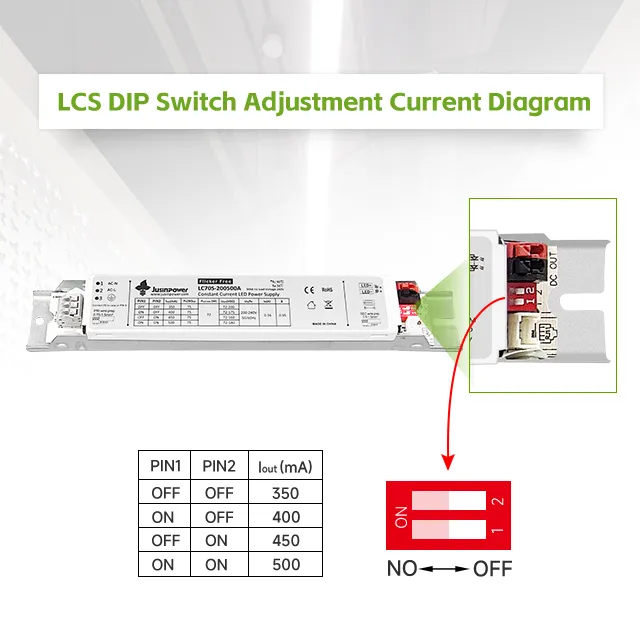

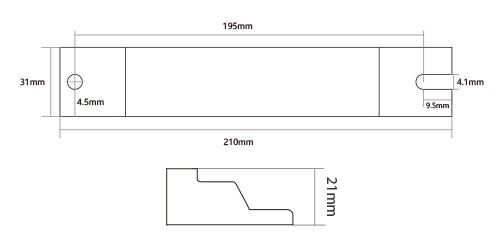

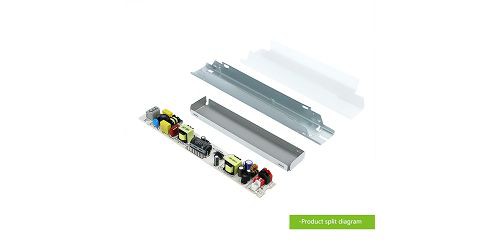

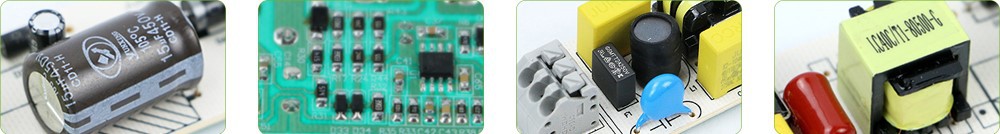

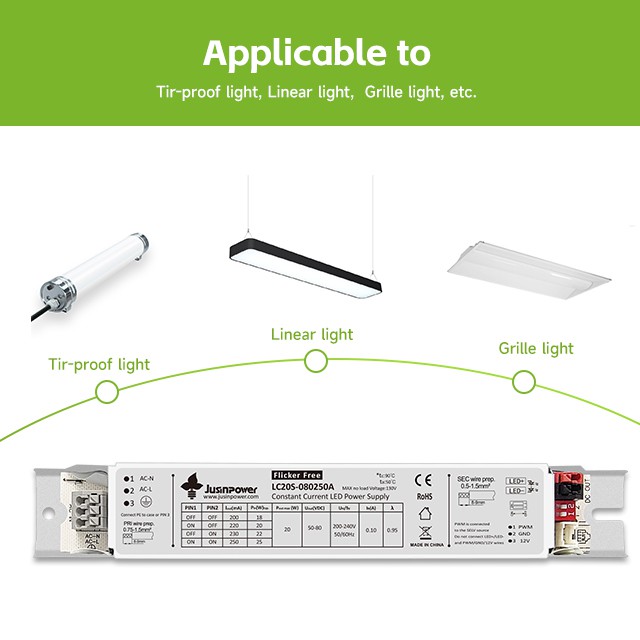

PWM Dimmable LED Sensor Driver

Input

Operating voltage

5~24VDC

Operating current

23mA

Output

Output

PWM

Sensor

Parameters

Microwave frequency

5.8GHz±75MHz

Microwave power

<0.3mW

Sensitivity

100%/75%/50%/25% (Refer to remote control)

Hold time

3s/30s/90s/3min/5min/15min/20min/30min (Refer to remote control)

Daylight threshold

Disable/300Lux/100Lux/50Lux/15Lux/5Lux (Refer to remote control)

Stand-by period

0s/5s/30s/3min/5min/15min/45min/+∞ (Refer to remote control)

Stand-by dimming level

10%/20%/30%/50% (Refer to remote control)

Mounting height

Max.9m (Ceiling mounted)

Detection range

Radius 4-5m (Ceiling mounted 6m)

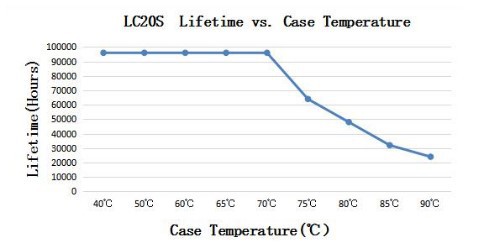

Operating temperature

-35℃~70℃

Warranty

5 years

Other

Default setting: Sensitivity 100%, Hold time 3s, Daylight threshold disable, Stand-by period 0s.

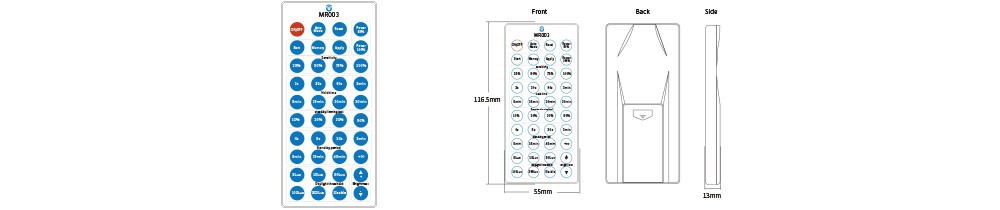

Key

Function

On/Off

Setting the light permanent ON or OFF without motion mode

Auto

Switch to sensor mode and restore the latest sensor setting

Reset

Turn the sensor in a default setting

(3s hold time, 0s stand-by period, lux disable, 100% sensitivity).

Power (80%/100%)

Quick setting the power output in 80% or 100%

Brightness (+/-)

Long press this button to set the power from 20% to 100%, available in permanent ON mode or in sensor mode.

Start

Program Mode

1. Press Start to program mode, then select the ①Sensitivity ② Hold time ③Standby dimming level ④Standby period ⑤Daylight threshold to setting.

2. Press Memory to save the parameters ①-⑤ had selected in step 1

3. Press Apply to transmit the ①-⑤ parameters to the target sensor.

Remark: After press Start, you need to press any of ①-⑤ parameter button within 30S, the time window between press any button is 30S, it will quit program mode if no any button is pressed within 30S.

Memory

Save Setting

Apply

One Key Apply

Sensitivity

In this area, movement will be detected and able to trigger the sensor.

100% detection area is also known as the strongest sensitivity.

Hold Time

The period of light keeping 100% brightness after moving objects leave the detection area.

Stand-by Dimming Level

The dimming level in the standby period.

Stand-by Period

The period of light keeping low output before it's completely switched off. When it's preset as "+∞", the light always keeps at low output if no movement in the detection area and doesn't turn off.

Daylight Threshold

Definition of the ambient brightness; only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it's preset as "disable", the sensor will detect motion regardless the ambient brightness.
