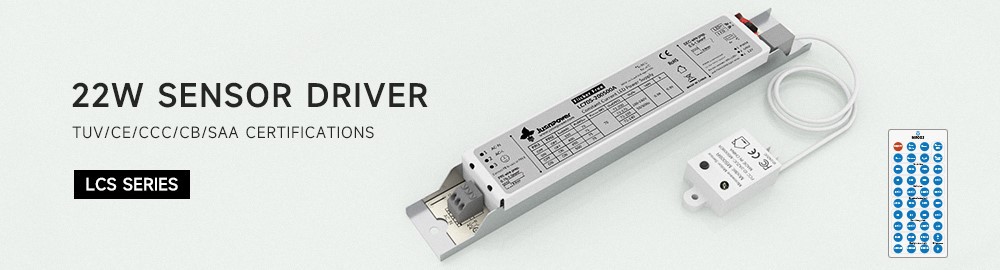

22W Sensor Driver
The 22W sensor driver is a voltage-regulated, non-isolated power supply designed for constant current operation. It supports a maximum input power of 22W and holds certifications such as TUV/CE/CCC/CB/SAA. Its output current is fixed at 250mA, boasting an efficiency rating of 84%. Additionally, it offers a three-year warranty for added peace of mind.
4 levels of
brightness
adjustment
12V auxiliary
power supply
200-240Vac
External sensor
Flicker free
3 Years
warranty
1. Output Current 250mA
2. Efficiency 84%
3. TUV/CE/CCC/CB/SAA certifications
Application Scenario:

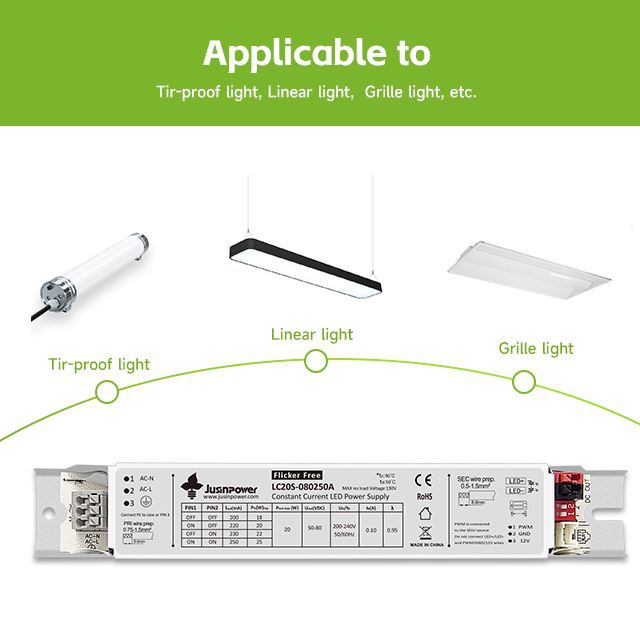

The versatile 22W sensor driver is well-adapted for diverse applications, encompassing line lights, tri-proof lights, grille lights, and beyond. It is optimal for deployment in parking lots, warehouses, corridors, and analogous environments.
Product Details:

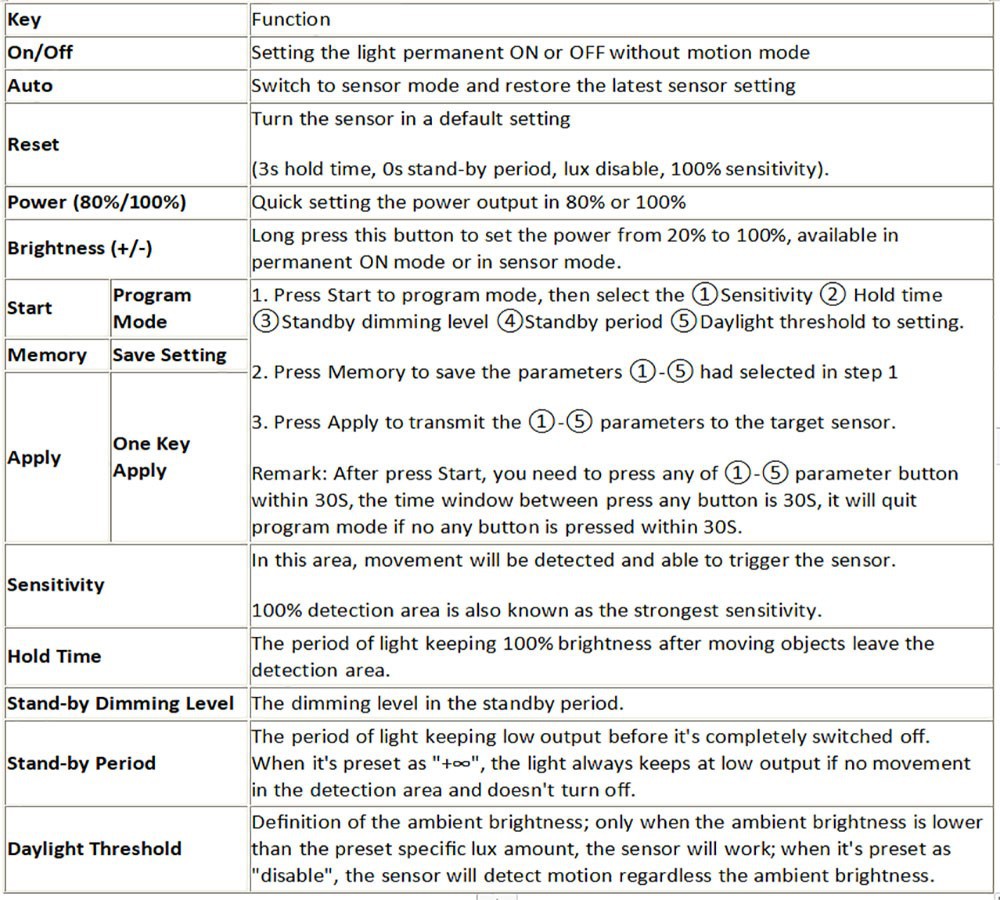

About The Specifications and Parameters of The Sensor Module and Controller in The Driver
Suitable for protection class Ⅱ luminaire
Note: If working with protection class Ⅰ luminaire, it may cause residual LED glow on standby.

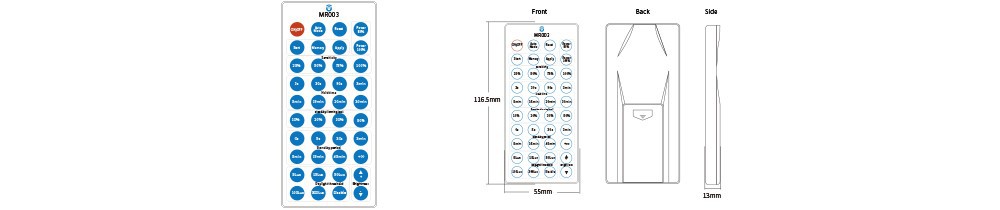

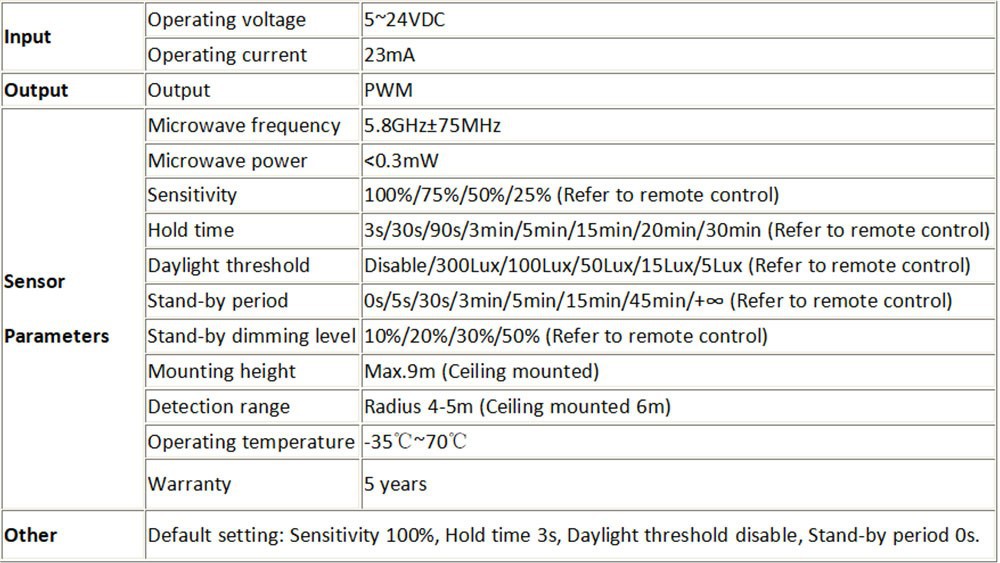

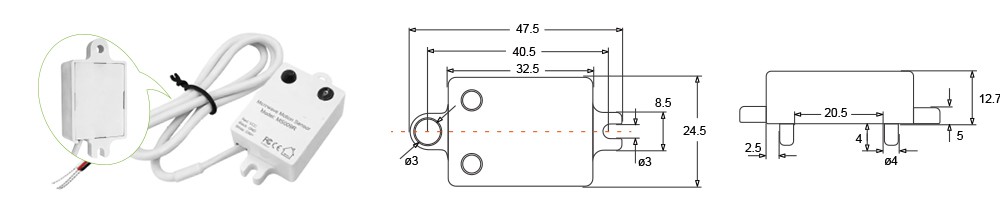

Sensor Technical Parameters
 |
||
Technical Parameters of The Controller
|
 |
|
|
|
|

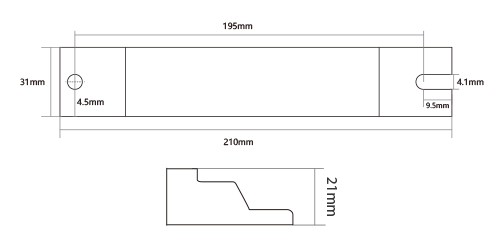

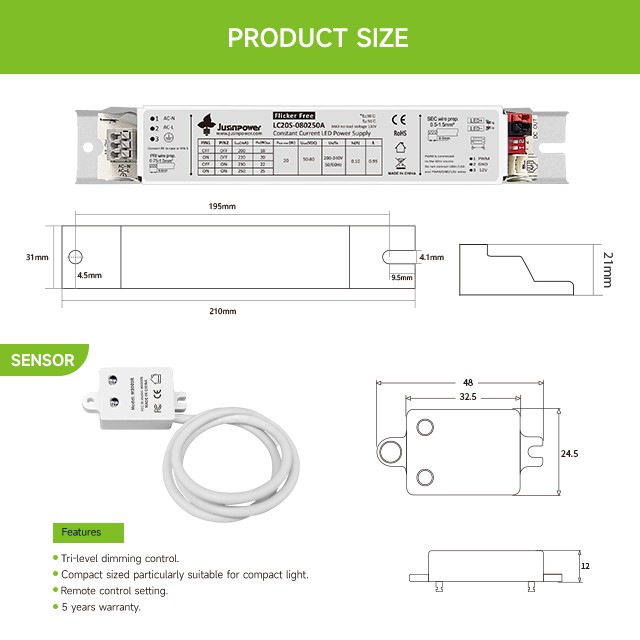

Dimension (mm)
Length: 199mm Width: 31mm Height: 21.5mm

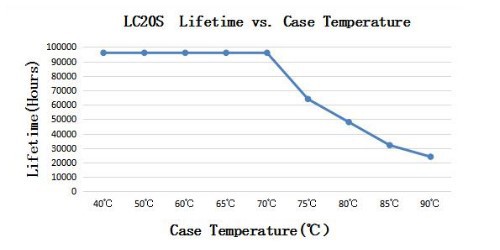

Products Life Curve
For optimal performance, it is recommended to maintain the operating temperature of the driver within the range of 40°C to 70°C. This ensures that the service life of the driver can be sustained at its maximum value of 98,000 hours. However, if the operating temperature exceeds 70°C, the service life of the driver will gradually decrease.
Protection Features
1.Input Over Current Protection
The LN series incorporates a primary AC line fuse for input over current protection to prevent damage to the LED driver.
2.Short Circuit and Over Current Protection
The LN series is protected against short-circuit such that a short from any output to return shall not result in a fire hazard or shock hazard. The driver shall hiccup as a result of a short circuit or over current fault. Removal of the fault will return the driver to within normal operation. The driver shall recover, with no damage, from a short across the output for an indefinite period of time.
3.Internal Over temperature Protection
The LN series has a temperature protection function on the main chip. Drives can hiccup due to excessive temperatures. Lowering the temperature can return the drive to normal operation.
4.Output Open Load Protection
When the LED load is removed, the output voltage of the LN series is typically limited to the maximum output voltage of each model.
Hot Tags: 22w sensor driver, China 22w sensor driver manufacturers, suppliers, factory, 3000K Dimming, 3CCT WHITE TRIM, no strobe, Double Dial To Adjust The Color Temperature Driver, 75W, 22W led driver
LC20S
|
Performance |
||
|
Model |
LC20S-800250 |
|
|
Input |
Efficiency |
85%@220Vac full load |
|
Voltage |
200-240Vac |
|
|
Frequency Range(Hz) |
50Hz |
|
|
Power Factor |
≥ 0.95@230Vac full load |
|
|
THD(full load) |
<20%@230Vac full load |
|
|
AC Current(max) |
0.1A@230Vac full load |
|
|
Standby power |
<1W |
|
|
Inrush current (cold engine start) max |
9.8A@230Vac |
|
|
peak value |
10.05A@230Vac |
|
|
Leakage current (max) |
0.11mA |
|
|
Output |
Current(mA)/Voltage (VDC) Power(W) |
50-80Vdc/250mA/20W |
|
Current ripple
|
<5% |
|
|
Linear Regulation |
±5% |
|
|
No-load output voltage |
<100V |
|
|
Start Time
|
<1S@230V |
|
|
auxiliary voltage |
12V/100mA |
|
|
Dimming range |
10%-100%(optional) |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
199 mm |
|
Width |
31 mm |
|
Height |
21.5 mm |
|
Mounting Length |
196mm |
|
Weight (g) |
143.5g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature,Humidity |
-20°C to 85°C,20-90%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge protection |
L-N 1KV , L/N-FG 2KV |
|
IP Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE /TUV/3C/CB/SAA certificate |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC20S-080250 |
22W |
200-240Vac |
50-80Vdc |
250mA |
0.9 |
Adjustable |
84% |
|
LC40S-120500 |
40W |
200-240Vac |
50-120Vdc |
350-500mA |
0.9 |
Adjustable |
89% |
|
LC60S-170500 |
60W |
200-240Vac |
72-170Vdc |
350-500mA |
0.9 |
Adjustable |
92% |
|
LC70S-190500 |
75W |
200-240Vac |
72-190Vdc |
250-500mA |
0.9 |
Adjustable |
92% |
