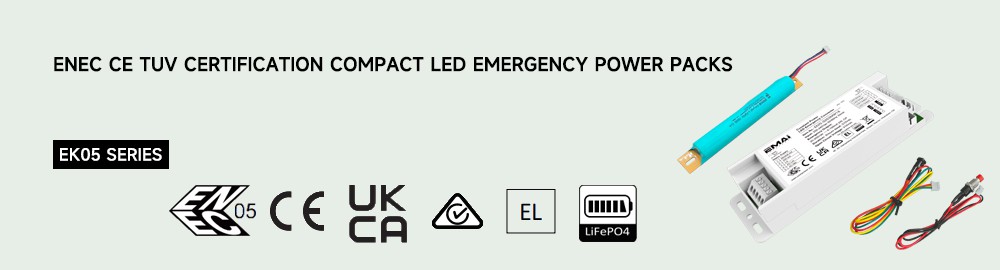

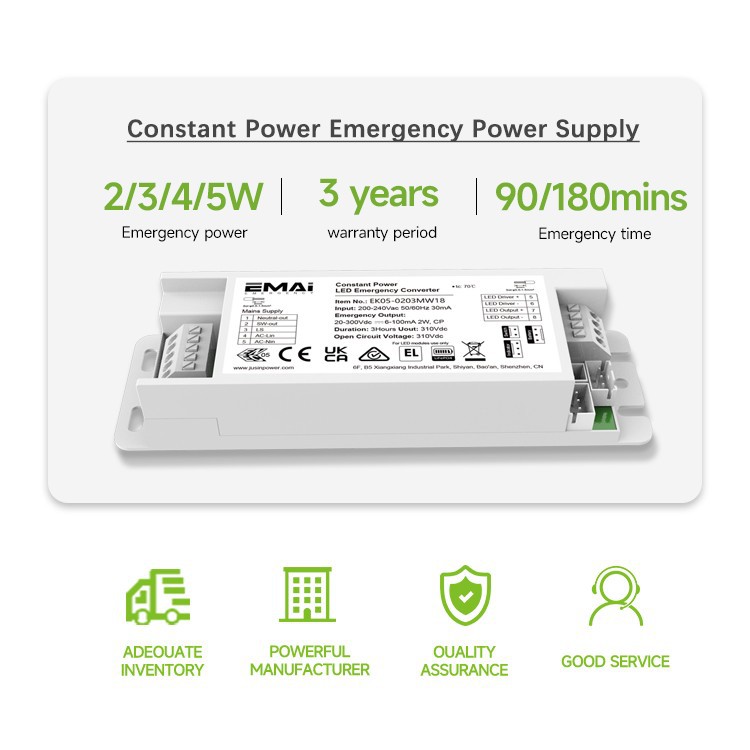

ENEC CE TUV Certification Compact LED Emergency Power Packs
Designed for demanding markets-from EU hospitals to Gulf-region malls-the EMAI EK05 ensures uninterrupted, constant-power emergency lighting (2W–5W). Its ultra-wide 20–300VDC output auto-adjusts in real time, guaranteeing compatibility with a broad range of LED systems. Compact yet powerful, it leverages lithium technology for a smaller footprint and longer service life. Safety and reliability are built in: automatic monthly/annual self-diagnostics, deep discharge protection, and polarity-reversal-proof battery connectors. In fault conditions, charging stops instantly; after resolution, AC reactivation is fully automatic-no technician visit required. Certified to ENEC, CE, UKCA, CB, and C-tick, suitable for dry, low-risk indoor use only. Supported by a 3-year manufacturer warranty.

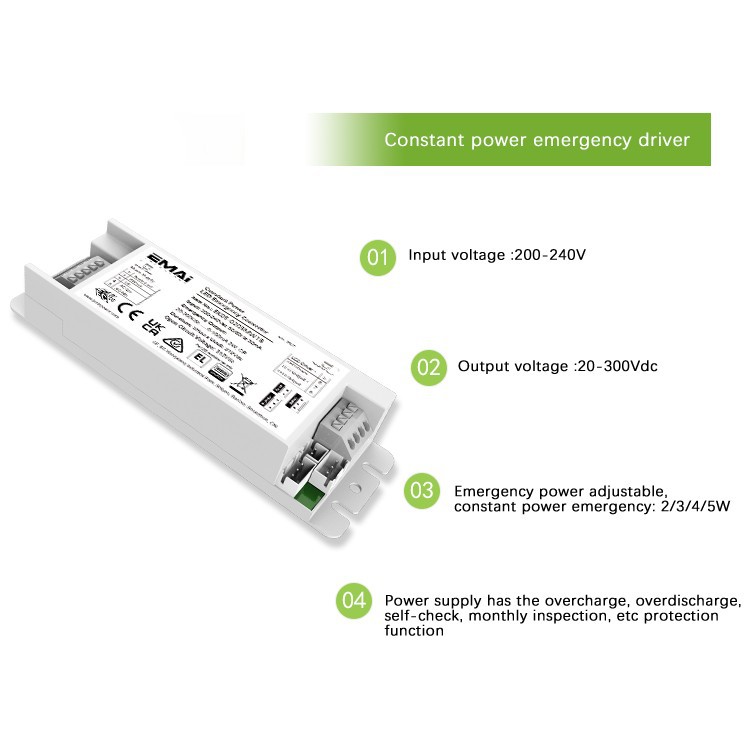

Top Features and Benefits:
200-240Vac
Constant power emergency
Over-discharge protection
Overcharge protection
ENEC certification
Wide Output Voltage Range: 20-300Vdc to suit various applications.
Self-adjusting output matches LED load-no configuration needed.
Certified: CB, ENEC, TUV, UKCA, SAA and EL/EL-T.
Cobalt-free LiFePO₄ chemistry: safer and more sustainable.
Output open/short protection enhances system robustness.
Application Scenario
Residential Buildings: Provides emergency lighting in hallways, stairwells, and common areas of apartment complexes and houses, ensuring safe evacuation and navigation during power failures.
Product Advantages
1.Global Compliance Starts with ENEC Certification
In today's regulated markets, certification = credibility. The EK05 stands out with ENEC, the gold standard for LED driver safety in Europe-accepted by authorities without additional testing in most EU states. Its full suite of international approvals (CB, CE, UKCA, C-tick) ensures smooth entry into diverse regions while meeting local electrical codes. For manufacturers targeting global distribution, the EK05 is a low-risk, high-compliance choice.
2.The Next Generation of Compliant Backup Power
Combining the inherent stability of LiFePO₄ cells with precision NTC-based temperature monitoring, this battery delivers dependable emergency power while staying within safe thermal limits (0–60 °C). Its design aligns with the comprehensive framework of the EU Battery Regulation (EU) 2023/1542-confirmed by assessment reference 2IFpR19/66-covering everything from digital battery passports to recycling targets. Whether used in industrial UPS systems or residential energy storage, it sets a new benchmark for safe, transparent, and regulation-ready energy solutions.
Battery Parameters
Different battery capacities correspond to different emergency power outputs and emergency durations.
A larger battery capacity enables higher emergency power and longer emergency operating time, which can be flexibly configured according to project requirements.
|
Single |
Side by side |
Column |
Emergency power (W) |
2W |
3W |
4W |
5W |
||||||
|
Emergency Duration (H) |
1.5 |
3 |
1.5 |
3 |
1.5 |
3 |
1.5 |
3 |
|||||
|
Battery type |
Structure |
Cell |
Size(L*W*H) |
Model |
|
|
|
|
|
|
|
|
|
|
26650 3.2V 4000mAH |
Single with fixed plate |
1*1 |
100*28*29 |
1140-02 |
★ |
★ |
★ |
★ |
|||||
|
26650 6.4V 4000mAH |
Side-by-side with fixed plates |
2*1 |
100*53*29 |
2140-02 |
★ |
★ |
|||||||
|
Column with fixing plate |
2*1 |
168*28*29 |
2140-03 |
★ |
★ |
||||||||
|
18650 6.4V 1600mAH |
Side-by-side with fixed plates |
2*1 |
100*38*21 |
2116-02 |
★ |
★ |
|||||||
|
Column with fixing plate |
2*1 |
168*21*21 |
2116-04 |
★ |
★ |
||||||||
|
18650 6.4V 2000mAH |
Side-by-side with fixed plates |
2*1 |
100*38*21 |
2120-02 |
★ |
★ |
|||||||
|
Column with fixing plate |
2*1 |
168*21*21 |
2120-03 |
★ |
★ |
||||||||

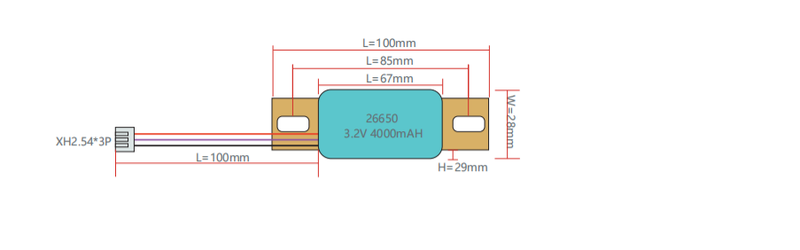

Figure 1: 26650 Single 3.2V 4000mAH

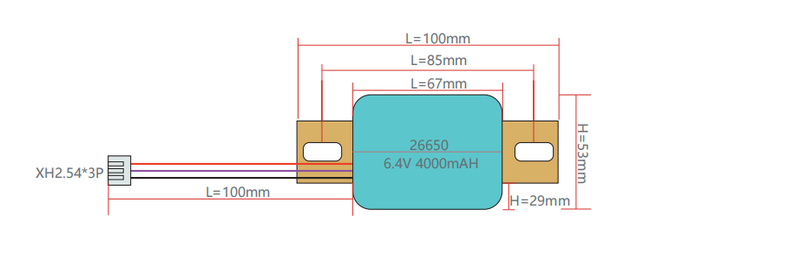

Figure 2: 26650 Side by side 6.4V 4000mAH

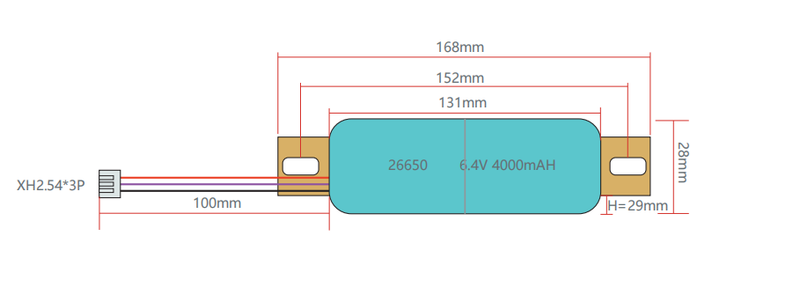

Figure 3: 26650 Column 6.4V 4000mAH
Figure 4: 18650 Side by side 6.4V 1600mAH

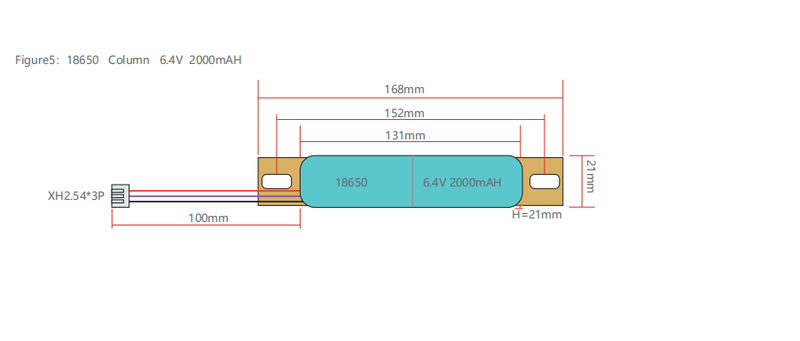

Figure5: 18650 Column 6.4V 2000mAH
Battery charging and discharging time
|
Model number |
6.4V/1600mAH |
6.4V/2000mAH |
6.4V/4000mAH |
3.2V/4000mAH |
|||||||
|
Emergency power |
2W |
4W |
3W |
5W |
4W |
5W |
2W |
3W |
4W |
5W |
|
|
Duration |
3H |
1.5H |
3H |
1.5H |
3H |
4H |
3H |
3H |
1.5H |
1.5H |
|
|
Battery charge time |
Initial charge |
24H |
|||||||||
|
Trickle charge |
Continuous and uninterrupted charging |
||||||||||
|
Charging current |
Initial charge |
100-250mA |
100-250mA |
||||||||
|
Trickle charge |
100-250mA/0mA |
100-250mA/0mA |
|||||||||
|
Discharge current |
400-1000mA |
800-2000mA |
|||||||||
|
Charging protection voltage |
7.3+/-0.5Vdc |
3.6+/-0.5Vdc |
|||||||||
|
End of discharge voltage |
5.5+/-0.2Vdc |
2.7+/-0.2Vdc |
|||||||||
|
Discharge protection voltage |
4.2Vdc |
2.1Vdc |
|||||||||
Emergency Function
This is a maintenance-type emergency device. When the main power is connected, the green charging indicator light should illuminate, indicating that the battery has been correctly activated. The light will remain on. When the power is interrupted, the device will enter emergency mode and the indicator light will also illuminate. Testing and inspection must comply with local operating regulations.
Self-check function:
1. Green LED status light on: Normal charging mode, 200 - 240 volt power connected.
2. Monthly test, test duration 15 seconds.
3. 6-month test, test duration 3 hours.
4. Self-check tests are subject to EN62034 regulations.
LED indicator functions:
Off: Normal state, waiting for the next test.
Slow flash 1: 2 seconds on/2 seconds off: Self-check test in progress.
Slow flash 2: 4 seconds on/1 second off: Most recent self-check test completed and passed (stops after 5 days).
Fast flash: 0.5 seconds on/0.5 seconds off: Fault, replace battery or retest the device.
|
|
Colour |
The indicator light shows |
Status |
Comment |
|
|
Green |
Permanent |
Normal charging mode |
220-240Vac Supply connected |
|
|
Green |
Slow flash |
charging |
220-240Vac Supply connected |
|
|
Yellow |
Slow Flash 1: |
Performing self-test |
1-Month test,Test duration 15s |
|
|
Yellow/ Green |
Slow Flash 2: |
Self-test recently performed and passed |
Stop after 5 days |
|
|
Yellow/ Green |
Fast Flash 1: |
1 or 6 Month test failure |
Low Battery test automatically. |
|
|
Red |
Fast Flash 2: |
Battery failure |
Battery failed the duration test or function test / No battery |
|
|
Red |
Permanent |
LED Breakdown |
220-240Vac Supply connected |
|
|
No |
Green off |
Emergency mode |
Battery operation (DC mode) |

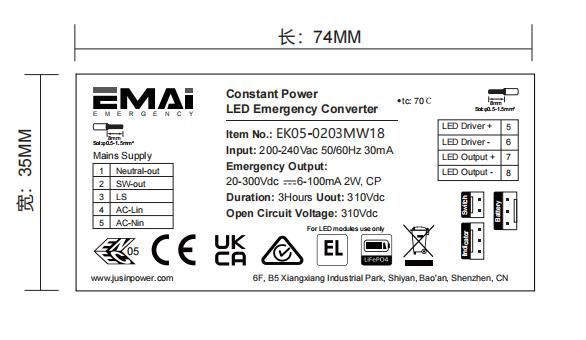

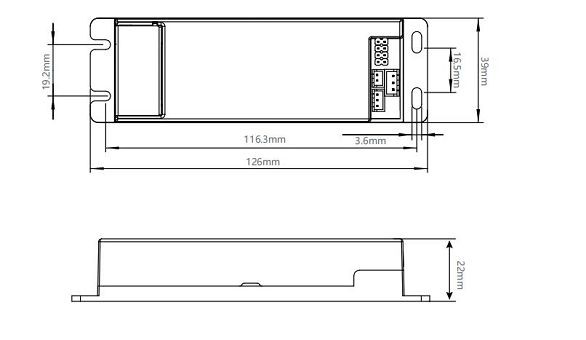

Dimension

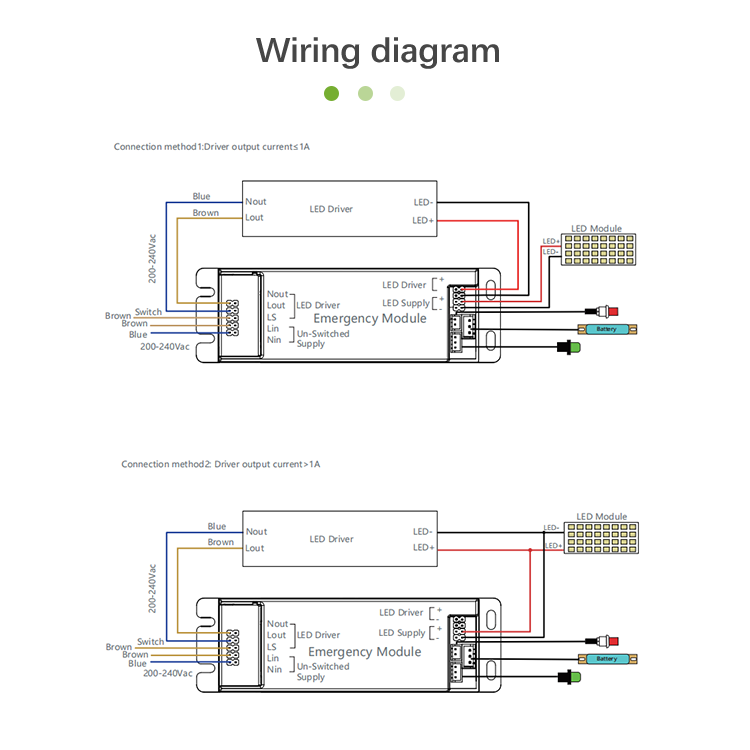

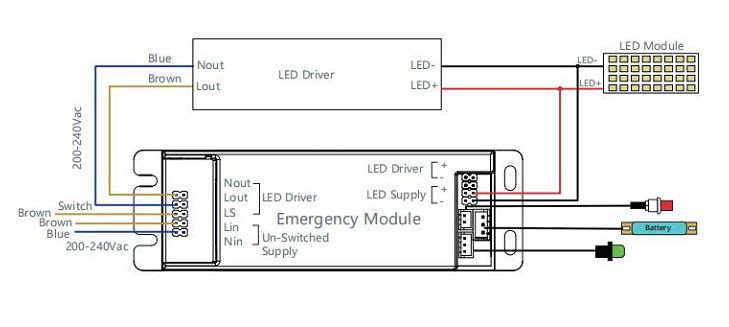

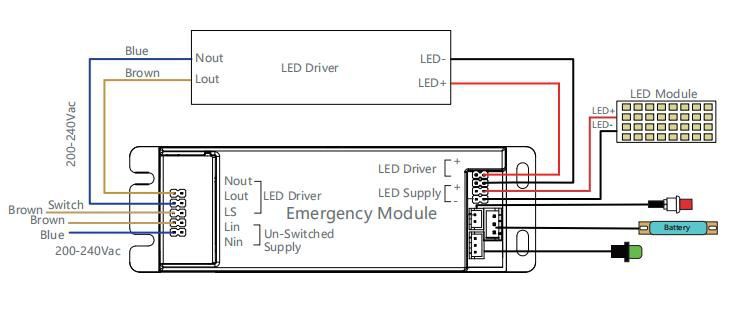

Wiring Diagram
Product Packaging
Hot Tags: enec ce tuv certification compact led emergency power packs, China enec ce tuv certification compact led emergency power packs manufacturers, suppliers, factory, emergency port led driver, emergency ship led driver, emergency terminal led driver, led driver for emergency dock lights, led driver for emergency subway lights, led driver for emergency vault lights
Product Specifications
Input voltage ..............................................................................(Universal) 200-240 VAC, 50/60Hz
Input current(300V).........................................................................................................0.07A (max)
Output voltage .................................................................................................................20-300VDC
Output current ..................................................................................................Automatic adjustment
Output power........................................................................................................................5W(max)
The neutral current of the highest AC drive unit .....................................................................1Amps
Power factor ...................................................................................................................................0.5
Surge ....................................................................................................................................L-N 1KV
Emergency time ..........................................................................................................90/180 minutes
Operating temperature ......................................................................................................0° - 50° C
Total Harmonic Distortion .........................................................................< 10% (@ Fully charged)
EMI ................................................................................Compliant with the FCC commercial scope
Emergency mode protection ...............................................................Battery overvoltage protection
Battery under-voltage protection
Battery hot-swapping under normal mode protection
Battery hot-swapping under emergency mode protection
Output open-circuit protection
Output short-circuit protection
Battery .....................................................................................LiFePO4 battery with NTC Detection
Battery charging current .................................................................................................250mA(Max)
Battery charging time .............................................................................................................24hours
Product Series
|
Model Example |
Emergency Power |
Backup Time |
Typical Battery Configuration |
Test Mode |
Output Voltage Range |
|
EK05-0215M/W18 |
2 W |
1.5 h |
2×18650 (1600–2000 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0203M/W18 |
2 W |
3 h |
2×18650 (2000 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0203S/W26 |
2 W |
3 h |
1×26650 (4000 mAh) |
Auto (S) |
20–300 V DC |
|
EK05-0315M/W18 |
3 W |
1.5 h |
2×18650 (1600 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0303S/W26 |
3 W |
3 h |
1×26650 (4000 mAh) |
Auto (S) |
20–300 V DC |
|
EK05-0415M/W18 |
4 W |
1.5 h |
2×18650 (2000 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0403S/W26 |
4 W |
3 h |
2×26650 (4000 mAh) |
Auto (S) |
20–300 V DC |
|
EK05-0515M/W18 |
5 W |
1.5 h |
2×18650 (2000 mAh) |
Manual (M) |
20–300 V DC |
|
EK05-0503S/W26 |
5 W |
3 h |
2×26650 (4000 mAh) |
Auto (S) |
20–300 V DC |
Note: Besides the above specifications, other parameters can be customized. Please contact the relevant sales for further details.
