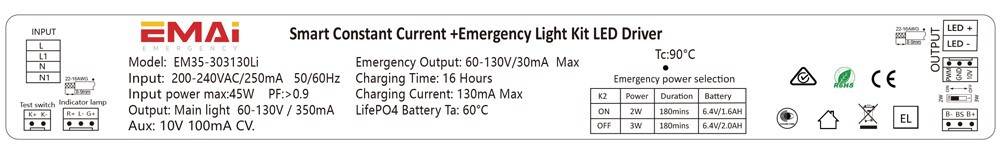

2-In-1 Combined 60-130Vdc 180mins Emergency Lighting LED Driver.

2-In-1 Combined 60-130Vdc 180mins Emergency Lighting LED Driver

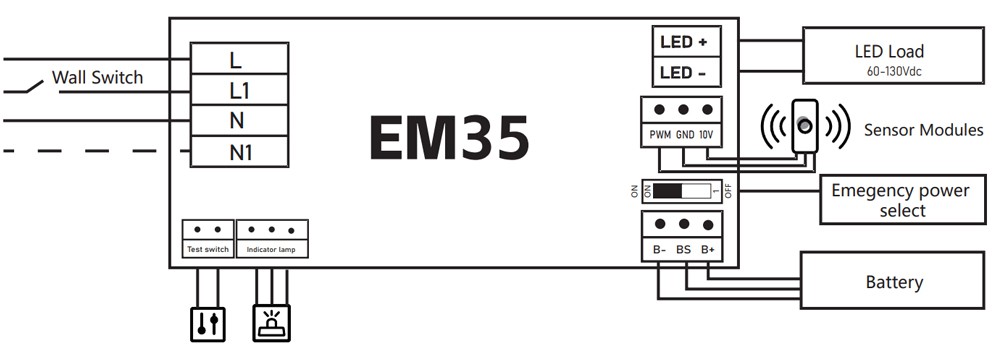

The EM35 series is a CE compliant emergency 2 in 1 LED driver for field and factory installations, allowing normal and emergency operation of 60-130VDC LED lighting loads. In the event of a power failure, the EM35 switches to emergency mode and operates the existing unit for 180 minutes. By connecting to the LED lighting load, the EM35 will run a 60-130Vdc LED load with a constant power of 2W/3W. The constant power design of the unit maintains the rated output wattage of the LED array when the battery voltage drops, thus maintaining a constant level of lighting throughout emergency operation. The use of lithium battery technology, greatly reducing the form factor, and with automatic self-check function. Supports up to 40W LED lighting load.

Flicker Free

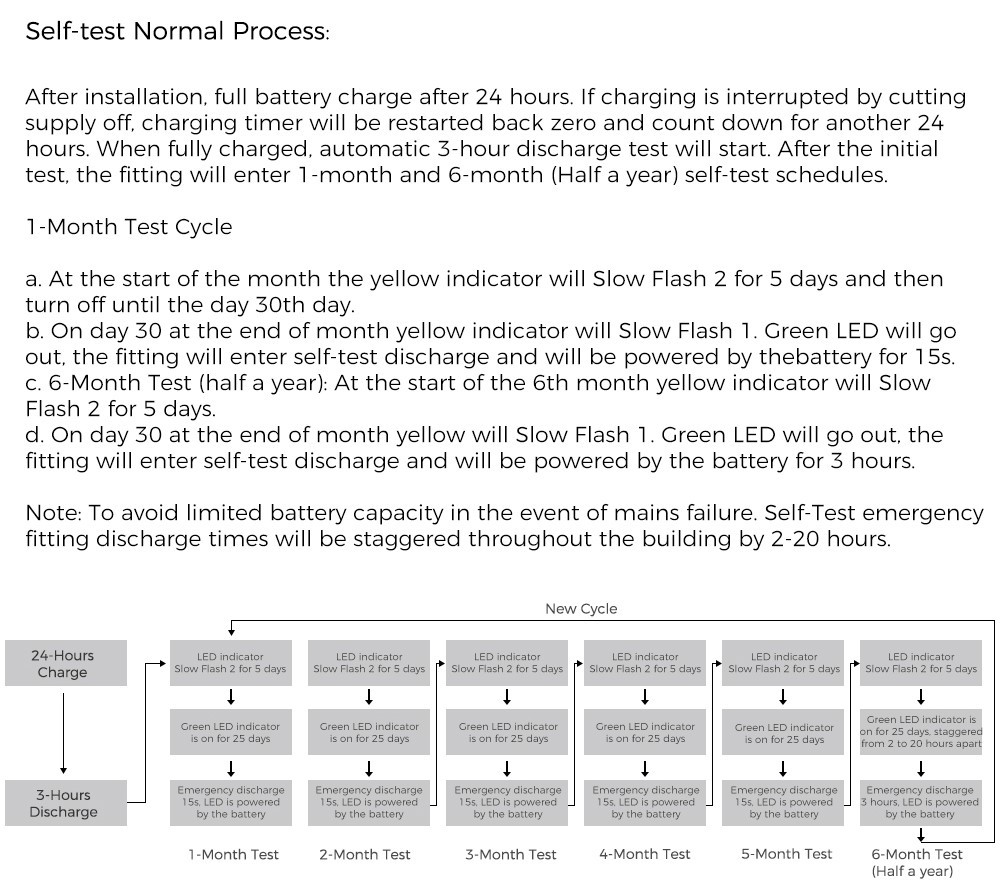

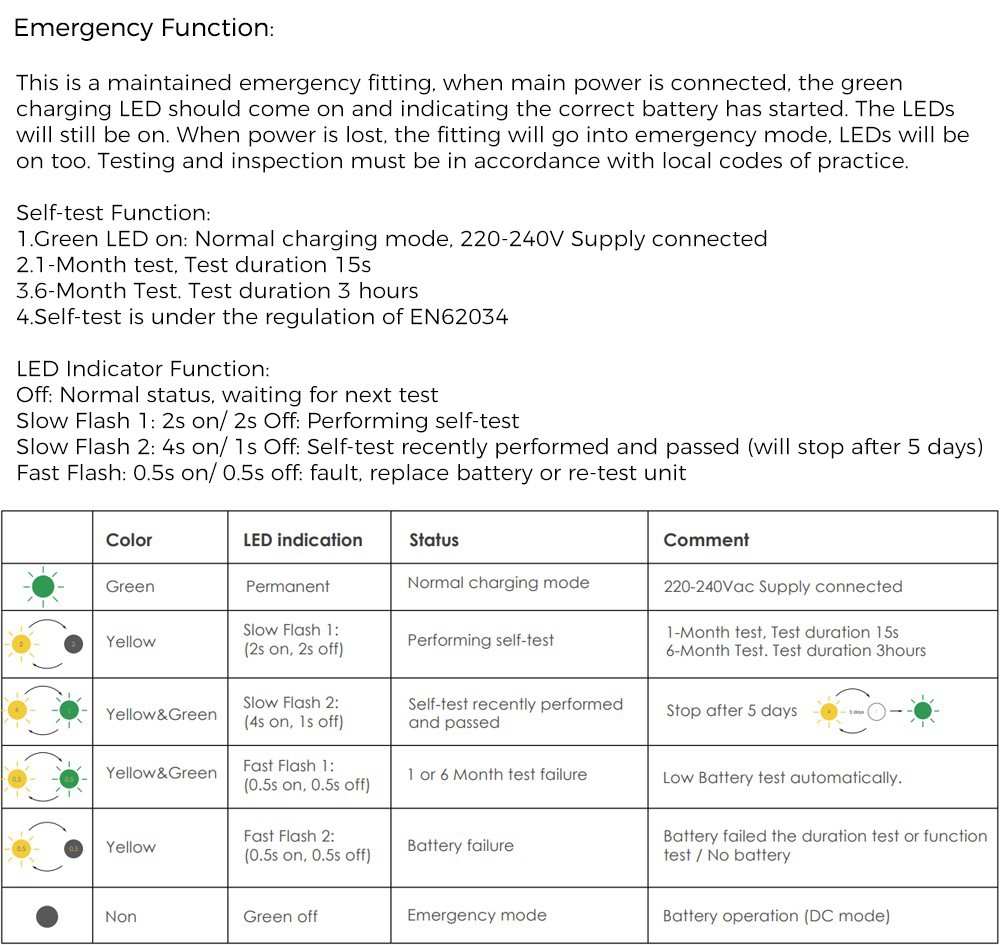

Self-check

Function

Over-discharge

Protection

3 Years Warranty

Emergency Power

DIP

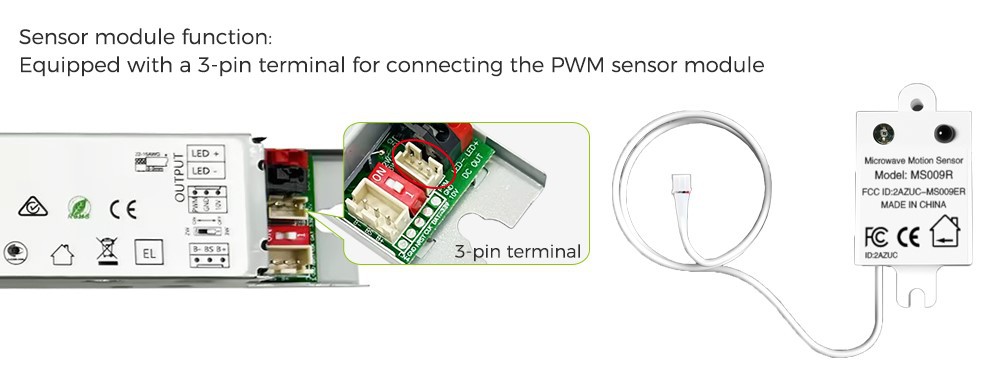

1.With PWM sensing function,Ensures stable output in a variety of use environments

2.Lighting Power Output: Available in 40W, 60W options.

3.Emergency output:2W/3W DIP switch optional

4.Supports up to 40W 60W LED lighting load.

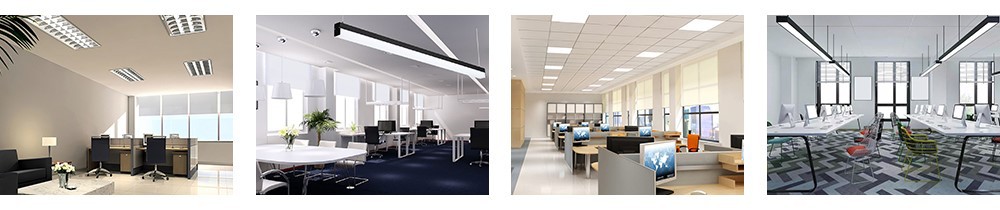

Office buildings: Office buildings usually have complex lighting requirements, which need to meet a variety of lighting environments such as offices, conference rooms, corridors, stairs, etc. In the event of a power outage, it is necessary to ensure that lighting is uninterrupted, especially for emergency exits and evacuation passages.

Quick switching to ensure safety

After a power failure, it can quickly switch to emergency mode to ensure that lighting is not interrupted, provide sufficient lighting for personnel evacuation, and ensure safety.

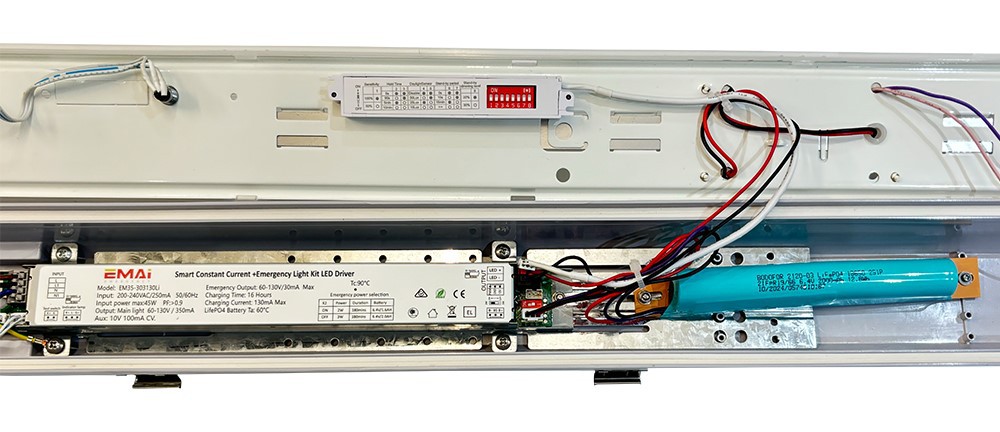

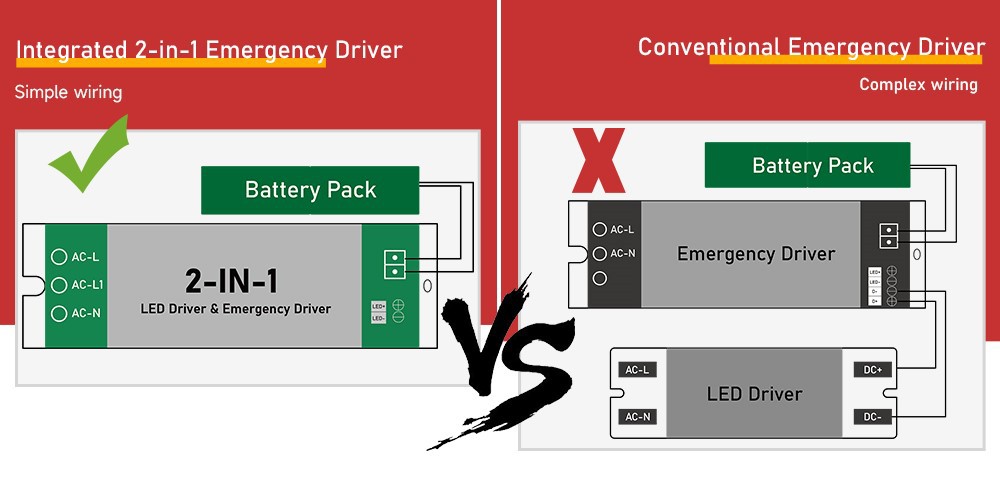

The complex wiring in the traditional scheme is prone to errors and may cause system instability. The two-in-one power supply reduces the risk of wiring errors through a simple and clear design, ensuring efficient and stable operation of the equipment.

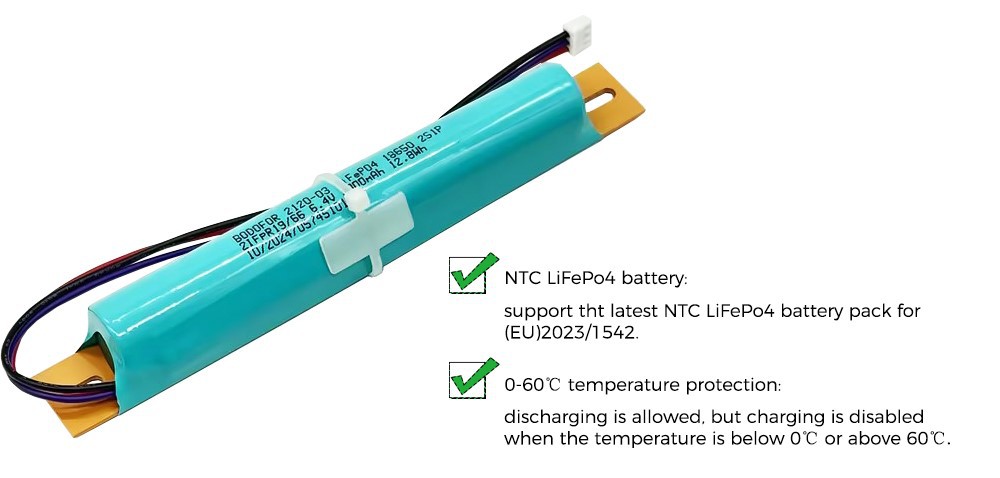

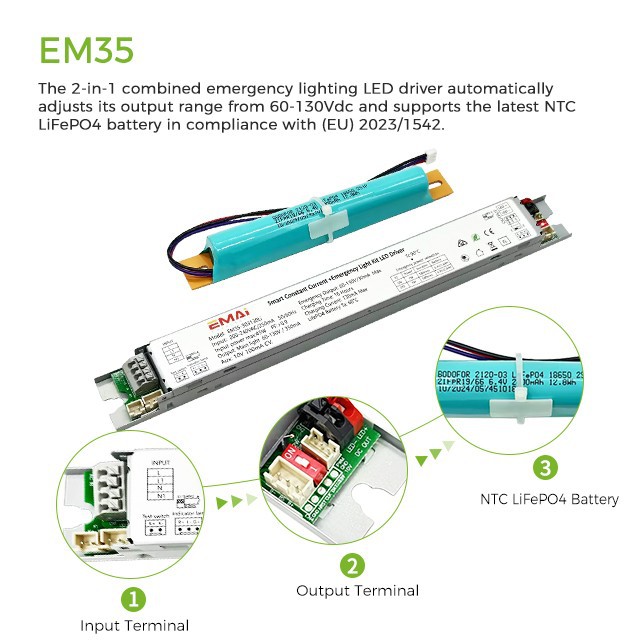

It uses the latest NTC LiFePO4 battery for (EU)2023/154. It charges and discharges within the range of 0-60℃. When it is below 0℃ or above 60℃, it only charges but does not discharge, and performs the detection status.

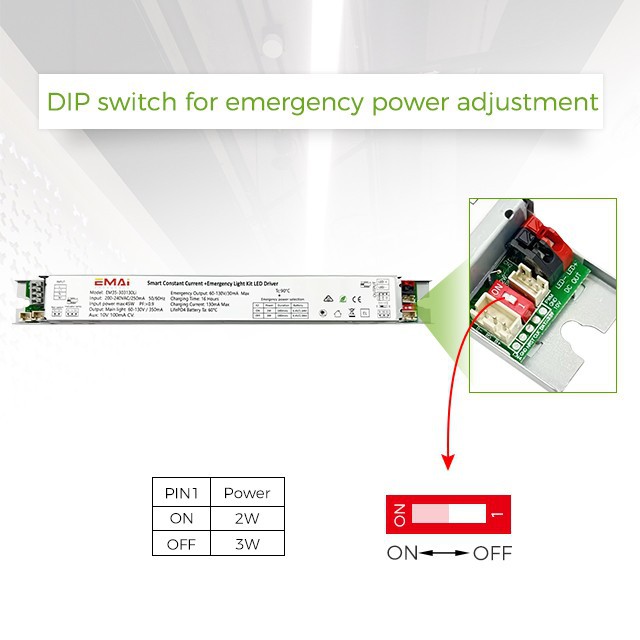

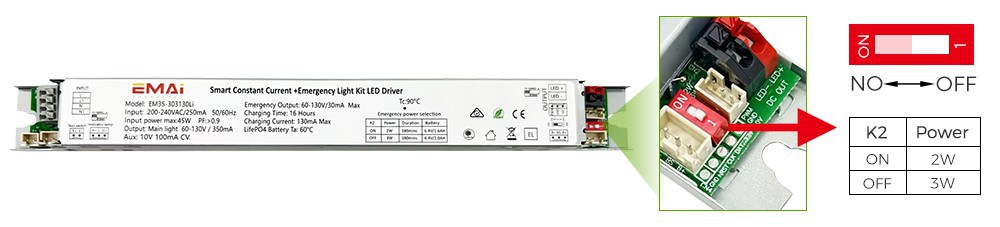

The emergency output can be selected as 2W or 3W through the dip switch, and the longest emergency time can be up to 3 hours, which is enough to deal with most emergencies.

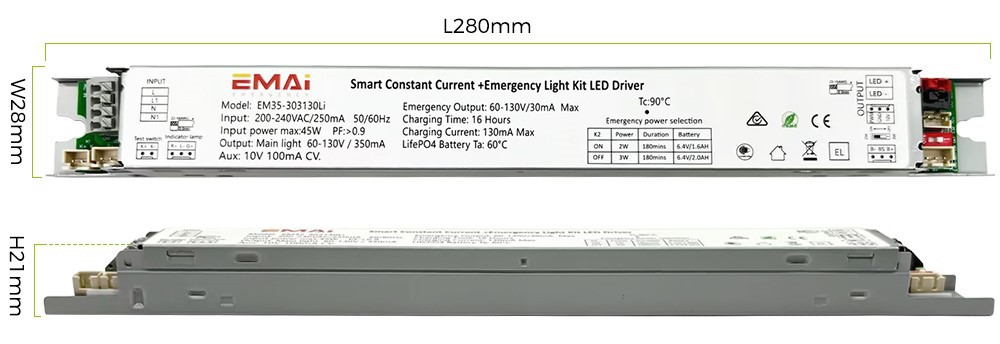

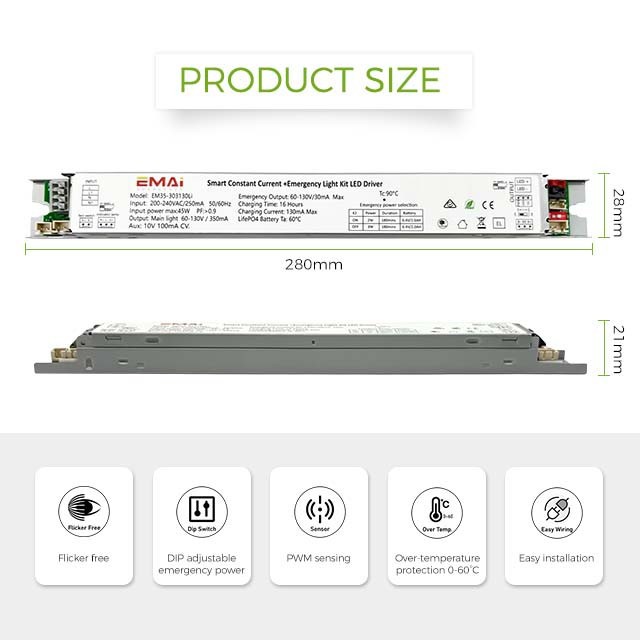

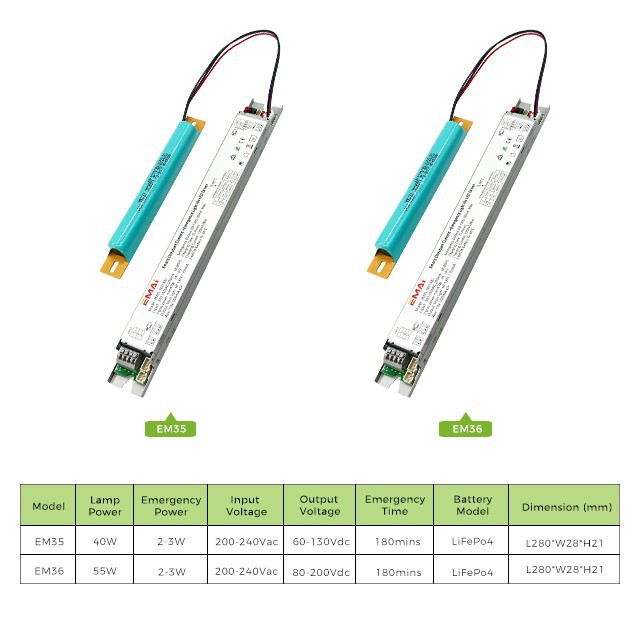

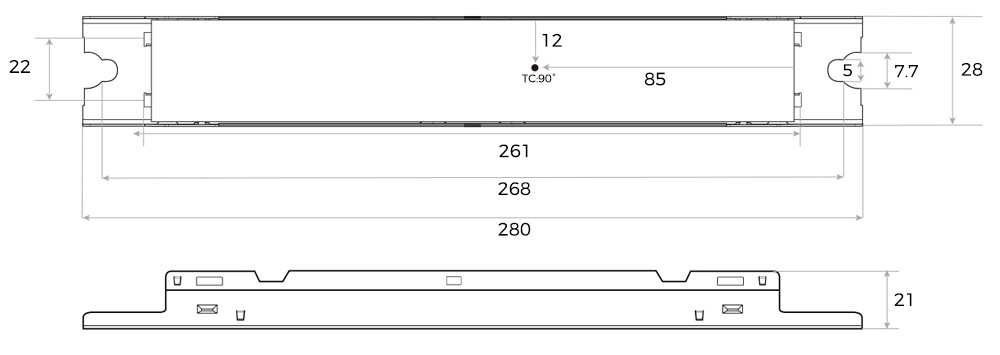

Length:280mm Width: 28mm Height:21mm
