180min led emergency driver with LiFePO4 battery
180-minute LED emergency driver, equipped with a LiFePO4 battery, offers reliable and long-lasting emergency lighting. This advanced emergency power supply features self-test and monthly test functions. By pressing the test button, you can easily check the indicator lights to understand the status and functionality of the device. This ensures optimal performance and readiness in emergency situations.

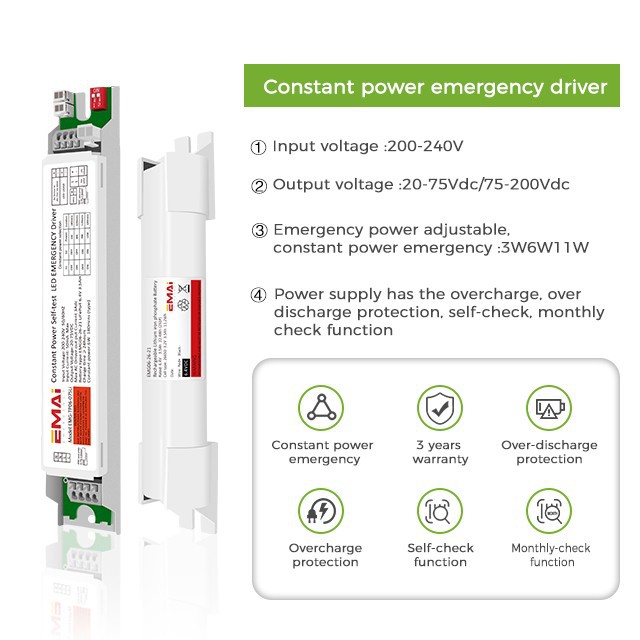

Features：
Over-discharge protection
Constant power emergency
Self-check function
3 years warranty
1.Reliable Performance: Ensures dependable emergency lighting when needed.
2.Self-Test Function: Ensures the unit is always ready for use.

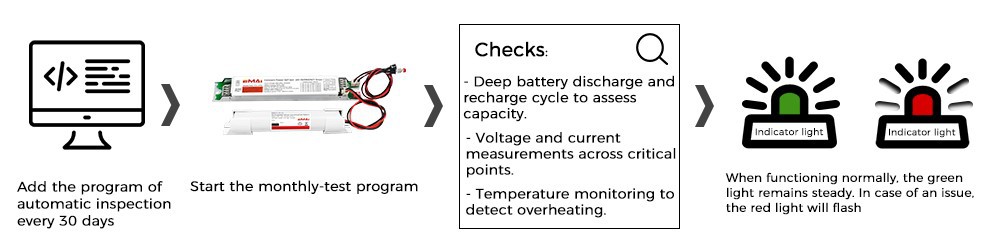

3.Monthly Test Function: Regularly checks the device's status for optimal performance.
4.Easy Status Indication: Test button with indicator lights for quick status checks.

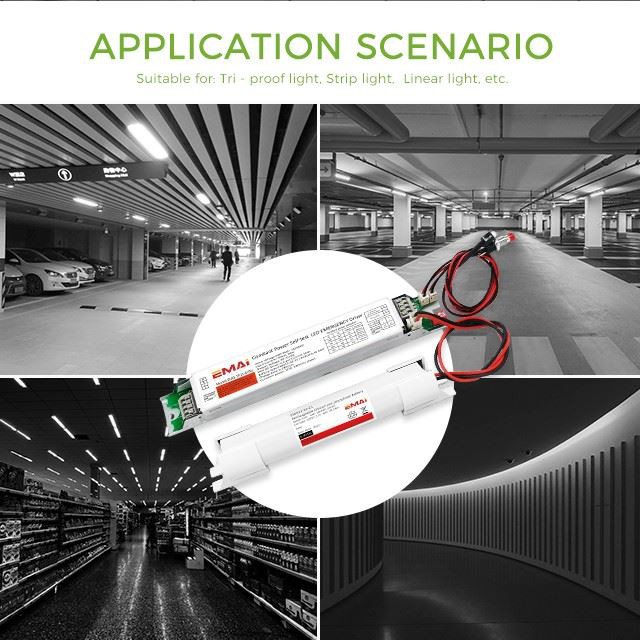

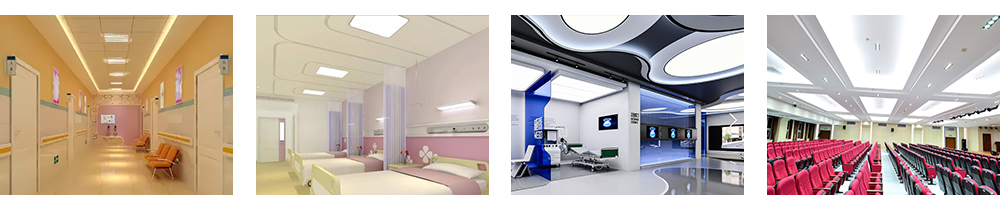

Application Scenario:
Hospitals and Healthcare Centers: Maintains essential lighting in patient rooms, operating theaters, and emergency rooms to ensure continuous medical care and safety during power interruptions.
Battery Comparison
|
Lithium Iron Phosphate Battery (LiFePO4):
High safety: Compared with other lithium batteries, lithium iron phosphate batteries are safer and less prone to thermal runaway or fire. They can usually provide thousands of charge and discharge cycles. |
Lead-Acid Battery:
They are heavy, bulky, have a short lifespan, low energy density, require regular maintenance, and take a long time to charge. |
Hardware Design:
Battery Status Detection: Use battery monitoring circuit to detect the battery charge state and health.
LED Load Detection: Monitor the connection and working state of the LED load.
Circuit Integrity Detection: Detect the connection of the circuit and the operating state of key components.

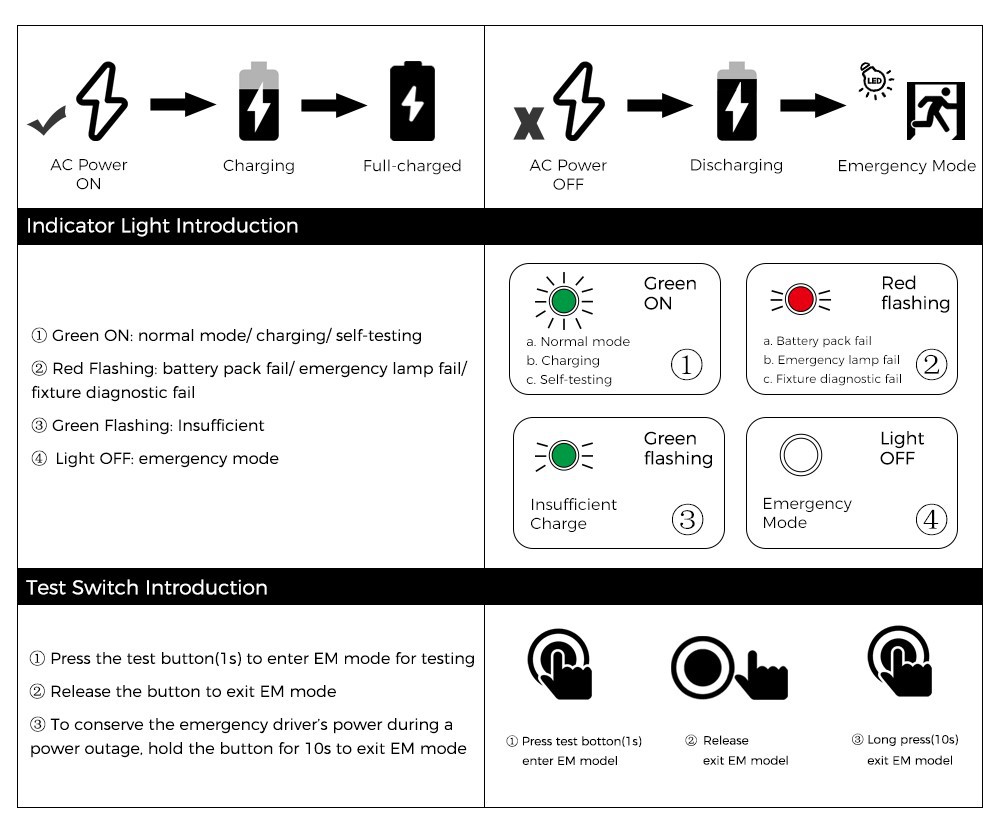

Diagnostic Codes:
The charge indicator LED will flash GREEN when charging and remain lit solid GREEN when fully charged and in the standby mode. If a problem is encountered during the test cycle, the will flash RED, according to the diagnostic codes below:
Test Switch Operations:
Press test button (1s)to enter EM mode for testing in normal AC powered.Release to exit the EM mode.
Long press(10s) exit emergency mode and the battery is cut-off in AC failure powered.

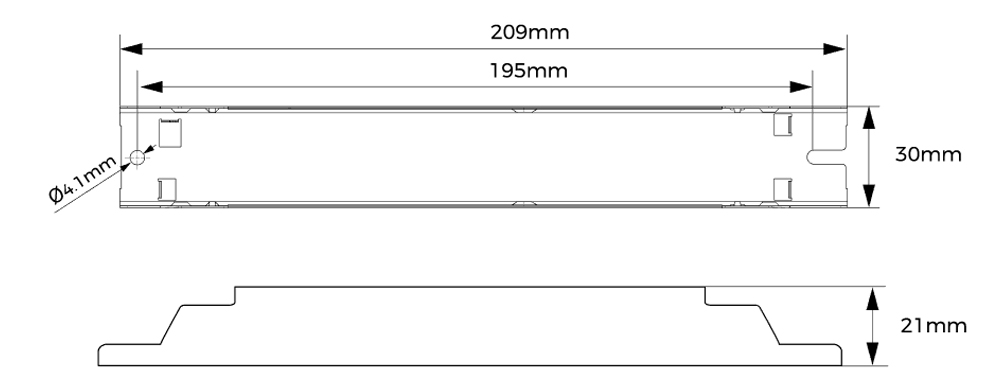

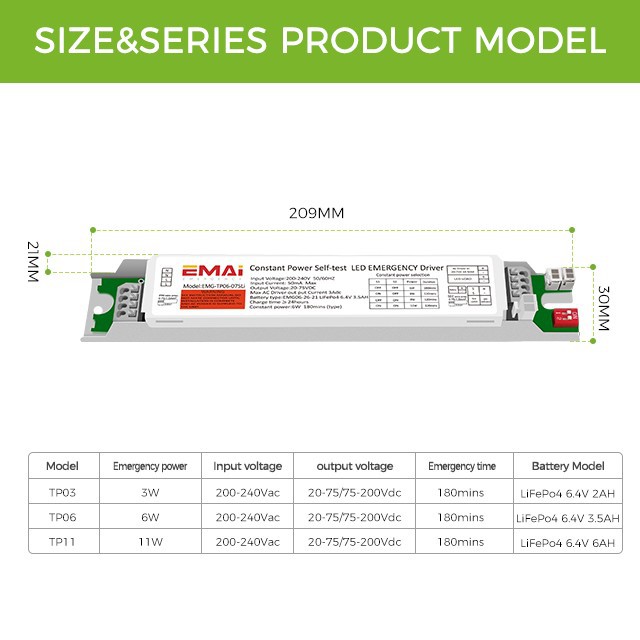

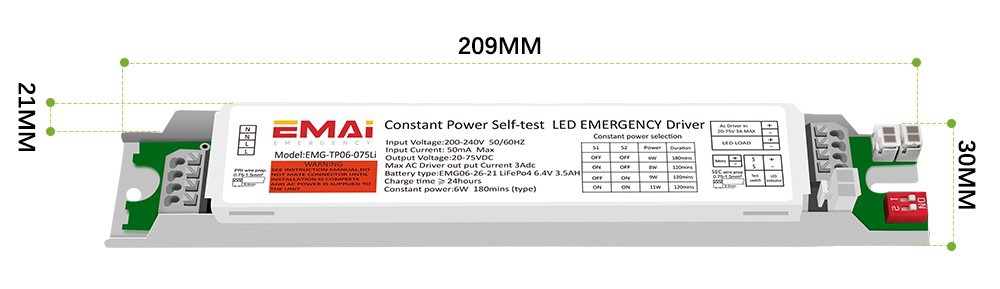

Dimension:
Length:209mm Width: 30mm Height:21mm

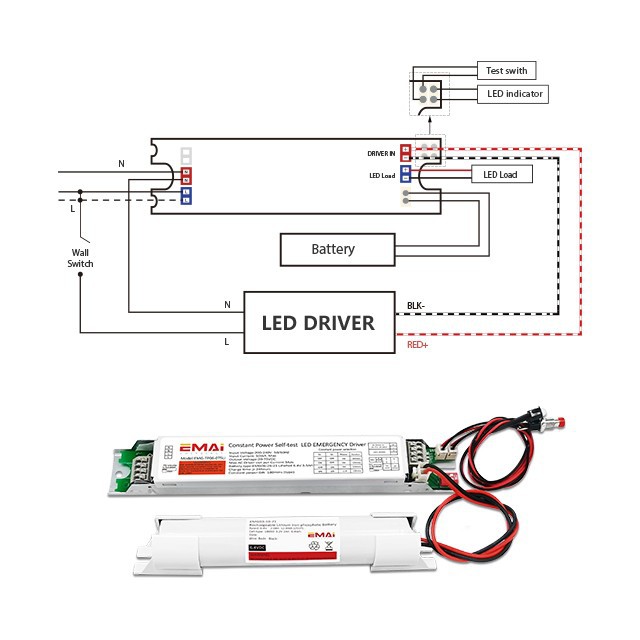

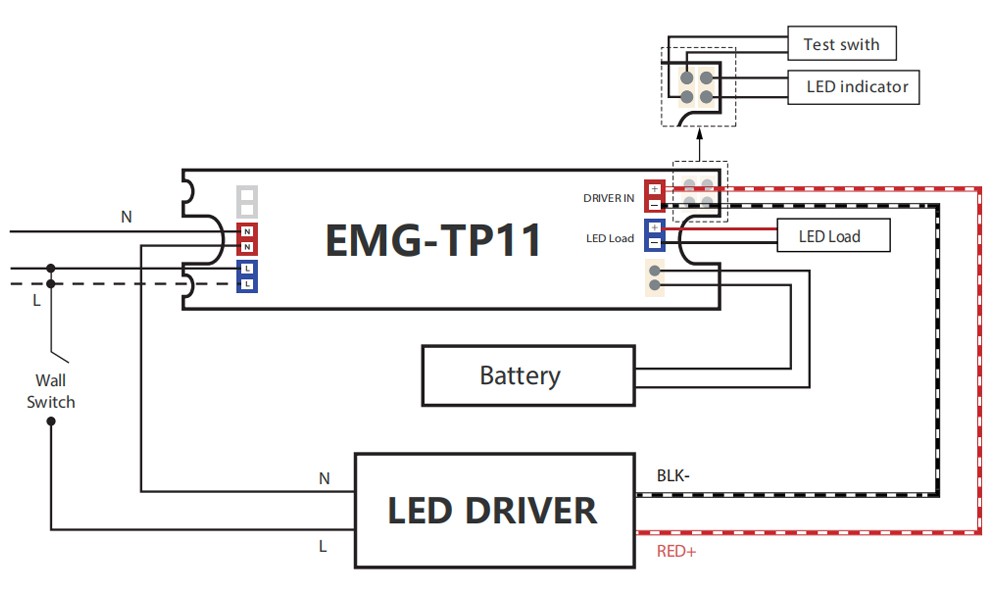

Wiring Diagram:

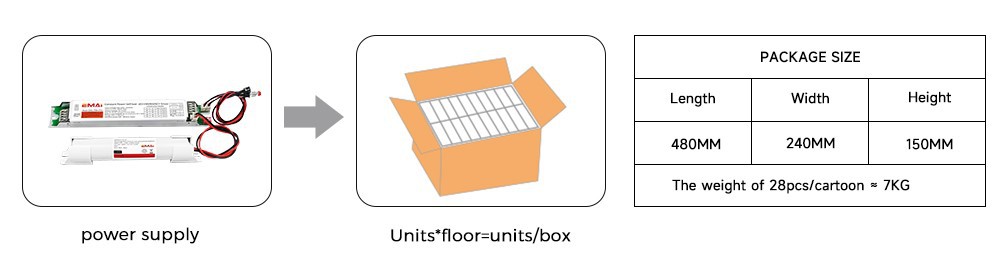

Product Packaging
Hot Tags: 180min led emergency driver with lifepo4 battery, China 180min led emergency driver with lifepo4 battery manufacturers, suppliers, factory, minicontroller, CC pwm dimming, smart lighting system, no isolation, smart wifi led light, 60w dimmable led driver
TP11
Input Voltage ............................................................................ (Universal) 200-240VAC, 50/60Hz
Input Current (200V)......................................................................................................0.05A (max)
Output Voltage...............................................................................................20-75VDC (TP11-075)
70-200VDC(TP11-200)
Output Current .......................................................................................................... Auto-Adjusting
Output Power ........................................................................................................11Watts (Constant)
Max. AC Driver Neutral Current .............................................................................................3Amps
Power Factor ..............................................................................................................................＜0.5
Surge Protection........................................................Line-Neutral 1KV,Line&Neutral-Ground 2KV
Emergency Operation .................................................................................................... 180 minutes
Operating Temp ................................................................................................................0° to 55° C
THD ............................................................................................................... < 10% (@ full charge)
EMI ...........................................................................................Complies to FCC commercial limits
Emergency Mode Protections ...................................................... ..Battery Over Voltage Protection
Battery Under Voltage Protection
Battery Hot Plug at Normal Mode Protection
Battery Hot Plug at Emergency Mode Protection
Output Open Protection
Output Short Protection
Battery .............................................................................................................LiFePO4,6.4V 6Ah
Battery Charge Current ........................................................................................................ 300mA
Battery Recharge Time.........................................................................................................24Hours
|
Status Indication |
Condition |
|
Steady Green |
Normal Mode |
|
Steady Green |
Charging |
|
Steady Green |
Self-Testing |
|
OFF |
Emergemcy Mode |
|
Slow Flashing Green |
Insucient Charge |
|
1 RED Flash |
Battery Pack Failure |
|
2 RED Flashes |
Emergency Lamp Falure |
|
3 RED Flashes |
Flxture Diagnostic Failure Detected |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Emergency time |
Battery Model |
Size(mm) |
Certification |
|
TP03 |
3W |
200-240Vac |
20-75/75-200Vdc |
180mins |
LiFePo4.6V 2AH |
L209*W30*H21 |
CE SAA CB |
|
TP06 |
6W |
200-240Vac |
20-75/75-200Vdc |
180mins |
LiFePo4.6V 3.5AH |
L209*W30*H21 |
CE SAA CB |
|
TP11 |
11W |
200-240Vac |
20-75/75-200Vdc |
180mins |
LiFePo4.6V 6AH |
L209*W30*H21 |
CE SAA CB |
