Emergency Led Driver with NTC LiFePo4 Batteries Pack for ((EU)2023)

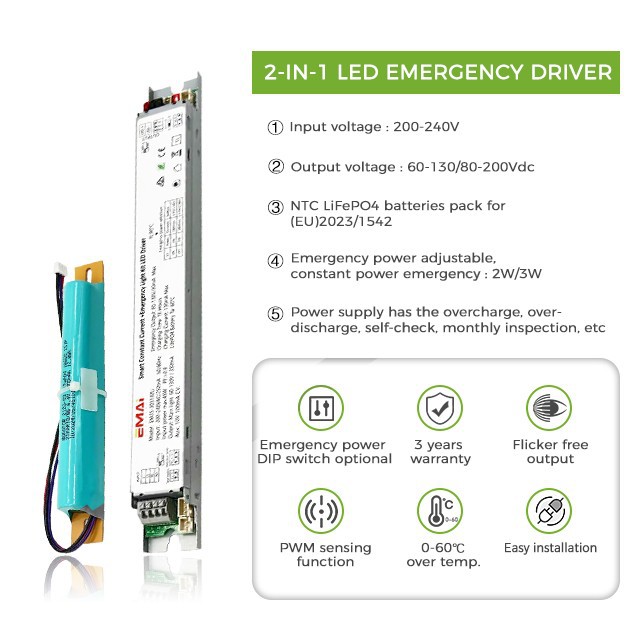

This style emergency led driver it uses the latest NTC LiFePO4 battery, ensuring high efficiency and long lifespan. In the event of a power outage, it can quickly switch to emergency mode, ensuring your lighting equipment continues to operate. Next, I'll provide you with a detailed overview of this product.
1.Support the latest NTC LiFePO4 battery for (EU)2023/1542
2.Wide Output Voltage Range:60-130Vdc to suit various applications.
3.Emergency Converter 2-In-1 Led Driver.
4.Automatic Manual test or Self test as options
Top Features and Benefits:
Input 200-240Vac
Monthly-inspection
Function
Overcharge Protection
3 Years Warranty
Emergency Power
DIP

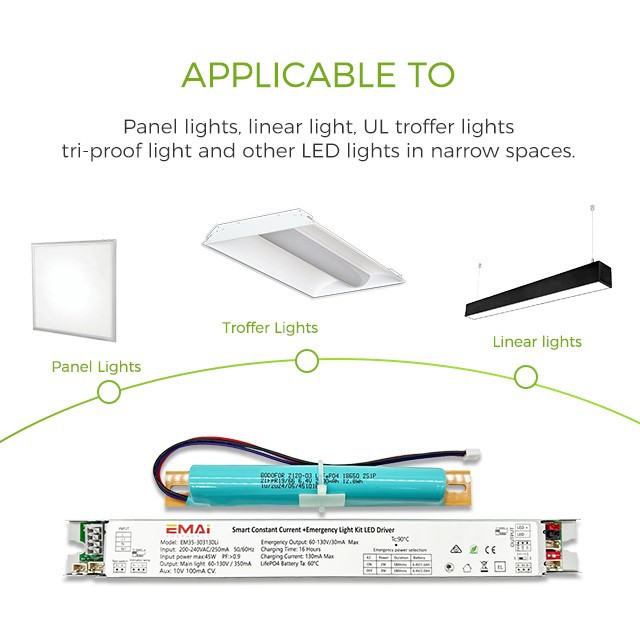

Application Scenario:

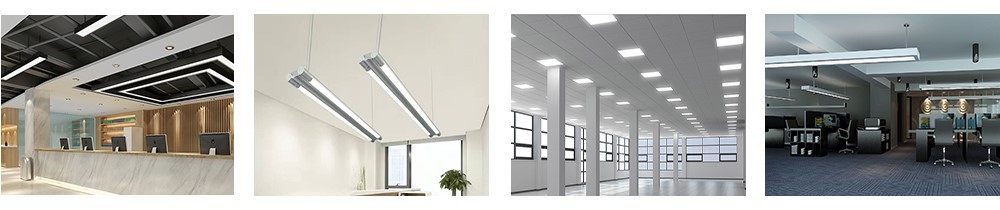

Commercial Buildings: The emergency 2-in-1 lighting can automatically switch to the backup power supply in the event of a power failure, providing stable emergency lighting for commercial buildings, ensuring that the lighting system is not interrupted and improving building safety.
Product Details:

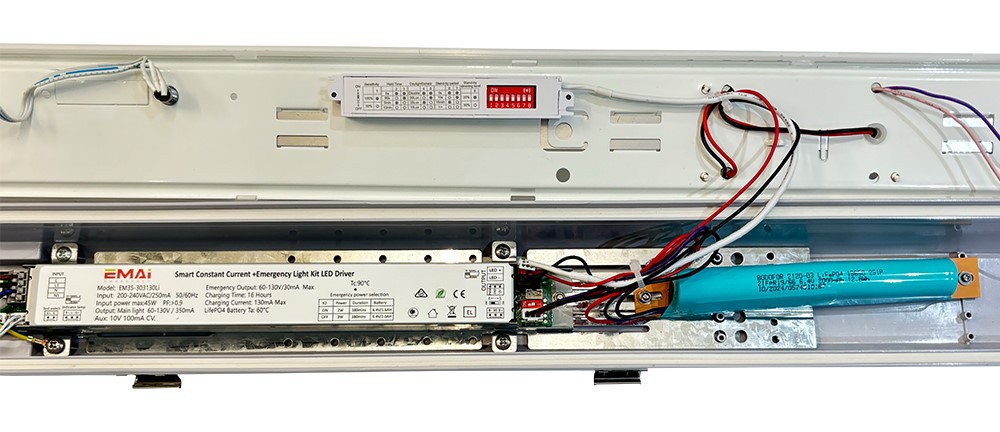

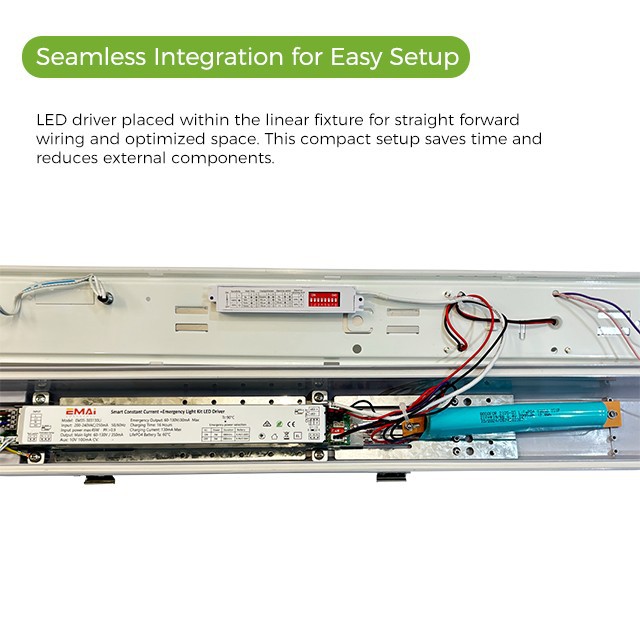

Save space and installation costs
Only one device is needed to provide regular and emergency power supply functions, reducing the need for independent emergency power supply installation, saving space, and reducing installation and maintenance costs.

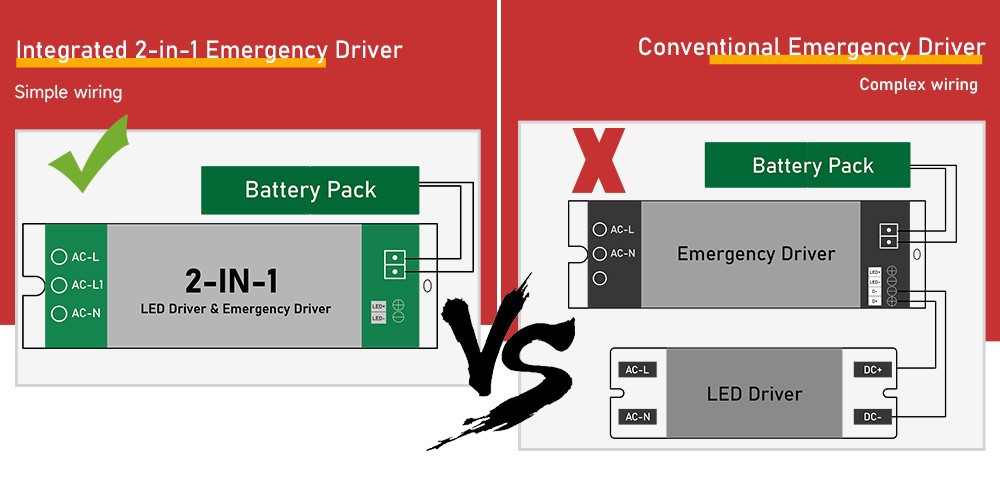

The traditional wiring scheme requires the connection of conventional power supply, emergency power supply and battery separately. The cumbersome wiring increases the installation time and difficulty. The two-in-one power supply integrates these three together, simplifies the wiring process, and greatly shortens the installation time.

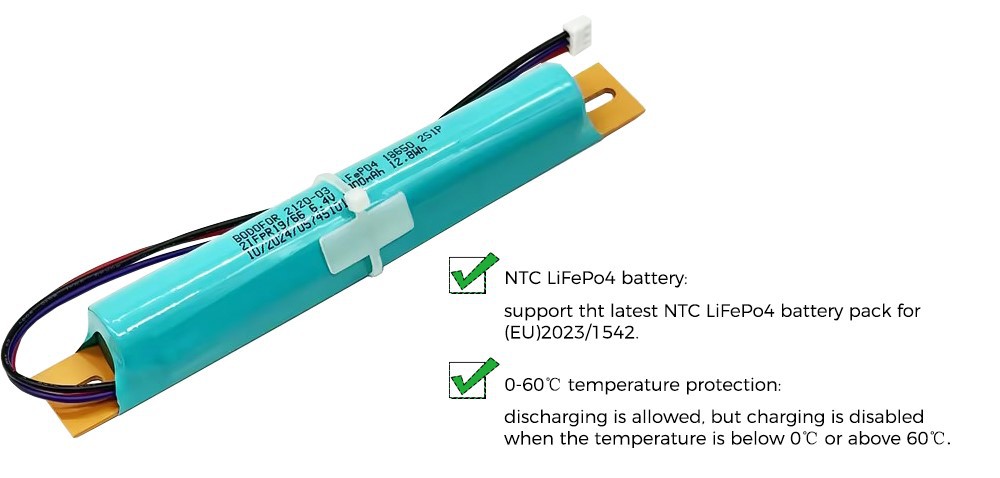

It uses the latest NTC LiFePO4 battery. The battery temperature can be closely monitored during the battery charging and discharging process to ensure the best performance and safety of the battery.

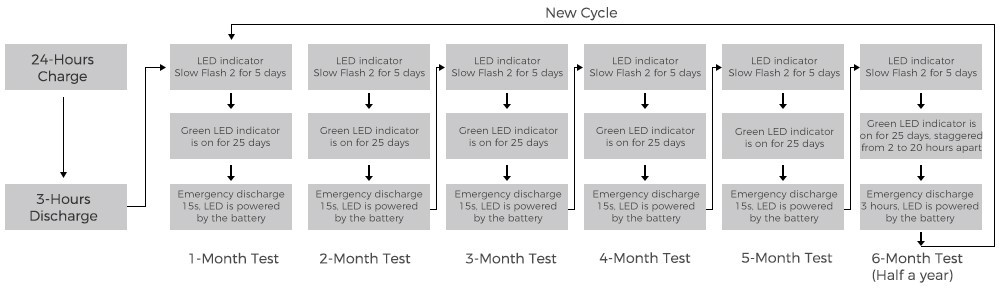

Self-test Normal Process:
After installation, full battery charge after 24 hours. If charging is interrupted by cutting supply off, charging timer will be restarted back zero and count down for another 24 hours. When fully charged, automatic 3-hour discharge test will start. After the initial test, the fitting will enter 1-month and 6-month (Half a year) self-test schedules.
Month Test Cycle
a. At the start of the month the yellow indicator will Slow Flash 2 for 5 days and then turn off until the day 30th day.
b. On day 30 at the end of month yellow indicator will Slow Flash 1. Green LED will go out, the fitting will enter self-test discharge and will be powered by thebattery for 15s.
c. 6-Month Test (half a year): At the start of the 6th month yellow indicator will Slow Flash 2 for 5 days.
d. On day 30 at the end of month yellow will Slow Flash 1. Green LED will go out, the fitting will enter self-test discharge and will be powered by the battery for 3 hours.
Note: To avoid limited battery capacity in the event of mains failure. Self-Test emergency fitting discharge times will be staggered throughout the building by 2-20 hours.
Emergency Function:
This is a maintained emergency fitting, when main power is connected, the green charging LED should come on and indicating the correct battery has started. The LEDs will still be on. When power is lost, the fitting will go into emergency mode, LEDs will be on too. Testing and inspection must be in accordance with local codes of practice.
Self-test Function:
1.Green LED on: Normal charging mode, 220-240V Supply connected
2.1-Month test, Test duration 15s
3.6-Month Test. Test duration 3 hours
4.Self-test is under the regulation of EN62034

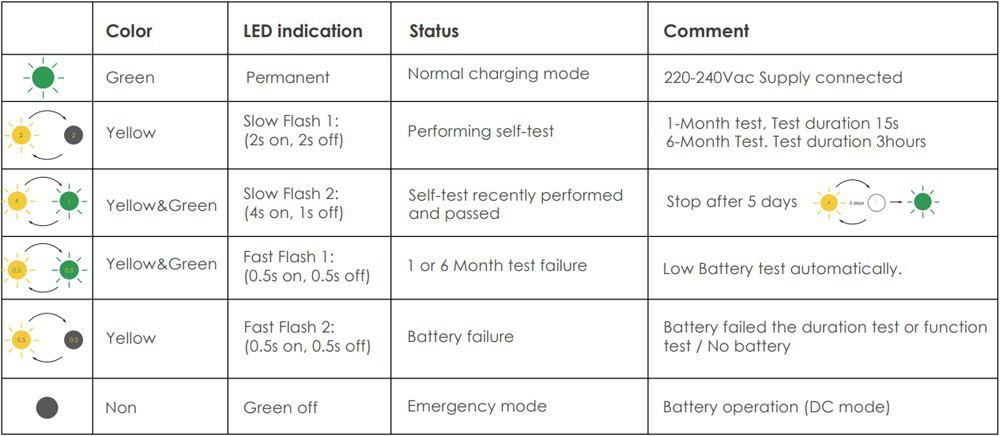

LED Indicator Function:
Off: Normal status, waiting for next test
Slow Flash 1: 2s on/ 2s Off: Performing self-test
Slow Flash 2: 4s on/ 1s Off: Self-test recently performed and passed (will stop after 5 days)
Fast Flash: 0.5s on/ 0.5s off: fault, replace battery or re-test unit

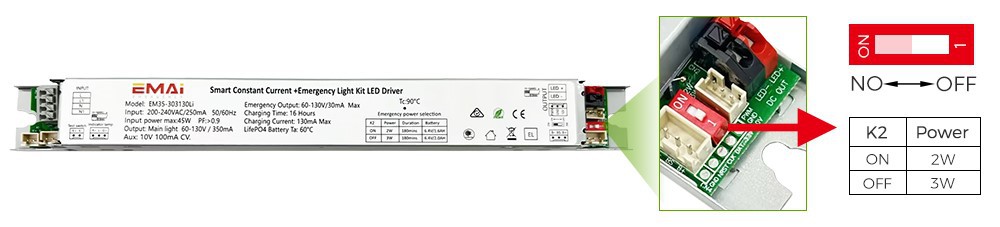

The emergency output can be selected as 2W or 3W through the dip switch, and the longest emergency time can be up to 3 hours, which is enough to deal with most emergencies.

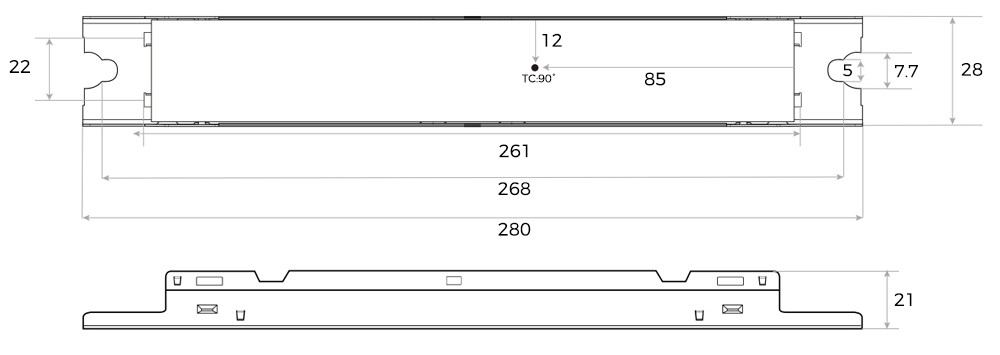

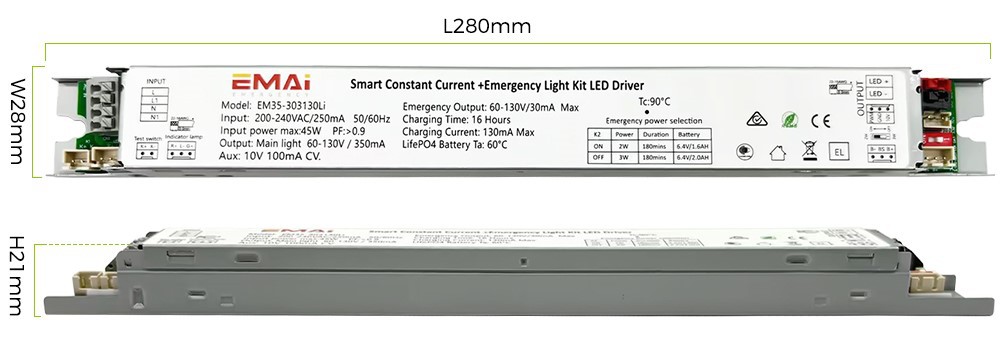

Dimension:
Length:280mm Width: 28mm Height:21mm

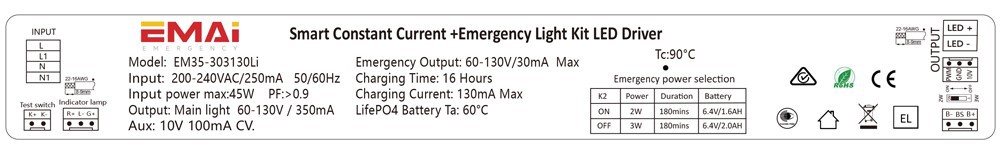

Label:

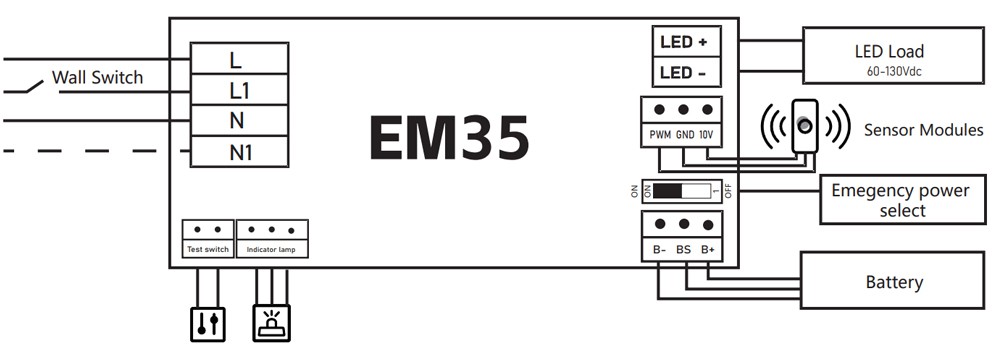

Wiring Diagram:
Hot Tags: Emergency Led Driver, China Emergency Led Driver manufacturers, suppliers, factory, automatic led sensor light, smart lighting system, 1 Light 5, 3cct in 1, Five gear power, Grille Light Driver
Input voltage
Input current
Output voltage
Output current
Output power
Emergency voltage
Power factor
Inrush current
Emergency operation
Operating temperature
Total harmonic distortion
EMI
Emergency protection mode
Battery undervoltage protection
The battery hot swap is protected in normal mode
The battery hot swap is protected in emergency mode
Output open protection
Output short-circuit protection
battery
LiFePO4,6.4V 1600mAh for 2W
Battery charging current
Battery charge time
|

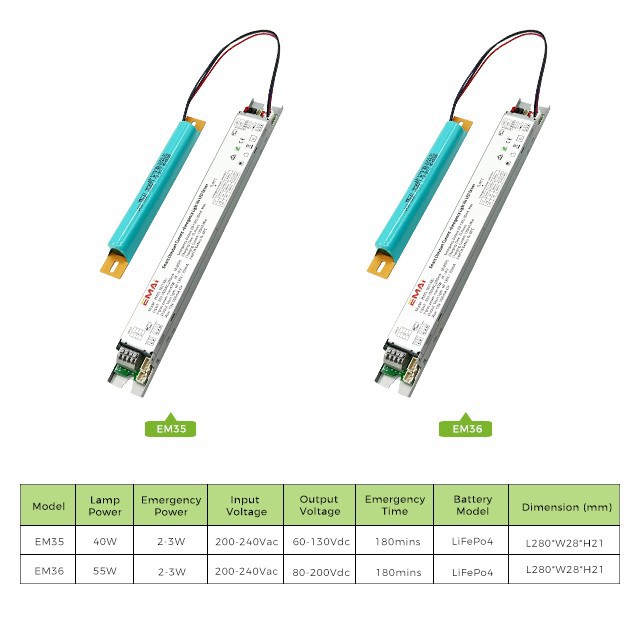

Series Driver |
|||||||
|
Model |
Lamp Power |
Emergency Power |
Input Voltage |
Output Voltage |
Emergency Time |
Battery Model |
Dimension(mm) |
|
EM35 |
40W |
2-3W |
200-240Vac |
60-130Vdc |
180mins |
LiFePo4 |
L280*W28*H21 |
|
EM36 |
60W |
2-3W |
200-240Vac |
80-200Vdc |
180mins |
LiFePo4 |
L280*W28*H21 |
Inspection
Jusinpower has more than 10 years of experience in designing and manufacturing lighting power supply. Our matured verification process and through QC control system will ensure your products are sustainable and high-quality. Moreover, our experienced engineers and persevered sales representatives will be the best backup team for your company.

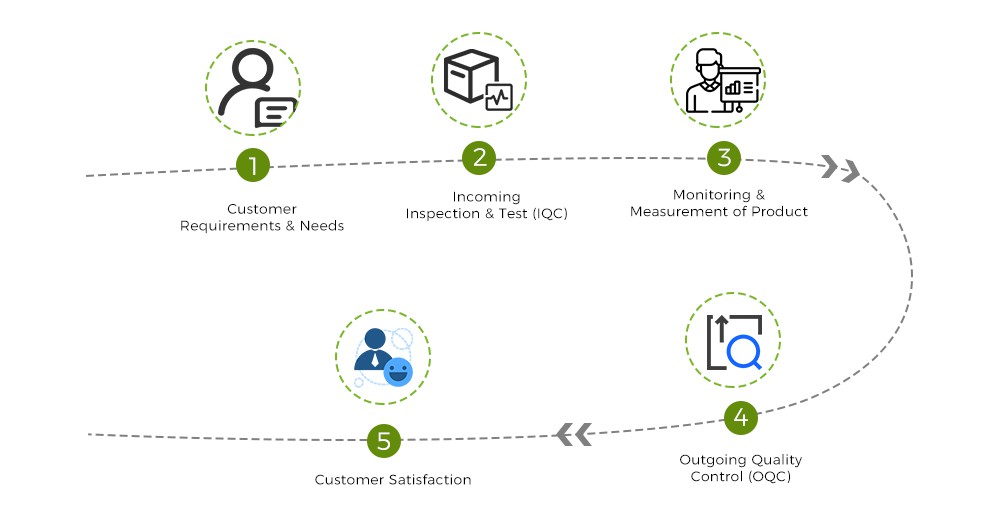

QC Process Flow Chart
