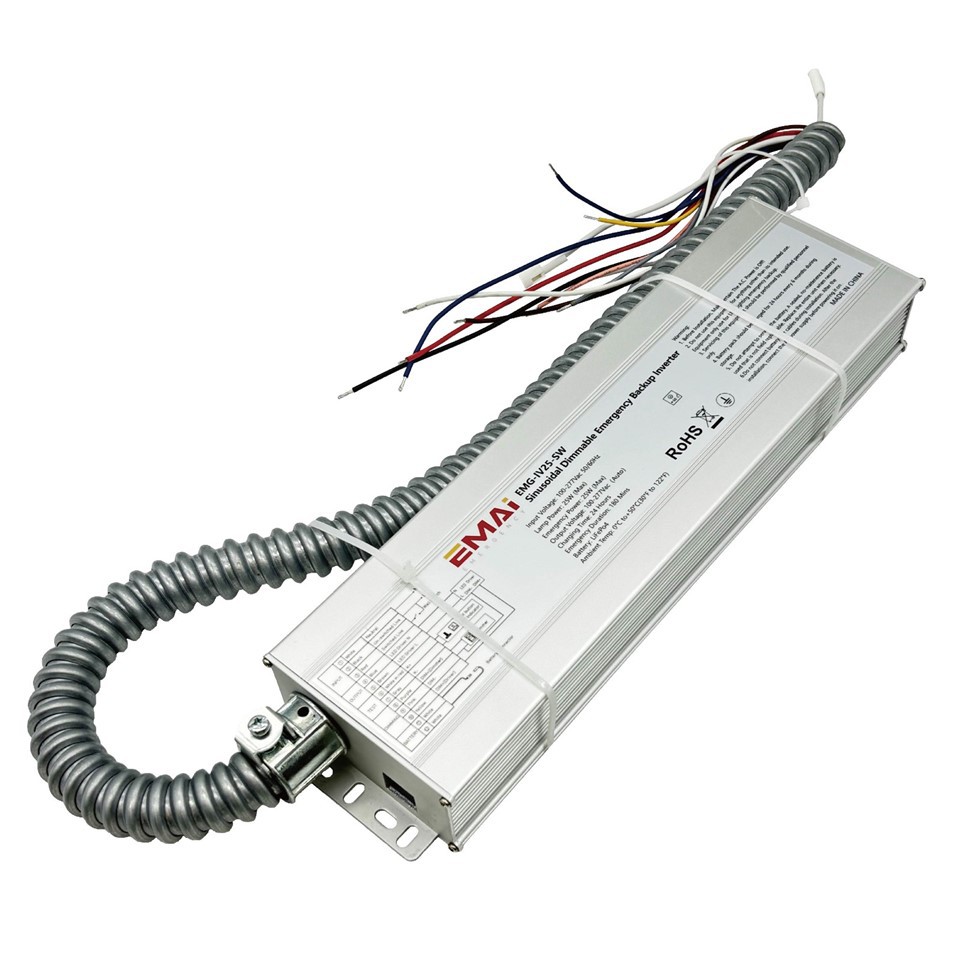

Sinusoidal Dimmable Emergency Backup Inverter
This emergency inverter offers automatic output voltage selection from 120 to 277Vac, making it highly versatile for various lighting systems. It supports 0-10V dimming and triac (phase-cut) dimming, providing flexibility in controlling light intensity. With a maximum load of 25W or 50W, the inverter allows connected lights to be turned on, off, switched, or dimmed without disrupting emergency operation, ensuring seamless performance during power failures.
Top Features and Benefits:
Auto Select
120 to 277VAC
Sine Wave Output
Monitored via the App
Self-Check Function
0-10V and Triac Dimming
1.Automatic emergency output voltage selection (120-277Vac).
2.Supports 0-10V and triac dimming for flexible lighting control.
3.Maximum load of 25W or 50W for a variety of applications.
4.Allows light switching and dimming without affecting emergency operation.
Application Scenario:
Residential Settings: Provides backup lighting for homes and apartment complexes, offering peace of mind during power outages.
Product Details:
1.Specification

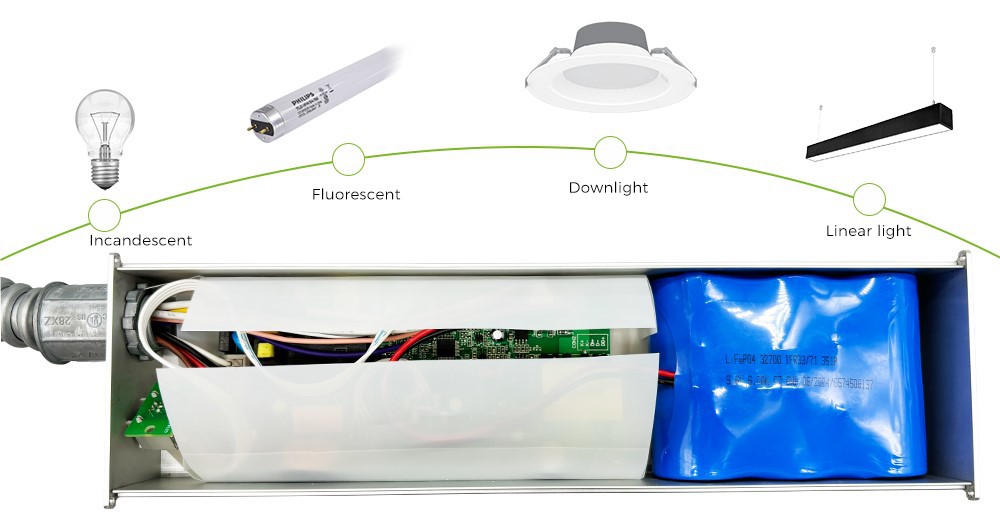

Each unit consists of stability and efficiency LiFePO4 battery, and electronic circuitry contained in one metal case. Solid-state indicator lights signal operational status. The IV25 unit shall be capable of powering fluorescent,incandescent or LED lighting fixture rated at a maximum of 25 W at 0°C to 55°C for a minimum 90 minutes regardless of local switch position. The IV25 shall allow the connected fixture(s) to be on, off, switched or dimmed without affecting emergency operation. The IV25 provides power to the input side of the fixture, including the ballast, and can be used with indoor or outdoor emergency fixture applications.
2.Automatic dimming(0-10V and Triac)of connected load.
Auto Select120 or 277 VAC,Code-Compliant 90-Minute Runtime.
The emergency output voltage can change with the input voltage. In addition to the conventional 0-10V dimming emergency, we are also compatible with triac dimming emergency.
The IV25 features a dimming control output of 0-10 volts. This dimming capability allows a higher
power fixture to operate at a dimmed 25VA maximum emergency-mode lighting level - or, alternately, it allows a string of multiple fixtures to be driven in emergency mode at a combined 25VA maximum.
The emergency mode output dimming voltage is automatically controlled by the IV25 electronic circuitry to maintain 25VA output throughout an emergency event. The IV25 passes the normal room dimming control voltage (0-to-10V) where used, in the Normal (non-Emergency) mode so normal dimming operation of the connected fixtures is not affected.
3.Emergency status can be monitored via the app.Meeting UL 924 Compliance:Wireless Emergency Lighting Solutions

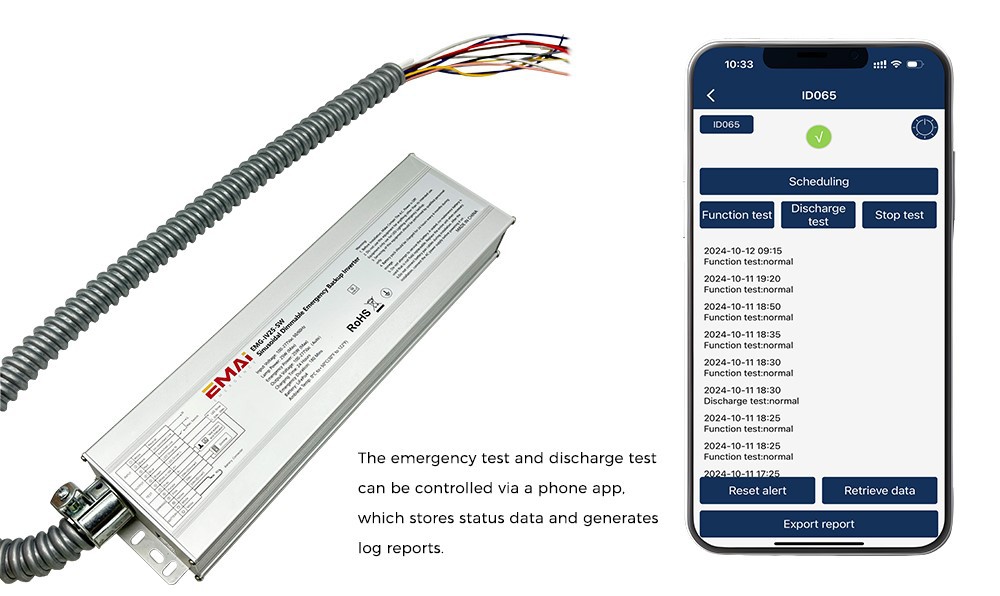

This is a solution that we can use to meet UL 924 compliance: Wireless Emergency Lighting. It can connect to a Bluetooth wireless module, supporting phone app control for emergency testing and discharge testing, alarm uploading, data storage, and the generation and export of log reports.The IV25 supplies power to the input of fixtures, including AC rectifiers or LED drivers, and can be used with indoor or outdoor emergency fixtures.

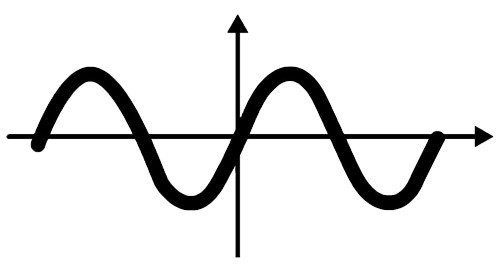

4.Sine wave output
This product uses sine wave output, which can provide efficient, stable and clean power, reduce the loss, interference and overheating of electrical equipment, ensure the reliability of equipment and extend its service life.

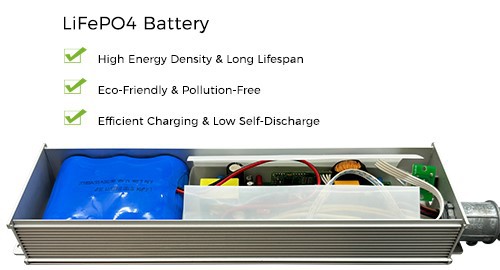

5.It uses the stability and efficiency LiFePO4 battery
Embracing long life and great safety. Lithium iron phosphate battery with minimal environmental impact
LiFePO4 batteries have a higher energy density and can provide higher power
LiFePO4 batteries adapt well to high temperature environments and have high thermal stability
6.Operation
Upon failure of normal power, the IV25 begins providing emergency power to the connected lighting load for a minimum of 90 minutes. A low voltage disconnect circuit protects the inverter batteries from damage by deep discharge during prolonged power failures. When normal power is restored, the IV25 automatically returns to charge mode. The battery capacity is fully restored in 24 hours.

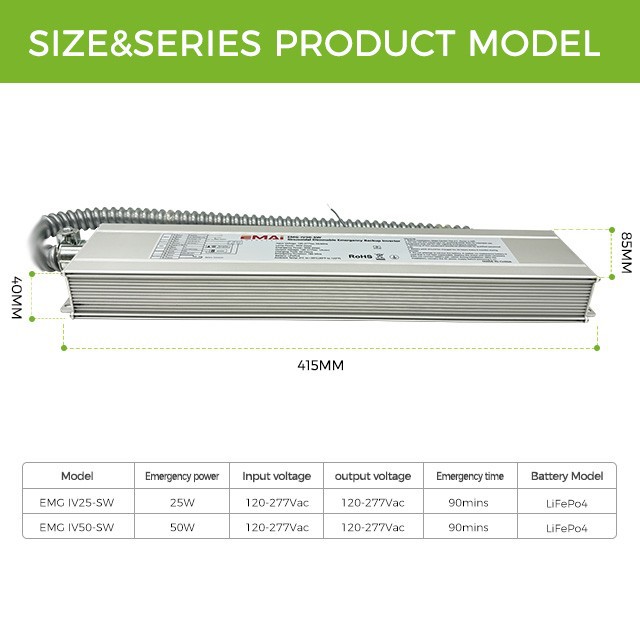

Dimension (mm)

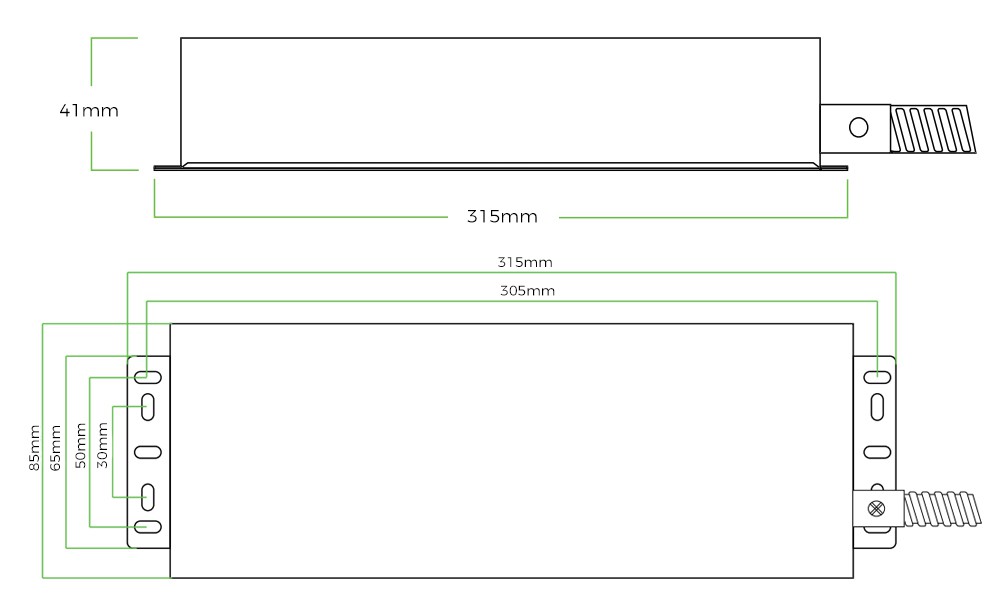

L315*W85*H41

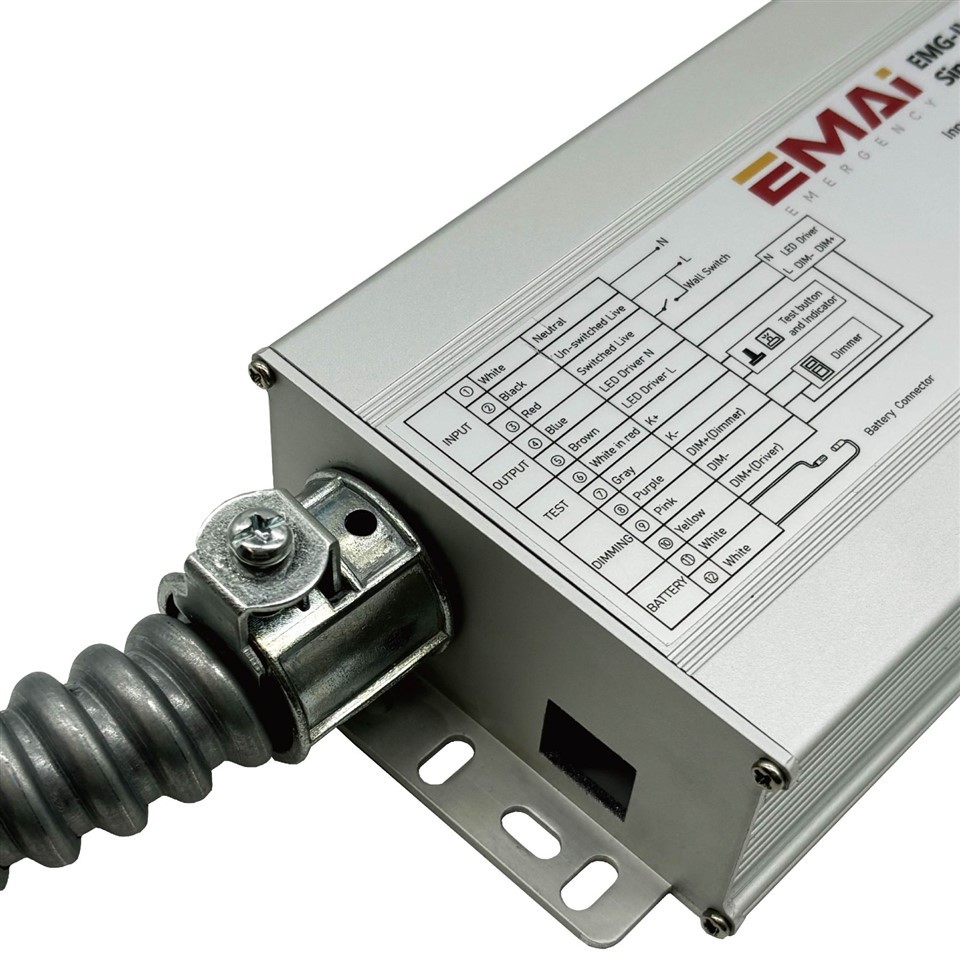

Wiring Diagram
Wiring diagram 1

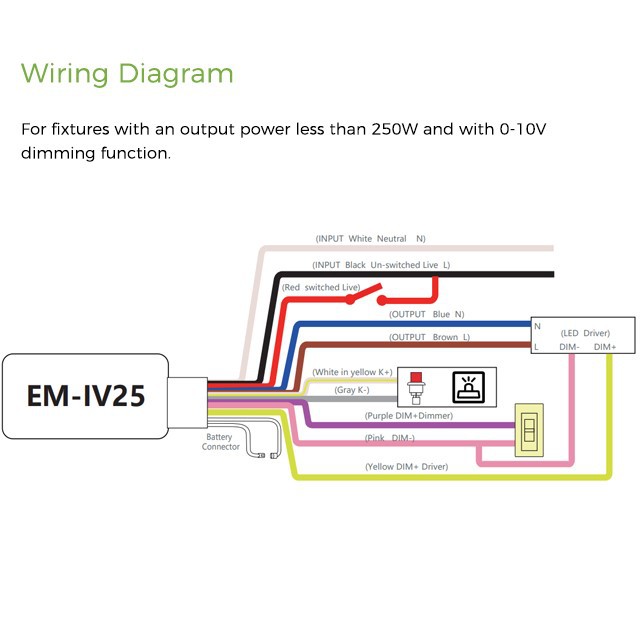

For fixtures with an output power less than 250W and with 0-10V dimming function
Wiring diagram 2

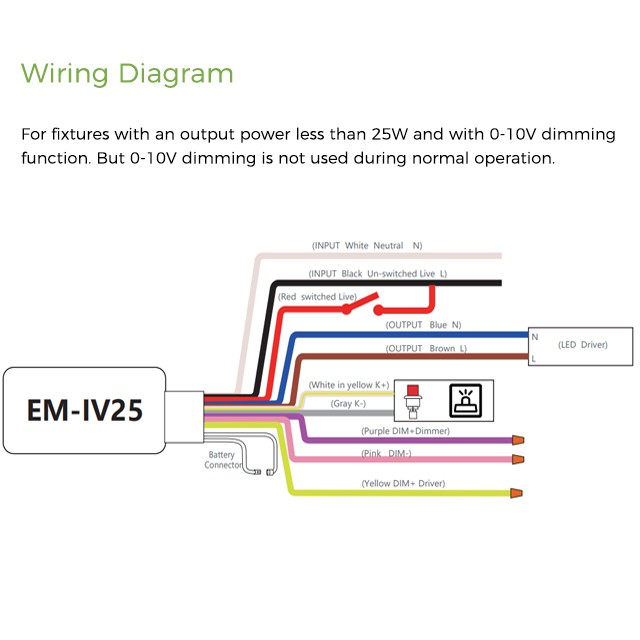

For fixtures with an output power less than 25W and with 0-10V dimming function,but 0-10V dimming is not used during normal operation.
Wiring diagram 3

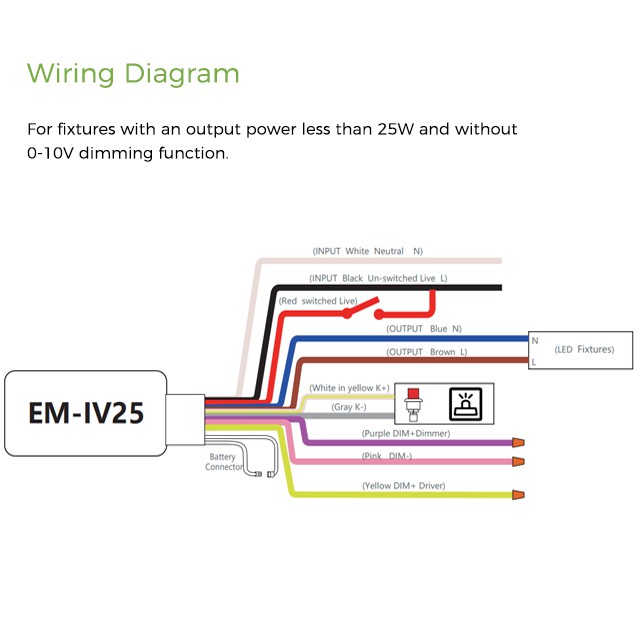

For fixtures with an output power less than 25W and without 0-10V dimming function.
Wiring diagram 4

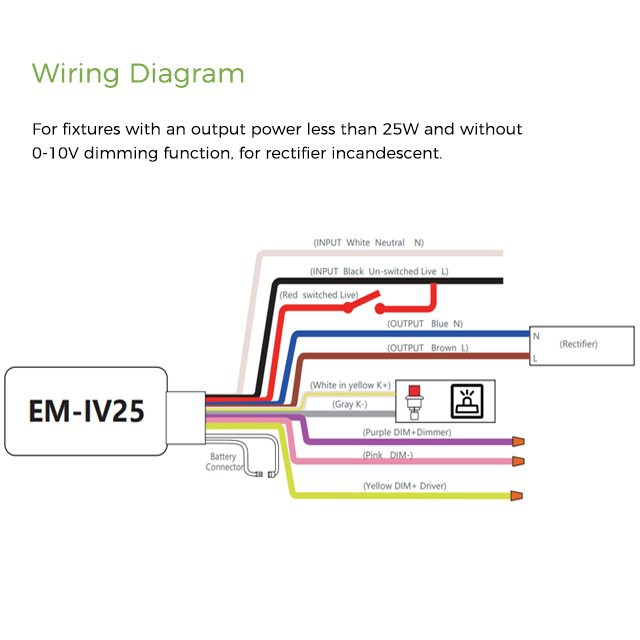

For fixtures with an output power less than 25W and without 0-10V dimming function for rectifier incandescent.
Wiring diagram 5

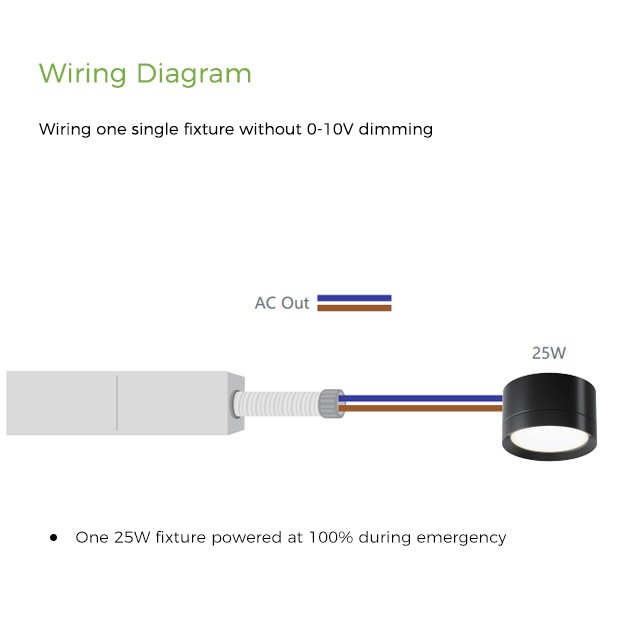

It can connect one single fixture without 0-10V dimming function.The input voltage is 120Vac, and the fixture power is 25W.After power failure, enter emergency mode.The emergency inverter will output 120Vac.One 25W fixture powered at 100% during emergency
Wiring diagram 6

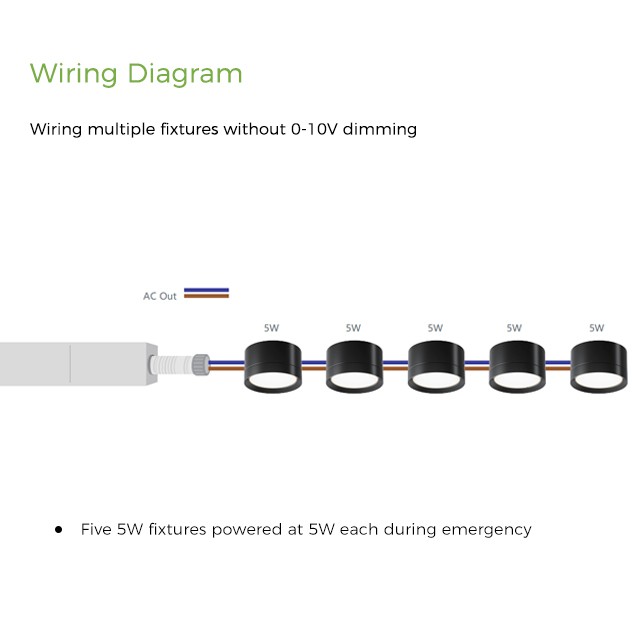

It can connect multiple fixtures without 0-10V dimming function.The input voltage is 120Vac, and the fixture power is 25W.After power failure, enter emergency mode.The emergency inverter will output 120Vac. Five 5W fixtures powered at 5W each during emergency
Wiring diagram 7

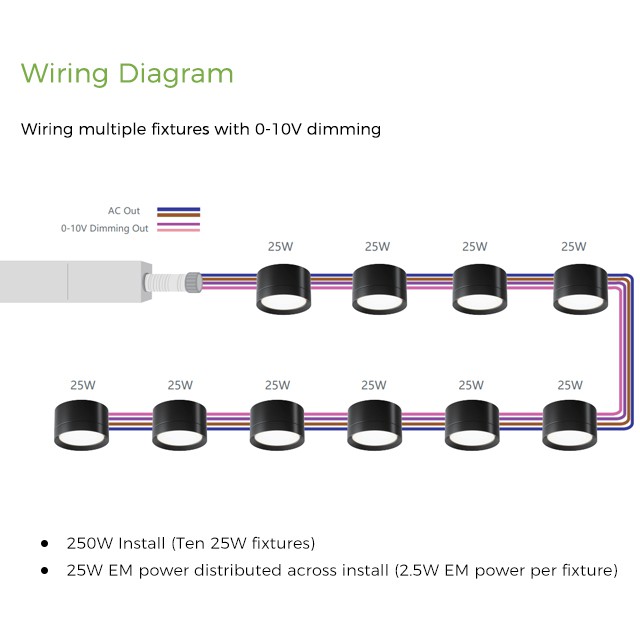

It can connect 10 fixtures with 0-10V dimming function.The input voltage is 120Vac, and the fixture power is 250W.In normal lighting mode,the fixture's on off operation and brightness adjustment can be controlled by switch,After power failure, enter emergency mode.The emergency inverter will output 120Vac to ensure the LED fixture operates normally. Using the 0-10V dimming function, the fixture's power is adjusted to 25W.25W EM power distributed across install(2.5EM power per fixture)
Wiring diagram 8

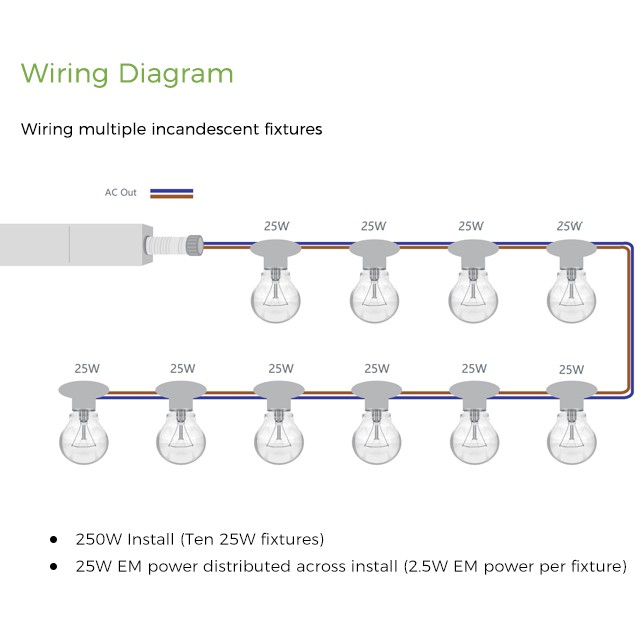

It can connect 10 incandescent.Under normal operation, the input is 220V, power is 250W. After power failure, the output is 220V. At the same time, the total power of 250W can be adjusted to 25W for emergency.25W EM power distributed across install(2.5EM power per fixture)
Wiring diagram 9

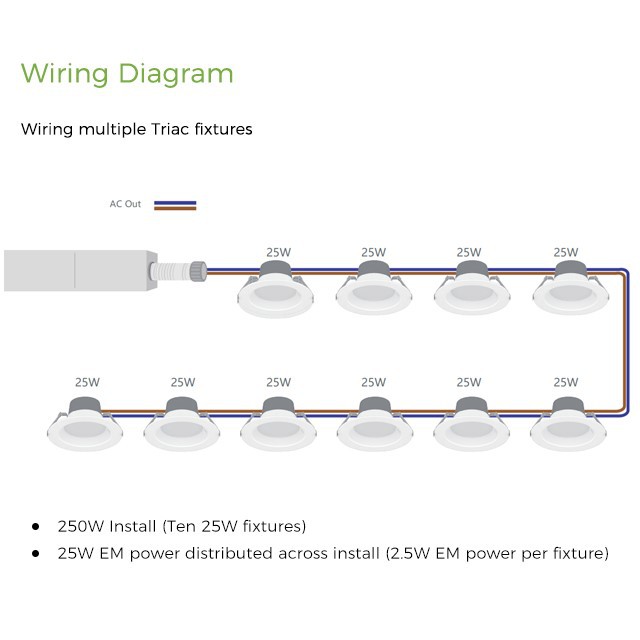

It can connect 10 triac downlights.Under normal operation, the input is 120V, power is 250W. After power failure, the output is 120V. At the same time, the total power of 250W can be adjusted to 25W for emergency.25W EM power distributed across install(2.5EM power per fixture)
Wiring diagram 10

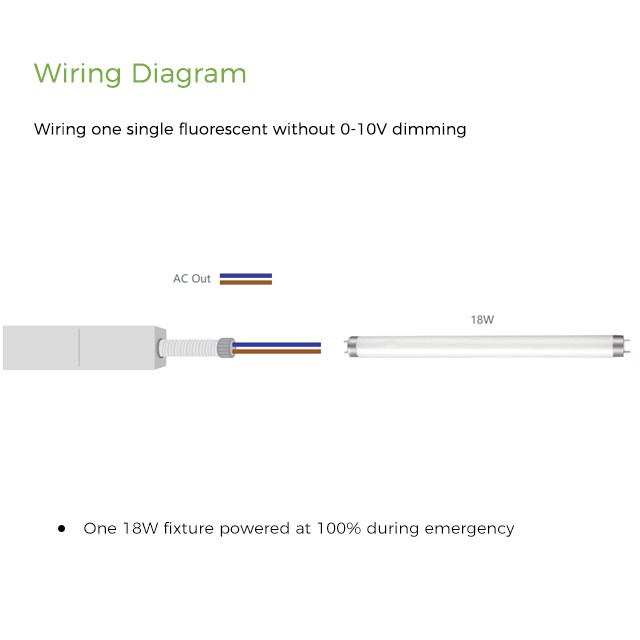

It can also realize full power emergency of fluorescens. Under the condition of 220V input, we can light up an 18W fluorescent. After power failure, output is 220V and ensures the emergency output is 18W.One 18W fixture powered at 100% during emergency.

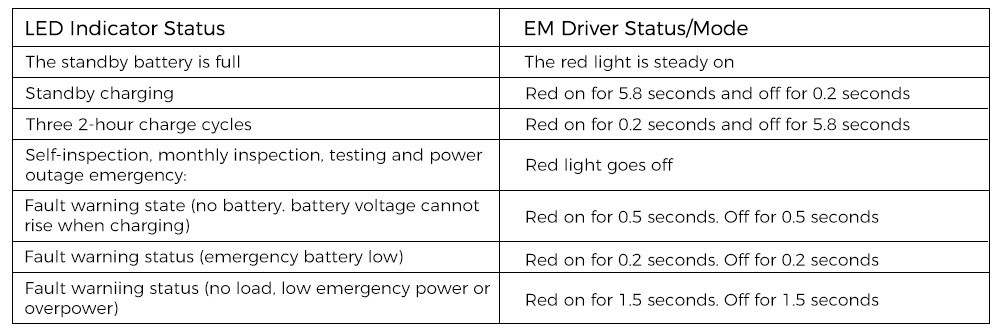

Test Switch Indicator Status
EM Test: Press and hold test button to enter EM mode for testing, in all normal AC powered situations including low power standby modes.
During transportation, press the test button for 8 seconds to turn off the light, and then disconnect the battery connection line to ensure long-term storage

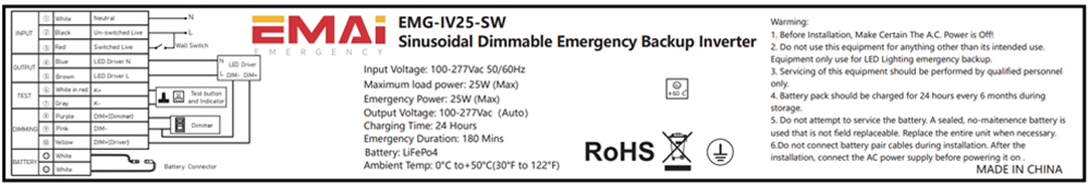

Product Label

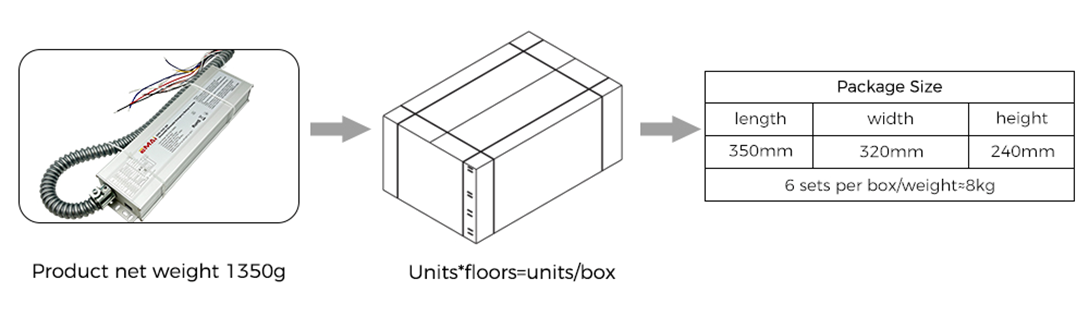

Product Packing
Hot Tags: sinusoidal dimmable emergency backup inverter, China sinusoidal dimmable emergency backup inverter manufacturers, suppliers, factory, Ultra thin panel, Class II power source, 3CCT warm light, fricker free, Two stage circuit design, Five gear power
Input voltage
Input current
Output voltage
Output current
Output power
Emergency voltage
Power factor
Inrush current
Emergency operation
Operating temperature
Total harmonic distortion
EMI
Emergency protection mode
Battery undervoltage protection
The battery hot swap is protected in normal mode
The battery hot swap is protected in emergency mode
Output open protection
Output short-circuit protection
Battery
LiFePO4,6.4V 1600mAh for 2W
Battery charging current
Battery charge time
|
Series Driver |
|||||||
|
Model |
Emergency Power |
Input Voltage |
Output Voltage |
Emergency Time |
Battery Model |
Dimension(mm) |
Meet with |
|
IV25 |
25W |
120-277Vac |
120-277Vdc |
90mins |
LiFePo4 |
L315*W85*H41 |
RoHS |
|
IV50 |
50W |
120-277Vac |
120-277Vdc |
90mins |
LiFePo4 |
L415*W85*H41 |
RoHS |
Packing
Standard export packing ,or customized packing as your request .From production to shipment of a series of processes, we will carry out strict inspection over and over again to ensure the quality of goods. Bare board series of products we will set a layer of blister protection shell, to ensure that the goods are not damaged during transportation.
Delivery
We have a variety of shipping options to choose from:express(DHL,FEDEX,UPS,TNT,EMS）
air,sea.
If your order is not big, we can send them to you by TNT,DHL,FEDEX, UPS or EMS etc.
If your order is big, we'll advise you to use Air or Sea shipping through your nominated forwarder agent. Our long-term cooperated agent is also available.
Company Profile
Shenzhen Jusin Technology Co., Ltd., established in 2012, is a national high-tech enterprise integrating research and development, production, sales and service of LED driver.In 2016,batch production of Emergency driver, the production workshop expanded from 1000 square meters to 2000 square meters. The Foshan branch will be established in 2022, and the factory will be purchased for production. The Foshan factory is officially put into production, with an estimated annual output of 3 million power supplies. With excellent engineering experience and high product quality as our background, Product performance in line with industry standards. To provide you with efficient, high-performance LED drive products and lighting control solutions.
Factory

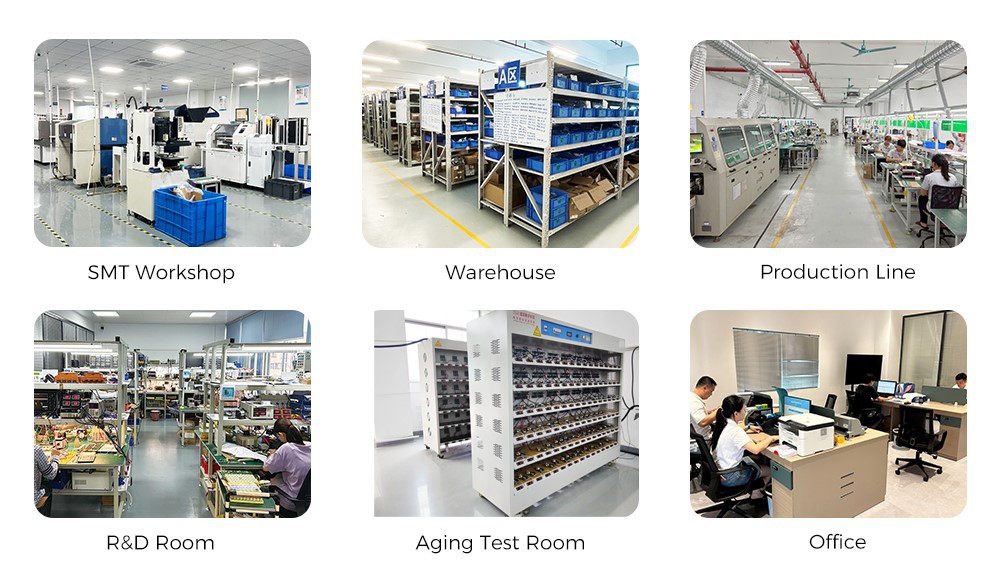

- We have a 4000 square meter factory in Foshan high-tech Zone for production. At the same time, we not only have a professional R&D team of about 20 people, but also have advanced equipment to support. such as SMT machine, Automatic Gluing Machine, Aged Vehicle, Reflow Solder and so on. The production line of about 80 people, able to reach 1 million shipments per year!
- Custom-made service provided
- LED driver can be customized according to the customer's lamps, application space, product parameters, functions and other requirements, whole lamp service can also be provided.
- Automated factory

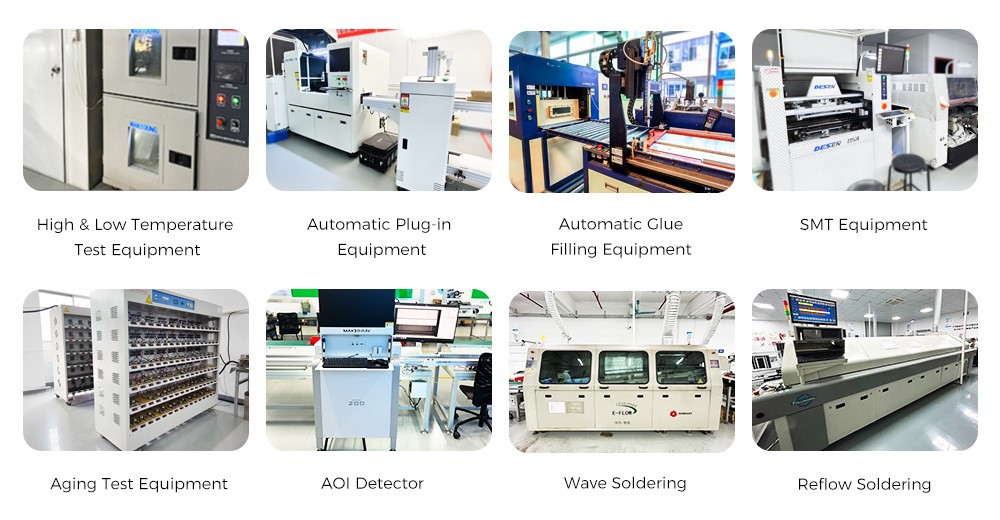

- Three SMT lines and two DIP lines. The automatic placement machine & automatic plug-in machine & AOI for inspection. Continuously update automation to improve work efficiency.
