One-Fits-All Emergency Solutions Led Driver with PWM Sensing
One-Fits-All emergency solutions for a variety of devices or situations uses PWM sensing technology to optimize control and adjust power output. The core advantage of this solution is its high versatility and flexibility, which can provide emergency power for various types of lamps or lighting systems. Through PWM sensing technology, the driver can adjust its output power in real time to ensure stable and reliable lighting in emergency mode.
Top Features and Benefits:
Easy Wiring

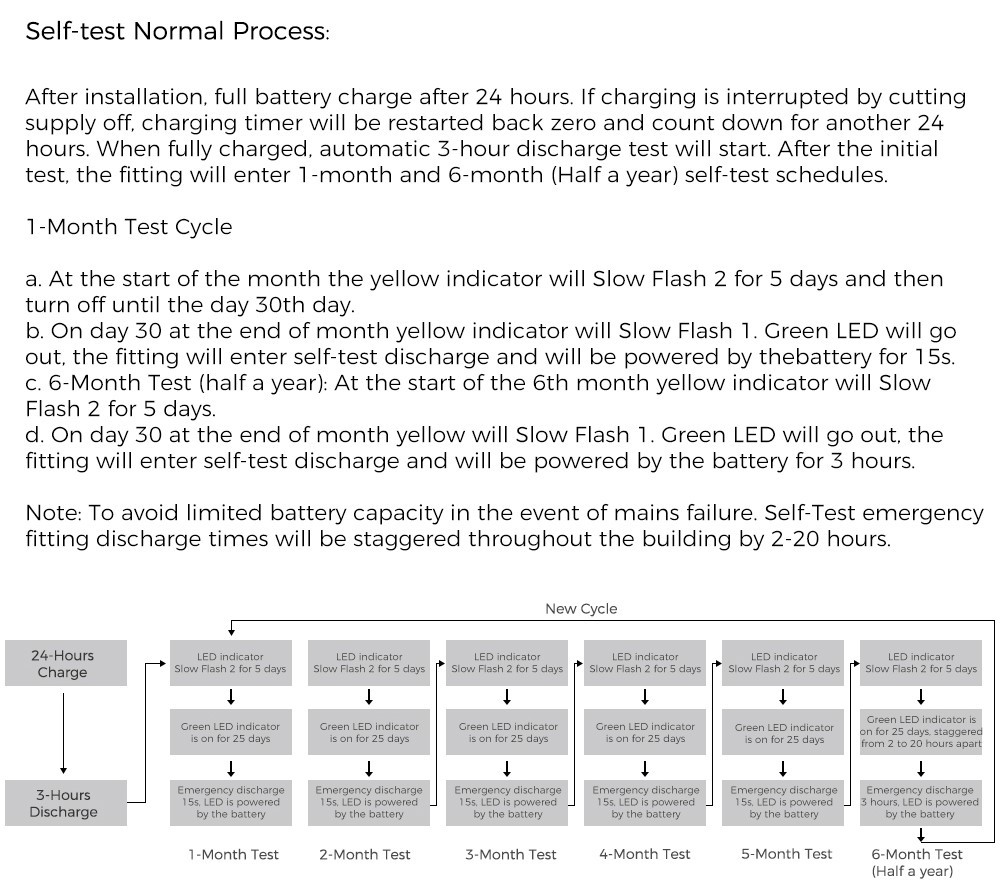

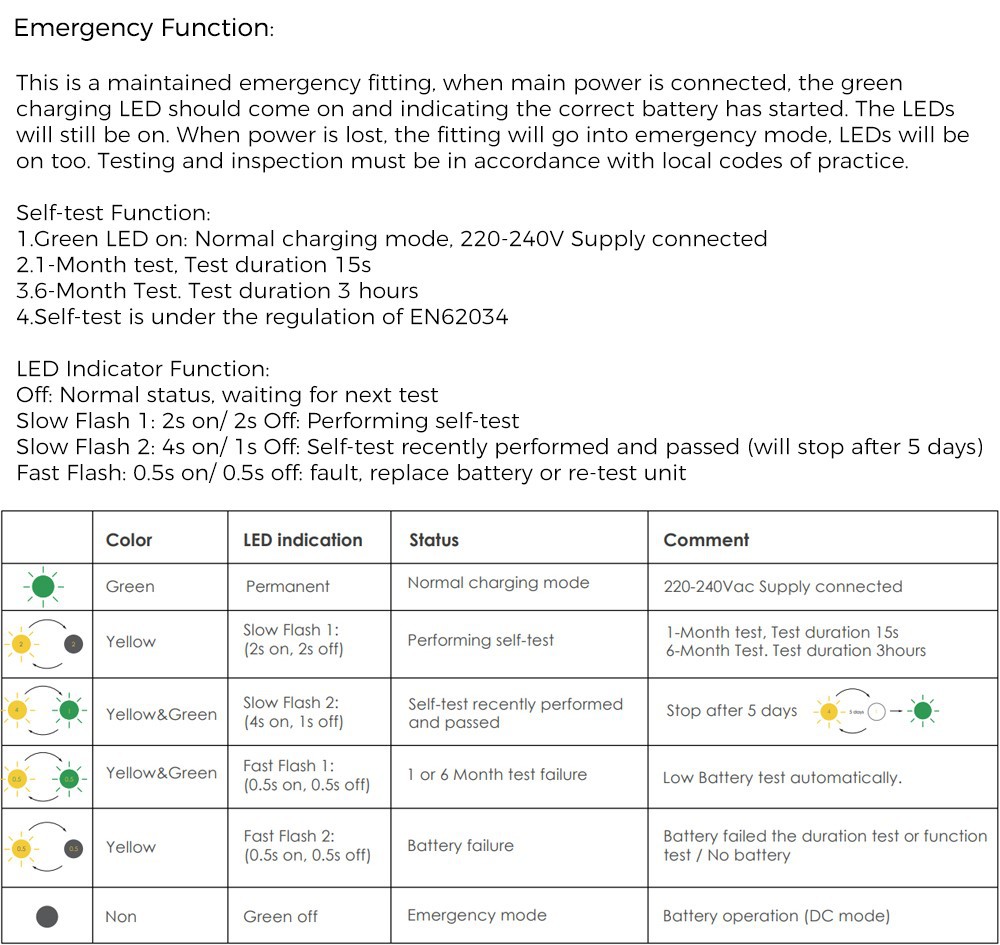

Monthly-inspection
Function
Overcharge Protection

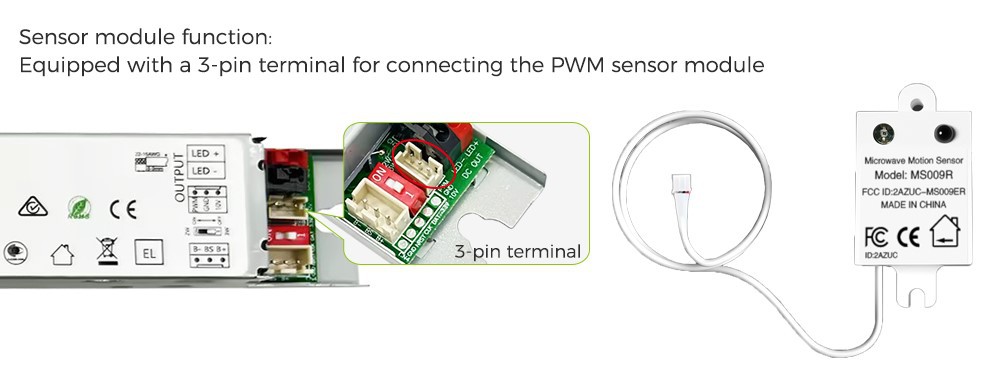

PWM Sensing
Emergency Power
DIP
1.Monthly-inspection automatic switching, reliable emergency power function
2.Flexible DIP switch adjustment

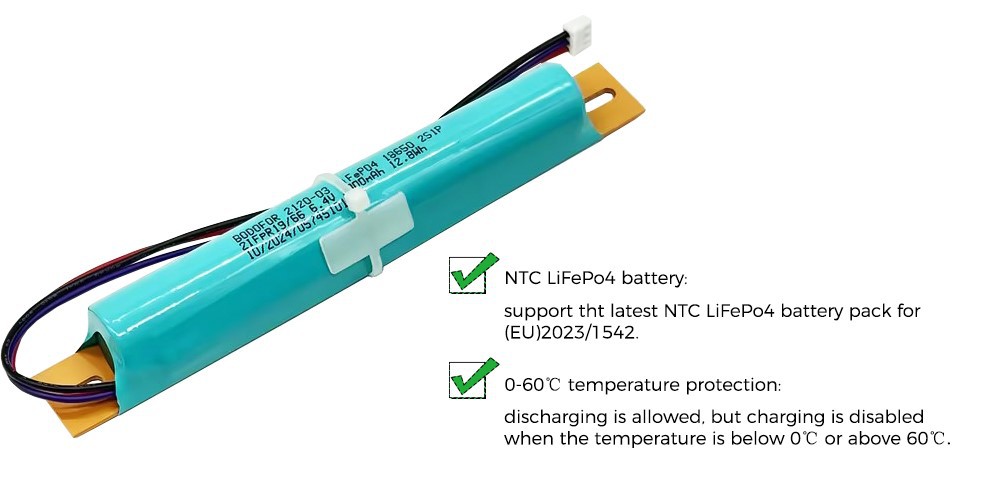

3.Adopt NTC LiFePO4 battery technology, green, environmentally friendly and energy-saving

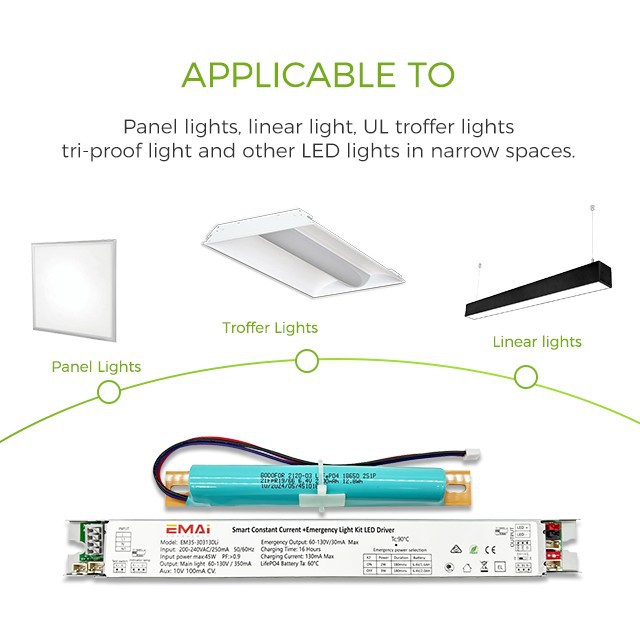

4.Multi-scenario application, adapting to various needs.

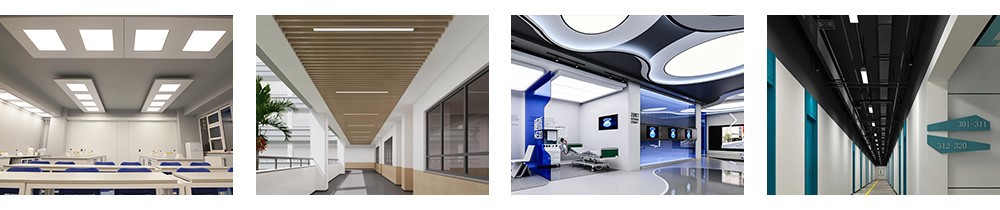

Application Scenario:
Schools and educational institutions: School emergency lights are often installed in stairwells and stair exits, classrooms and laboratories, restrooms and toilets, cafeterias and dining halls.
Product Details:
Easy to manage and maintain
The integrated design of the equipment simplifies the management process, makes equipment detection and maintenance more convenient, and saves later maintenance time and labor costs

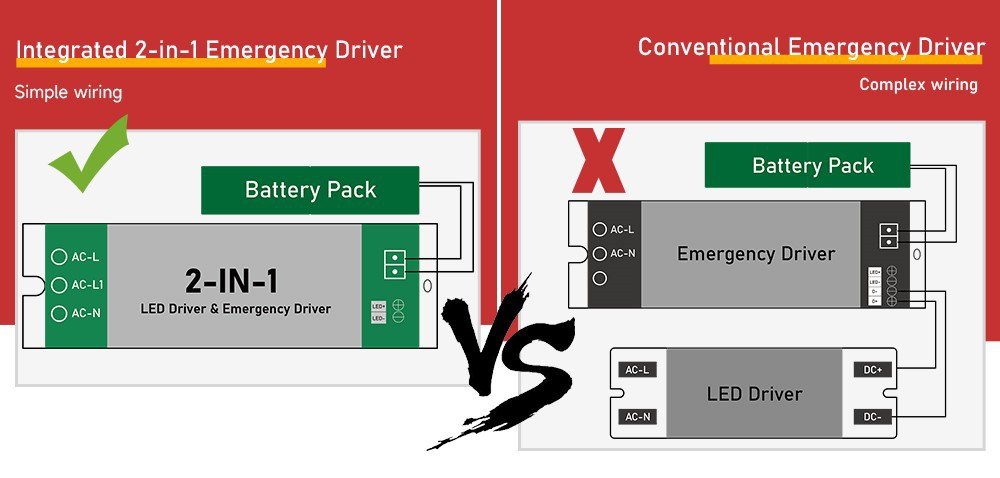

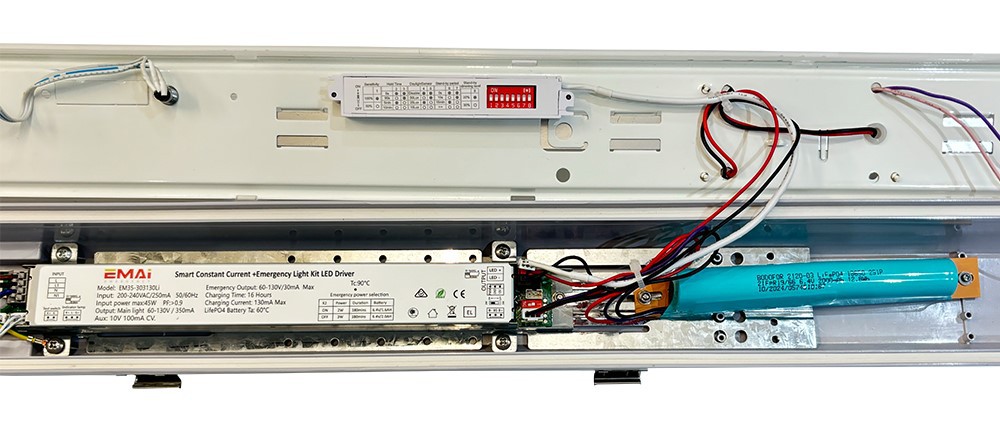

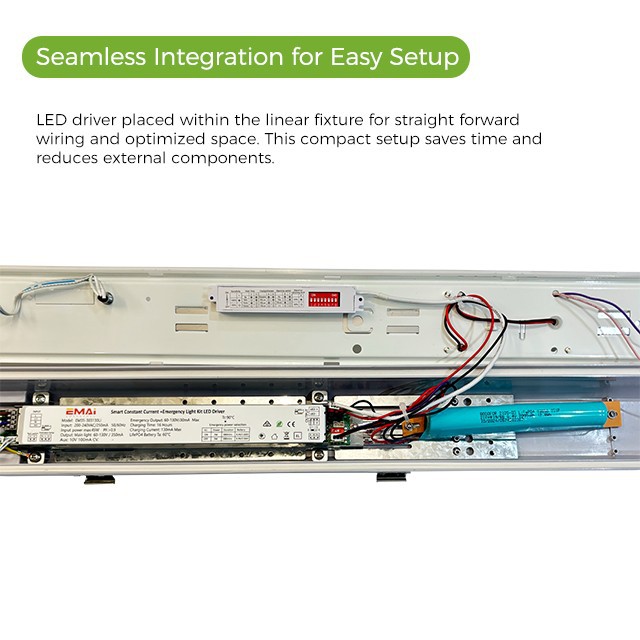

The wiring process of the traditional solution is often confusing, and the two-in-one power supply minimizes the difficulty and time of installation through a streamlined design, helping users complete the installation faster and easier.

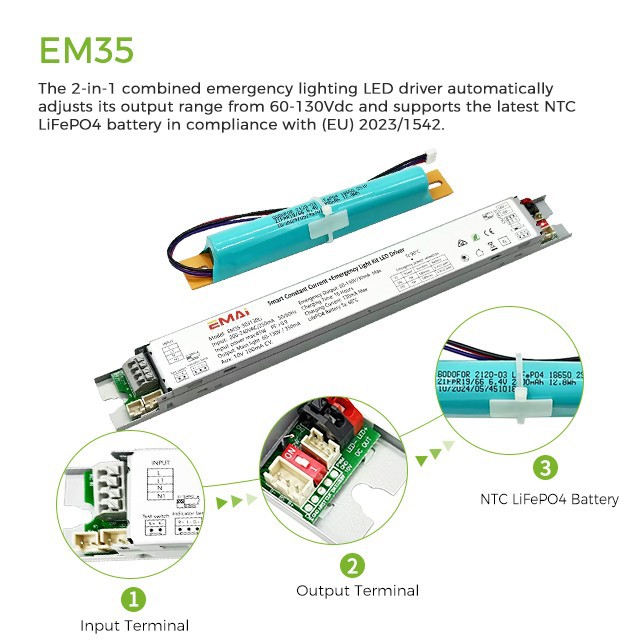

In the event of a power failure, the EM35 switches to emergency mode and operates the existing unit for 180 minutes.

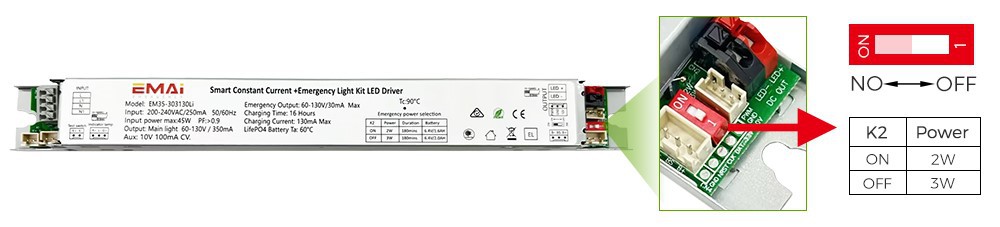

The emergency output can be selected as 2W or 3W through the dip switch, and the longest emergency time can be up to 3 hours, which is enough to deal with most emergencies.

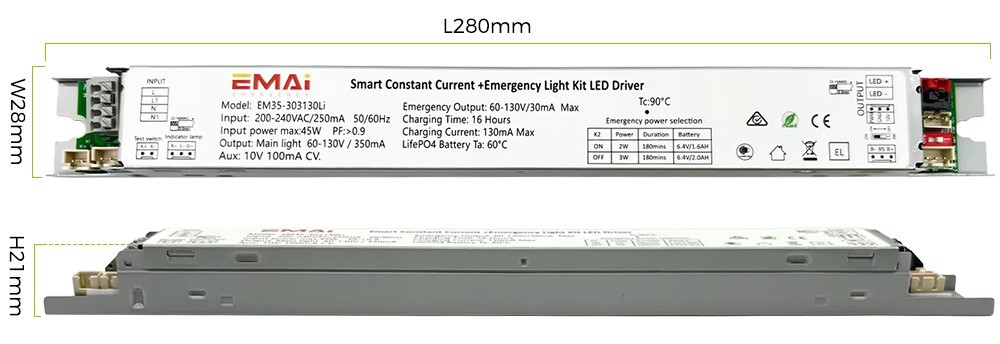

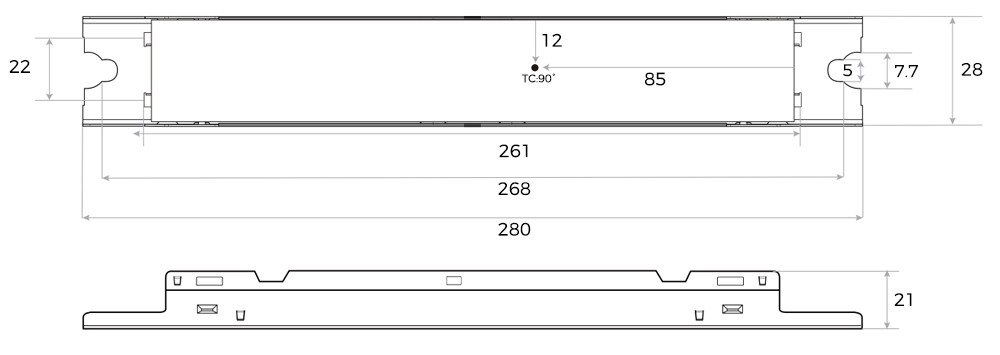

Dimension:
Length:280mm Width: 28mm Height:21mm

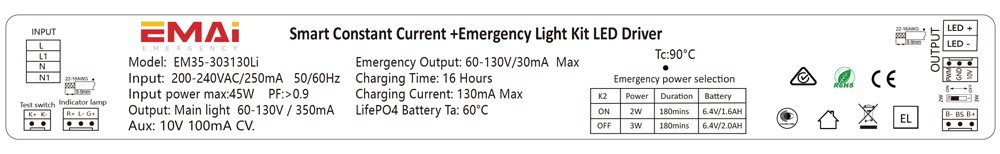

Label:

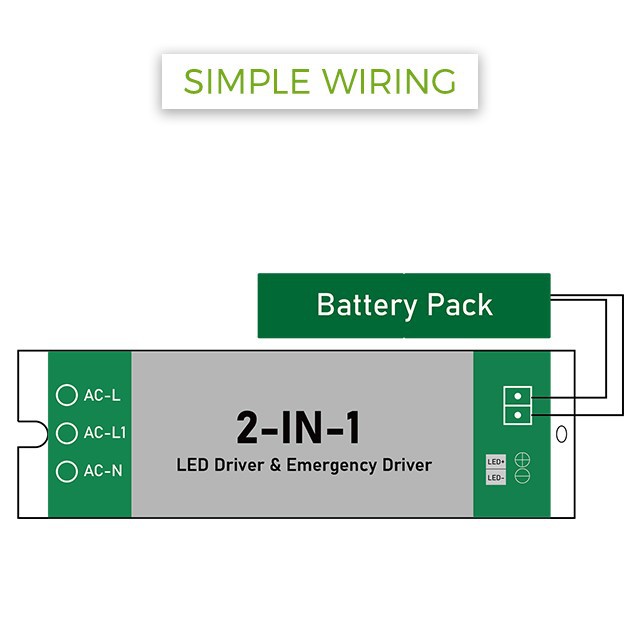

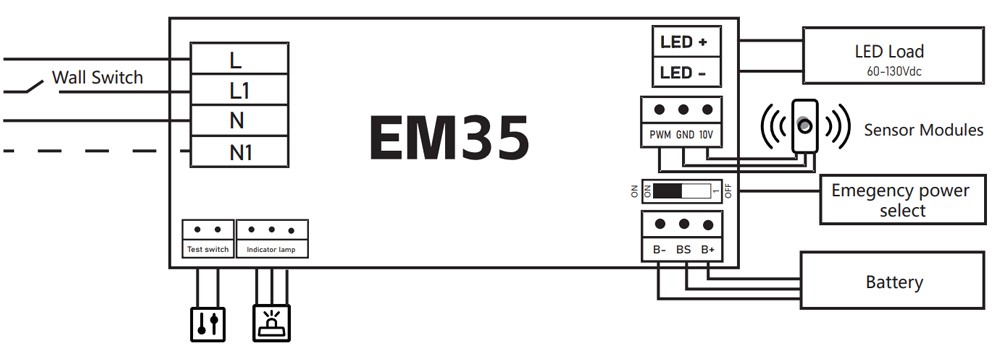

Wiring Diagram:
Hot Tags: one-fits-all emergency solutions led driver with pwm sensing, China one-fits-all emergency solutions led driver with pwm sensing manufacturers, suppliers, factory, led panel driver, UL Certification, 60W Sensor Driver, Three color temperatures, 60w dimmable led driver, FCC certification
Input voltage
Input current
Output voltage
Output current
Output power
Emergency voltage
Power factor
Inrush current
Emergency operation
Operating temperature
Total harmonic distortion
EMI
Emergency protection mode
Battery undervoltage protection
The battery hot swap is protected in normal mode
The battery hot swap is protected in emergency mode
Output open protection
Output short-circuit protection
battery
LiFePO4,6.4V 1600mAh for 2W
Battery charging current
Battery charge time
|
Series Driver |
|||||||
|
Model |
Lamp Power |
Emergency Power |
Input Voltage |
Output Voltage |
Emergency Time |
Battery Model |
Dimension(mm) |
|
EM35 |
40W |
2-3W |
200-240Vac |
60-130Vdc |
180mins |
LiFePo4 |
L280*W28*H21 |
|
EM36 |
60W |
2-3W |
200-240Vac |
80-200Vdc |
180mins |
LiFePo4 |
L280*W28*H21 |
OEM/ODM
Jusinpower team has been specializing in the design and manufacturing services of LED driver and customized products for 12 years. We can provide OEM&ODM service. According to the customer's lamp structure, required functions, parameters, certification, etc., we provide a full set of design, manufacturing and after-sales services.

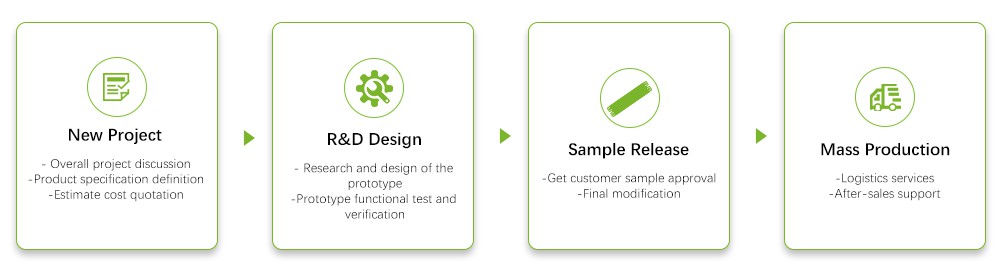

OEM/ODM Service Flow
New Project: Overall project discussion product specification definition estimate cost quotation.According to your specific needs, we can develop personalized solutions that are different from conventional standards.
R&D Design: research and design of the prototype. Prototype functional test and verification. We have a professional R&D team and engineers of about 20 people who can provide you with full-process services from concept design to product prototype production.
Sample Release: Get customer sample approval-final modification.
Mass Production: Logistics services and Provide after-sales service.
Certificate
Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate.
The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, ROHS, CE, CB, SAA, FCC, CCC.

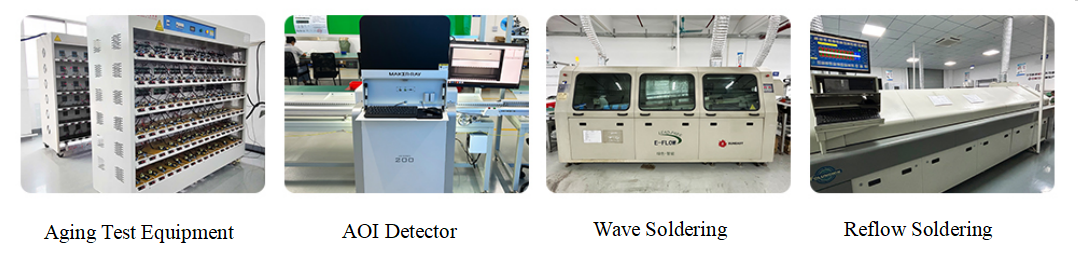

Factory

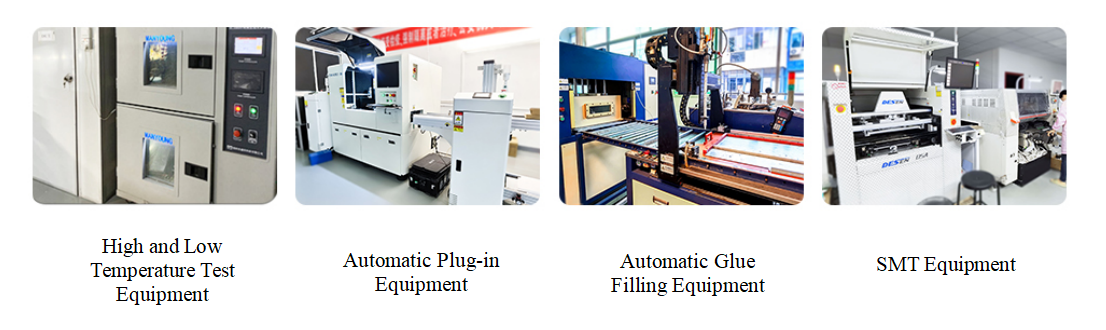

We have a 4000 square meter factory in Foshan high-tech Zone for production. At the same time, we not only have a professional R&D team of about 20 people, but also have advanced equipment to support. such as SMT Machine, Automatic Gluing Machine, Aged Vehicle, Reflow Solder and so on. The production line of about 80 people, able to reach 1 million shipments per year!
