High Voltage 480Vac Input linear led drivers
High Voltage Input linear led drivers,high input voltage range can be 200-480Vac ,non-isolated design. It adopts a full-frequency bipolar flicker-free design.Output current adjustable via DIP switch,it is convenient for you to better adjust the current and the product adopts iron shell, glue filling design, good heat dissipation.Suitable for mains voltage peaks (burst/surge) up to 4 kV.
Features：
Smart sensor
12V auxiliary power supply
High input voltage 200-480Vac
Flicker free
3 Years warranty
1.High input voltage range 200-480Vac
2. Flicker free
3.Output current adjustable via DIP switch
4.Iron shell, glue filling design, good heat dissipation
5.Suitable for mains voltage peaks (burst/surge) up to 4 kV

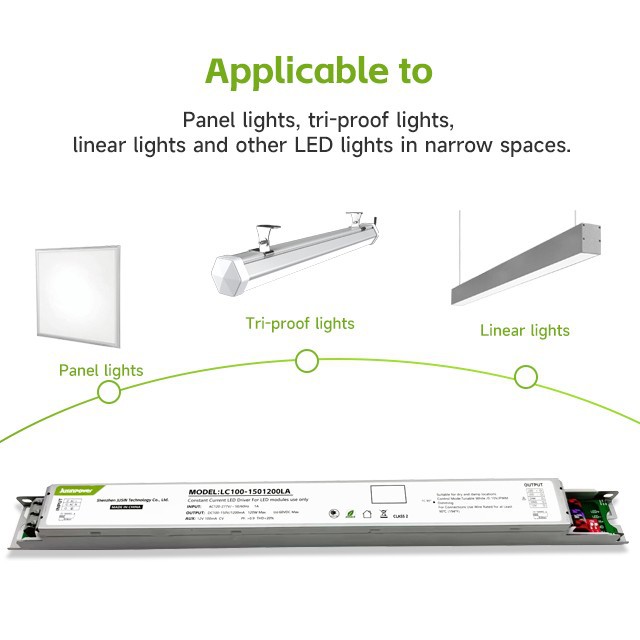

Application Scenario:
Residential lighting: In residential environments, linear LED drivers are used to illuminate various spaces such as kitchens, bedrooms, living rooms and corridors.

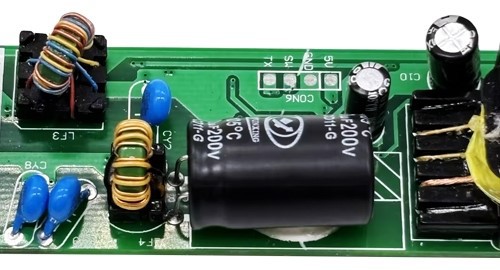

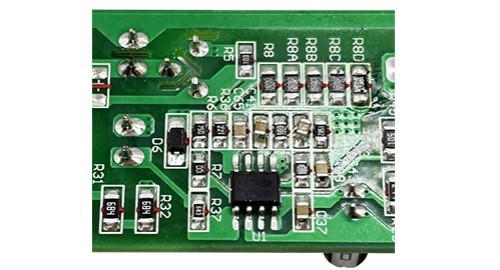

Product Details

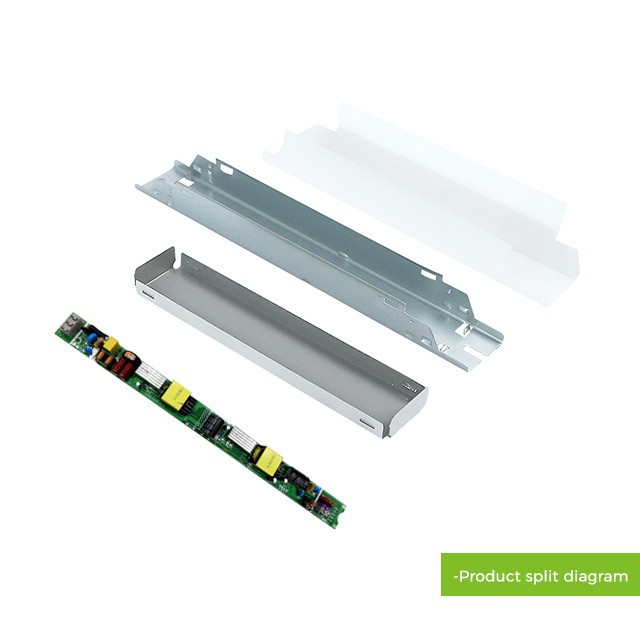

Structural size characteristics
Suitable for wires between 16-20WAG, wire twisted tin 5-8mm

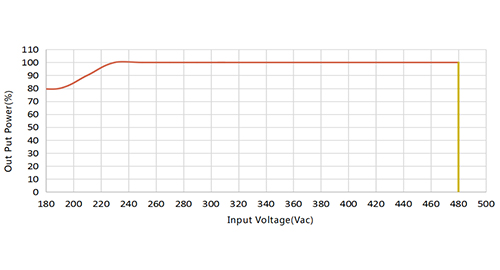

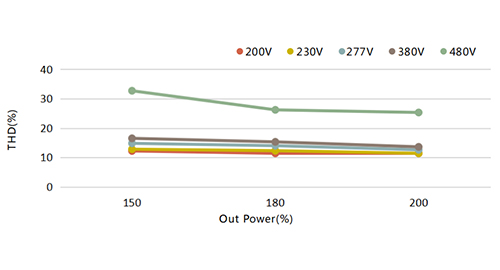

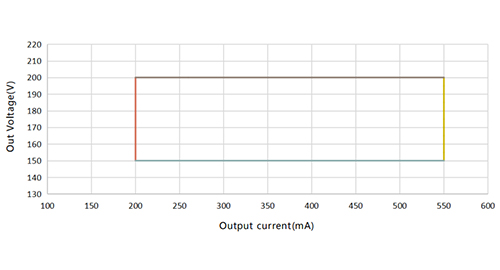

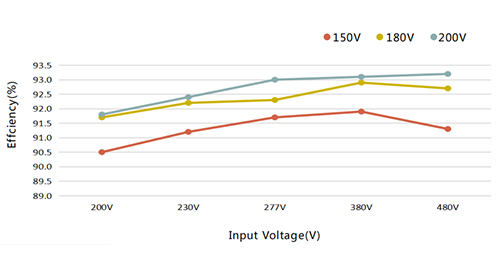

Electrical Characteristic

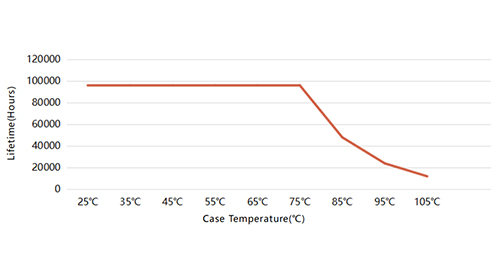

Life VS Shell Temperature

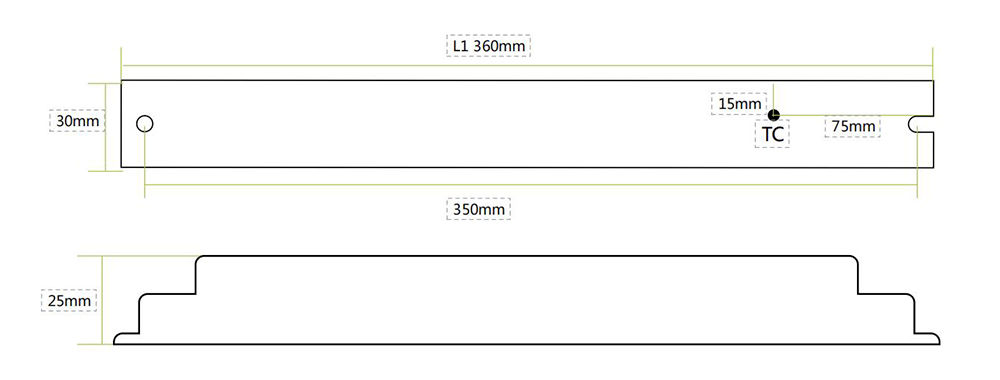

Dimension (mm)

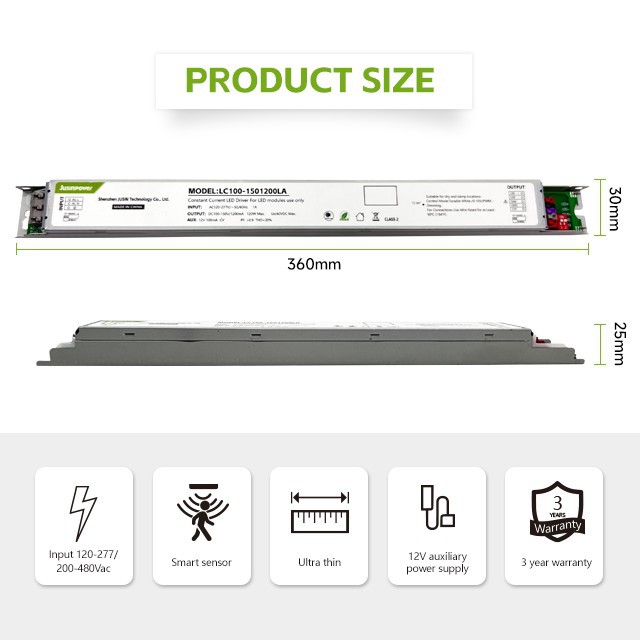

Length: 360mm Width: 30mm Height: 25mm

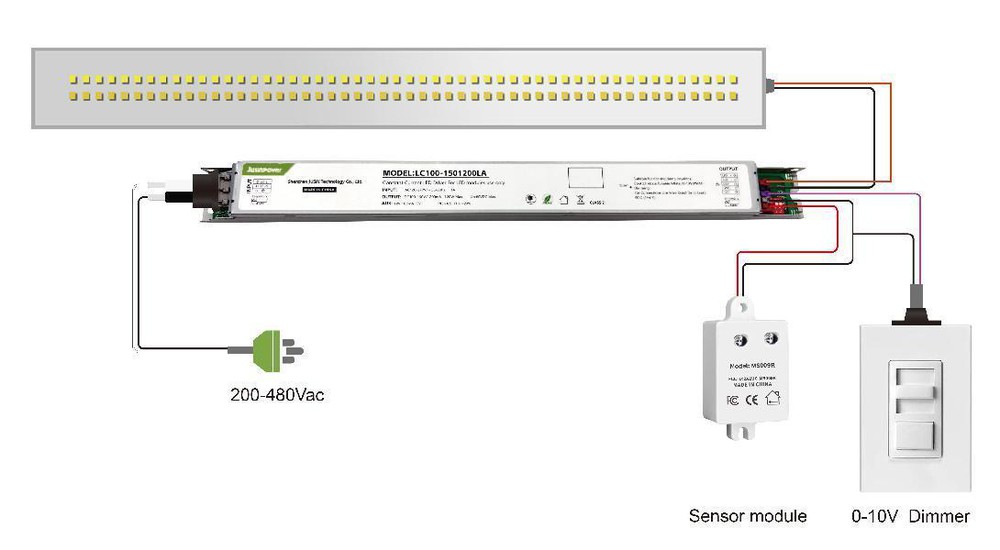

Wiring diagram

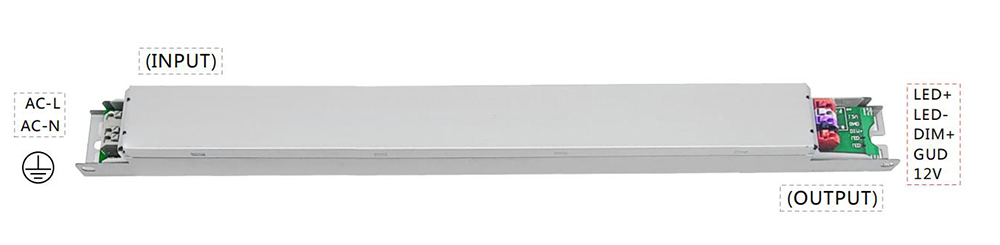

The AC high voltage input 200-480.The DC output terminal, The DC output with 12V auxiliary, can be connected to smart module,marked with positive and negative poles, is where you connect the LED light

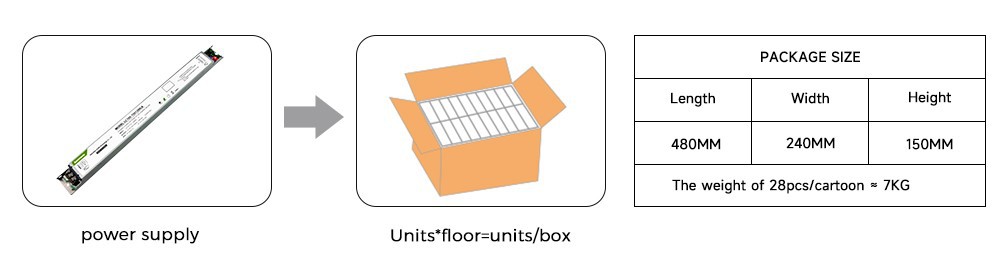

Product Packaging:
Hot Tags: high voltage 480vac input linear led drivers, China high voltage 480vac input linear led drivers manufacturers, suppliers, factory, non isolated led driver circuit, Non isolated Constant Current Sensor Driver, Isolated Smart Dimmable LED Drivers, wifi lights, 40W Tunable White LED Driver, 3 stage dimming
LC100
|
Performance |
||
|
Model |
LC100-200550HX |
|
|
Input |
Efficiency |
91% |
|
Power |
100W |
|
|
Voltage |
200-480Vac |
|
|
Frequency Range (Hz) |
50/60Hz |
|
|

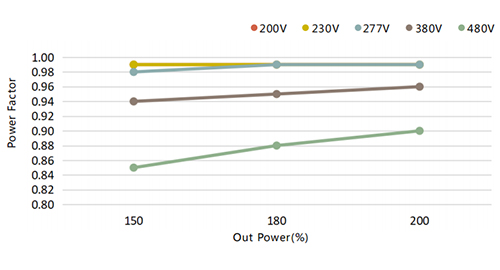

Power Factor |
≥ 0.99@200Vac full load |
|
|
THD (Full Load) |
<15% |
|
|
Ac Current (Max) |
0.6A@200Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
130A@480Vac |
|
|
Output |
Current (mA)/Voltage (Vdc) Power (W) |
150-200Vdc/550mA/100W |
|
Linear Regulation |
±3% |
|
|
No-Load Output Voltage |
<200V |
|
|
Start Time
|
<1S@100V |
|
|
Auxiliary Voltage |
12V/200mA |
|
|

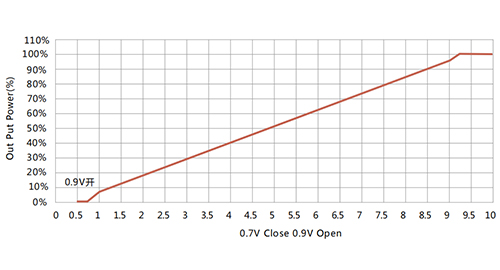

Dimming Range |
10%-100%(optional) |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Physical |
|
|
Length |
360 mm |
|
Width |
30 mm |
|
Height |
25 mm |
|
Weight (g) |
276g |
|
Environmental |
|
|
Operating Temperature |
-30°C to 50°C |
|
Storage Temperature, Humidity |
-40°C to 80°C,5-95%RH |
|
Case Temperature |
TC=90℃ |
|
Warranty Tc |
85°C max for 50k Hr Life |
|
Surge Protection |
L-N 6KV , L/N-FG 4KV |
|
Ip Rating |
IP20 |
|
Material |
Iron shell |
|
Certificate |
CE /TUV/3C/CB/SAA certificate |
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC100-200550HX |
100W |
200-480Vac |
150-200Vdc |
550mA |
0.9 |
Adjustable |
91% |
|

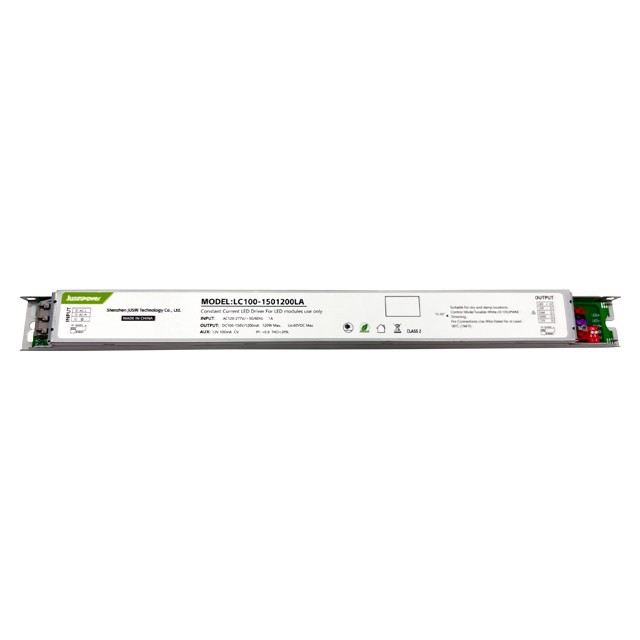

LC100-1501200LX |
120W |
100-277Vac |
100-150Vdc/ |
1200mA |
0.9 |
Adjustable |
94% |

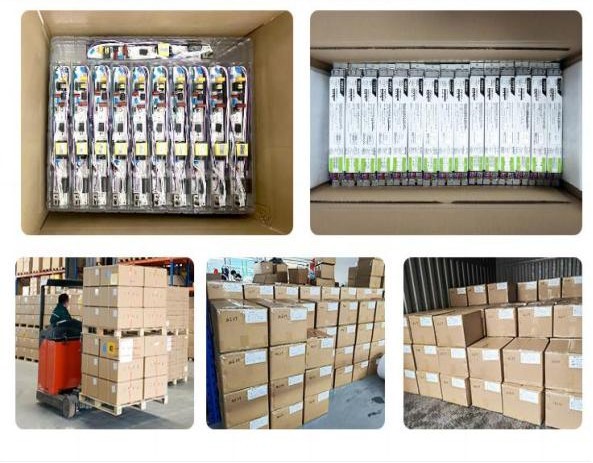

Packing&Delivery
Standard export packing, or customized packing as your request. From production to shipment of a series of processes, we will carry out strict inspection over and over again to ensure the quality of goods. Bare board series of products we will set a layer of blister protection shell, to ensure that the goods are not damaged during transportation.
Certificate
Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate. The products are compatible with multi-national certifications, including China CQC certification and international cUL, SAA, TUV, CE, CB, SAA, FCC, CCC.
Factory

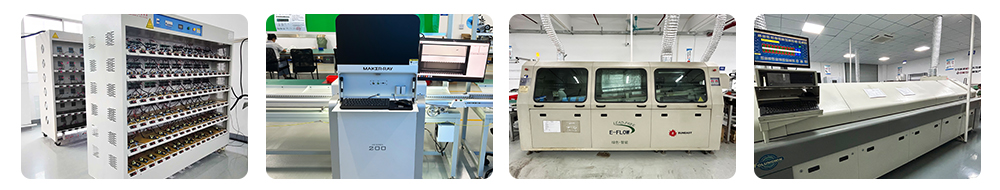

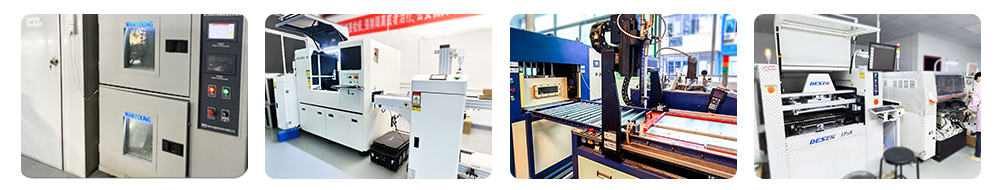

We have a 4000 square meter factory in Foshan high-tech Zone for production. At the same time, we not only have a professional R&D team of about 20 people, but also have advanced equipment to support. such as SMT Machine, Automatic Gluing Machine, Aged Vehicle, Reflow Solder and so on. The production line of about 80 people, able to reach 1 million shipments per year!
|
