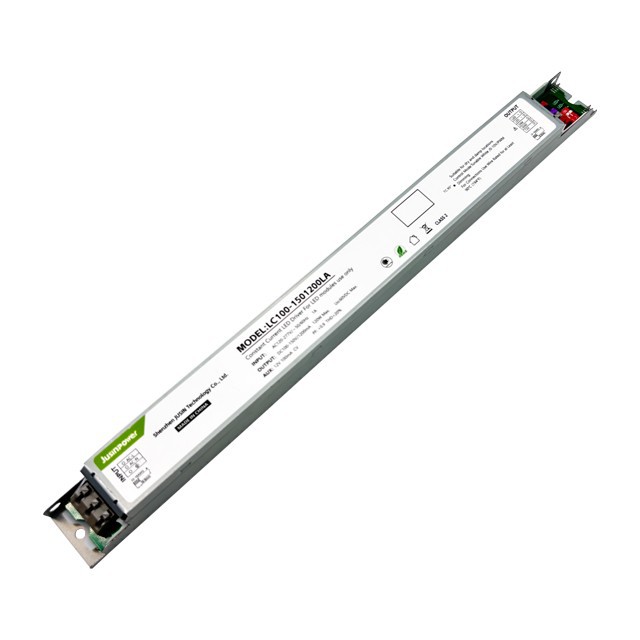

Energy-Saving Dim to Off No Afterglow Slim LED Driver
Our advanced energy-saving dim-to-off LED driver ensures complete power cutoff, eliminating any residual glow for a truly dark environment. Smooth dimming control down to no output for precise lighting adjustments.Featuring a slim and compact design,Perfect for indoor and horticultural lighting, ensuring plants rest better with no light interference. Choose our next-gen slim LED driver for superior performance and efficiency!
1. Dim to off no afterglow;leakage protection

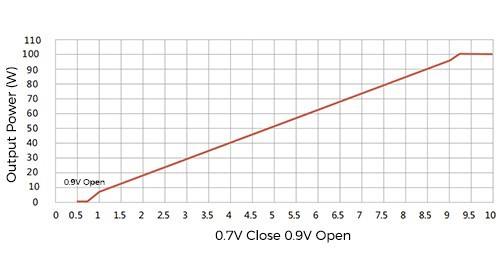

2.0-10Vdimming +12V AUX
3.Adjustable output current via an exterior DIP switch (optional)
4.All-round protections: over-temperature/open circuit/short circuit
Dim to Off No-Afterglow

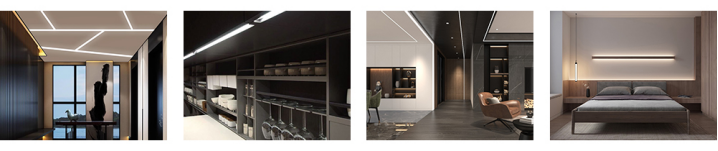

Application Scenario:
Indoor home lighting Bedrooms, living rooms, children's rooms and other spaces that require a dark environment. Avoid the impact of dim light at night on sleep quality, allowing people to enjoy a more comfortable resting environment.

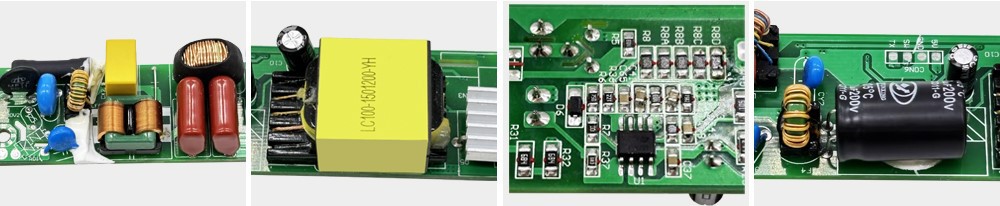

Product Details:

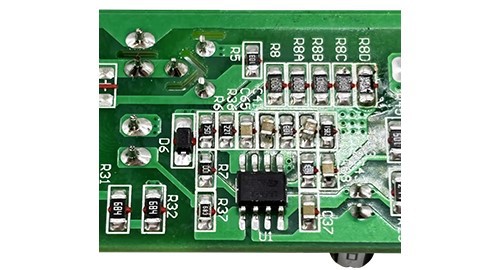

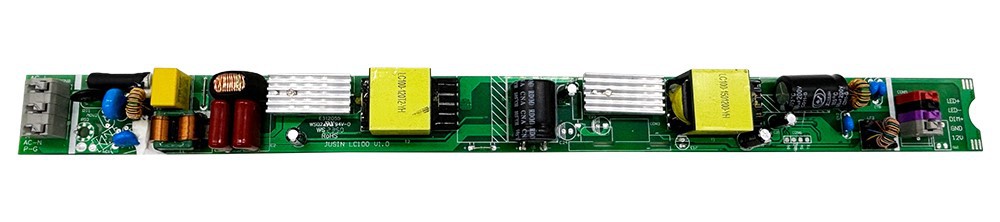

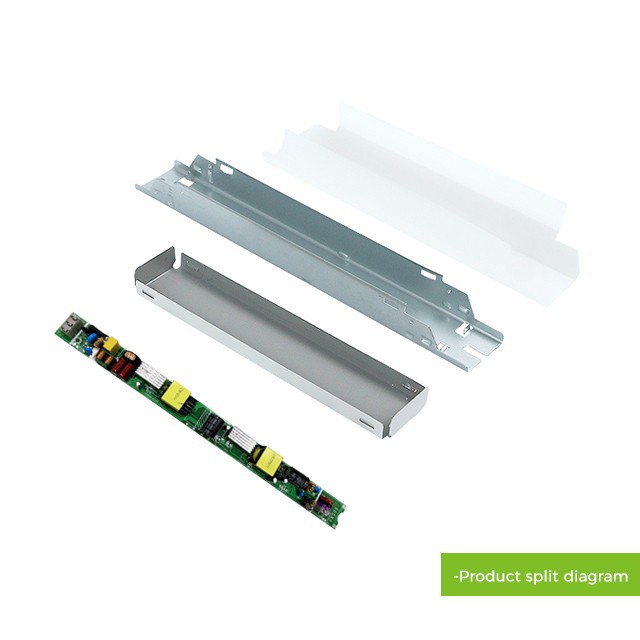

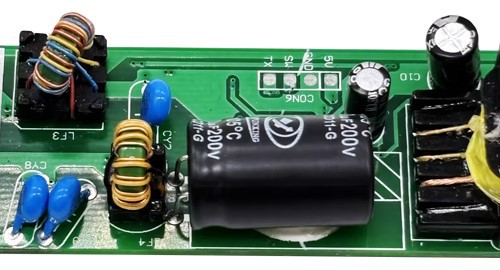

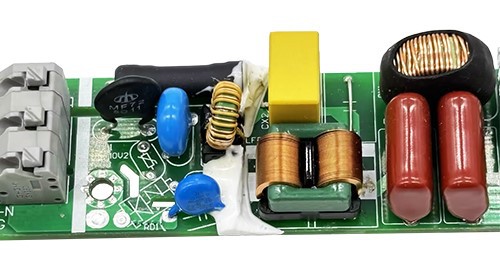

Double-sided board design, additional via-hole tinning. The cutout on the back is basically the same as the PCB, and there is no thorny feeling to the touch.
1.Ensure that electronic equipment or systems can operate stably in the electromagnetic environment.

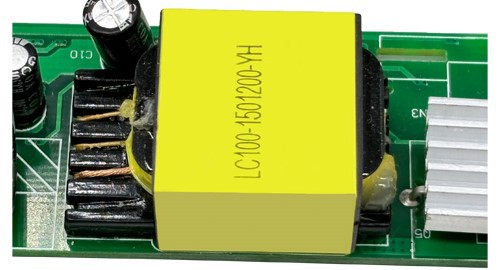

2.High-quality transformer to achieve voltage conversion and reduce losse.
1.Brand IC.
2.High frequency low impedance capacitor.

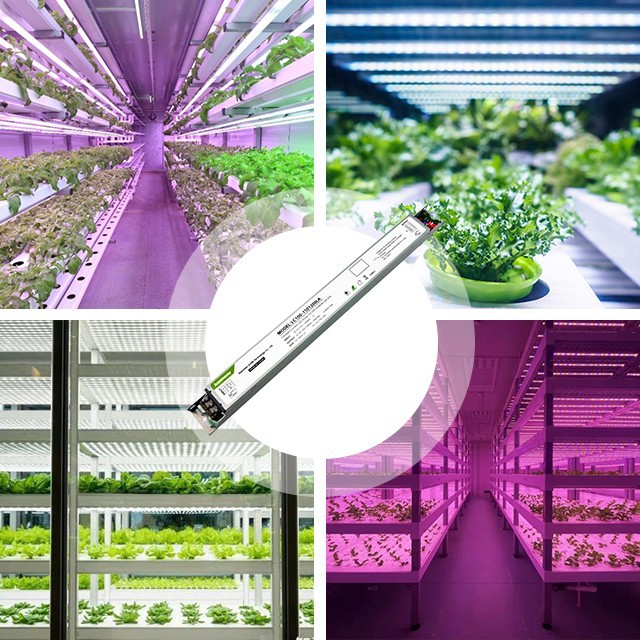

"True" No Afterglow, Ensuring Undisturbed Sleep for Plants.
Many drivers that use 0-10V dimming have a problem: when the brightness is adjusted to the lowest, the light will still be slightly bright and cannot be completely turned off. In response to this phenomenon, Jusinpower has made innovative improvements to the original circuit and successfully achieved a truly dimming effect without afterglow. Providing plants with a light environment that is closer to nature helps regulate their physiological rhythms. At the same time, it can maximize energy savings and reduce operating costs.
With higher efficiency up to 94%,non-isolated,more energy-saving.
With higher efficiency up to 94%, significantly reduces energy consumption, The non-isolated design ensures compact size and lightweight construction, while maintaining robust reliability and safety standards. By minimizing power losses and optimizing thermal management, this innovative solution extends equipment lifespan and lowers maintenance costs.making it an ideal choice for sustainable and cost-effective lighting solutions!
Structural Size Characteristics：
Suitable for wires between 16-20WAG, wire twisted tin 5-8mm

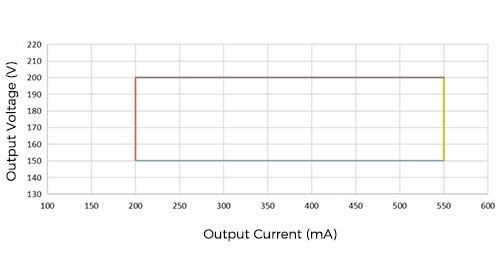

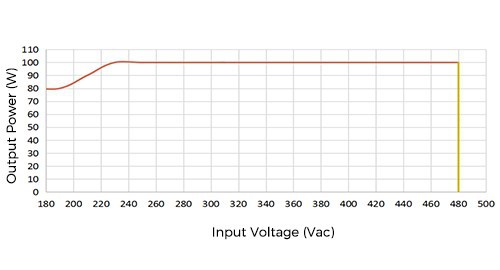

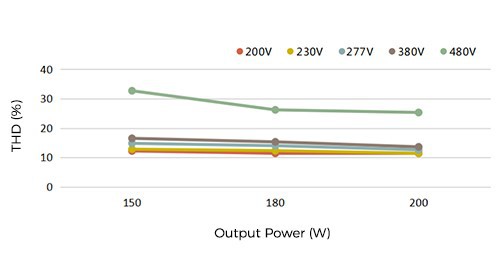

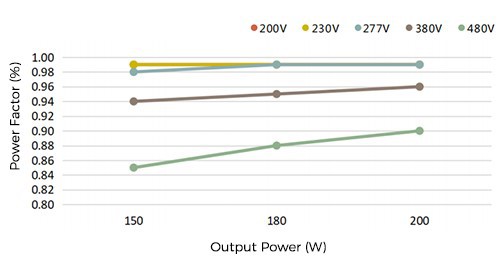

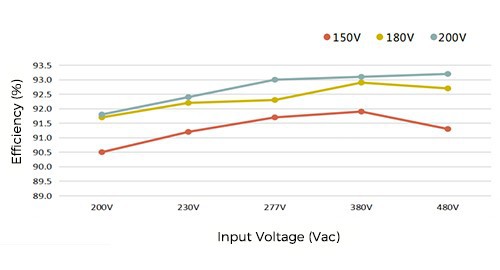

Electrical Characteristic:

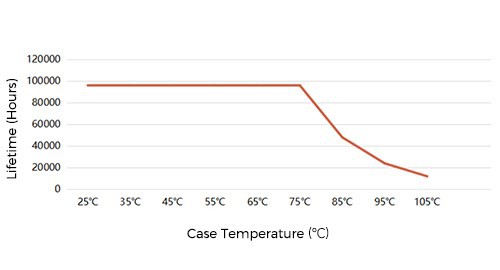

★ Lifetime VS Shell Temperature

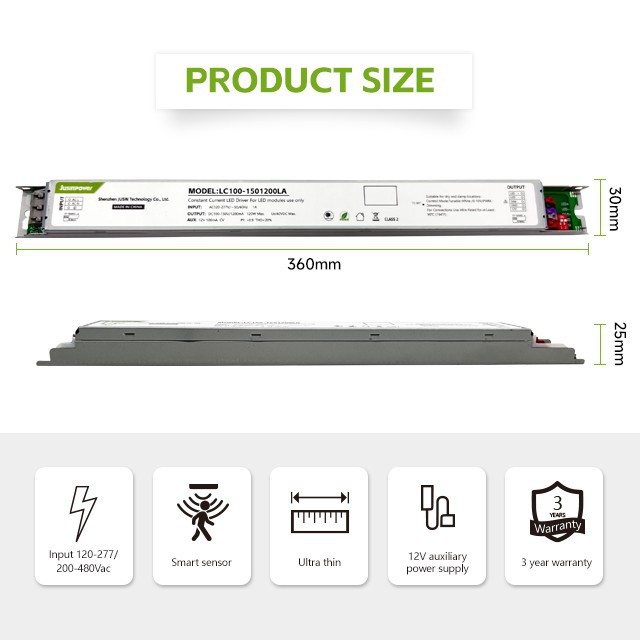

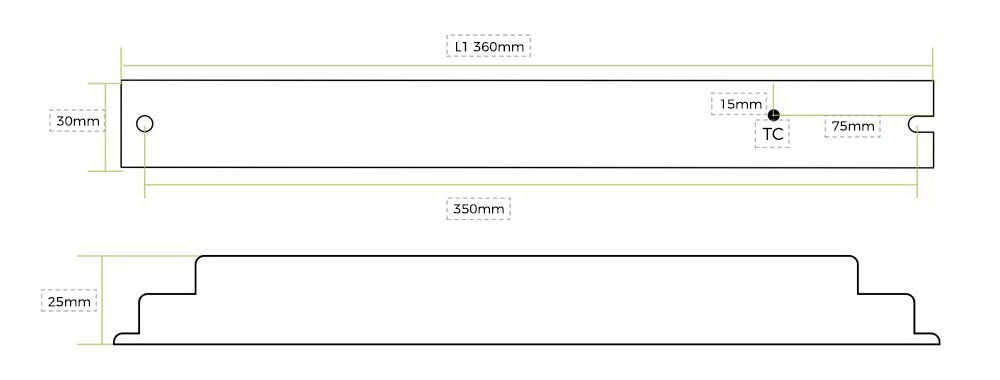

Dimension (mm)
Length: 360mm Width: 30mm Height: 25mm

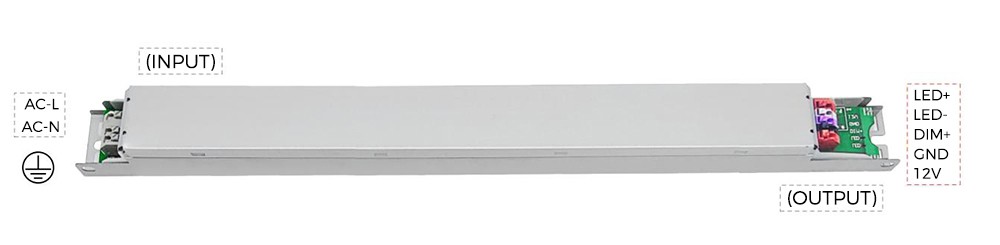

Wiring Diagram
The AC high voltage input 200-480.The DC output terminal, The DC output with 12V auxiliary, can be connected to smart module,marked with positive and negative poles, is where you connect the LED light.

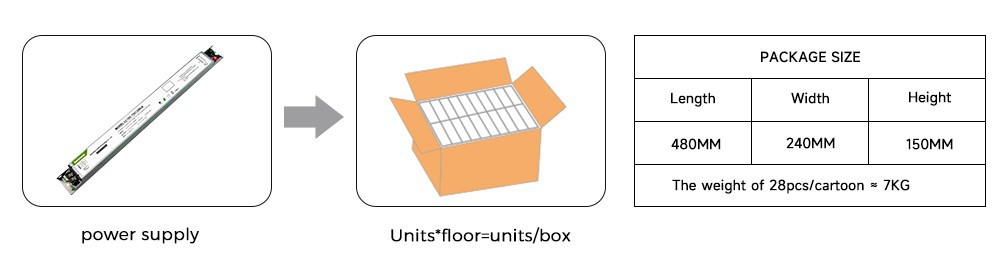

Product Packaging:
Hot Tags: energy-saving dim to off no afterglow slim led driver, China energy-saving dim to off no afterglow slim led driver manufacturers, suppliers, factory, led tri proof light, suitablr for Canada Market, Three color temperatures, dimming 0 10v, Color Blending applications , efficiency 92
|
Performance |
||
|
Model |
LC100-1501200LX |
|
|
Input
|
Efficiency |
94% |
|
Voltage |
100-277Vac |
|
|
Frequency Range (Hz) |
50/60Hz |
|
|
Power Factor |
≥ 0.99@100Vac full load |
|
|
≥ 0.97@277Vac full load |
||
|
THD (Full Load) |
<15% |
|
|
Ac Current (Max) |
1.2A@277Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
20A@100Vac |
|
|
28A@230Vac |
||
|
35A@277Vac |
||
|
Output
|
Current (mA)/Voltage (Vdc) Power (W) |
100-150Vdc/1200mA/120W |
|
Linear Regulation |
±3% |
|
|
No-Load Output Voltage |
200V |
|
|
Start Time
|
<1S@100V |
|
|
Auxiliary Voltage |
12V/200mA |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, Recovers automatically |
|
Over Load |
Hiccup, when the output power exceeds ,then,recovers automatically after fault removed |
|
|
Short Circuit |
Close output,recovers automatically after fault removed |
|
|
Sizee |
||
|
Length |
360mm |
|
|
Width |
30mm |
|
|
Height |
25 mm |
|
|
Weight (g) |
276g |
|
|
Environmental |
||
|
Safety Standard |
UL8750 ,Class2 |
|
|
Operating Temperature |
-30°C to 50°C |
|
|
Storage Temperature, Humidity |
-40°C to 80°C,10-90%RH |
|
|
Warranty Tc |
50000Hour (s)@TC:80℃ |
|
|
Surge Protection |
L-N 4KV |
|
|
Ip Rating |
IP20 |
|
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
LC100-200550HX |
100W |
200-480Vac |
150-200Vdc |
550mA |
0.9 |
Adjustable |
91% |
|
LC100-1501200LX |
120W |
100-277Vac |
100-150Vdc/ |
1200mA |
0.9 |
Adjustable |
94% |

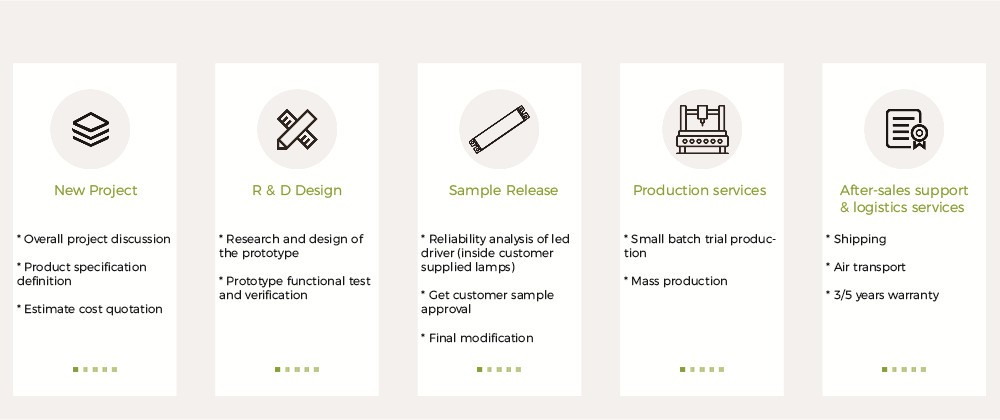

OEM/ODM
