0-10v Dimmable LED Tube Light Driver

The driver is a high-efficiency lighting driver with dimming capabilities. It boasts a high power factor and low harmonic distortion, making it an ideal choice for a variety of lighting applications. With multiple wattage options available, this driver allows you to choose the right level of brightness for your specific needs.

Top Features and Benefits:


100-277Vac	Flicker free	0-10V dimming	Ultra small thin

1.Wide input voltage 100-277Vac

2.Full protection: short circuit/over temperature/over voltage

3.A variety of wattage options

4.High power factor, low harmonics

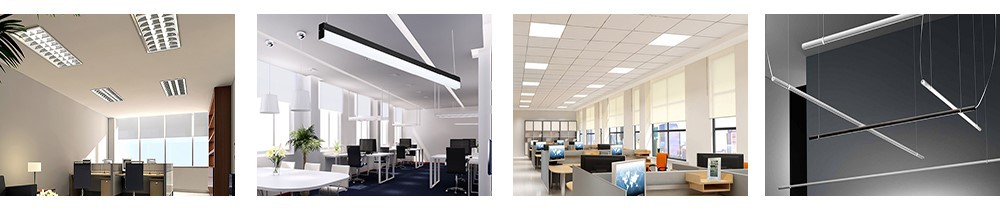

Application Scenario:

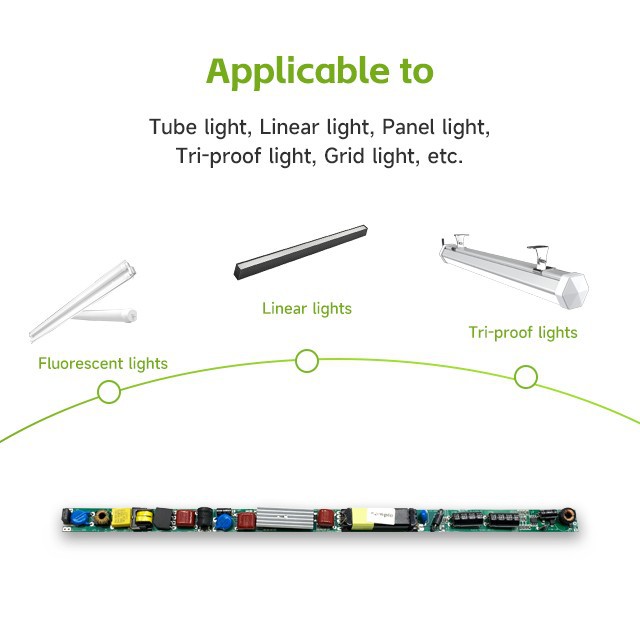

Commonly found in commercial settings including offices, retail stores, restaurants, hotels, and other commercial spaces for general lighting

product-1000-210

Product Details:

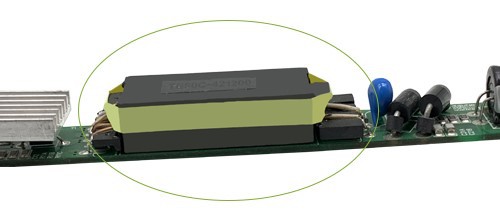

FR4 material is flame retardant, meaning it can withstand high temperatures without catching fire or emitting toxic gases, enhancing safety in electronic applications.

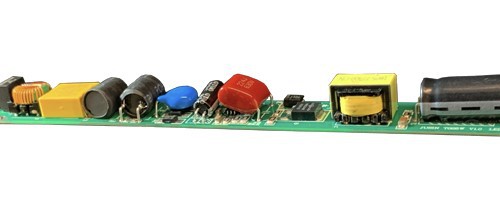

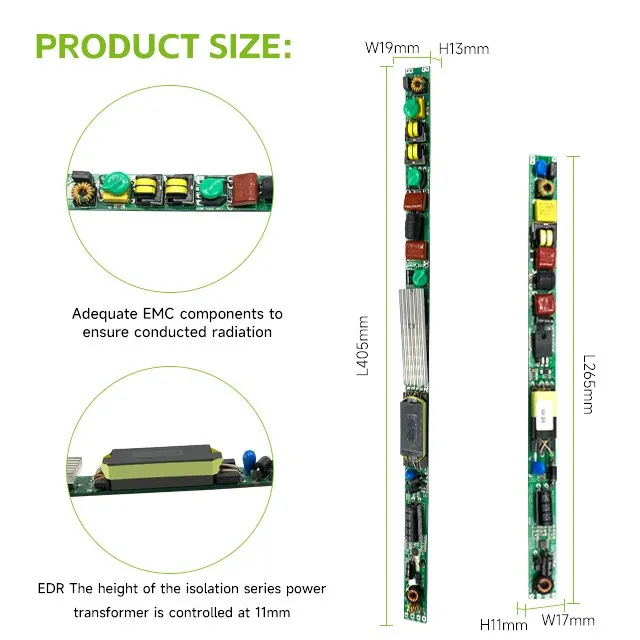

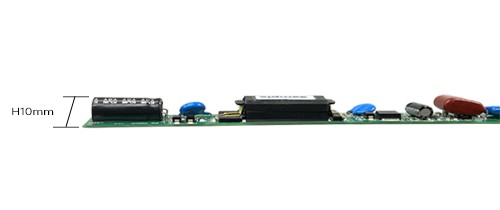

The 10mm height PCB controls enable compact and space-efficient designs, making them ideal for applications with limited space or where sleek, slim profiles are preferred.

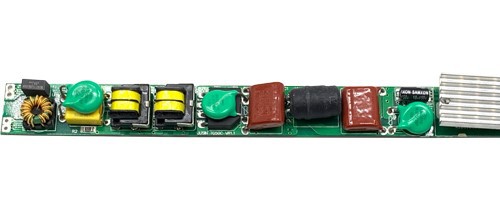

By positioning the components horizontally, the emitted light is evenly distributed across the target area, reducing shadows and hotspots.

This helps prevent voltage fluctuations that could potentially damage the LEDs and ensures optimal performance and longevity.

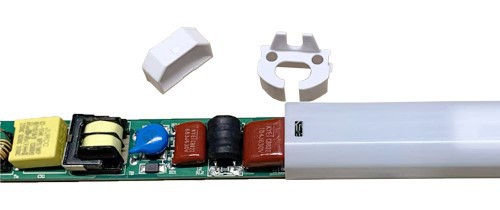

Plastic housing and end caps are typically lighter than metal alternatives, making LED drivers easier to handle during installation and maintenance.

Safety tubes help protect against electrical hazards by preventing accidental contact with live wires or components on the input side of the LED driver.

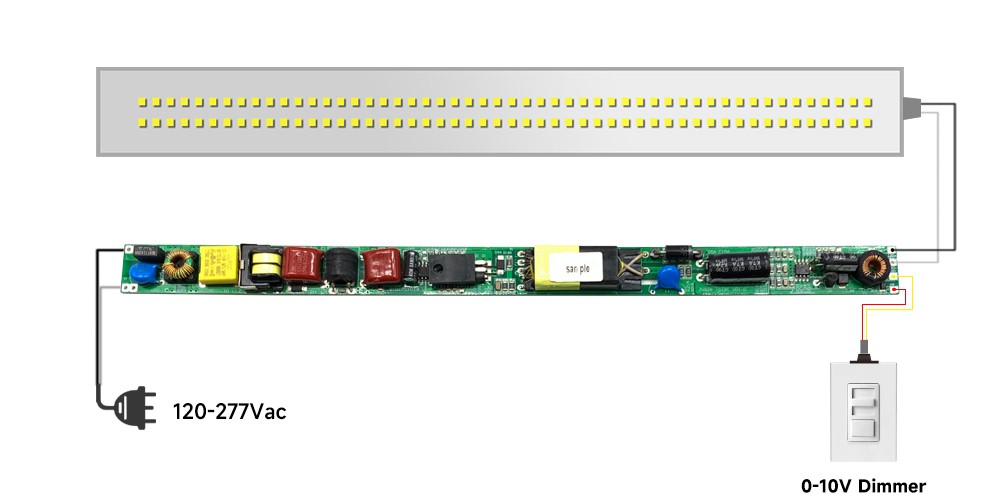

Wiring Instructions:

AC input terminal, this terminal is connected to the mains power(120-277Vac), and the other terminal is the DC output terminal + and -, which are connected to the positive and negative poles of the LED light respectively.

Product Packaging:

product-1000-270

Hot Tags: 0-10v dimmable led tube light driver, China 0-10v dimmable led tube light driver manufacturers, suppliers, factory, Match Smart Module, UL led driver, 1700mA, 0 10v led dimmer, 3CCT select LED driver, zigbee led driver

TG19A TG18C

Performance
Model	TG19A TG18C
Input Voltage	100-277 Vac
Input Current Max	0.2A@230Vac Full load
Input Power Max	18-25W
Input Frequency	50/60Hz
Power Factor	> 0.9
Output Voltage (Refer to Driver Operating Range)	30-42Vdc
Max. Output Current	600mA
Output Power	18-25W
Power Efficiency	85%@230Vac Input
No flicker	Optional(TG18C Model)
0-10V Dimming Signal Isolation	Optional(TG19A)

Environmental
Safety standard	UL8750 ,Class2
EMC emission	Meets FCC part 15
Operating Temperature	-20°C to 50°C
Storage Temperature,Humidity	-20°C to 85°C,20-90%RH
Surge protection	L-N 1KV , L/N-FG 2KV
Certificate	Meet CE /FCC/ UL certificate

Series
Model	Max power	Input voltage	Output voltage	Output current	Efficiency	Power factor	Size(mm)	Meet with	Remark

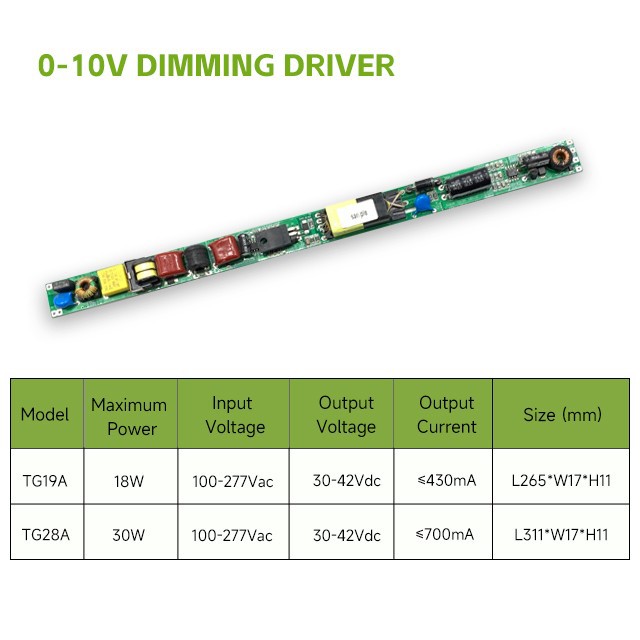

TG19A	18W	100-277Vac	30-42V	≤430mA	0.88	0.92	L265W17H11	TUV,FCC,UL	0-10V Dimming signal isolation
TG28A	30W	100-277Vac	30-42V	≤700mA	0.88	0.92	L311W17H11	TUV,FCC,UL	0-10V Dimming signal isolation
TG18C	25W	100-277Vac	28-42V	≤600mA	0.87	0.92	L265W17H11	TUV,FCC,UL	Flicker free
TG30C	30W	100-277Vac	30-42V	≤700mA	0.87	0.92	L317W17H11	TUV,FCC,UL	Flicker free
TG40C	40W	100-277Vac	28-42V	≤920mA	0.87	0.92	L364W17H11	TUV,FCC,UL	Flicker free
TG50C	50W	100-277Vac	30-42V	≤1200mA	0.87	0.92	L405W19H13	TUV,FCC,UL	Flicker free
