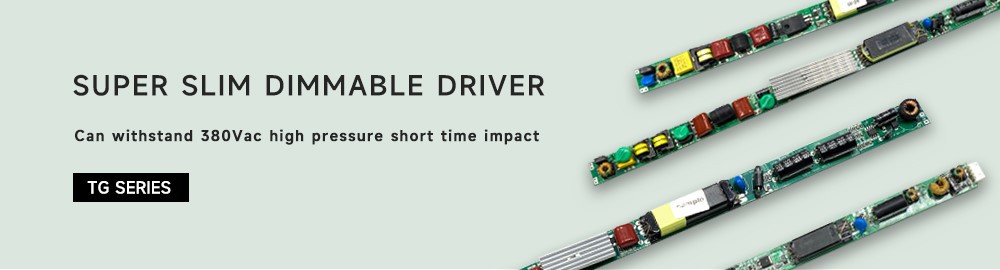

Super Slim Dimmable driver

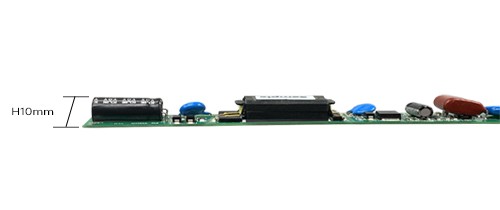

The driver is an ultra-thin power supply with a height of only 11mm. Its dual-pole, flicker-free design provides a comfortable, eye-friendly light for users. With UL, TUV, and FCC certifications, you can rest assured that this product meets the highest safety and quality standards.

Top Features and Benefits:


Ultra small thin	Short circuit protection	0-10V dimming	Over voltage protection

1.OTP/OVP

2.Can withstand 380Vac high pressure short time impact

3.Conducted radiation through EMC

4.PCB board is made of FR4 material

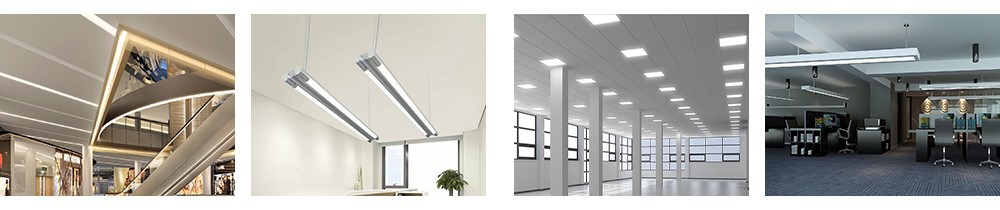

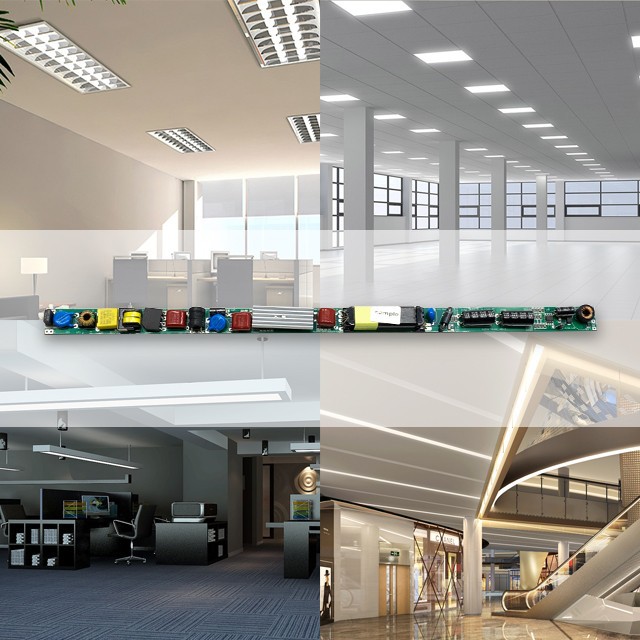

Application Scenario:

This highly efficient driver provides stable and consistent power to your LED lights, ensuring optimal performance and longevity.

product-1000-210

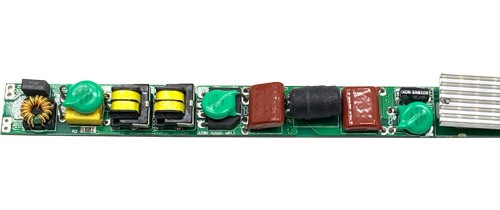

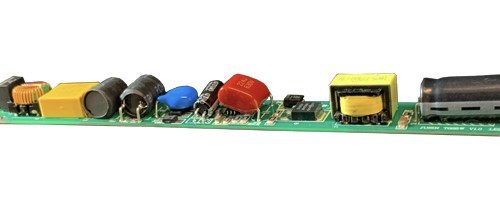

Product Details:

Slim PCB controls contribute to lightweight designs, which can be beneficial for portable or handheld devices where weight is a consideration.

FR4 has high electrical insulation properties, preventing electrical leakage and short circuits between conductive traces on the PCB, ensuring reliable performance and minimizing the risk of electrical malfunctions.

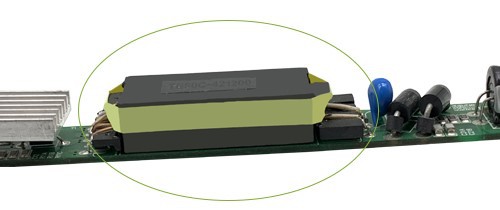

Transformers ensure electrical isolation between the input and output sides of the LED driver, safeguarding against voltage spikes, noise, and electrical interference.

Horizontal component placement allows for efficient heat dissipation, as heat can be more effectively conducted away from the components, ensuring optimal performance and longevity.

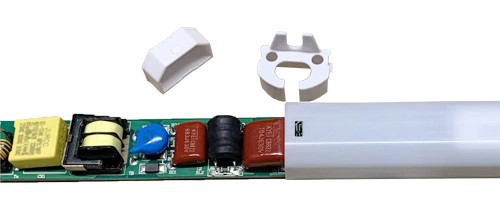

Plastic materials are resistant to corrosion, making LED drivers with plastic housing and end caps suitable for use in outdoor or humid environments where exposure to moisture or chemicals may occur.

LED drivers with safety tubes typically comply with international safety standards and regulations, such as UL (Underwriters Laboratories) standards in the United States or CE (Conformité Européenne) certification in Europe.

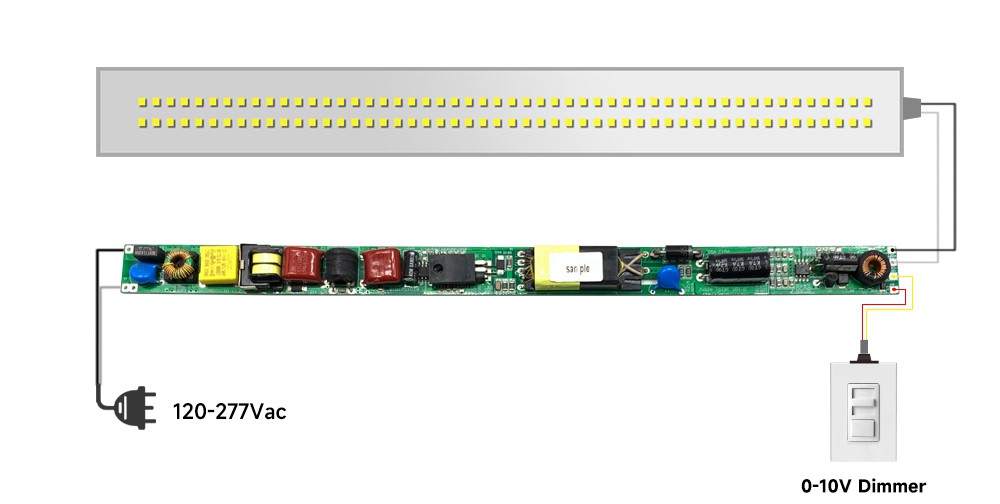

Wiring Instructions:

The AC input terminal is where you connect the power source from 120-277Vac mains. The DC output terminal, marked with positive and negative poles, is where you connect the LED light

Product Packaging:

product-1000-270

Hot Tags: super slim dimmable driver, China super slim dimmable driver manufacturers, suppliers, factory, 40w 0 10v Dimming Driver, multipower drivers, 120-277Vac, up and down cct, no strobe flash, 6000K selectable

TG28A TG30C

Performance
Model	TG28A TG30C
Input Voltage	100-277 Vac
Input Current Max	0.4A@230Vac Full load
Input Power Max	30W
Input Frequency	50/60Hz
Power Factor	> 0.9
Output Voltage (Refer to Driver Operating Range)	30-42Vdc
Max. Output Current	750mA
Output Power	30W
Power Efficiency	87%@230Vac Input
No flicker	Optional(TG30C Model)
0-10V Dimming Signal Isolation	Optional(TG28A)

Environmental
Safety standard	UL8750 ,Class2
EMC emission	Meets FCC part 15
Operating Temperature	-20°C to 50°C
Storage Temperature,Humidity	-20°C to 85°C,20-90%RH
Surge protection	L-N 1KV , L/N-FG 2KV
Certificate	Meet CE /FCC/ UL certificate

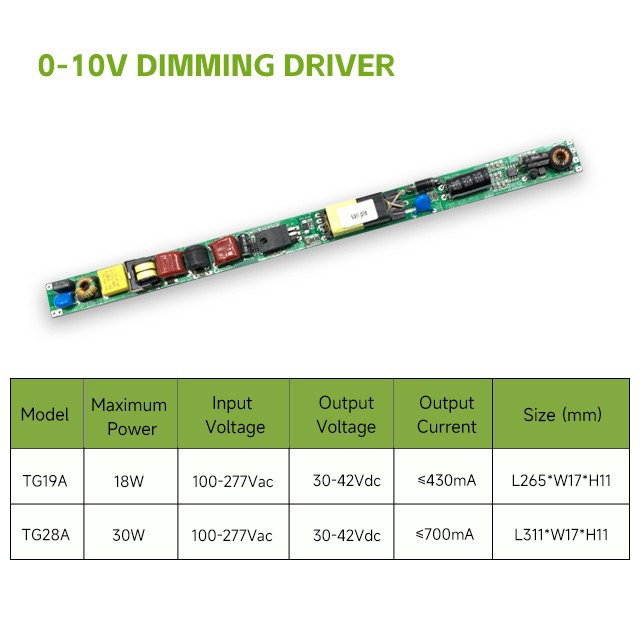

Series

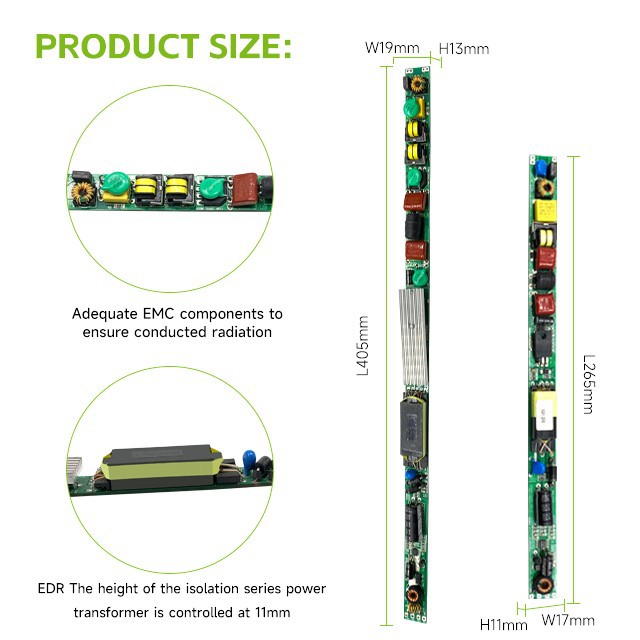

Model	Max power	Input voltage	Output voltage	Output current	Efficiency	Power factor	Size(mm)	Meet with	Remark
TG19A	18W	100-277Vac	30-42V	≤430mA	0.88	0.92	L265W17H11	TUV,FCC,UL	0-10V Dimming signal isolation
TG28A	30W	100-277Vac	30-42V	≤700mA	0.88	0.92	L311W17H11	TUV,FCC,UL	0-10V Dimming signal isolation
TG18C	25W	100-277Vac	28-42V	≤600mA	0.87	0.92	L265W17H11	TUV,FCC,UL	Flicker free
TG30C	30W	100-277Vac	30-42V	≤700mA	0.87	0.92	L317W17H11	TUV,FCC,UL	Flicker free
TG40C	40W	100-277Vac	28-42V	≤920mA	0.87	0.92	L364W17H11	TUV,FCC,UL	Flicker free
TG50C	50W	100-277Vac	30-42V	≤1200mA	0.87	0.92	L405W19H13	TUV,FCC,UL	Flicker free
