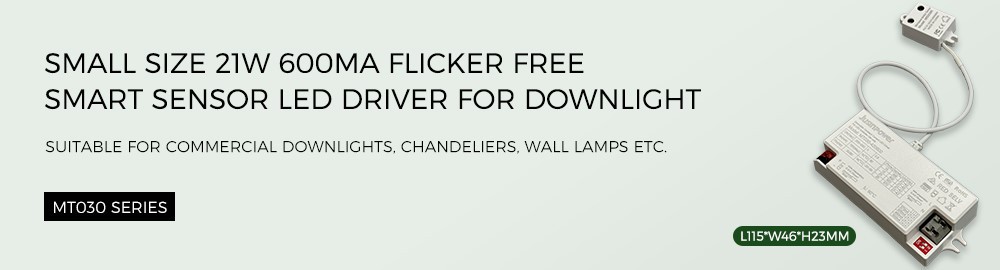

Small Size 21W 600mA Flicker Free Smart Sensor Led Driver for Downlight
The compact 21W LED driver is specifically designed for downlight,chandeliers, wall Lamps applications, offering a space-saving, small form factor that fits easily into tight spaces while delivering reliable performance. With a constant current output of 600mA, it provides optimal power to the LED light source, ensuring stable and consistent brightness. The driver is engineered to be flicker-free, ensuring smooth and even light distribution without any visible flickering, which enhances visual comfort and reduces eye strain, making it ideal for long-duration use in residential and commercial spaces. Integrated with smart sensor technology, the driver can automatically adjust the light intensity based on motion detection or ambient light levels, allowing for energy-efficient, on-demand lighting control. This makes it a perfect solution for applications where both space efficiency and intelligent, energy-saving lighting are essential.

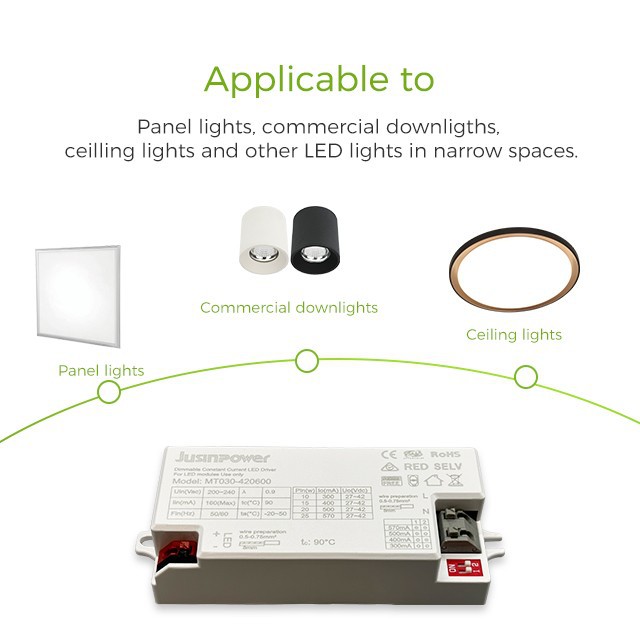

1.Small size, suitable for commercial downlights, chandeliers, wall lamps and other small space lamps.
2.Overload protection, short circuit protection.
3.The storage temperature should be maintained between -20°C and 85°C
4.Flicker free constant current output driver
Top Features and Benefits:
12V Auxiliary Power Supply
Current Adjustment
3 Years Warranty
PWM Dimming
Flicker Free
Application Scenario:

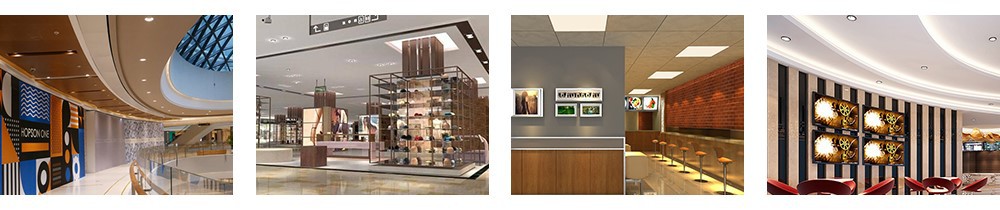

Commercial lighting: Shopping malls and retail stores: By controlling the on and off of lights through induction, the brightness can be adjusted according to customer flow, improving energy saving and providing customers with a comfortable shopping environment.

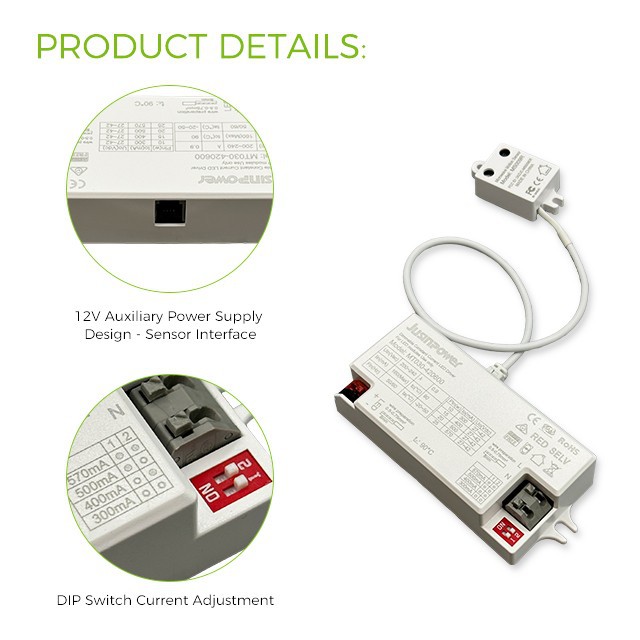

Product Details:

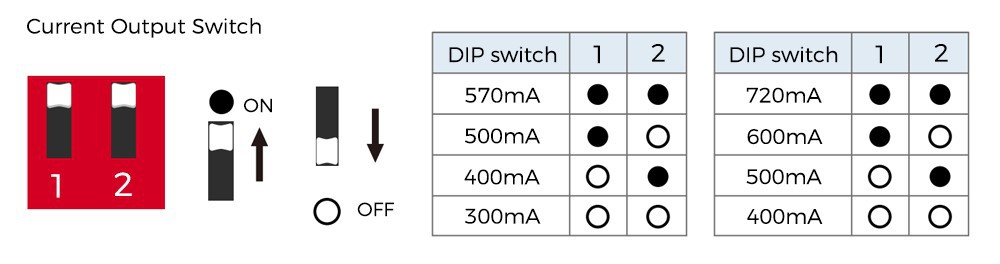

DIP switch for current adjustment, offering four selectable output current levels to meet various requirements.

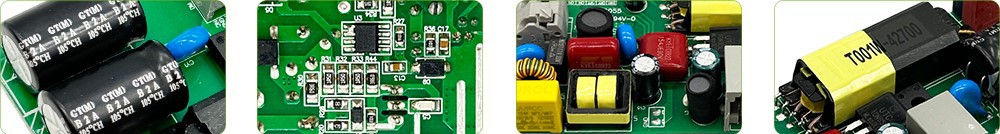

High Frequency Low Brand IC Enough EMC Components Increase Efficiency
Impedance Capacitor

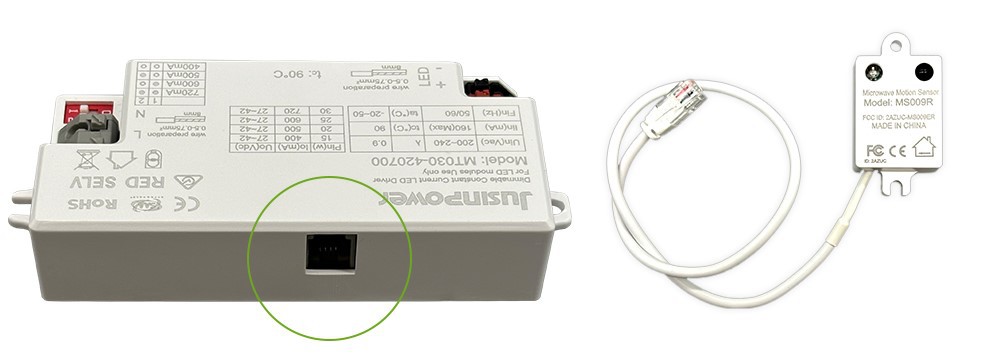

This is the interface of 12V auxiliary source, which can connect the intelligent module.

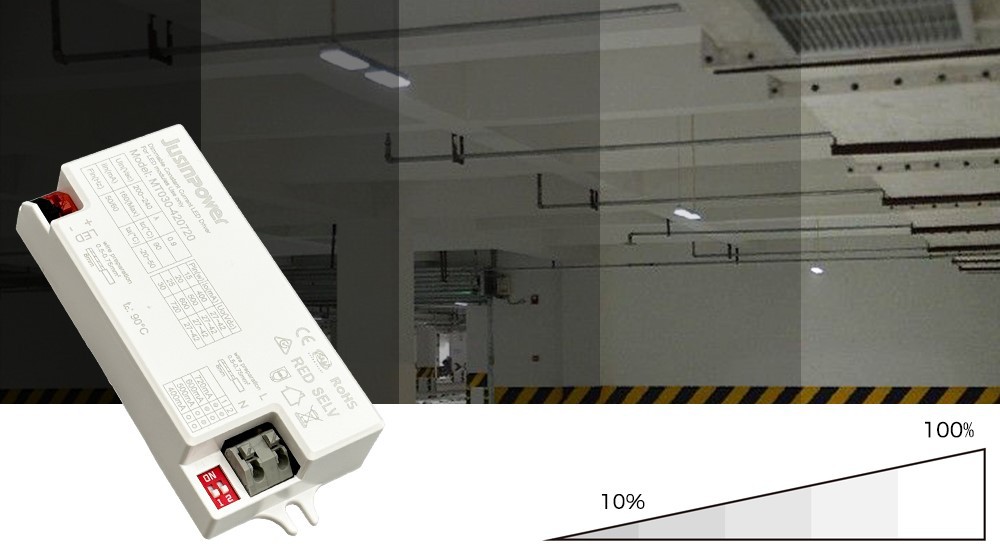

Supports PWM dimming, offering a smooth 10-100% dimming range for flexible lighting control.

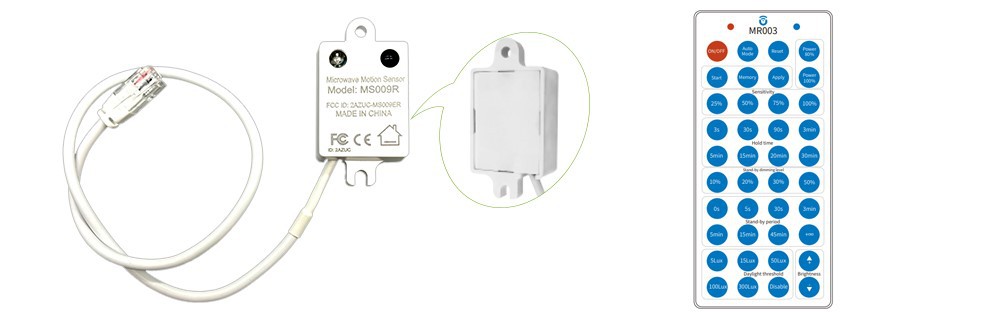

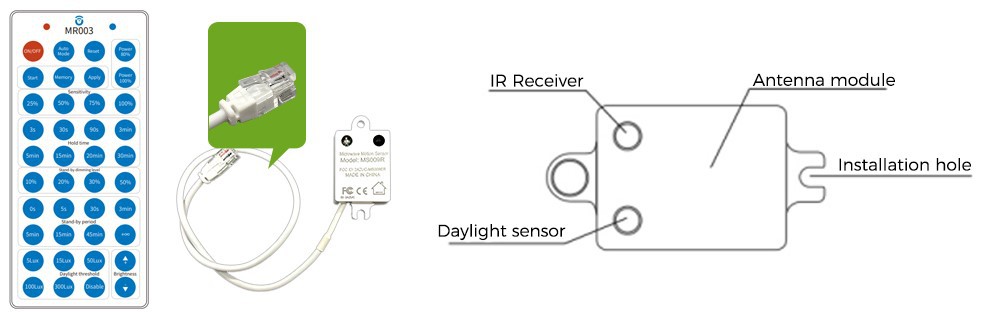

About The Sensor Module
Sensor Technical Parameters
|
Input |
Operating voltage |
5~24VDC |
|
Operating current |
23mA |
|
|
Output |
Output |
PWM |
|
Sensor Parameters |
Microwave frequency |
5.8GHz±75MHz |
|
Microwave power |
<0.3mW |
|
|
Sensitivity |
100%/75%/50%/25% (Refer to remote control) |
|
|
Hold time |
3s/30s/90s/3min/5min/15min/20min/30min (Refer to remote control) |
|
|
Daylight threshold |
Disable/300Lux/100Lux/50Lux/15Lux/5Lux (Refer to remote control) |
|
|
Stand-by period |
0s/5s/30s/3min/5min/15min/45min/+∞ (Refer to remote control) |
|
|
Stand-by dimming level |
10%/20%/30%/50% (Refer to remote control) |
|
|
Mounting height |
Max.9m (Ceiling mounted) |
|
|
Detection range |
Radius 4-5m (Ceiling mounted 6m) |
|
|
Operating temperature |
-35℃~70℃ |
|
|
Warranty |
5 years |
|
|
Other |
Default setting: Sensitivity 100%, Hold time 3s, Daylight threshold disable, Stand-by period 0s. |
|

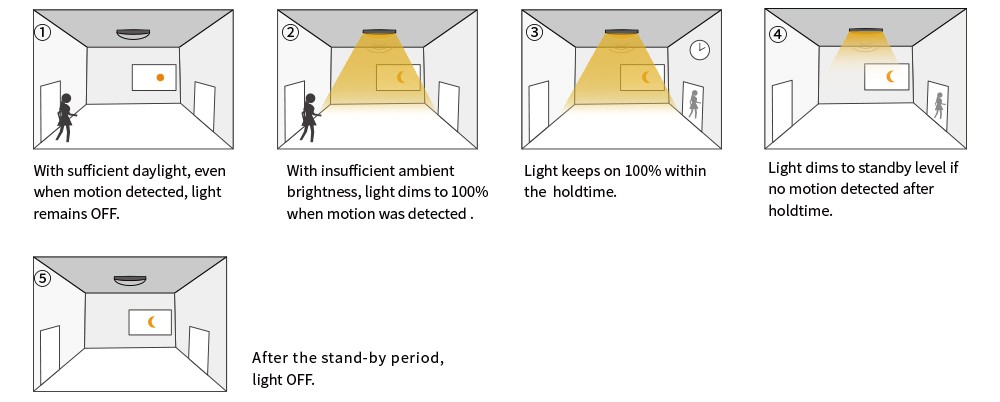

Application

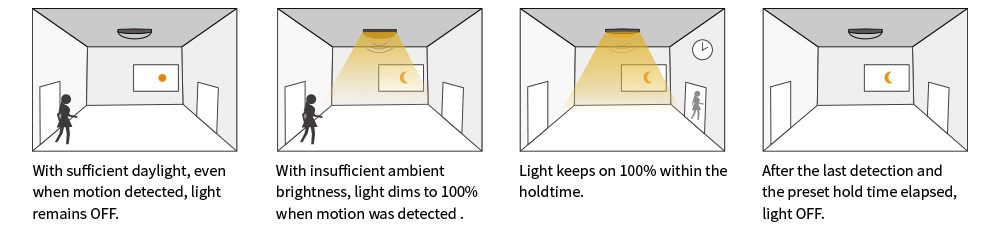

ON/OFF Function:
The daylight threshold is set to "300Lux/100Lux/50Lux/15Lux/5Lux, stand-by period is set to "0s".

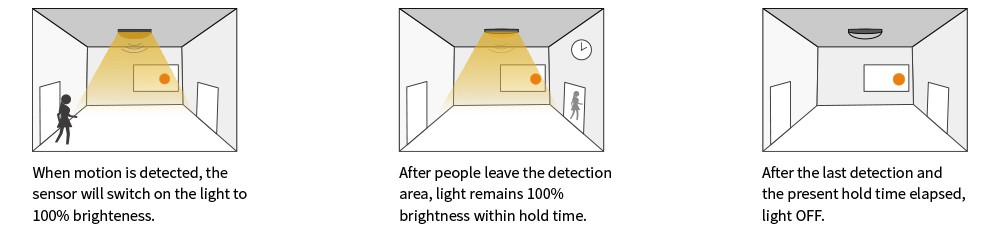

The daylight threshold is set to "Disable". Light on when detect movement, after people leave, light off after stand-by period.
Dimmable Control/Corridor Function:
The daylight threshold is set to "10Lux/25Lux/50Lux, stand-by period is set to "5s/30s/3min/5min/45min".

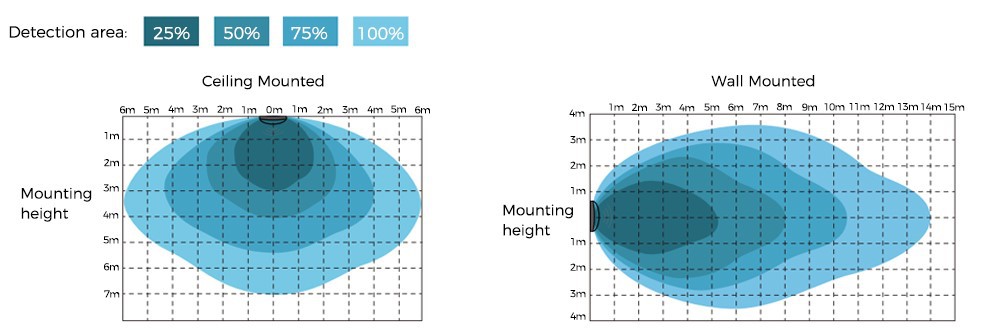

Detection Coverage:
Electrical Characteristic:
Measured at TA 25℃, output current 720mA

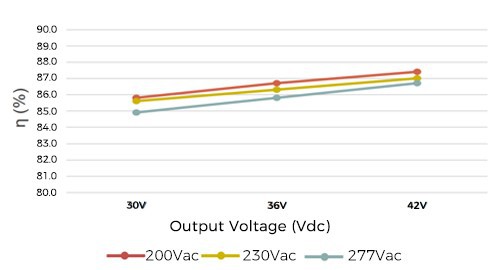

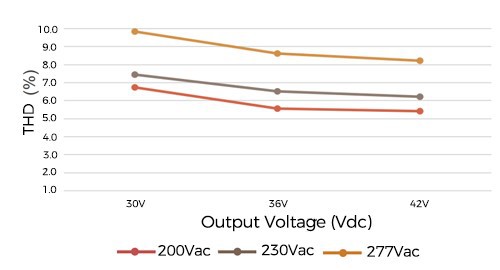

| ★Efficiency VS Output voltage curve | ★Total harmonic distortion VS Output voltage curve |
 |
 |

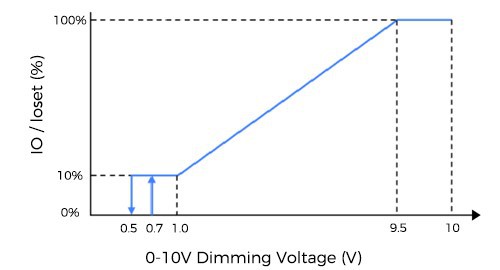

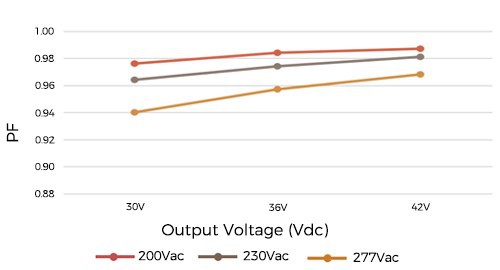

| ★Power factor VS Output voltage curve | ★Output current VS Dimming voltage (Typical) |
 |
 |

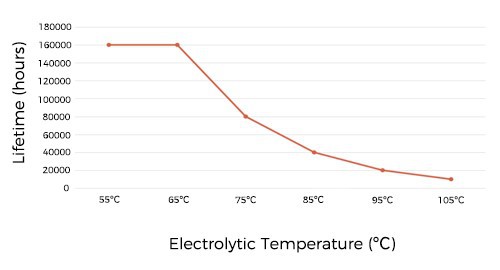

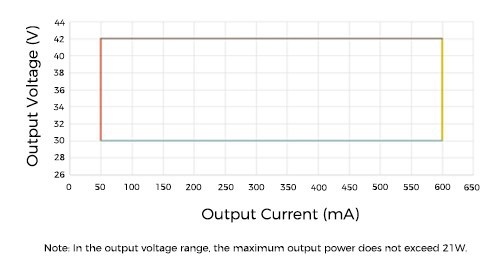

| ★Lifespan VS Temperature (℃) | ★Output voltage VS Output current |
 |
 |

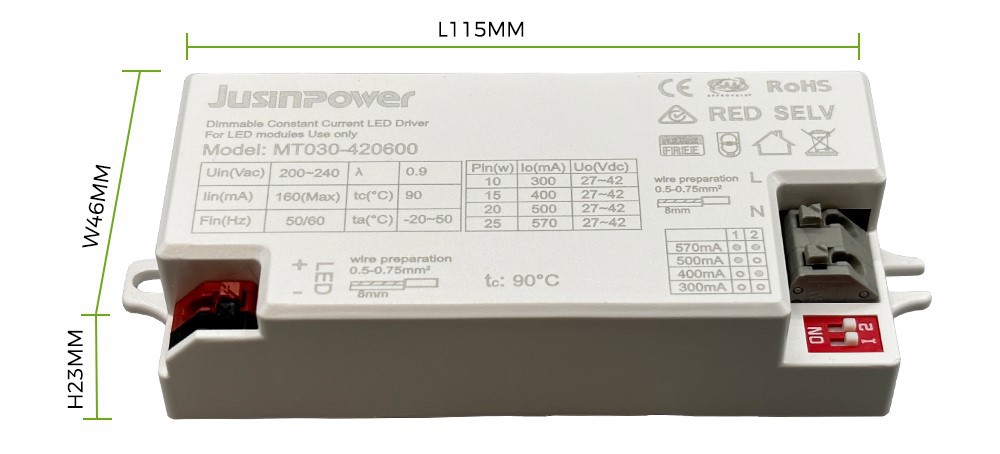

Dimension (mm)
Length: 115 Width: 46 Height: 23

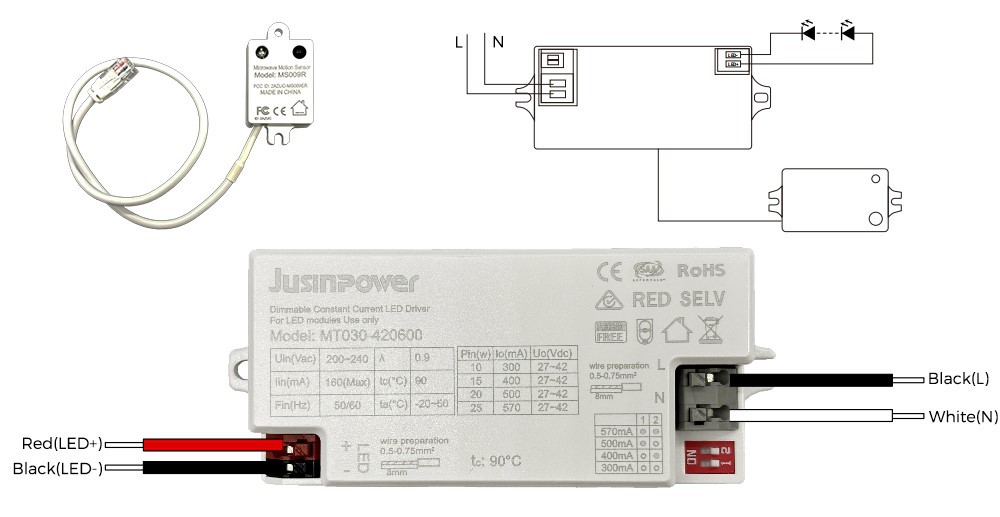

Wiring Diagram
The AC voltage input 180-265V. The DC output terminal. The side with 12V auxiliary interface, can be connected to smart module. Marked with positive and negative poles, is where you connect the LED light.Power can be adjusted with an
external dip switch.

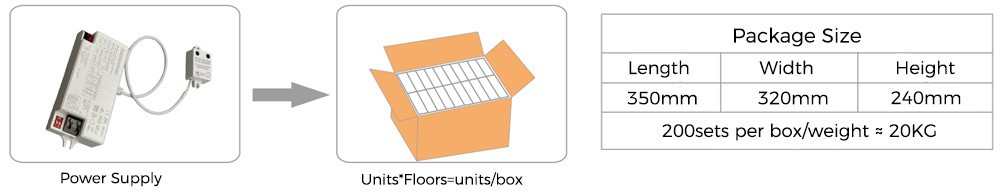

Product Packaging:
Hot Tags: small size 21w 600ma flicker free smart sensor led driver for downlight, China small size 21w 600ma flicker free smart sensor led driver for downlight manufacturers, suppliers, factory, 3cct LED Driver, Plant Light led Driver, output voltage 30 54Vdc, 0 10v dimming ac or dc, bipolar current driver, 0 10v led dimmer
MT030-420600
|
Performance |
|||||||
|
Model |
MT030-420600 |
||||||
|
Input |
Voltage |
180-265Vac |
|||||
|
Frequency Range(Hz) |
50/60Hz |
||||||
|
Efficiency |
87%@230Vac full load |
||||||
|
Power Factor |
≥ 0.9@180Vac/60Hz,full load |
||||||
|
≥ 0.9@230Vac/60Hz,full load |
|||||||
|
≥ 0.9@265Vac/60Hz, full load |
|||||||
|
THD (Full Load) |
<10 %@180Vac full load |
||||||
|
AC Current (Max) |
0.14A@180Vac full load |
||||||
|
Standby Power |
<1W |
||||||
|
Inrush Current (Cold Engine Start) Max |
180V 20A peak,500us duration(10% Ipeak) |
||||||
|
230V 25A peak,600us duration(10% Ipeak) |
|||||||
|
265V 35A peak,800us duration(10% Ipeak) |
|||||||
|
Leakage Current (Max) |
<0.15mA@265V |
||||||
|
Output |
Current (mA)/Voltage (Vdc) Power (W) |
30-42Vdc/600mA/21W |
|||||
|
Current Ripple
|
<5% |
||||||
|
Channel |
1 output channel |
||||||
|
Linear Regulation |
±5% |
||||||
|
No-Load Output Voltage |
<50V |
||||||
|
Start Time
|
<0.5S@265V ＜1S@180V |
||||||
|
Auxiliary voltage |
12V/100mA |
||||||
|
Function |
Dimming method |
5V PWM |
|||||
|
Dimming current |
/ |
||||||
|
Dimming range |
10%-100%(standard) |
||||||
|
Adjust power |
Fourth gear dip |
||||||
|
Protection |
Over Temperature |
/ |
|||||
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
||||||
|
Short Circuit |
Enter hiccup mode and return to normal after release |
||||||
|
Size |
|||||||
|
Length |
115 mm |
||||||
|
Width |
46mm |
||||||
|
Height |
23mm |
||||||
|
Mounting Length |
105g |
||||||
|
Weight (g) |
100g |
||||||
|
Environmental |
|||||||
|
Safety Standard |
EN61347 |
||||||
|
CE |
EN61347 |
||||||
|
Operating Temperature |
-20°C to 50°C |
||||||
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
||||||
|
Warranty Tc |
50000Hour (s)@TC:80℃ |
||||||
|
Surge Protection |
L-N 500V |
||||||
|
Ip Rating |
/ |
||||||
|
Material |
/ |
||||||
|

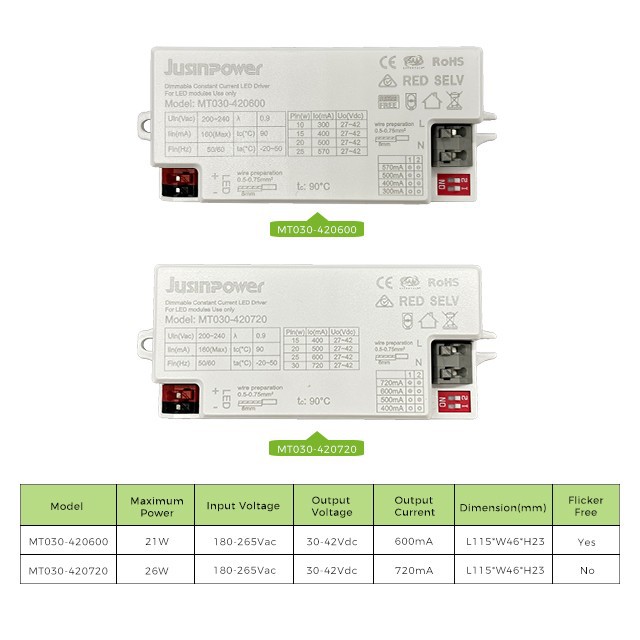

Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
MT030-420600 (flicker free) |
21W |
180-265Vac |
30-42Vdc |
600mA |
0.9 |
Adjustable |
87% |
|
MT030-420720 |
26W |
180-265Vac |
30-42Vdc |
720mA |
0.9 |
Adjustable |
88% |

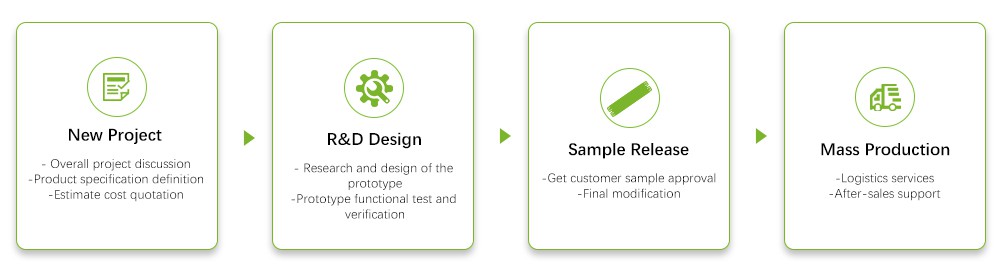

OEM/ODM
