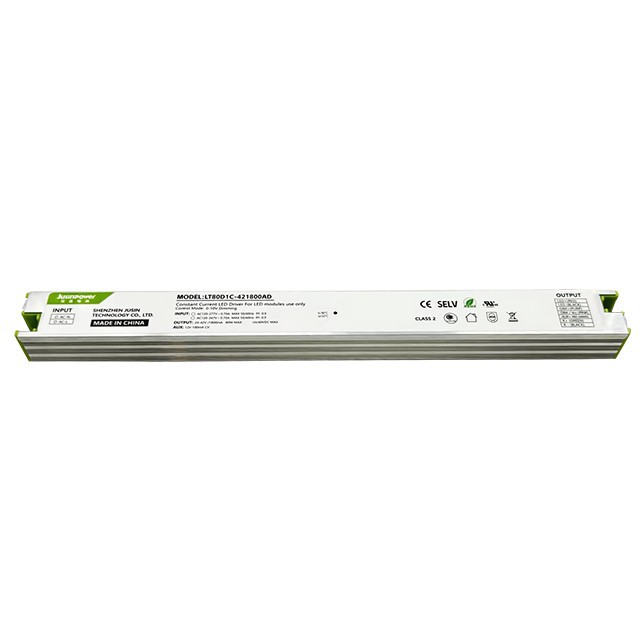

Slim Size Waterproof 0-10V Dimming LED Driver

It is a constant current driver designed for versatile and reliable lighting solutions. A fully packaged waterproof design ensures durability and protection against harsh environmental conditions. Cutting-edge silicon carbide technology enables it to be programmed offline to adjust the current Settings, with solid line 1% depth dimming. Create a comfortable and precise lighting environment.

Input 120-347Vac

Ultra-thin size

Offline programmable

1% deeply dimmable

1. 0-10V dimming: Smooth and precise dimming control up to 1% provides a gentle and comfortable atmosphere.

2. Silicon Carbide Technology: High-efficiency chip technology for superior performance and reliability.

3. Offline Programming: Easy current adjustment without the need for powering the driver, using offline programming

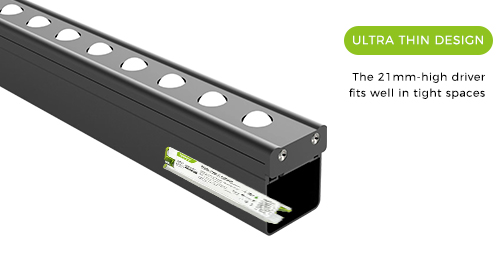

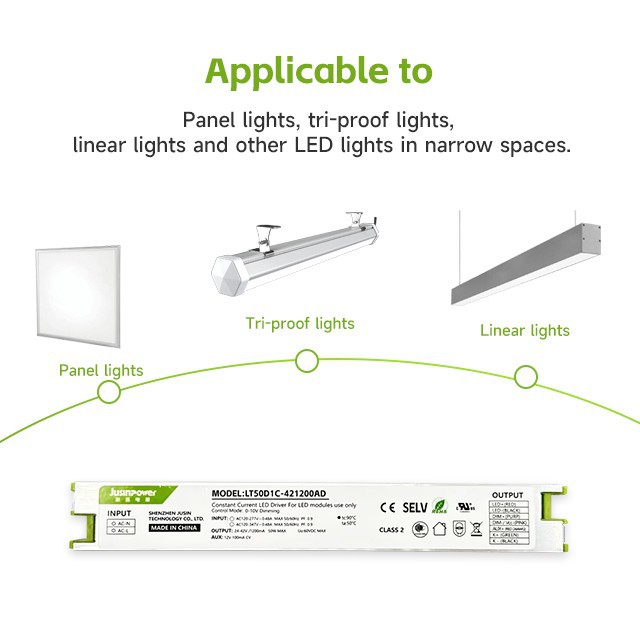

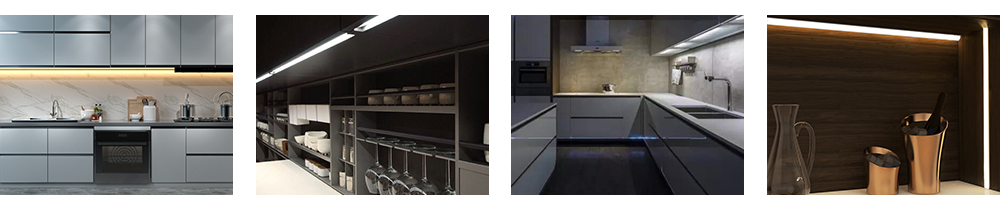

This small size driver with a height of only 21mm is suitable for cabinet lighting and display cabinet lighting due to its compact structure, energy saving and high efficiency. It is suitable for realizing refined lighting design in limited space and improving the overall aesthetics and practicality of the space.

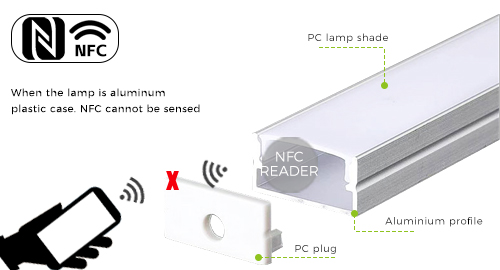

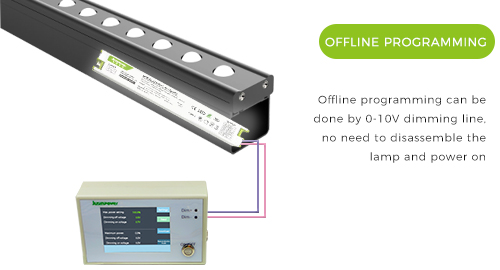

Offline programming: Data stability and security: Once data has been written to the device using offline programming, it cannot be easily modified, assuring data stability and reliability.   Data is written to the memory through a programming device, usually on a production line or in a specific programming environment	NFC: Security Issues: Data theft. Because of NFC's short communication range, unprotected devices are vulnerable to man-in-the-middle and near-field assaults.   Data is transferred wirelessly, requiring an NFC device (such as a smartphone, NFC reader)

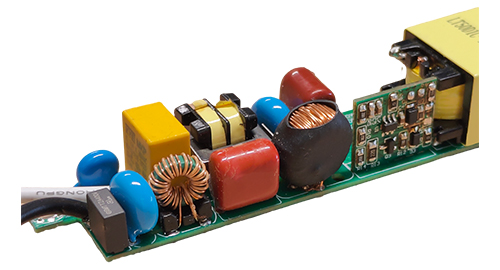

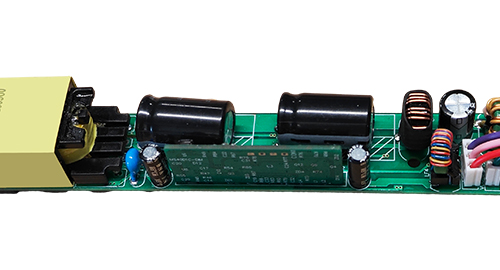

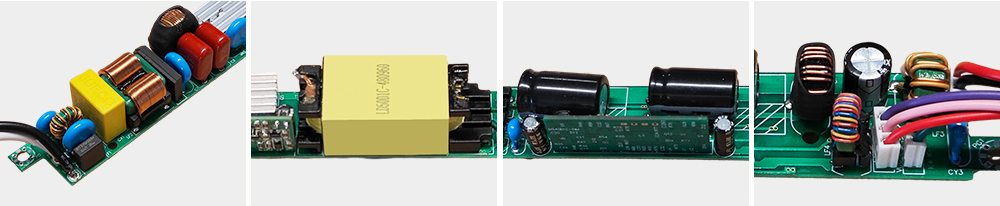

Use large-capacity capacitors to ensure driver life 10000h	Slim size is compact, portable, and adaptable, and can maximize performance in limited space.	Effective EMC design reduces faults caused by electromagnetic interference, improves equipment reliability and service life, and reduces maintenance and replacement costs

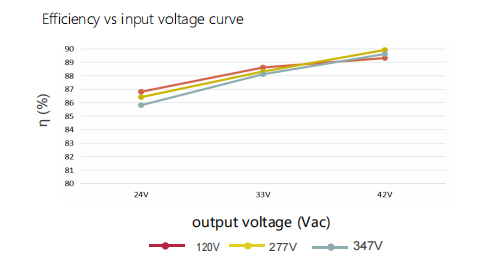

Test at Ta 25℃ and output current 450mA

89.2%@120Vac full load
90.6%@277Vac full load
90.5%@347Vac full load

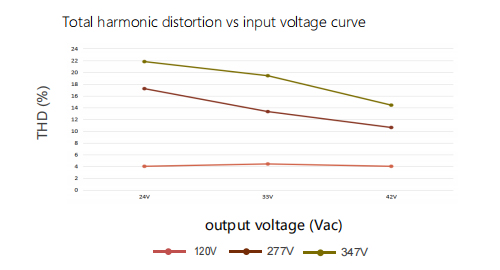

<10 %@120Vac (30-100 %) full load
<20 %@277Vac (60-100 %) full load
<20 %@347Vac (60-100 %) full load

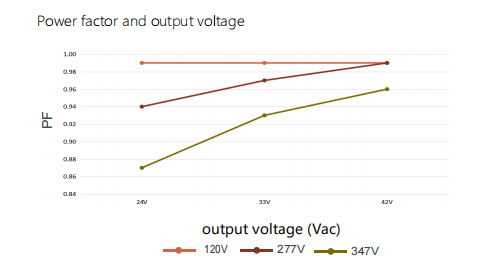

≥ 0.9@120Vac/60Hz(30-100 %) full load
≥ 0.9@277Vac/50Hz(60-100 %) full load
≥ 0.9@347Vac/60Hz(60-100 %) full load

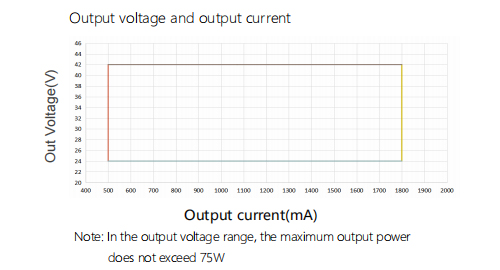

In the output voltage range,the maximum output power does not exceed 75W

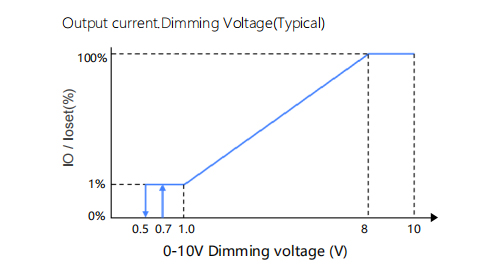

At 0.7V adjustment, brightness is at 1%, gradually increasing with wattage until it reaches 100% brightness at 8V. At 10V, brightness remains at 100%. Decreasing wattage to 0.5 results in 0% brightness.

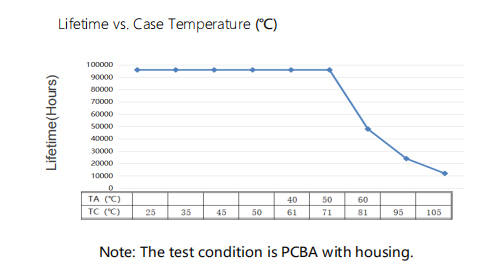

Enclosure temperature and life are closely related. The temperature of the shell is 25℃-35℃, and the life can be maintained at about 960,000 hours.

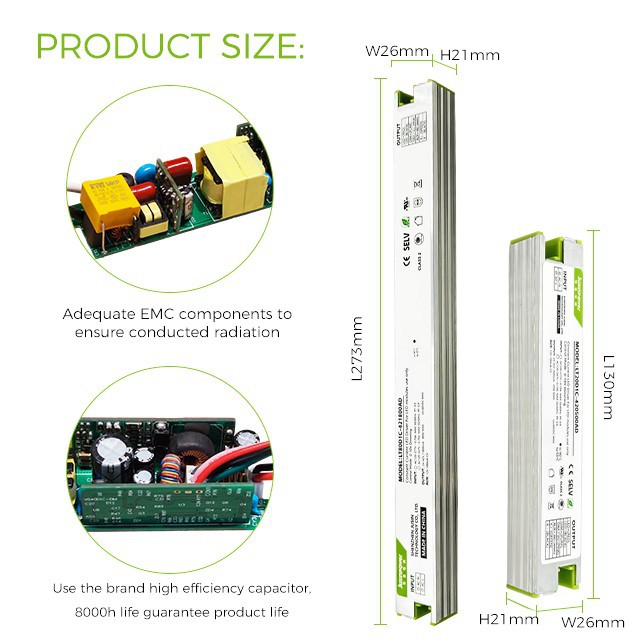

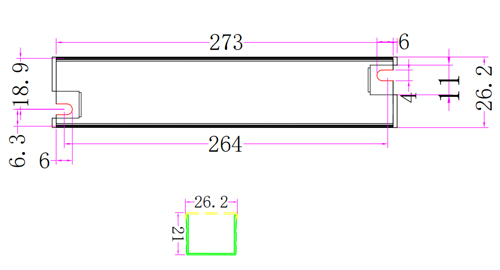

Dimension (mm):



Length: 273 Width: 26 Height: 21

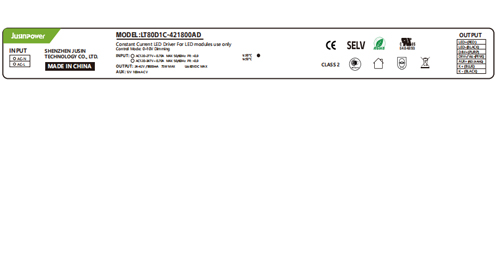

Product Label



Product labels with relevant wiring instructions, as well as basic product specification information

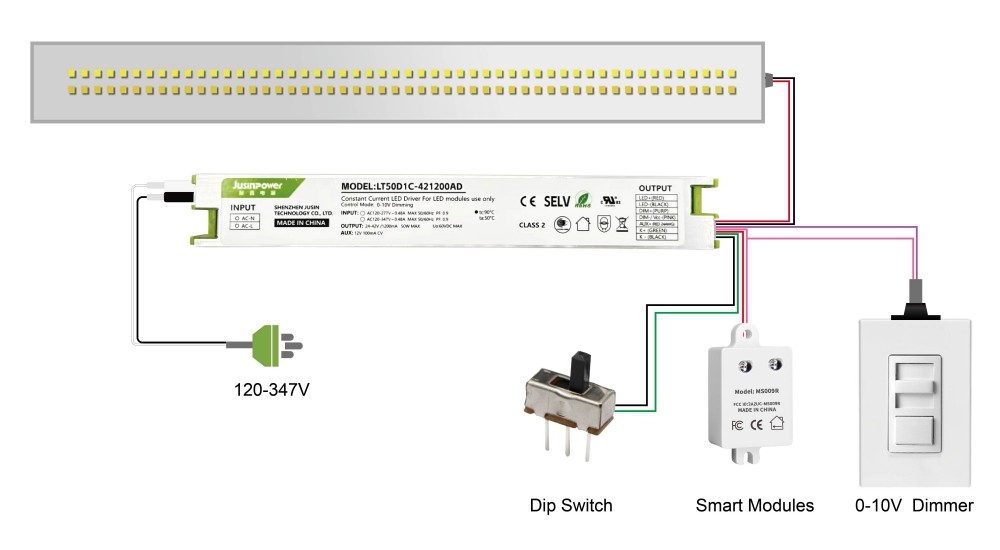

The product consists of two parts: one for AC input and the other for DC output and dimming signal input. Connect the LED+ and LED- terminals to the positive and negative poles of the LED lamp, respectively. The red VCC+ and pink terminals are for the 12V control module. The purple DIM+ should be connected to the positive terminal of the 0-10V dimmer, while the pink GND connects to the negative terminal of the 0-10V dimmer. The green K+ and black K- terminals connect to the positive and negative poles of the dip switches, respectively.
