Tri-level Dimming Class 2 Sensor Driver with External DIP Switch
Tri-level dimming LED driver is engineered to provide three adjustable brightness levelsW and can be adjusted with
an external dip switch, offering optimal flexibility and control for various lighting applications. With integrated sensor technology, the driver automatically adjusts the light output based on ambient light conditions or motion, ensuring energy efficiency while maintaining the desired illumination. The driver is designed to meet Class 2 safety standards, ensuring it is safe for use in low-voltage applications, offering protection against electrical hazards.
1.Tri-level dimming control sensor driver .
2.Supports Remote control settings.
3.5.8GHz Fixed Frequency Output, Strong Anti-Interference Capability.
4.Provides 5 years warranty.
5.Output current levels can be selected through DIP switch ON/OFF combination settings.
Top Features and Benefits:
External Sensor
Flicker Free
Overload Protection
Current Adjustment
High PF and Low THD
Application Scenario:

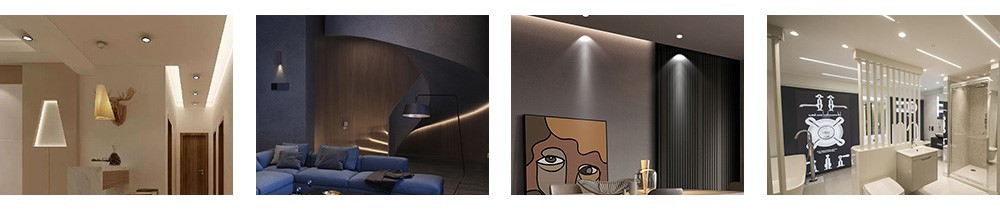

Smart home: Kitchen, bathroom, wall lights:The microwave sensing lamp control system can automatically adjust the indoor light and realize the light source management in the smart home environment. Living room, bedroom: Combined with the smart home system, when someone enters or leaves the room, the lights are automatically turned on or off, enhancing home convenience and energy saving effects.

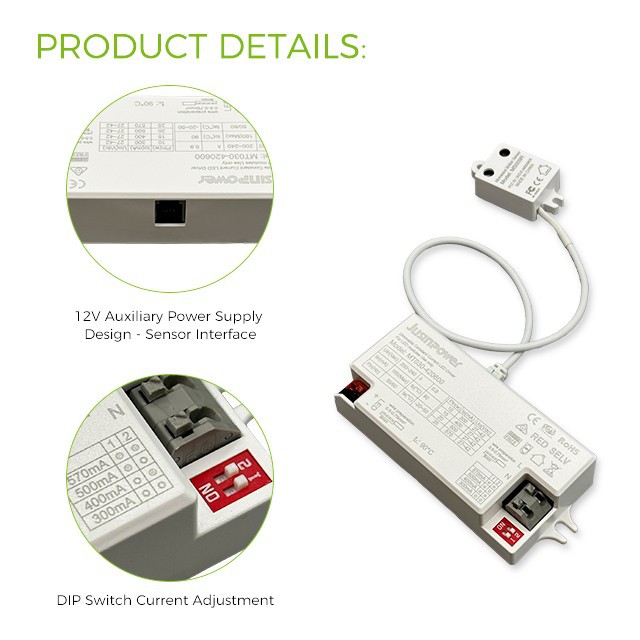

Product Details:

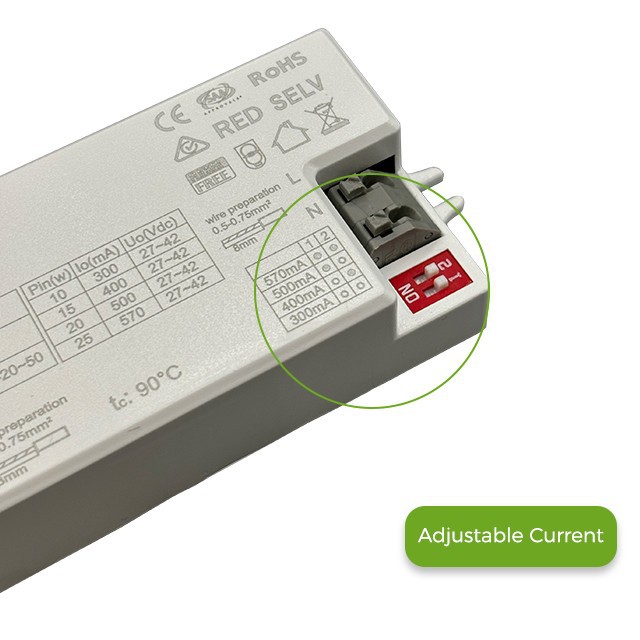

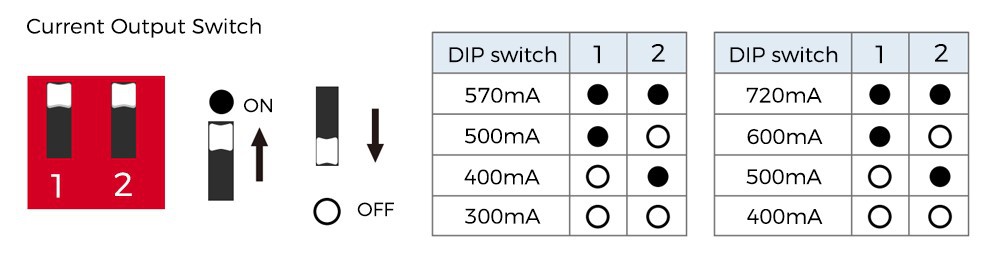

DIP switch for current adjustment, offering four selectable output current levels to meet various requirements.

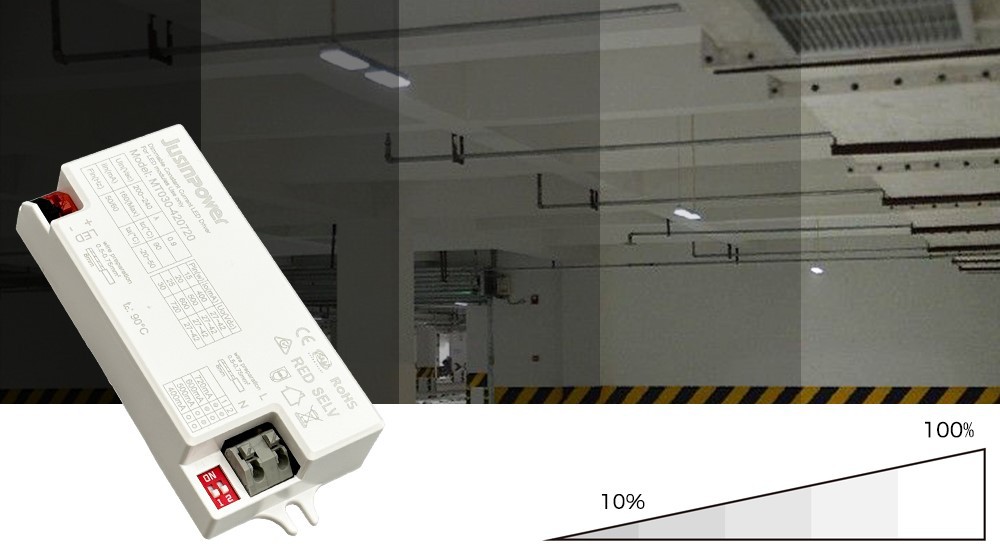

Supports PWM dimming, offering a smooth 10-100% dimming range for flexible lighting control.

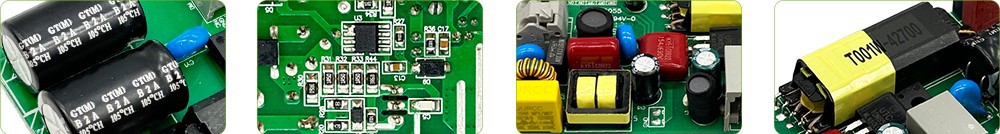

High Frequency Low Brand IC Enough EMC Components Increase Efficiency
Impedance Capacitor

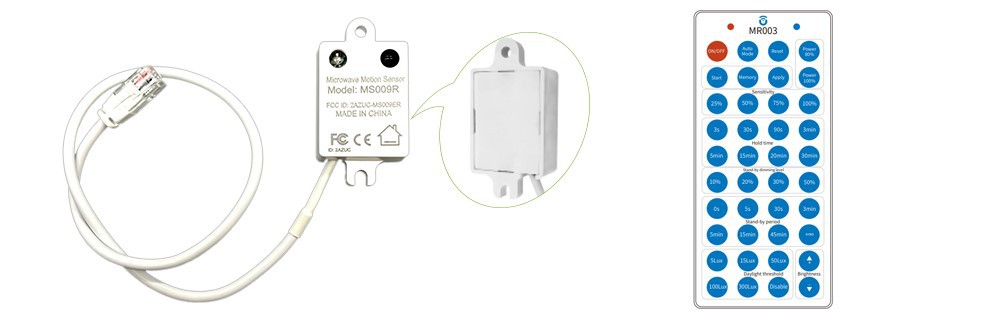

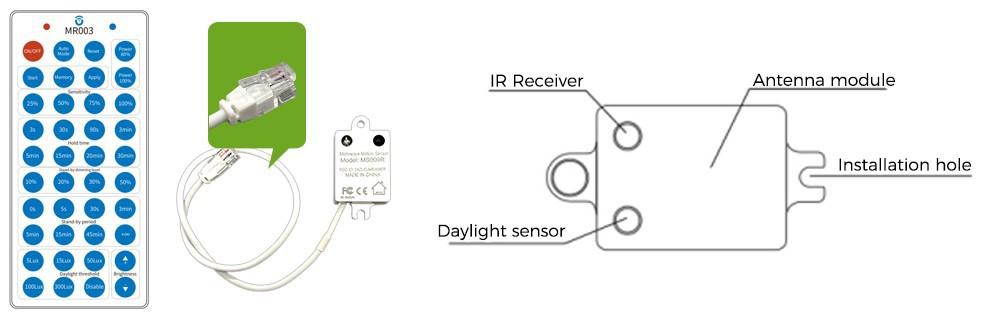

About The Sensor Module
Technical Parameters of The Controller
|
Key |
Function |
|
|
On/Off |
Setting the light permanent ON or OFF without motion mode |
|
|
Auto |
Switch to sensor mode and restore the latest sensor setting |
|
|
Reset |
Turn the sensor in a default setting (3s hold time, 0s stand-by period, lux disable, 100% sensitivity). |
|
|
Power (80%/100%) |
Quick setting the power output in 80% or 100% |
|
|
Brightness (+/-) |
Long press this button to set the power from 20% to 100%, available in permanent ON mode or in sensor mode. |
|
|
Start |
Program Mode |
1. Press Start to program mode, then select the ①Sensitivity ② Hold time ③Standby dimming level ④Standby period ⑤Daylight threshold to setting. 2. Press Memory to save the parameters ①-⑤ had selected in step 1 3. Press Apply to transmit the ①-⑤ parameters to the target sensor. Remark: After press Start, you need to press any of ①-⑤ parameter button within 30S, the time window between press any button is 30S, it will quit program mode if no any button is pressed within 30S. |
|
Memory |
Save Setting |
|
|
Apply |
One Key Apply |
|
|
Sensitivity |
In this area, movement will be detected and able to trigger the sensor. 100% detection area is also known as the strongest sensitivity. |
|
|
Hold Time |
The period of light keeping 100% brightness after moving objects leave the detection area. |
|
|
Stand-by Dimming Level |
The dimming level in the standby period. |
|
|
Stand-by Period |
The period of light keeping low output before it's completely switched off. When it's preset as "+∞", the light always keeps at low output if no movement in the detection area and doesn't turn off. |
|
|
Daylight Threshold |
Definition of the ambient brightness; only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it's preset as "disable", the sensor will detect motion regardless the ambient brightness. |
|

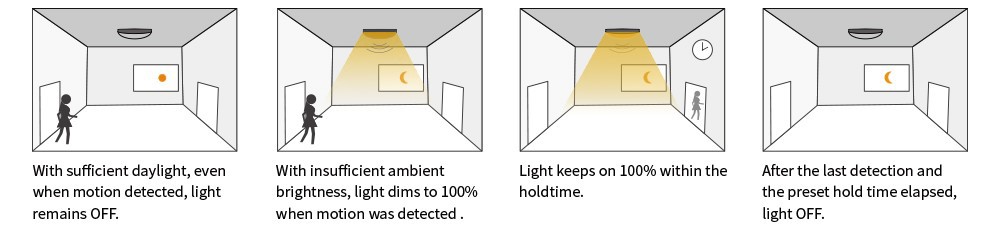

Application
ON/OFF Function:

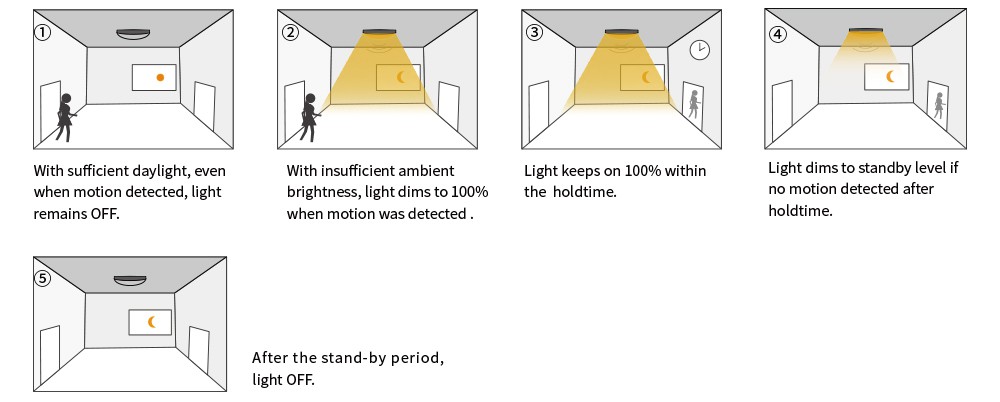

The daylight threshold is set to "300Lux/100Lux/50Lux/15Lux/5Lux, stand-by period is set to "0s".

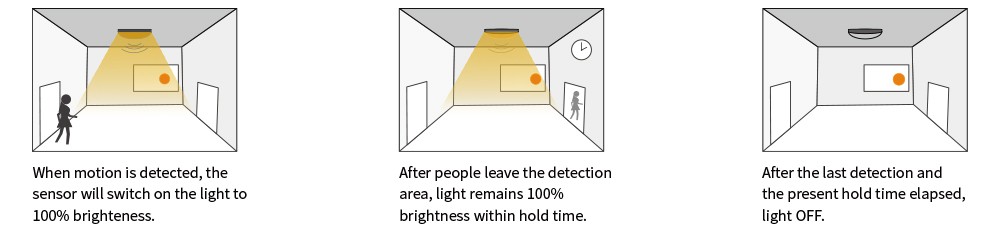

The daylight threshold is set to "Disable". Light on when detect movement, after people leave, light off after stand-by period.
Dimmable Control/Corridor Function:
The daylight threshold is set to "10Lux/25Lux/50Lux, stand-by period is set to "5s/30s/3min/5min/45min".

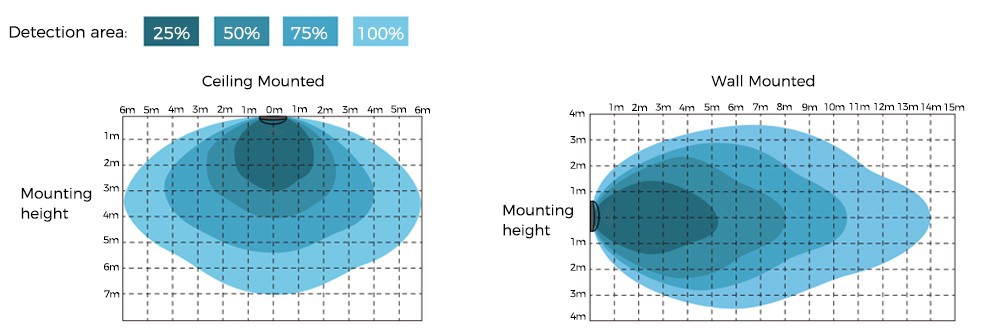

Detection Coverage:
Electrical Characteristic:
Measured at TA 25℃, output current 720mA

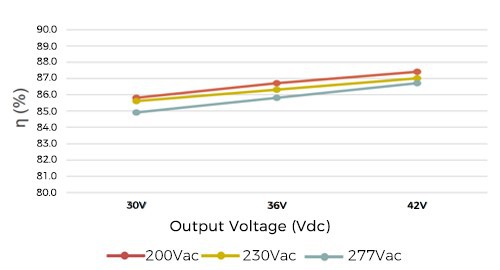

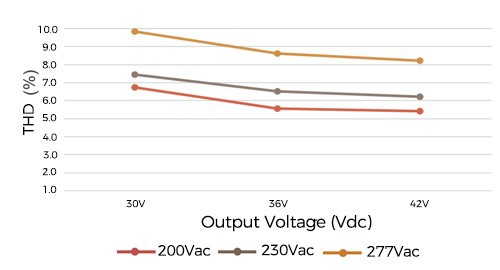

| ★Efficiency VS Output voltage curve | ★Total harmonic distortion VS Output voltage curve |
 |
 |

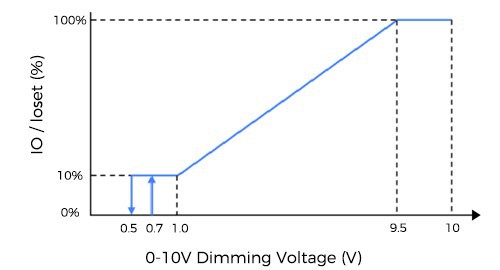

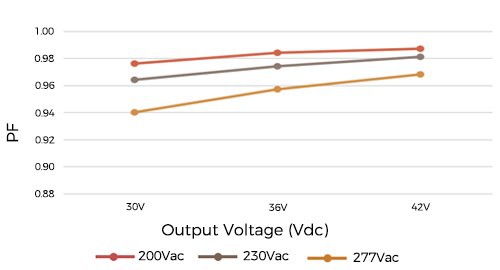

| ★Power factor VS Output voltage curve | ★Output current VS Dimming voltage (Typical) |
 |
 |

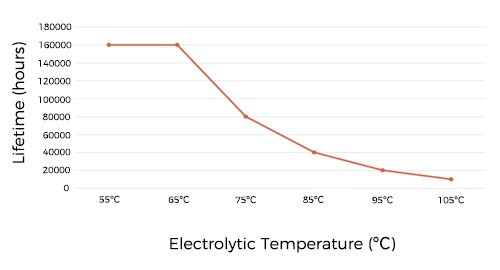

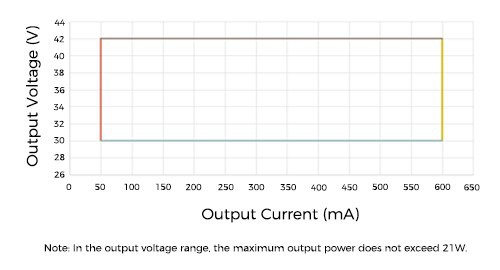

| ★Lifespan VS Temperature (℃) | ★Output voltage VS Output current |
 |
 |

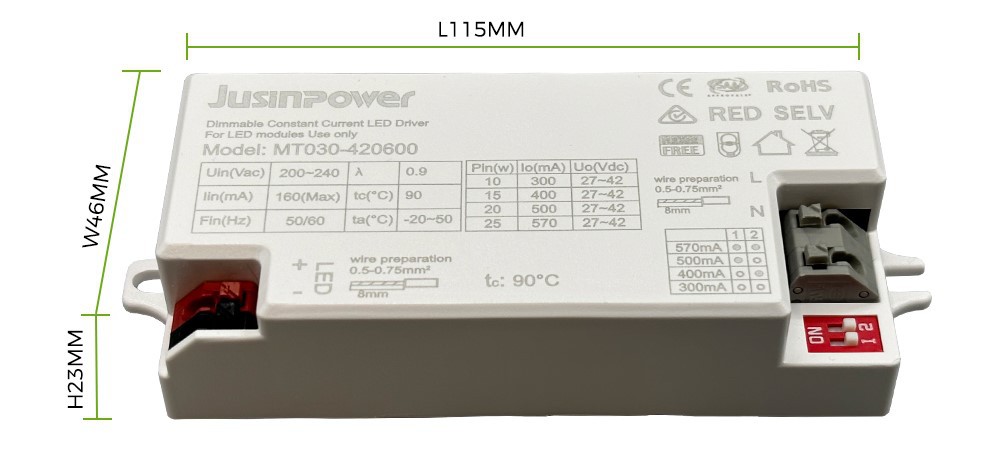

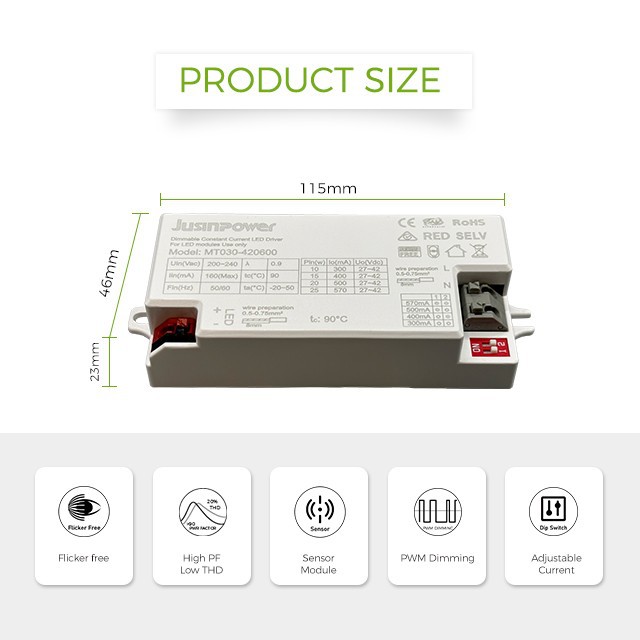

Dimension (mm)
Length: 115 Width: 46 Height: 23

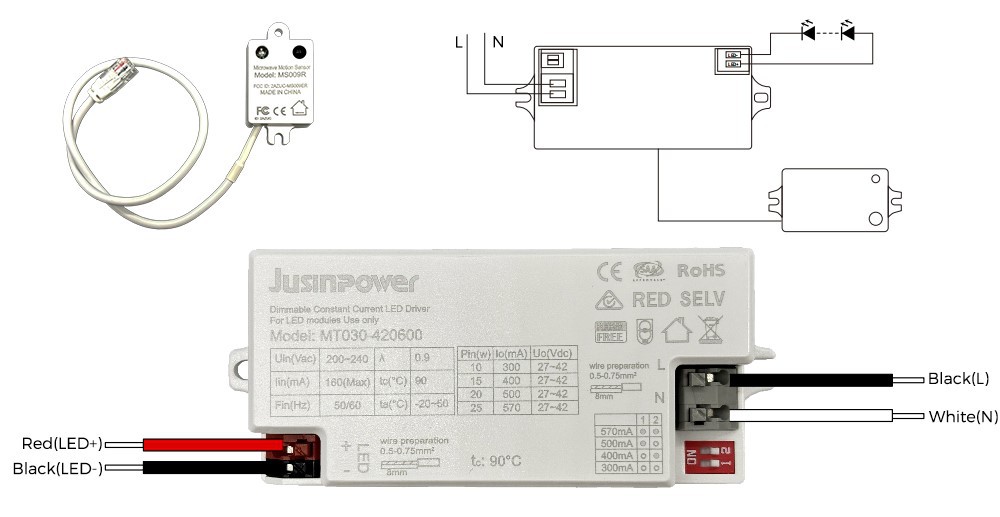

Wiring Diagram
The AC voltage input 180-265V. The DC output terminal. The side with 12V auxiliary interface, can be connected to smart module. Marked with positive and negative poles, is where you connect the LED light.Power can be adjusted with an
external dip switch.

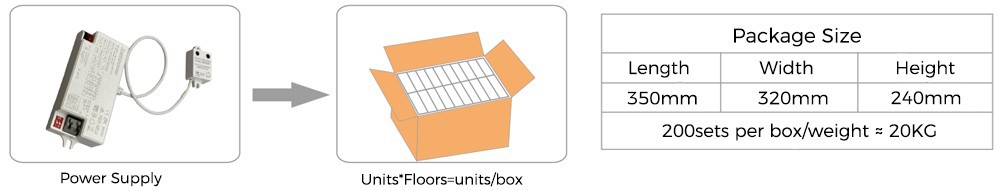

Product Packaging:
Hot Tags: tri-level dimming class 2 sensor driver with external dip switch, China tri-level dimming class 2 sensor driver with external dip switch manufacturers, suppliers, factory, 6000K Dimming, Long Strip Smart Dimming LED Driver, multipower drivers, Constant Current Sensor Driver, strip light driver, 3cct LED Driver
MT030-420600
|
Performance |
|||||||
|
Model |
MT030-420600 |
||||||
|
Input |
Voltage |
180-265Vac |
|||||
|
Frequency Range(Hz) |
50/60Hz |
||||||
|
Efficiency |
87%@230Vac full load |
||||||
|
Power Factor |
≥ 0.9@180Vac/60Hz,full load |
||||||
|
≥ 0.9@230Vac/60Hz,full load |
|||||||
|
≥ 0.9@265Vac/60Hz, full load |
|||||||
|
THD (Full Load) |
<10 %@180Vac full load |
||||||
|
AC Current (Max) |
0.14A@180Vac full load |
||||||
|
Standby Power |
<1W |
||||||
|
Inrush Current (Cold Engine Start) Max |
180V 20A peak,500us duration(10% Ipeak) |
||||||
|
230V 25A peak,600us duration(10% Ipeak) |
|||||||
|
265V 35A peak,800us duration(10% Ipeak) |
|||||||
|
Leakage Current (Max) |
<0.15mA@265V |
||||||
|
Output |
Current (mA)/Voltage (Vdc) Power (W) |
30-42Vdc/600mA/21W |
|||||
|
Current Ripple
|
<5% |
||||||
|
Channel |
1 output channel |
||||||
|
Linear Regulation |
±5% |
||||||
|
No-Load Output Voltage |
<50V |
||||||
|
Start Time
|
<0.5S@265V ＜1S@180V |
||||||
|
Auxiliary voltage |
12V/100mA |
||||||
|
Function |
Dimming method |
5V PWM |
|||||
|
Dimming current |
/ |
||||||
|
Dimming range |
10%-100%(standard) |
||||||
|
Adjust power |
Fourth gear dip |
||||||
|
Protection |
Over Temperature |
/ |
|||||
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
||||||
|
Short Circuit |
Enter hiccup mode and return to normal after release |
||||||
|
Size |
|||||||
|
Length |
115 mm |
||||||
|
Width |
46mm |
||||||
|
Height |
23mm |
||||||
|
Mounting Length |
105g |
||||||
|
Weight (g) |
100g |
||||||
|
Environmental |
|||||||
|
Safety Standard |
EN61347 |
||||||
|
CE |
EN61347 |
||||||
|
Operating Temperature |
-20°C to 50°C |
||||||
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
||||||
|
Warranty Tc |
50000Hour (s)@TC:80℃ |
||||||
|
Surge Protection |
L-N 500V |
||||||
|
Ip Rating |
/ |
||||||
|
Material |
/ |
||||||
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Power Regulation |
Efficiency |
|
MT030-420600 (flicker free) |
21W |
180-265Vac |
30-42Vdc |
600mA |
0.9 |
Adjustable |
87% |
|
MT030-420720 |
26W |
180-265Vac |
30-42Vdc |
720mA |
0.9 |
Adjustable |
88% |
Inspection

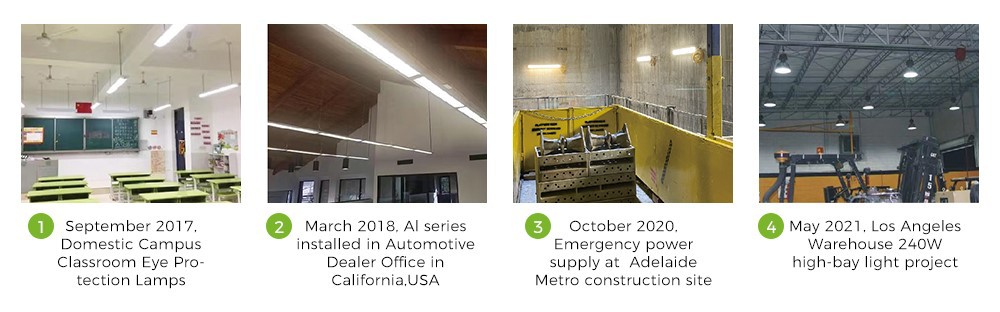

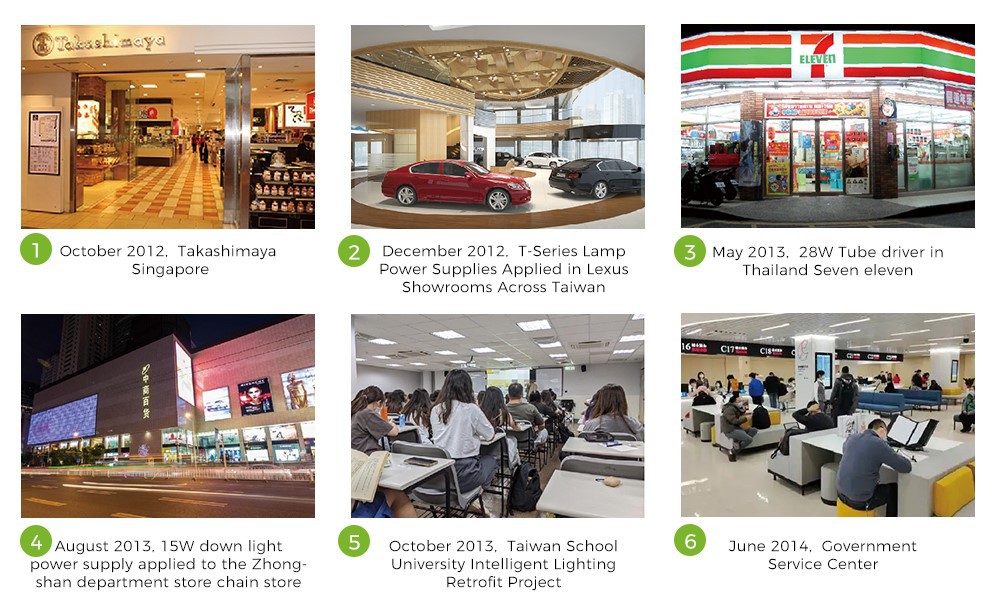

Successful Cases
