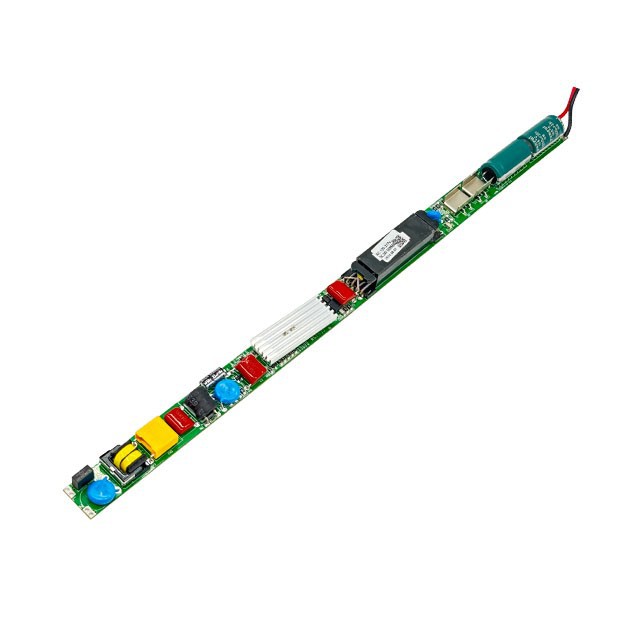

High PF Slim Size Open Frame CV LED Driver
This open-frame, bare-board 24V LED driver provides reliable constant voltage output, ensuring stable performance for a variety of applications. Built with high-quality components, it delivers exceptional durability and long-term reliability. Its slim design allows for easy installation, especially in confined spaces.
1.Open-frame 24V LED driver
2. Reliable constant voltage output
3. Stable performance
4.Easy installation, especially in confined spaces
Top Features and Benefits:
Input 120-277Vac
24V Constant
Voltage Output
Ultra-thin size
High PF & Low THD
3 Years Warranty
Application Scenario:
Architectural and Landscape Lighting: They are used in decorative and landscape lighting projects, such as building facades, bridges, garden paths, and indoor/outdoor decorative lighting. The 24V constant voltage driver provides a stable power supply for LED strips and flexible neon light strips.
Product Details:

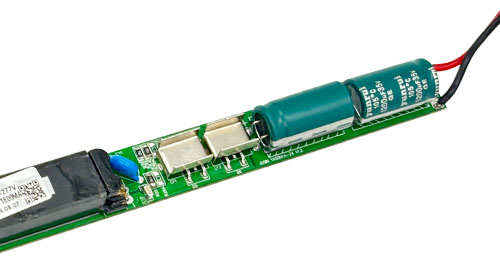

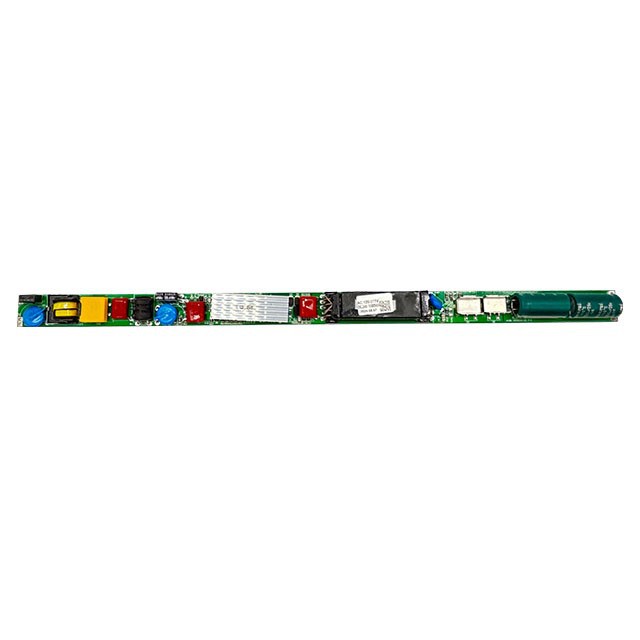

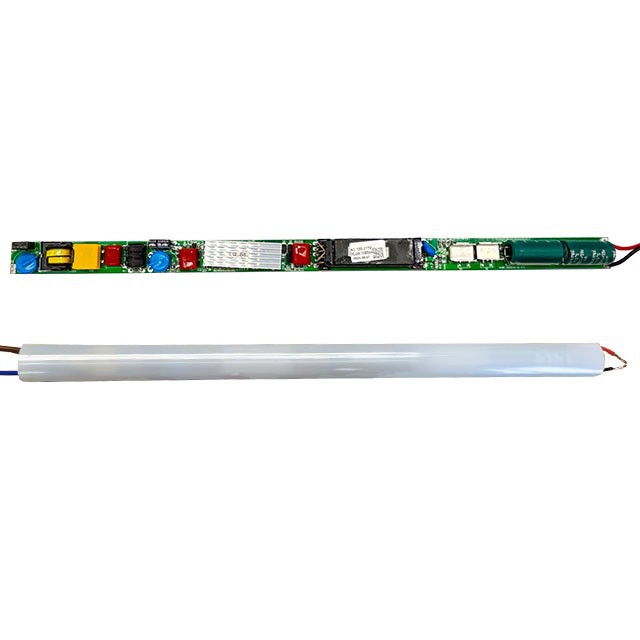

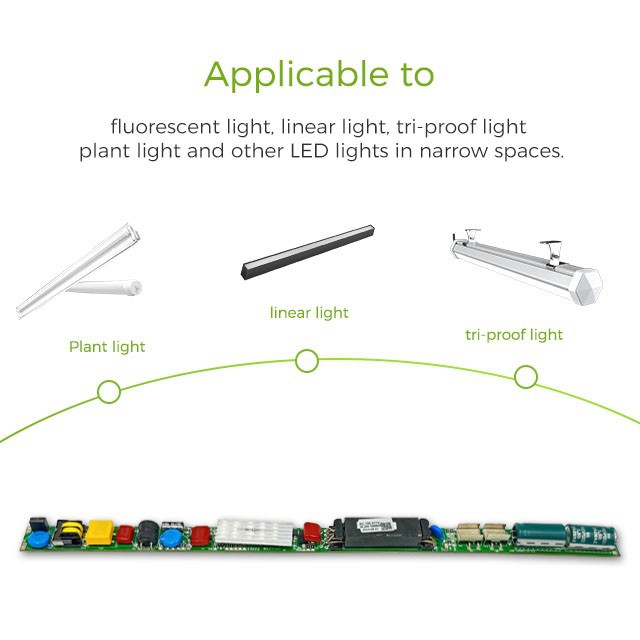

24V constant voltage driver that is small, powerful, and has a maximum output power of 50W. It is appropriate for usage in small spaces with linear lighting fixtures.

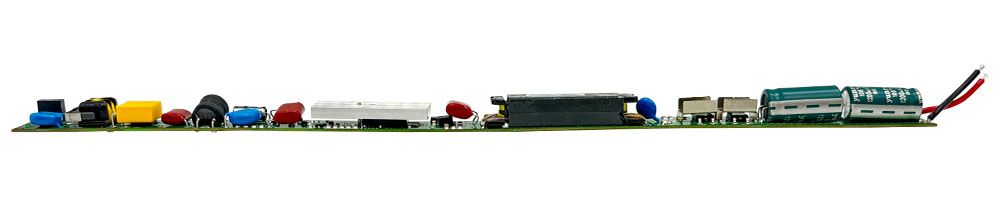

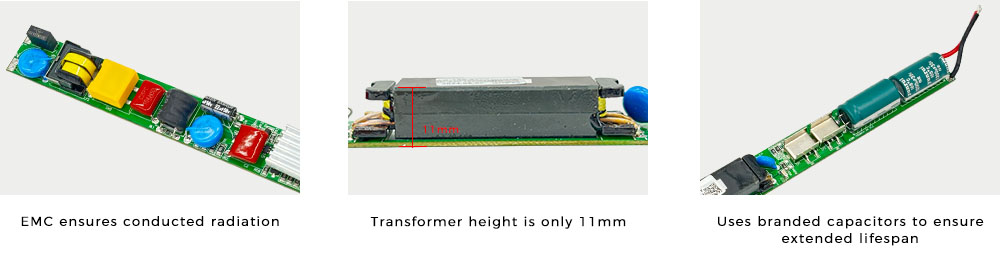

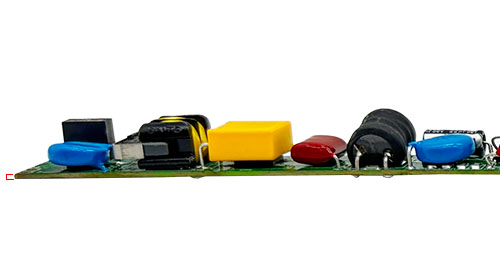

| uses durable electrolytic capacitors and high-quality parts. | The thickness of the copper foil is about one ounce. |
 |
 |

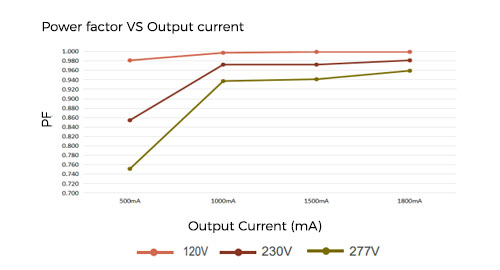

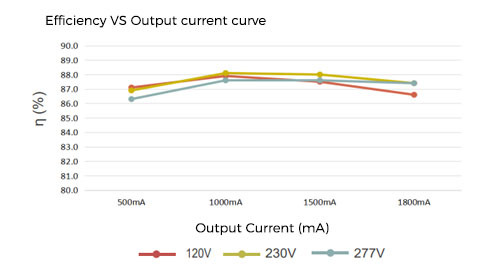

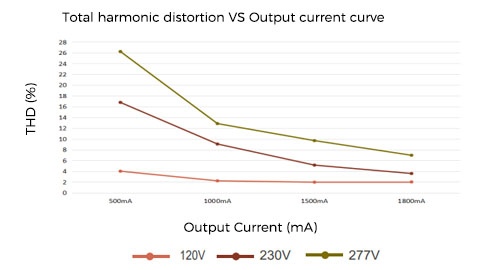

Electrical Curve Diagram:
Test at Ta 25℃, the output voltage is 24V, and the current is 500mA to1800mA

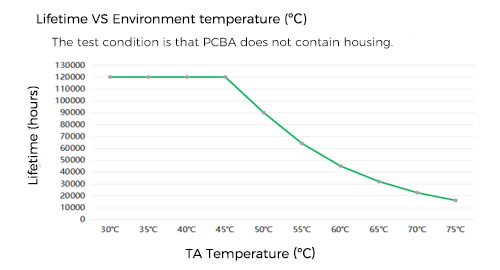

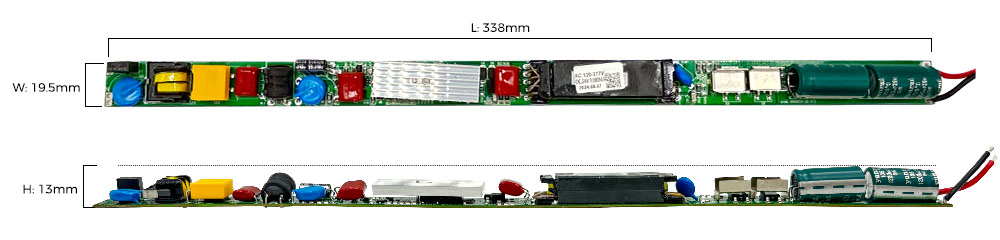

Dimension(mm):
Length: 338mm Width: 19.5mm Height: 13mm

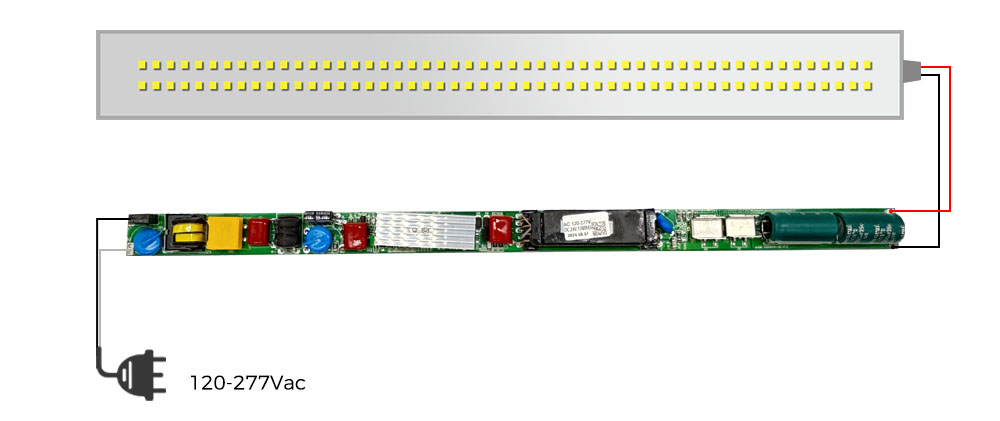

Wiring Instructions：
The AC input terminal is linked to the mains (120-277Vac), with the brown and blue wires of the input attached to N and L, respectively. The other terminal is the DC output terminal, to which the positive and negative LED lights are connected. Red wire is connected to LED +, and black wire is connected to LED -.

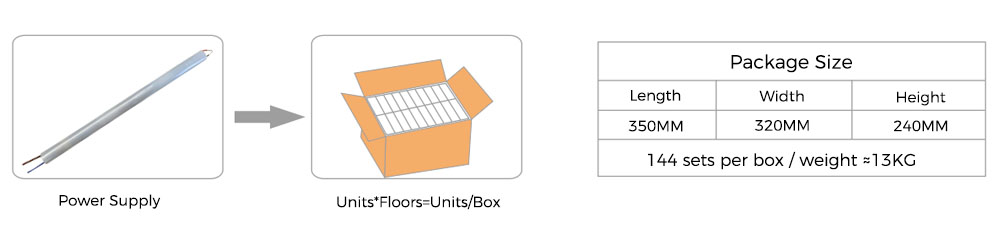

Product Packaging:
Hot Tags: high pf slim size open frame cv led driver, China high pf slim size open frame cv led driver manufacturers, suppliers, factory, Strip smart dimming, smart dimmer for led lights, minicontroller, SAA certification, sensor module, no strobe flash
YX50N1A
|
Performance |
||
|
Model |
YX50N1A-24 |
|
|
Input |
Voltage |
120-277Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
86%@120Vac full load |
|
|
87%@230Vac full load |
||
|
87%@277Vac full load |
||
|
Power Factor |
≥ 0.9@120Vac/60Hz(10-100 %) full load |
|
|
≥ 0.9@230Vac/50Hz(30-100 %) full load |
||
|
≥ 0.9@277Vac/60Hz(45-100 %) full load |
||
|
THD (Full Load) |
<10 %@120Vac (10-100 %) full load |
|
|
<20 %@230Vac (40-100 %) full load |
||
|
<20 %@277Vac (65-100 %) full load |
||
|
AC Current (Max) |
0.41A@120Vac full load |
|
|
0.21A@230Vac full load |
||
|
0.18A@277Vac full load |
||
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
120V 20A peak,500us duration(10% Ipeak) |
|
|
230V 25A peak,600us duration(10% Ipeak) |
||
|
277V 35A peak,800us duration(10% Ipeak) |
||
|
Leakage Current (Max) |
<0.5mA@277V |
|
|
Output |
/Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/1800mA/43W CV |
|
Ripple Voltage
|
<3% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<0.5S@277V ＜1S@120V |
|
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
338 mm |
|
Width |
19.5mm |
|
Height |
13 mm |
|
Weight (g) |
78.5g |
|
Environmental |
|
|
Safety Standard |
UL8750 ,Class2 |
|
EMC |
Conform to FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|
Environmental temperature |
Ta=50℃ |
|
Warranty Tc |
50000Hour (s)@TC:＜75℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Meet |
|
YX50N1A-24 |
50W |
120-277Vac |
24V |
1800mA |
0.9 |
87% |
L338*W19.5*H13 |
UL,FCC,CE |

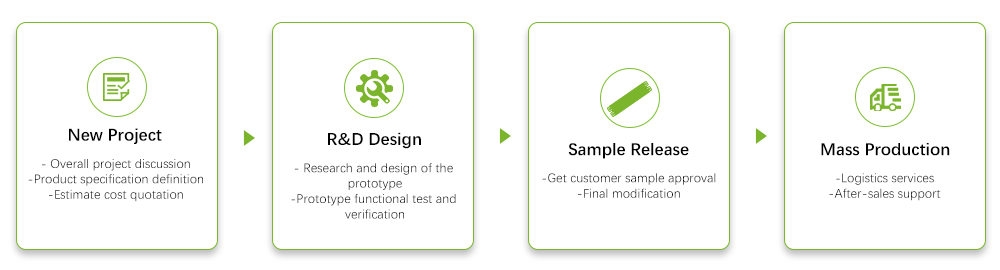

OEM/ODM
Jusinpower team has been specializing in the design and manufacturing services of LED driver and customized products for 12 years. We can provide OEM&ODM service. According to the customer's lamp structure, required functions, parameters, certification, etc., we provide a full set of design, manufacturing and after-sales services.
Warranty
Our products all come with3-year warranty or 5-year warranty, so you don’t have to worry about any service quality issues.
