24V Constant Voltage Single Output LED Driver
This 24V, 50W non-dimmable LED driver is designed with a slim size, making it ideal for installation in narrow spaces. Its single-output configuration ensures reliable performance in various lighting setups. This driver offers efficient power delivery, providing a compact and practical solution for lighting systems where space is limited.

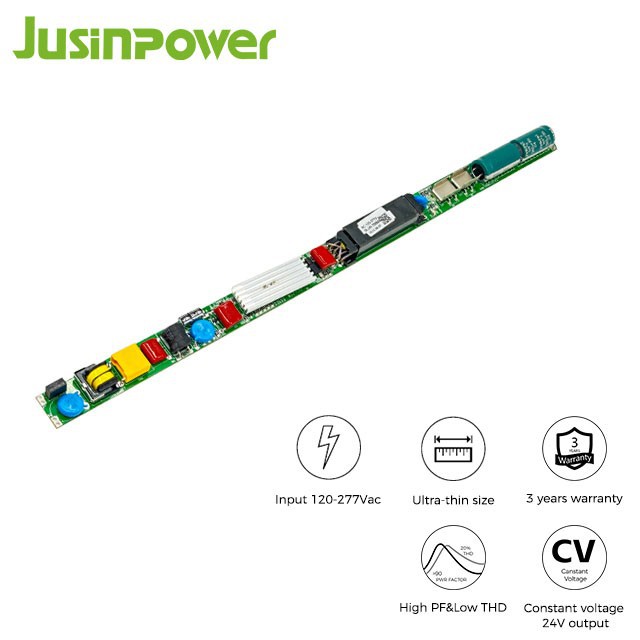

Top Features and Benefits:
Input 120-277Vac
24V Constant
Voltage Output
Ultra-thin size
High PF & Low THD
3 Years Warranty
Application Scenario:

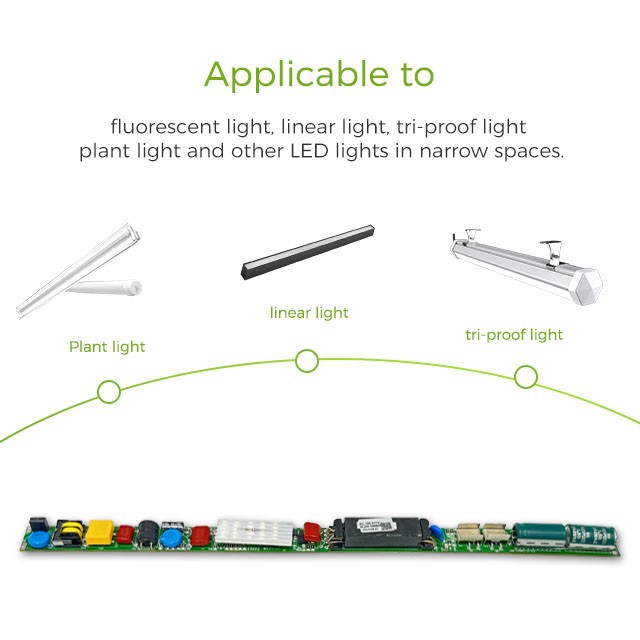

LED Strips and Tubes: 24V constant voltage drivers are widely used to power various types of LED strips and LED tubes (such as constant voltage T5, T8 LED tubes). These lights are commonly used in indoor lighting, commercial lighting, cabinet lighting, and showcase lighting.
Product Details:

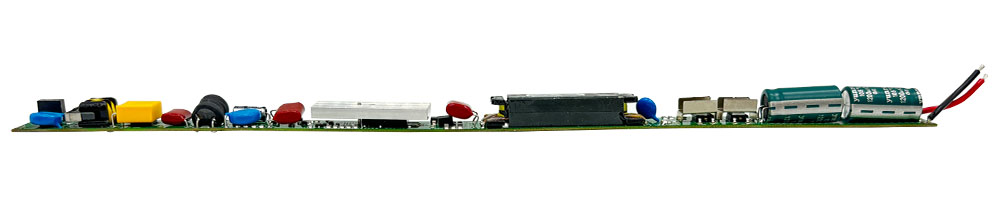

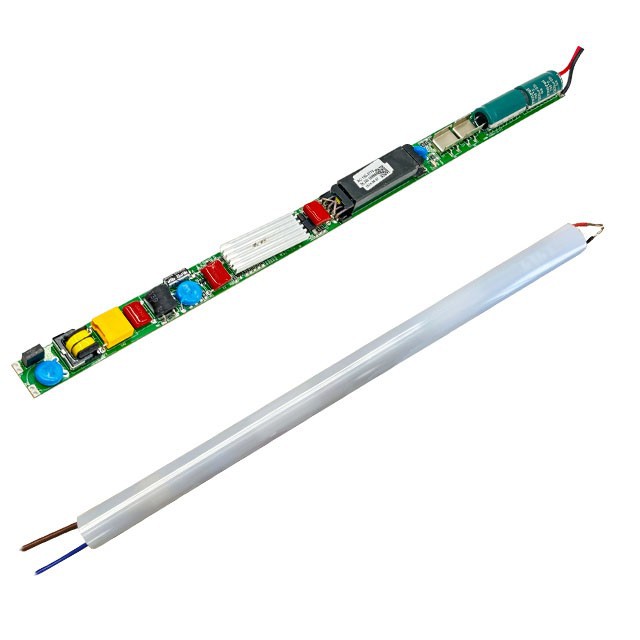

A compact and high-performance 24V constant voltage driver with a maximum output power of 50W, ideal for use in linear lighting fixtures within tight or limited spaces.
|

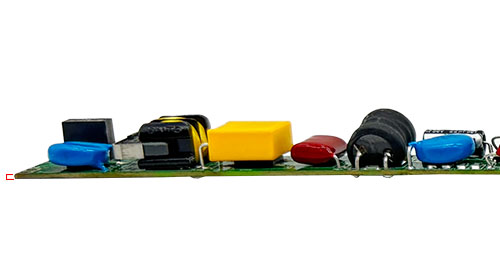

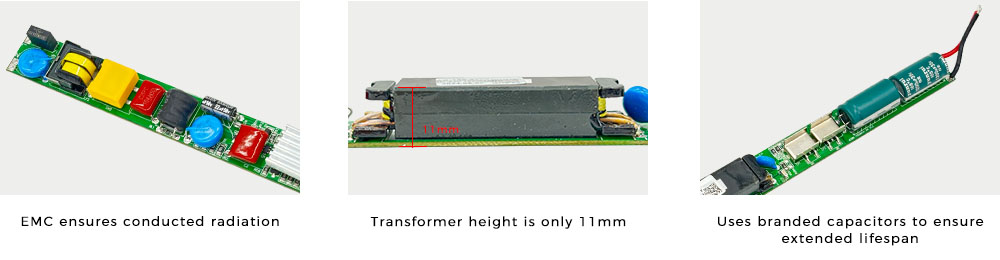

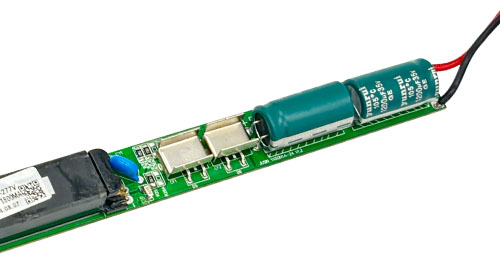

uses durable electrolytic capacitors and high-quality parts. |
The thickness of the copper foil is about one ounce. |
 |
 |

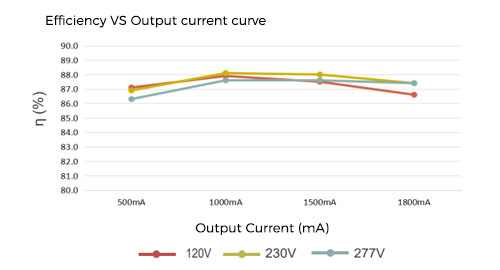

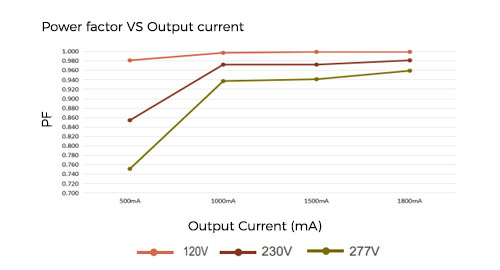

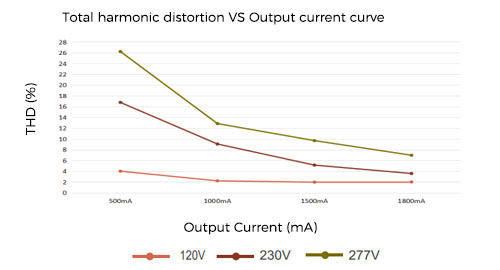

Electrical Curve Diagram:
Test at Ta 25℃, the output voltage is 24V, and the current is 500mA to1800mA

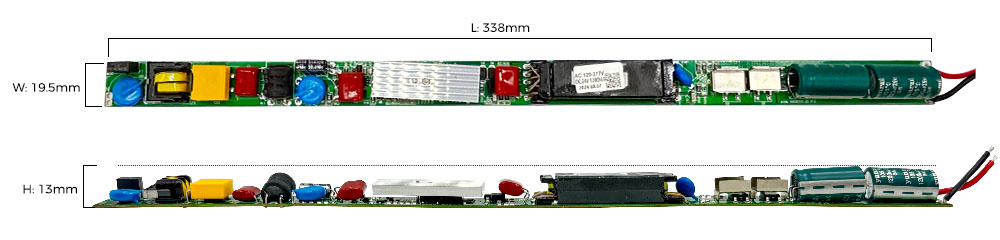

Dimension(mm):
Length: 338mm Width: 19.5mm Height: 13mm
Wiring Instructions：

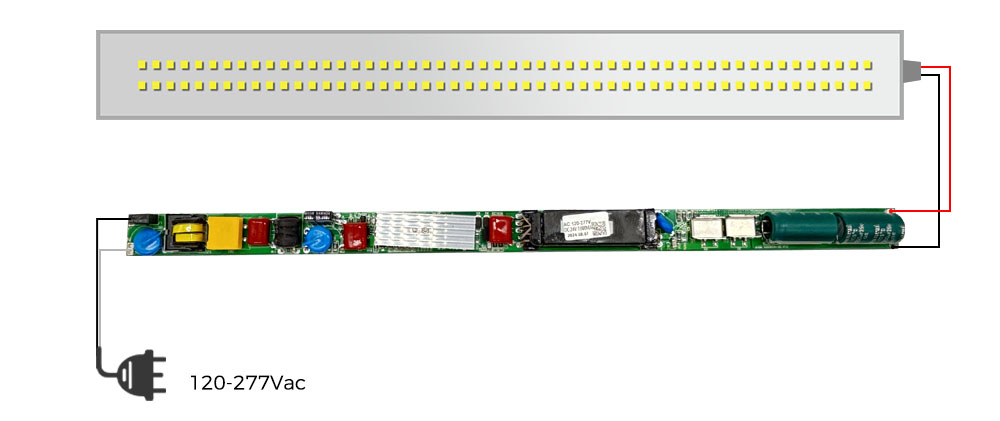

AC input terminal, the terminal is connected to the mains (120-277Vac), the input blue wire connected to N, brown wire connected to L. The other terminal is the DC output terminal red wire connected to the LED +, black wire connected to the LED -, respectively, with the positive and negative LED lights connected.

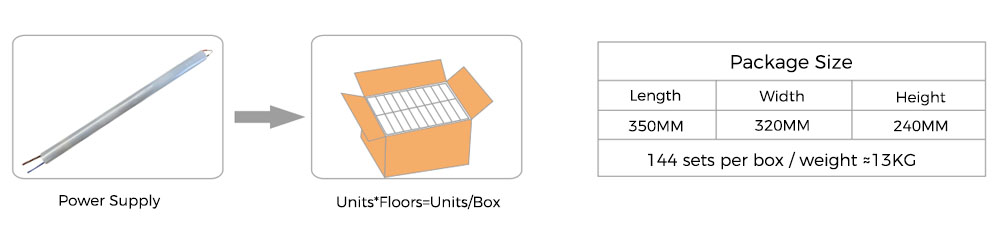

Product Packaging:
Hot Tags: 24v constant voltage single output led driver, China 24v constant voltage single output led driver manufacturers, suppliers, factory, 100-347Vac, wifi led driver, 5 CCT LED Driver, efficiency 92 , Double DIP Power Adjustment Constant Current LED Driver, 1500mA
YX50N1A
|
Performance |
||
|
Model |
YX50N1A-24 |
|
|
Input |
Voltage |
120-277Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
86%@120Vac full load |
|
|
87%@230Vac full load |
||
|
87%@277Vac full load |
||
|
Power Factor |
≥ 0.9@120Vac/60Hz(10-100 %) full load |
|
|
≥ 0.9@230Vac/50Hz(30-100 %) full load |
||
|
≥ 0.9@277Vac/60Hz(45-100 %) full load |
||
|
THD (Full Load) |
<10 %@120Vac (10-100 %) full load |
|
|
<20 %@230Vac (40-100 %) full load |
||
|
<20 %@277Vac (65-100 %) full load |
||
|
AC Current (Max) |
0.41A@120Vac full load |
|
|
0.21A@230Vac full load |
||
|
0.18A@277Vac full load |
||
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
120V 20A peak,500us duration(10% Ipeak) |
|
|
230V 25A peak,600us duration(10% Ipeak) |
||
|
277V 35A peak,800us duration(10% Ipeak) |
||
|
Leakage Current (Max) |
<0.5mA@277V |
|
|
Output |
/Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/1800mA/43W CV |
|
Ripple Voltage
|
<3% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<0.5S@277V ＜1S@120V |
|
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
338 mm |
|
Width |
19.5mm |
|
Height |
13 mm |
|
Weight (g) |
78.5g |
|
Environmental |
|
|
Safety Standard |
UL8750 ,Class2 |
|
EMC |
Conform to FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|
Environmental temperature |
Ta=50℃ |
|
Warranty Tc |

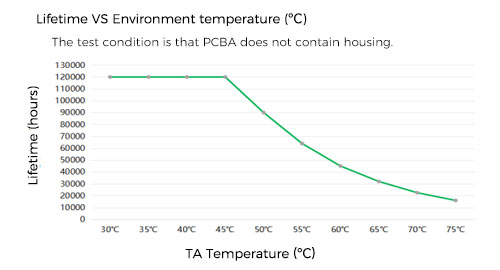

50000Hour (s)@TC:＜75℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Meet |
|
YX50N1A-24 |
50W |
120-277Vac |
24V |
1800mA |
0.9 |
87% |
L338*W19.5*H13 |
UL,FCC,CE |
Inspection

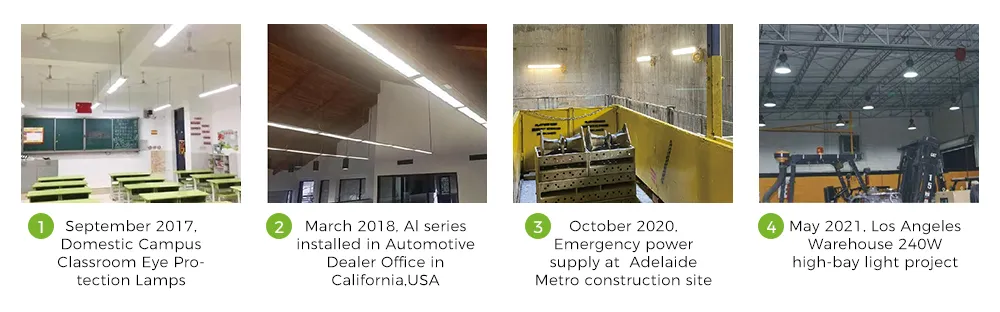

Successful Cases
Certificate
Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate.
The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, ROHS, CE, CB, SAA, FCC, CCC.
Factory

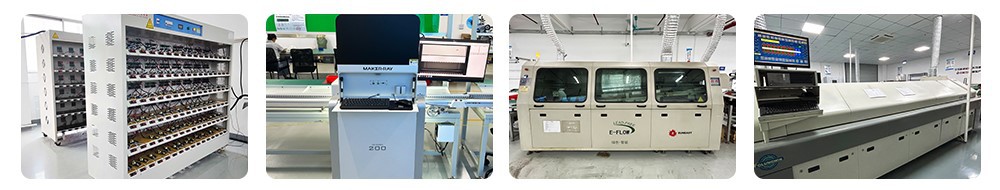

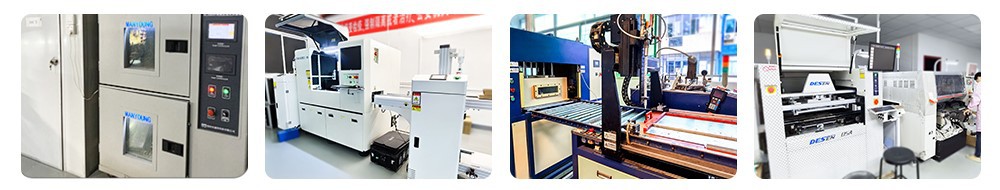

We have a 4000 square meter factory in Foshan high-tech Zone for production. At the same time, we not only have a professional R&D team of about 20 people, but also have advanced equipment to support. such as SMT Machine, Automatic Gluing Machine, Aged Vehicle, Reflow Solder and so on. The production line of about 80 people, able to reach 1 million shipments per year!
|
