High PF 0.9 Constant Voltage LED Driver
This driver has both high efficiency and stability. The use of high power factor drivers can reduce reactive power loss in the power grid, reduce current demand, improve the stability and efficiency of the power grid, and provide stable power output. It is very suitable for applications in areas with high requirements for power quality. High power factor constant voltage drivers are widely used in LED lamps and lighting equipment to ensure that the equipment can maintain stable light output while being highly efficient and energy-saving.
Top Features and Benefits:
|
|
|
|
|
| Input 200-240Vac |
Ultra-thin size |
Constant voltage |
High PF & Low THD |
1. High PF, High efficiency reliability & flexibility
2. 36w constant voltage led driver
3.Compact and slender size
4.IP20-rated

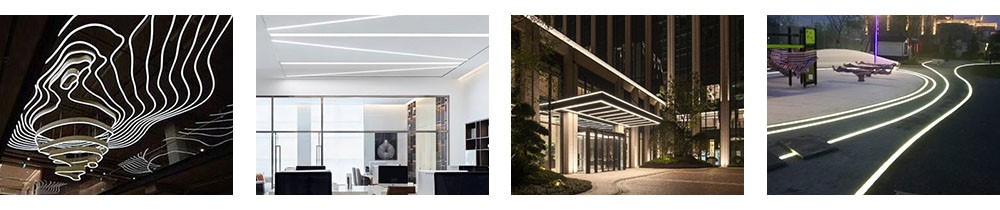

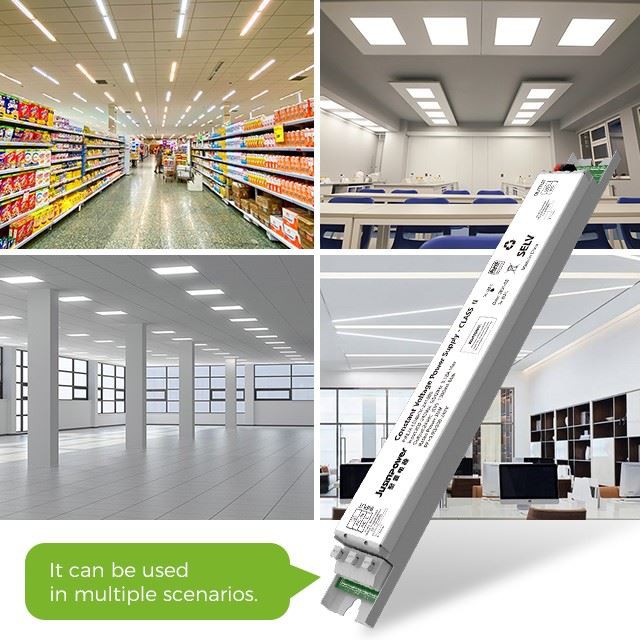

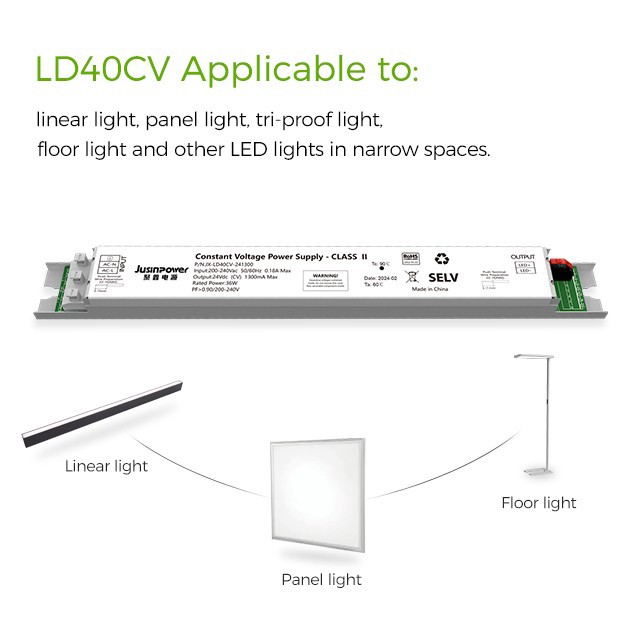

Application Scenario:
Applicable to constant voltage LED lamps, such as LED light strips and linear lamps, to ensure the brightness consistency of the lamps in the whole system.

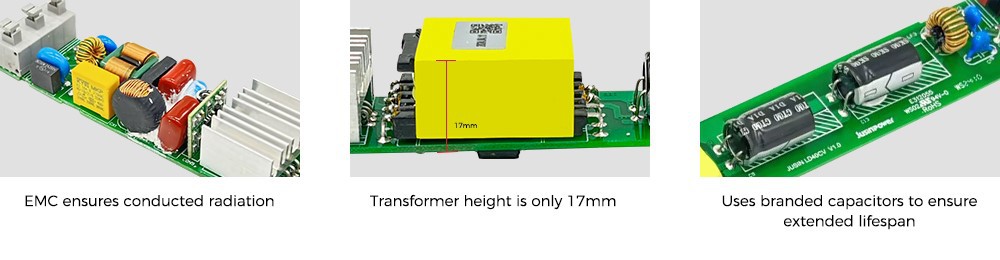

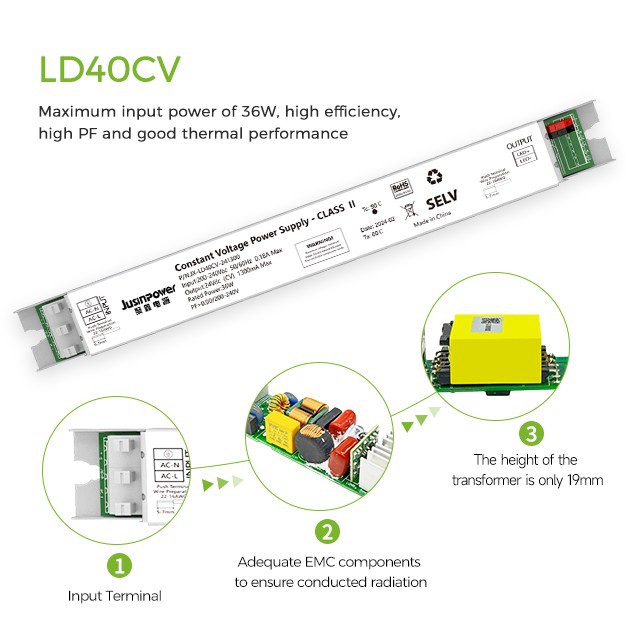

Product Details:
Linear design: The power supply adopts a slender strip design, which is easy to install in a small space or linear lamp, optimizing space utilization.

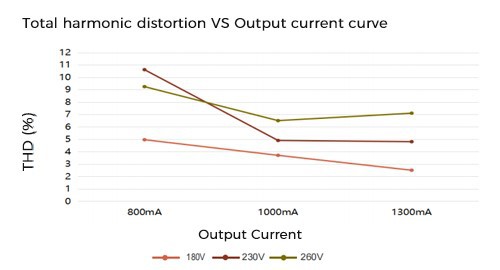

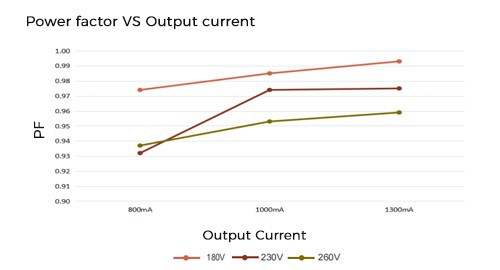

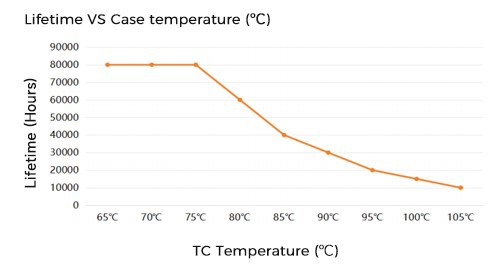

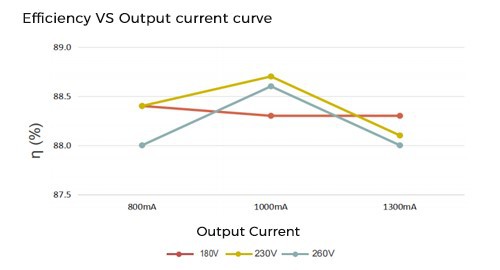

Electrical Curve Diagram:
Test at Ta 25℃, the output voltage is 24V, and the current is 800mA to1300mA

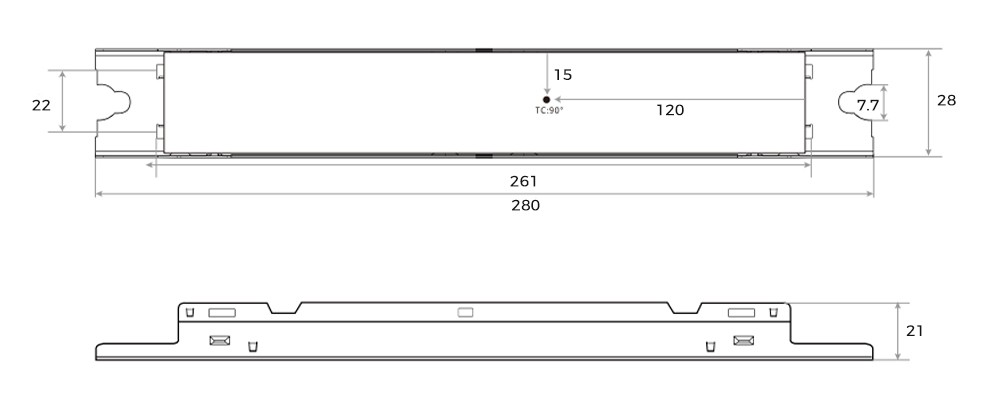

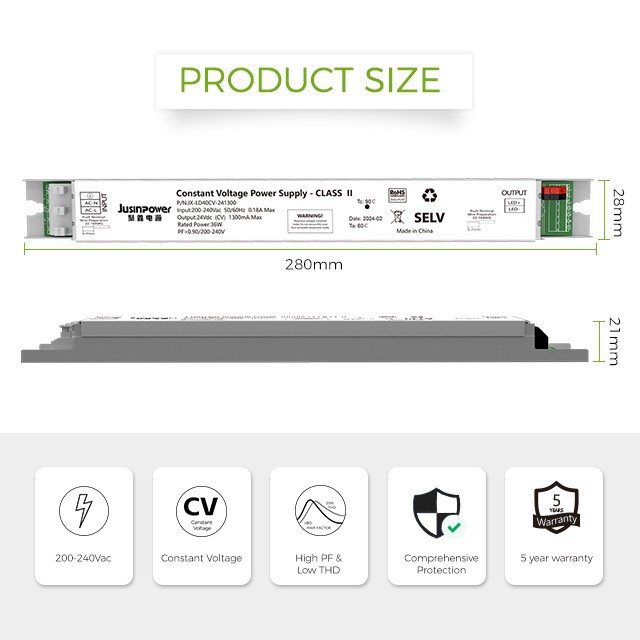

Dimension(mm):
Length: 280mm Width: 28mm Height: 21mm

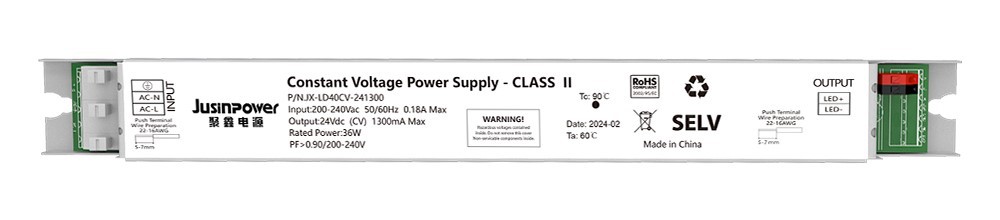

Product Label:
To ensure the product's safety and efficacy during installation and usage, users can find comprehensive wiring instructions and basic specification information on the product label.

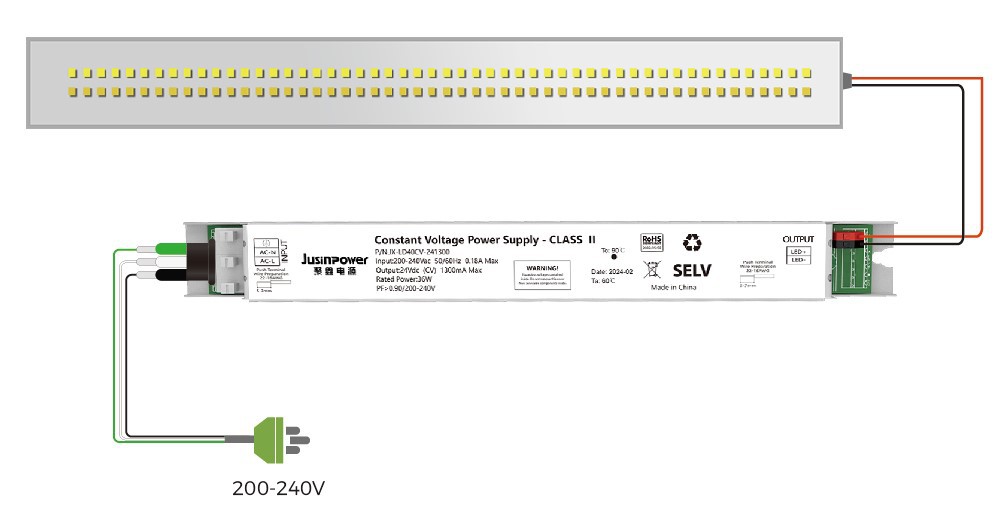

Wiring Instructions：
AC input terminal, this terminal is connected to the mains power(200-240Vac), and the other terminal is the DC output terminal + and -, which are connected to the positive and negative poles of the LED light respectively.

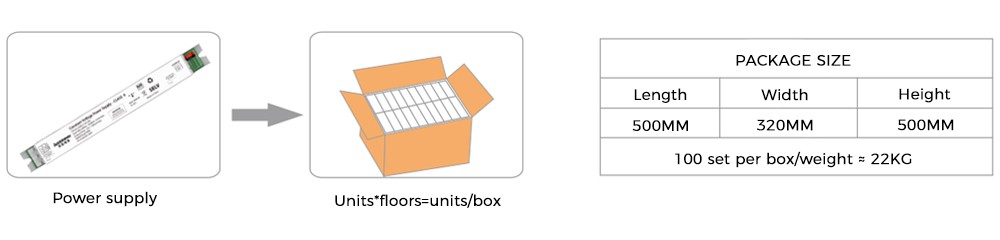

Product Packaging:
Hot Tags: high pf 0.9 constant voltage led driver, China high pf 0.9 constant voltage led driver manufacturers, suppliers, factory, 6000K highlight, Long Strip Smart Dimming LED Driver, 0 10v dimming ac or dc, Suitable for narrow assembly spaces, Bipolar Flicker Free Sensor Driver, professional casambi
LD40CV
|
Performance |
||
|
Model |
LD40CV-241300 |
|
|
Input |
Voltage |
200-240Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
88%@230Vac full load |
|
|
Power Factor |
≥0.9@230Vac full load |
|
|
THD (Full Load) |
<20 %@230Vac full load |
|
|
AC Current (Max) |
0.18A@230Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
230V 25A peak,600us duration(10% Ipeak) |
|
|
Leakage Current (Max) |
<0.5mA |
|
|
Output |
Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/1300mA/44.4W Max CV |
|
Ripple Voltage
|
<30% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<1S@230V |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
280 mm |
|
Width |
28mm |
|
Height |
21 mm |
|
Weight (g) |
210g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|
Case temperature |
TC=50℃ |
|
Warranty Tc |
50000Hour (s)@TC:＜80℃ |
|
Surge Protection |
L-N 1KV L/N-FG 2 KV |
|
Ip Rating |
IP20 |
|
Shell Material |
Ironclad |
|
Series Driver |
|
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Meet with |
|
LD40CV-241300 |
36W |
200-240Vac |
24V |
1300mA |
0.9 |
88% |
L280*W28*H21 |
UL,FCC,CE,ROHS |
Inspection
Jusinpower has more than 10 years of experience in designing and manufacturing lighting power supply. Our matured verification process and through QC control system will ensure your products are sustainable and high-quality. Moreover, our experienced engineers and persevered sales representatives will be the best backup team for your company.

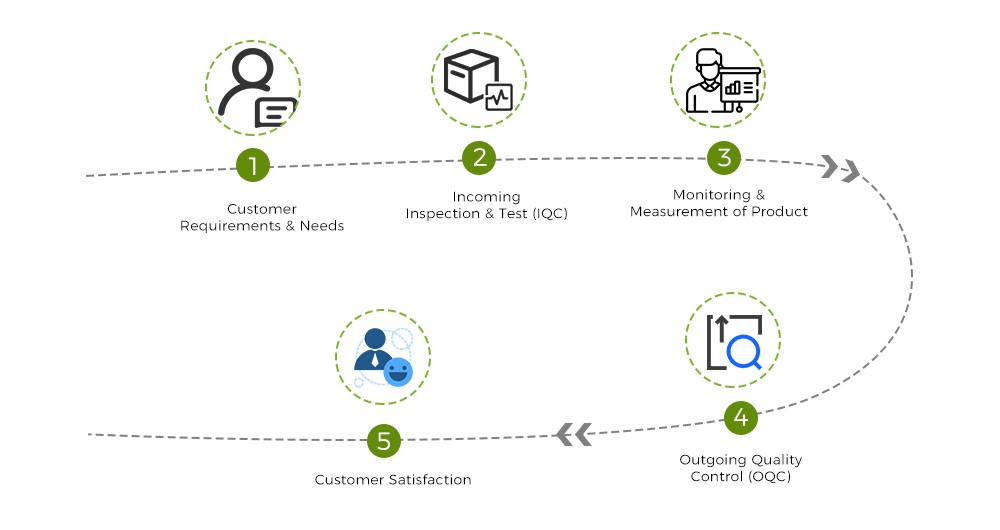

QC Process Flow Chart
Advantage
|
CUTTING-EDGE Shenzhen JUSIN Technology Co, Ltd, established in2012,is a national high-tech enter-is a national high-tech enter-development, production,sales and service of LED driver. |
RELIABLE A reliable partner that delivers outstanding and solid LED outstanding and driver power.
|
PROFESSIONAL A professional and experienced R&D and guaranteed the excellent products.
|
Certificate
Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate.
The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, ROHS, CE, CB, SAA, FCC, CCC.
