High Efficiency Constant Voltage 24V 36W LED Driver
24V 36W constant voltage driver with high efficiency up to 88% is an efficient, stable and reliable power supply device. With excellent power conversion efficiency and multiple protection functions, it is suitable for various application scenarios with high requirements on power quality, especially in the field of LED lighting.
Top Features and Benefits:
|
|
|
|
|
| Input 200-240Vac |
5 years warranty |
Constant voltage |
High PF & Low THD |
1.High efficiency up to 88%
2. Multi-Scene Application
3. High PF & Low THD
4.Suitable for Class II light fixtures

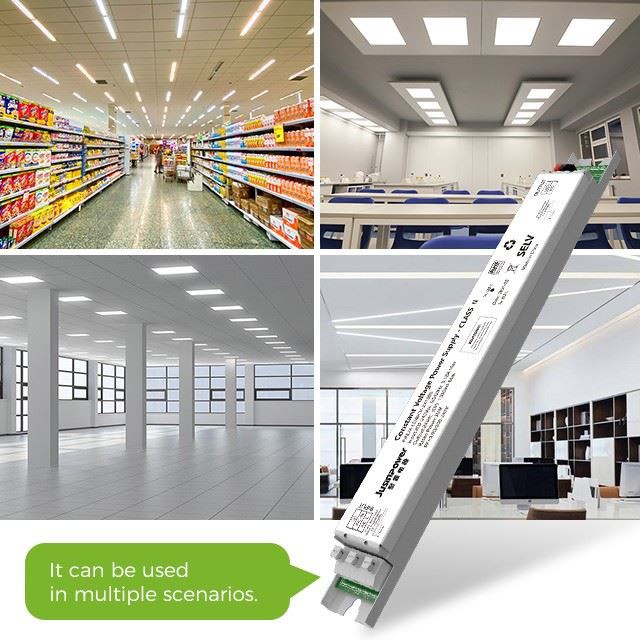

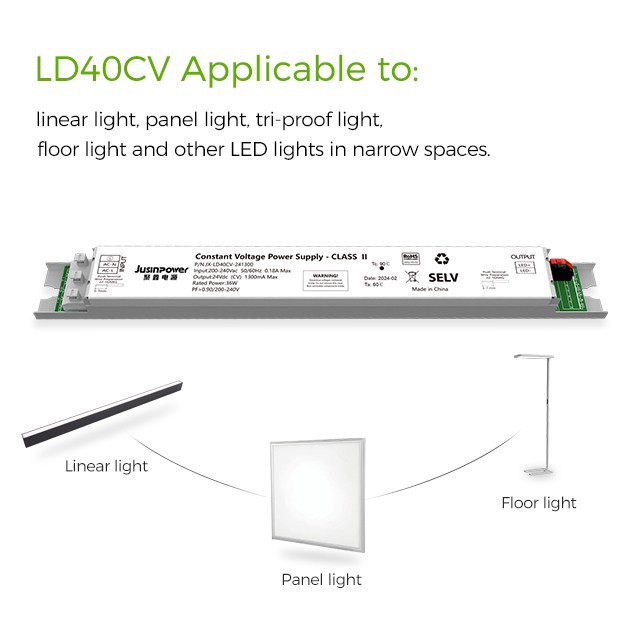

Application Scenario:

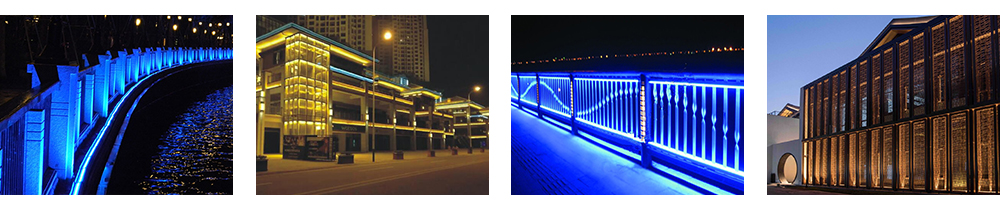

The constant voltage power supply provides a stable 24V or 12V voltage for the LED light strip, ensuring the brightness consistency and long life of the light strip, which is widely used in home decoration, architectural lighting and commercial space.
Product Details:

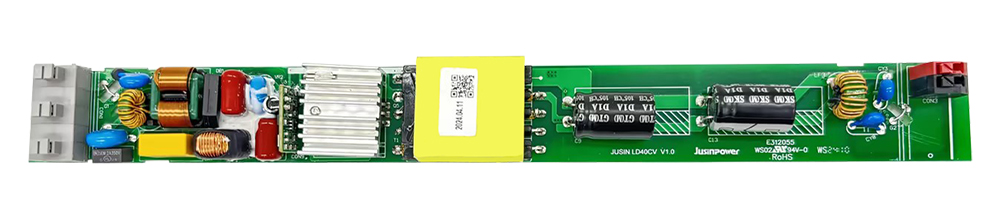

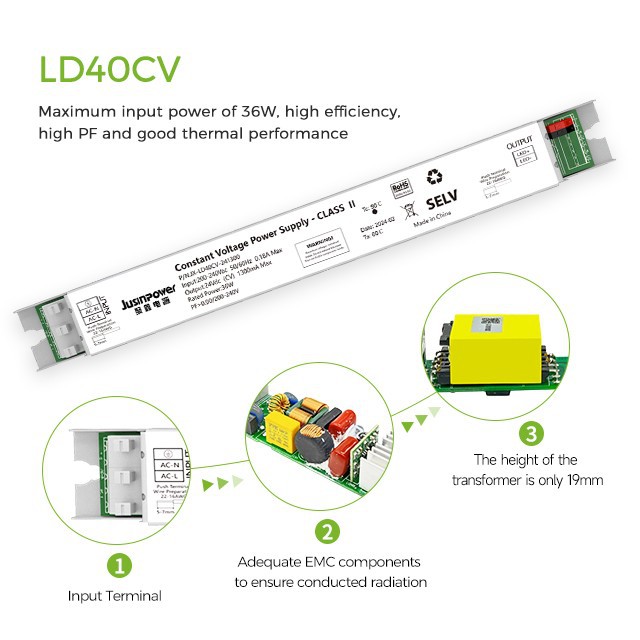

Sufficient internal components

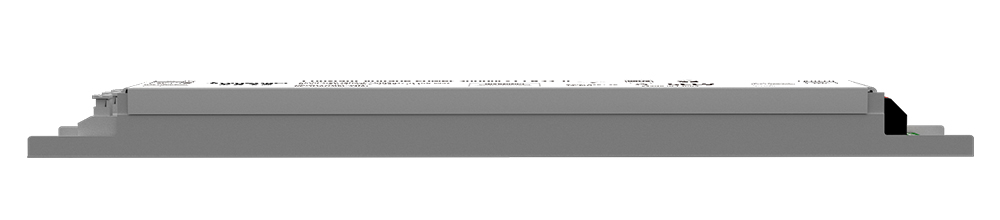

The height is only 21mm, suitable for small spaces
Linear design: The power supply adopts a slender strip design, which is easy to install in a small space or linear lamp, optimizing space utilization.

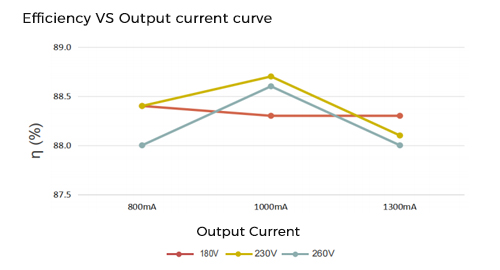

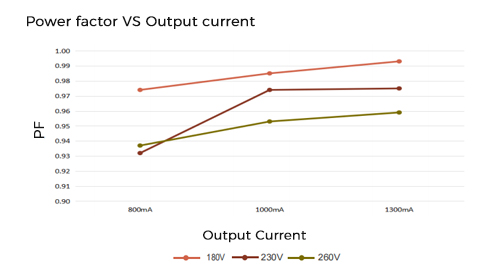

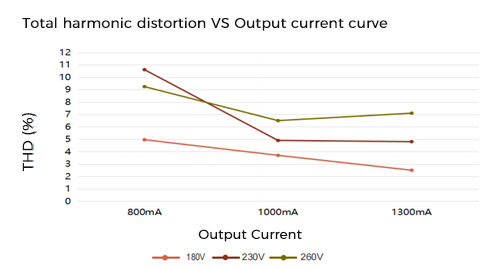

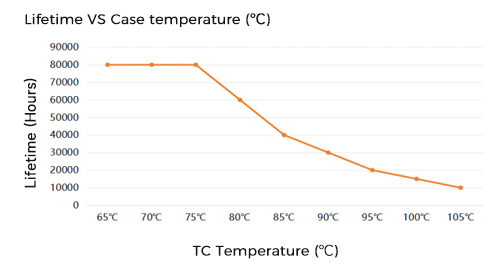

Electrical Curve Diagram:
Test at Ta 25℃, the output voltage is 24V, and the current is 800mA to1300mA

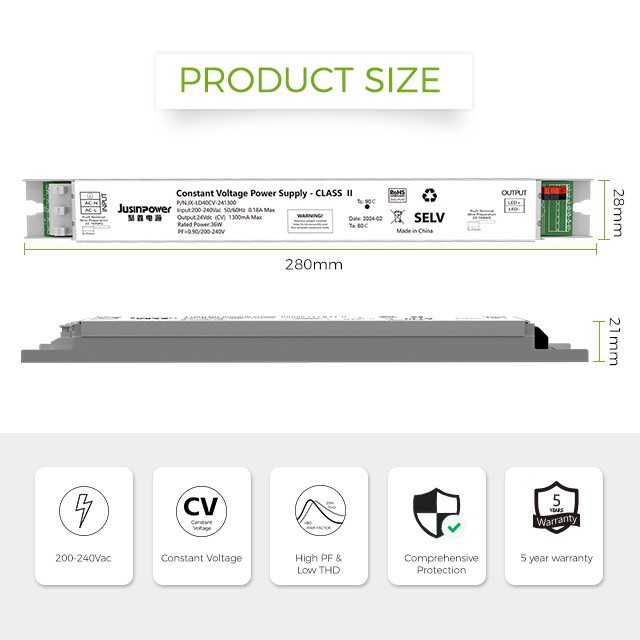

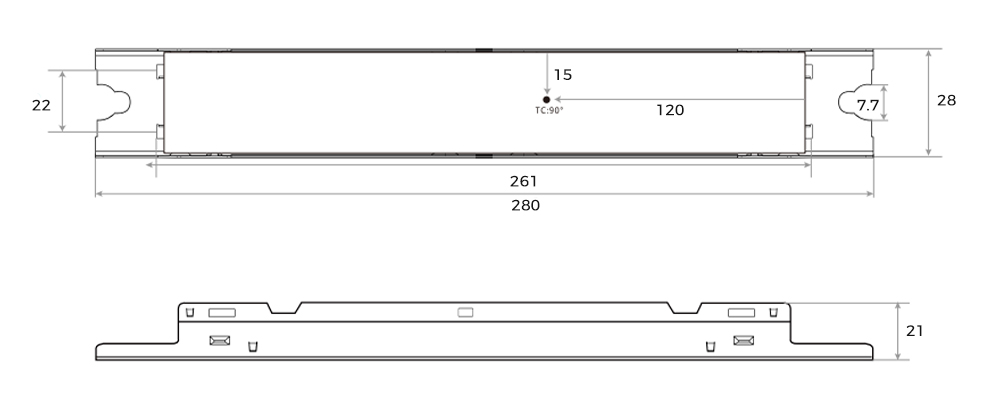

Dimension(mm):
Length: 280mm Width: 28mm Height: 21mm

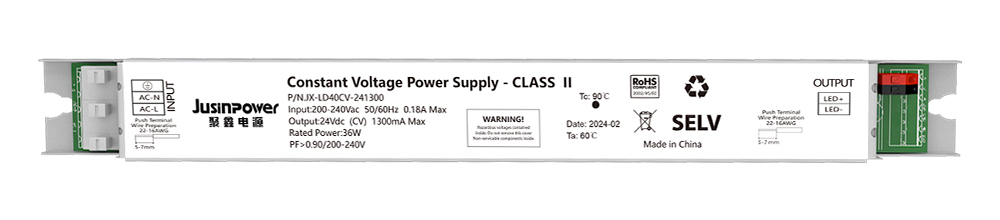

Product Label:

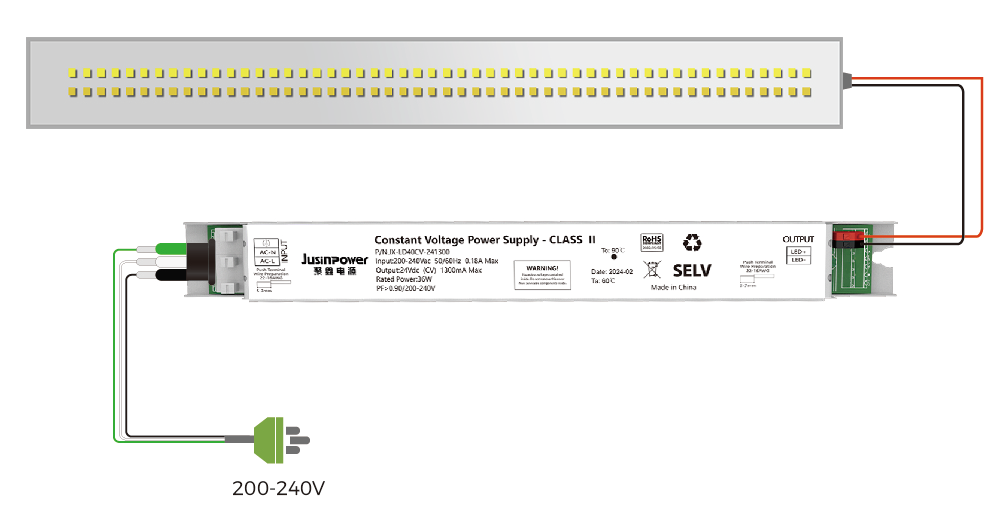

Wiring Instructions：
AC input terminal, this terminal is connected to the mains power(200-240Vac), and the other terminal is the DC output terminal + and -, which are connected to the positive and negative poles of the LED light respectively.

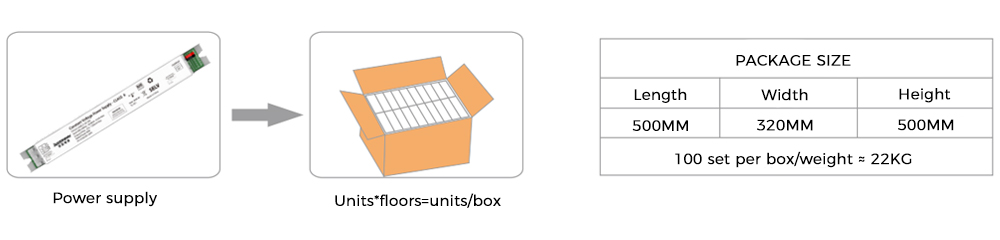

Product Packaging:
Hot Tags: high efficiency constant voltage 24v 36w led driver, China high efficiency constant voltage 24v 36w led driver manufacturers, suppliers, factory, Plant Light led Driver, motion sensor led driver, automatic led sensor light, 75W power source, Double Dial To Adjust The Color Temperature Driver, driver for led panel light
LD40CV
|
Performance |
||
|
Model |
LD40CV-241300 |
|
|
Input |
Voltage |
200-240Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
88%@230Vac full load |
|
|
Power Factor |
≥0.9@230Vac full load |
|
|
THD (Full Load) |
<20 %@230Vac full load |
|
|
AC Current (Max) |
0.18A@230Vac full load |
|
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
230V 25A peak,600us duration(10% Ipeak) |
|
|
Leakage Current (Max) |
<0.5mA |
|
|
Output |
Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/1300mA/44.4W Max CV |
|
Ripple Voltage
|
<30% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<1S@230V |
|
|
Protection |
Over Temperature |
When temperature is too high,shut down the output, return to normal after release |
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
280 mm |
|
Width |
28mm |
|
Height |
21 mm |
|
Weight (g) |
210g |
|
Environmental |
|
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|
Case temperature |
TC=50℃ |
|
Warranty Tc |
50000Hour (s)@TC:＜80℃ |
|
Surge Protection |
L-N 1KV L/N-FG 2 KV |
|
Ip Rating |
IP20 |
|
Shell Material |
Ironclad |
|
Series Driver |
|
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Meet with |
|
LD40CV-241300 |
36W |
200-240Vac |
24V |
1300mA |
0.9 |
88% |
L280*W28*H21 |
UL,FCC,CE,ROHS |

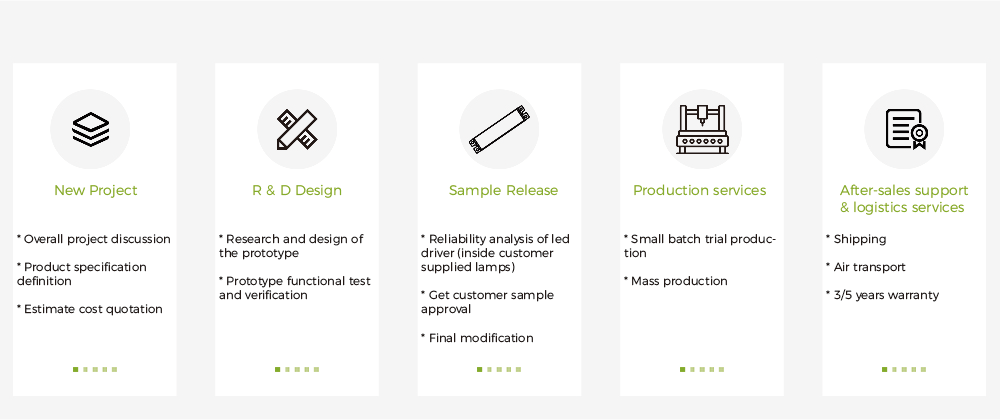

OEM/ODM
Jusinpower team has been specializing in the design and manufacturing services of LED driver and customized products for 12 years. We can provide OEM&ODM service. According to the customer's lamp structure, required functions, parameters, certification, etc., we provide a full set of design, manufacturing and after-sales services.
Certificate
Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate.
The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, ROHS, CE, CB, SAA, FCC, CCC.

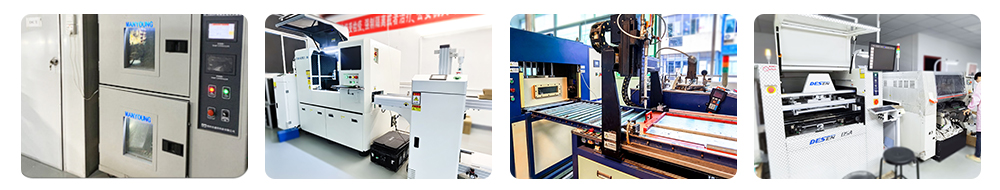

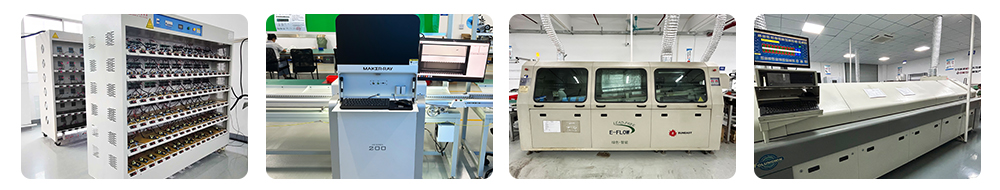

Factory
