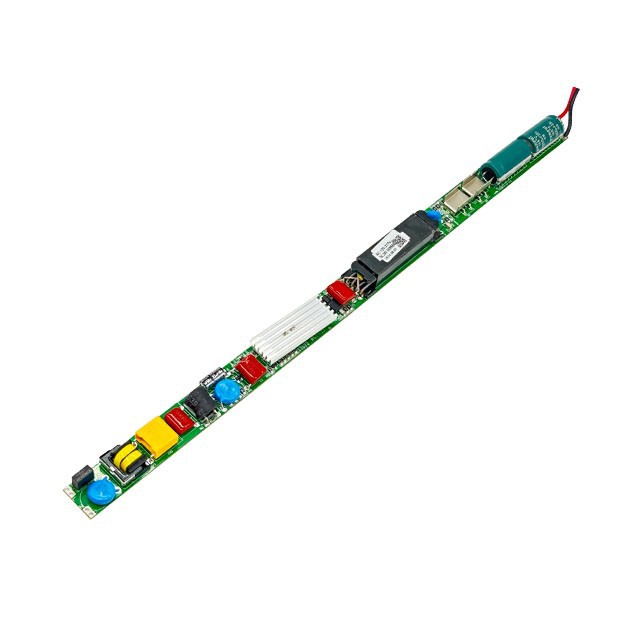

50W 24V Linear LED Driver with Plastic Casings
Linear 50w 24v LED driver with plastic casings is ideal for projects requiring a constant voltage power supply, this driver combines practicality with robust engineering to meet the demands of professional lighting systems. The straightforward open-frame design simplifies integration into various setups, making it a versatile and dependable solution for constant voltage-driven environments.
1. LED driver with plastic casings
2. 24V Constant Voltage Output
3. Input Voltage: 120-277Vac
4. Output Voltage: 24V
Top Features and Benefits:
Input 120-277Vac
24V Constant
Voltage Output
Ultra-thin size
High PF & Low THD
3 Years Warranty
Application Scenario:
Furniture and Cabinet Lighting: 24V constant voltage drivers can also be used for embedded lighting fixtures, such as LED strips in furniture or cabinet interior lighting, providing a stable power output.

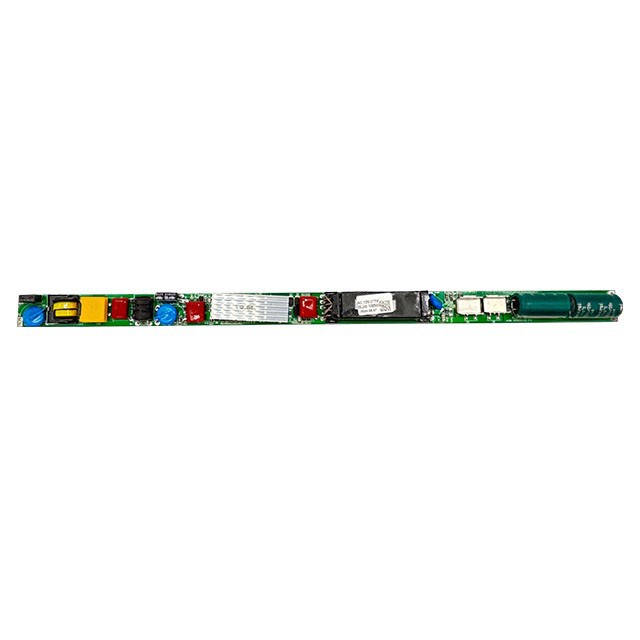

Product Details:

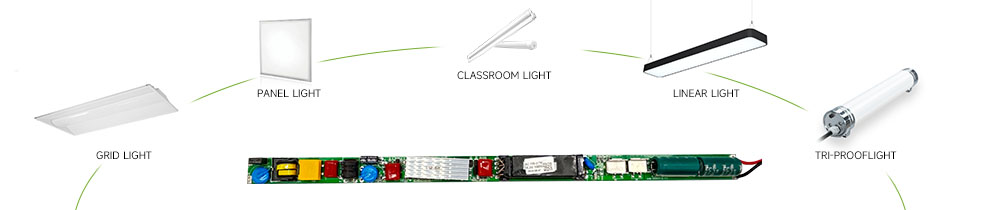

Suitable for various indoor commercial applications, such as tri-proof lights and linear fixtures. This product comes with a plastic housing, and proper insulation protection is required during use.
|

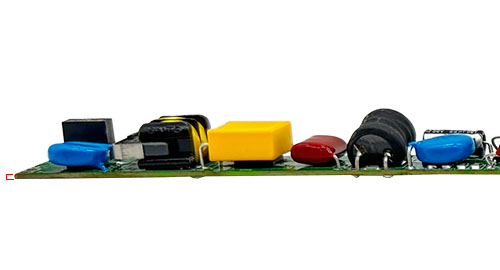

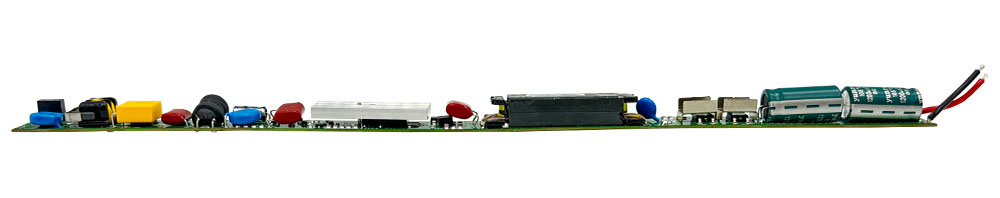

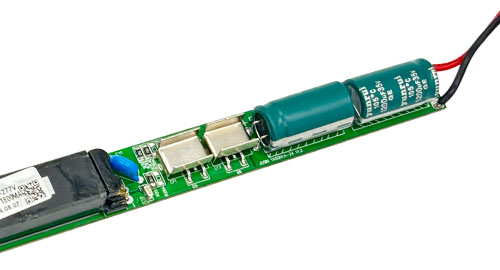

uses durable electrolytic capacitors and high-quality parts. |
The thickness of the copper foil is about one ounce. |
 |
 |

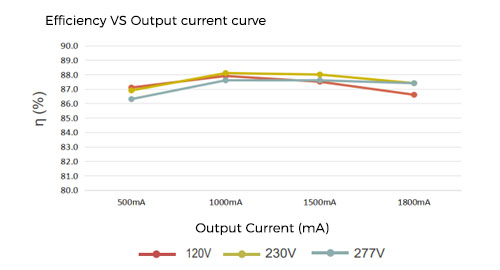

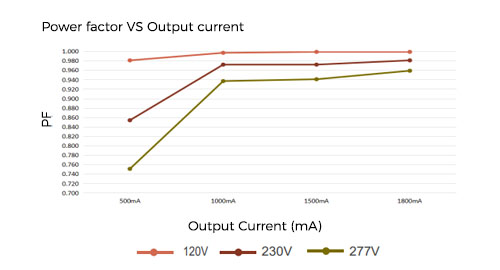

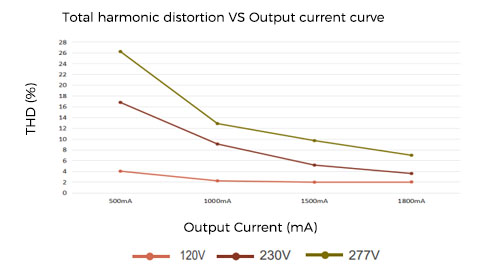

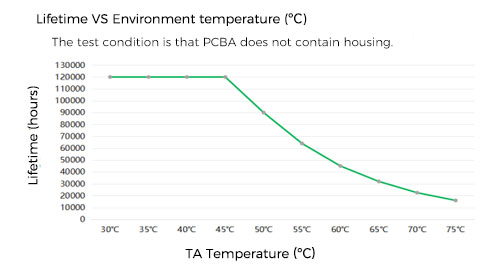

Electrical Curve Diagram:
Test at Ta 25℃, the output voltage is 24V, and the current is 500mA to1800mA

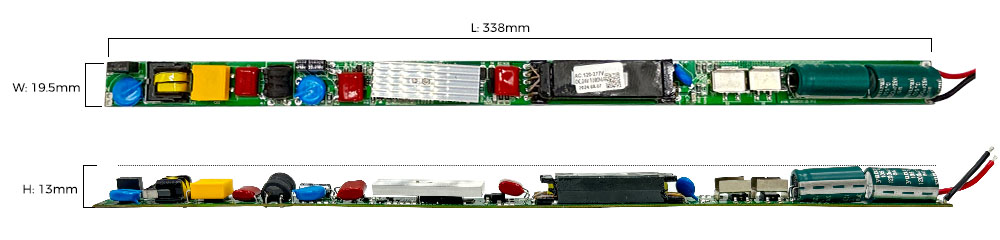

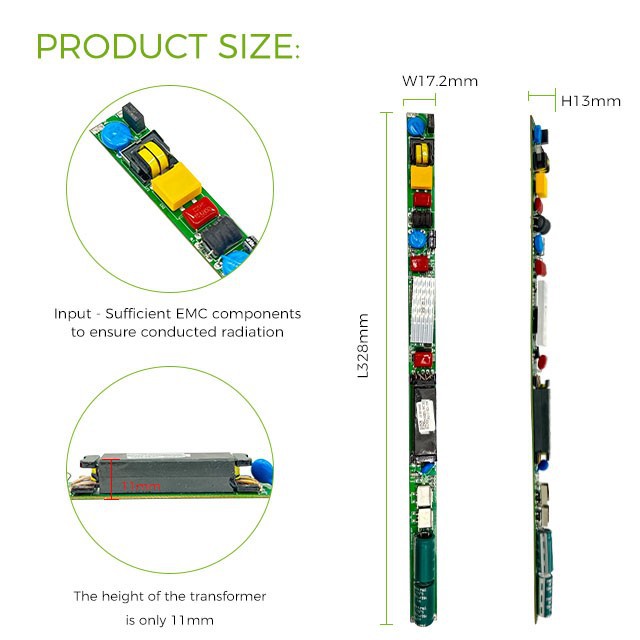

Dimension(mm):
Length: 338mm Width: 19.5mm Height: 13mm

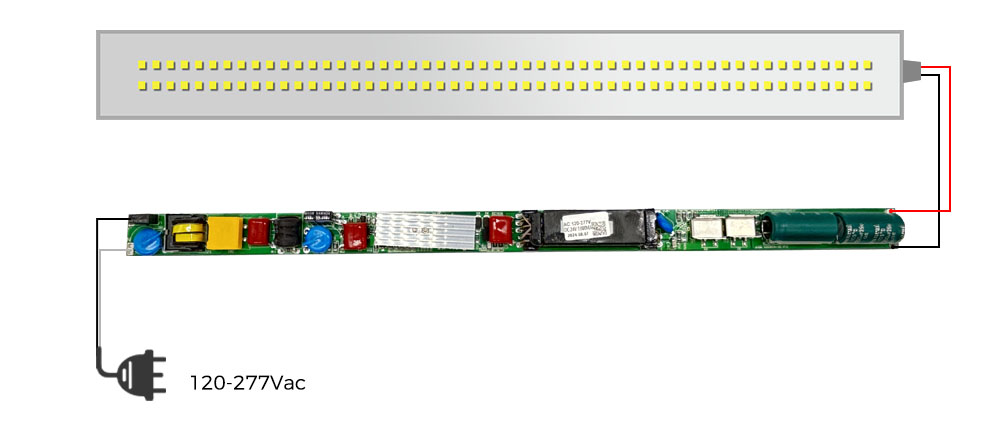

Wiring Instructions：
AC input terminal, the terminal is connected to the mains (120-277Vac), the input blue wire connected to N, brown wire connected to L. The other terminal is the DC output terminal red wire connected to the LED +, black wire connected to the LED -, respectively, with the positive and negative LED lights connected.

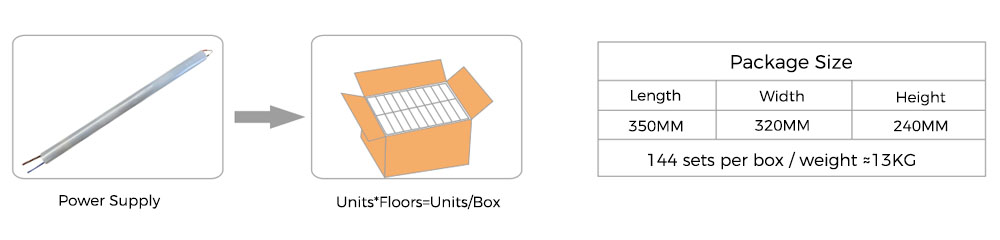

Product Packaging:
Hot Tags: 50w 24v linear led driver with plastic casings, China 50w 24v linear led driver with plastic casings manufacturers, suppliers, factory, single channel output, Three levels of color temperature, 60W Tunable White LED Driver, dual output, minicontroller, tunable light
YX50N1A
|
Performance |
||
|
Model |
YX50N1A-24 |
|
|
Input |
Voltage |
120-277Vac(standard) |
|
Frequency Range(Hz) |
50/60Hz |
|
|
Efficiency |
86%@120Vac full load |
|
|
87%@230Vac full load |
||
|
87%@277Vac full load |
||
|
Power Factor |
≥ 0.9@120Vac/60Hz(10-100 %) full load |
|
|
≥ 0.9@230Vac/50Hz(30-100 %) full load |
||
|
≥ 0.9@277Vac/60Hz(45-100 %) full load |
||
|
THD (Full Load) |
<10 %@120Vac (10-100 %) full load |
|
|
<20 %@230Vac (40-100 %) full load |
||
|
<20 %@277Vac (65-100 %) full load |
||
|
AC Current (Max) |
0.41A@120Vac full load |
|
|
0.21A@230Vac full load |
||
|
0.18A@277Vac full load |
||
|
Standby Power |
<1W |
|
|
Inrush Current (Cold Engine Start) Max |
120V 20A peak,500us duration(10% Ipeak) |
|
|
230V 25A peak,600us duration(10% Ipeak) |
||
|
277V 35A peak,800us duration(10% Ipeak) |
||
|
Leakage Current (Max) |
<0.5mA@277V |
|
|
Output |
/Voltage (Vdc)/Current (mA) Power (W) |
24Vdc/1800mA/43W CV |
|
Ripple Voltage
|
<3% |
|
|
Channel |
Single channel |
|
|
Voltage regulation factor |
±5% |
|
|
No-Load Output Voltage |
24V |
|
|
Start Time
|
<0.5S@277V ＜1S@120V |
|
|
Over Load |
The on-load voltage is too high to enter the protection. return to normal after release |
|
|
Short Circuit |
Enter hiccup mode and return to normal after release |
|
|
Size |
|
|
Length |
338 mm |
|
Width |
19.5mm |
|
Height |
13 mm |
|
Weight (g) |
78.5g |
|
Environmental |
|
|
Safety Standard |
UL8750 ,Class2 |
|
EMC |
Conform to FCC part 15 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature, Humidity |
-20°C to 85°C,20-90%RH |
|
Environmental temperature |
Ta=50℃ |
|
Warranty Tc |
50000Hour (s)@TC:＜75℃ |
|
Surge Protection |
L-N 1KV |
|
Ip Rating |
IP20 |
|
Series Driver |
||||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Power Factor |
Efficiency |
Size |
Meet |
|
YX50N1A-24 |
50W |
120-277Vac |
24V |
1800mA |
0.9 |
87% |
L338*W19.5*H13 |
UL,FCC,CE |
