Flicker Free Isolated Tube Driver

Flicker Free Isolated Tube Driver is specifically designed for T8 and T10 LED lighting systems. It meets EMC testing requirements, has a high power factor, low harmonics, and is highly efficient and accurate. It is a fully-voltage input, constant-current, internal driver power supply. With this product, you can be confident in the quality and safety of your lighting system.

Top Features and Benefits:


100-277Vac	Flicker free	Short circuit protection	Ultra small thin

1.No flicker

2.High power factor(PF)

3.Sufficient EMC components to ensure conducted radiation.

4.Use large-capacity capacitors to ensure driver life

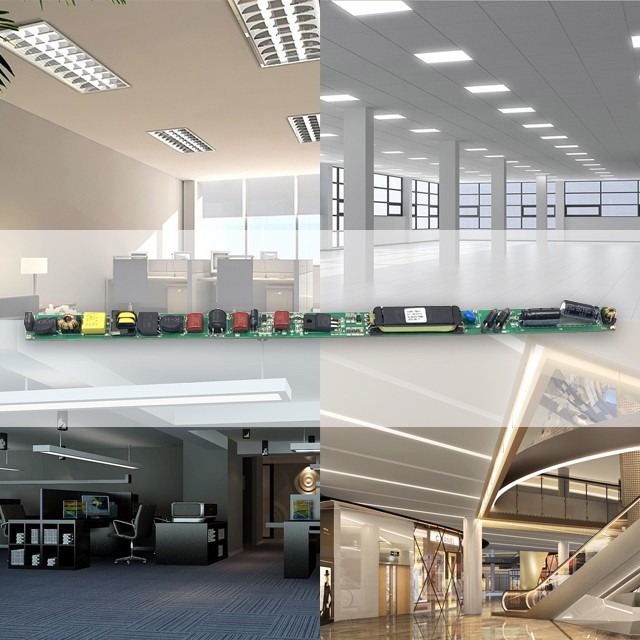

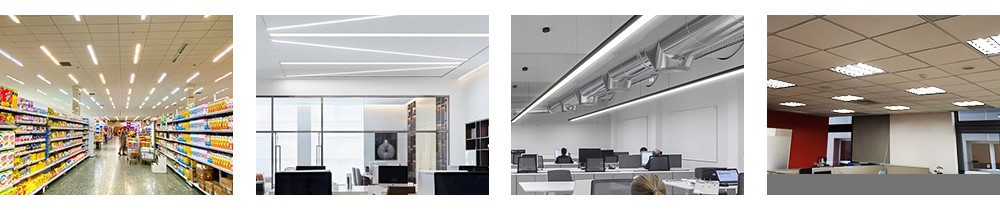

Application Scenario:

LED linear driver in these and other lighting scenarios, offering flexibility, versatility, and ease of installation for a wide range of applications.

product-1000-210

Product Details:

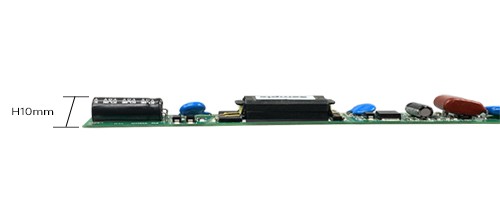

The product is very slim and thin with a height of only 10mm

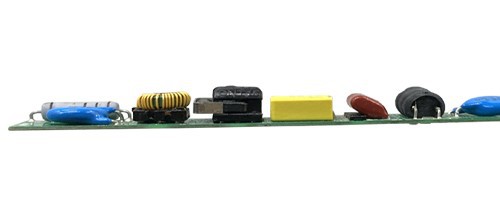

The components are all designed horizontally to control the height.

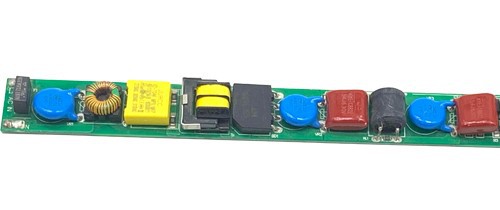

Double-sided board design, additional via-hole tinning.

The cutout on the back is basically the same as the PCB, and there is no thorny feeling to the touch.

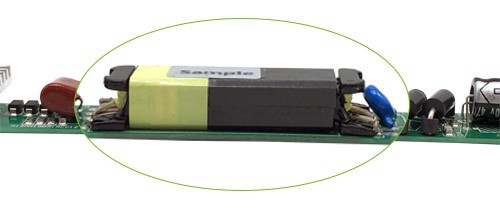

The Isolation Series power transformers are only 10 mm high and compact

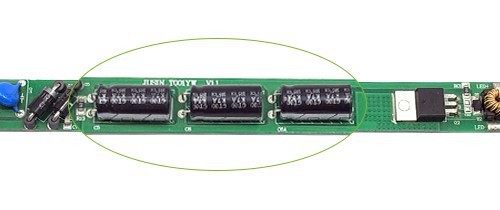

Use SAMXON SK electrolytic capacitors, which have a service life of up to 10,000 hours

Ensure that electronic equipment or systems can operate stably in the electromagnetic environment and will not cause or be interfered with other surrounding equipment or systems.

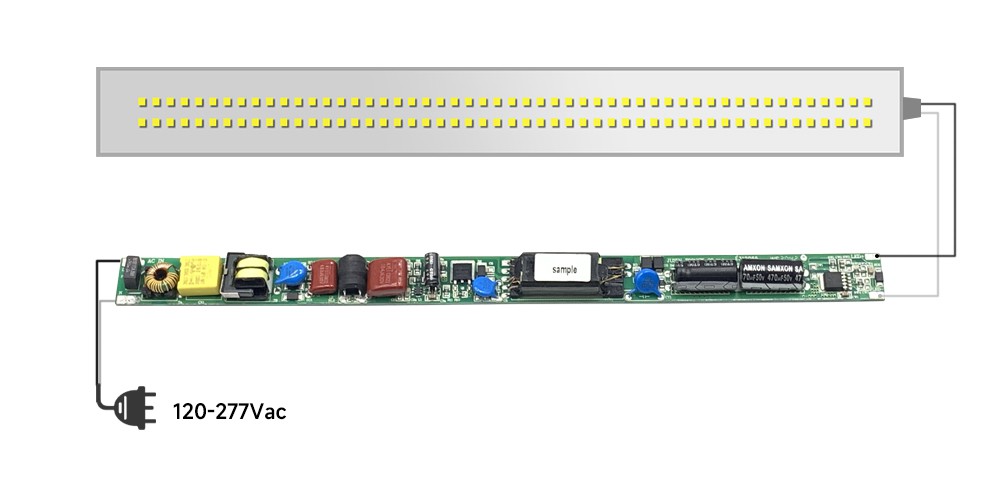

Wiring Instructions:

AC input terminals are used to connect to 120-277 volt AC power, while DC output terminals labeled positive and negative are used to connect LED lights

product-1000-504

Product Packaging:

product-1000-270

Hot Tags: flicker free isolated tube driver, China flicker free isolated tube driver manufacturers, suppliers, factory, 3000k selectable, smart lighting system, 5 8ghz sensor driver, smart modules and sensors, tunable led panel, non isolated dimmer

T001W T001WW T001Y T001YW T040C

Performance
Model	T001W T001WW T001Y T001YW T040C
Input Voltage	100-277 Vac
Input Current Max	0.4A@100Vac Full load
Input Power Max	30-40W
Input Frequency	50/60Hz
Power Factor	> 0.9
Output Voltage (Refer to Driver Operating Range)	30-42Vdc
Max. Output Current	720-920mA
Output Power	30-40W
Power Efficiency	88%@220Vac Input,Output 42V/700mA
No flicker	Optional(T001WW T001YW T040C Model)

Environmental
EMC Standard	EN55015,EN55022
Operating Temperature	-20°C to 50°C
Storage Temperature	-20°C to 85°C
Surge protection	L-N 1KV
Certificate	Meet CE/ FCC /UL certificate

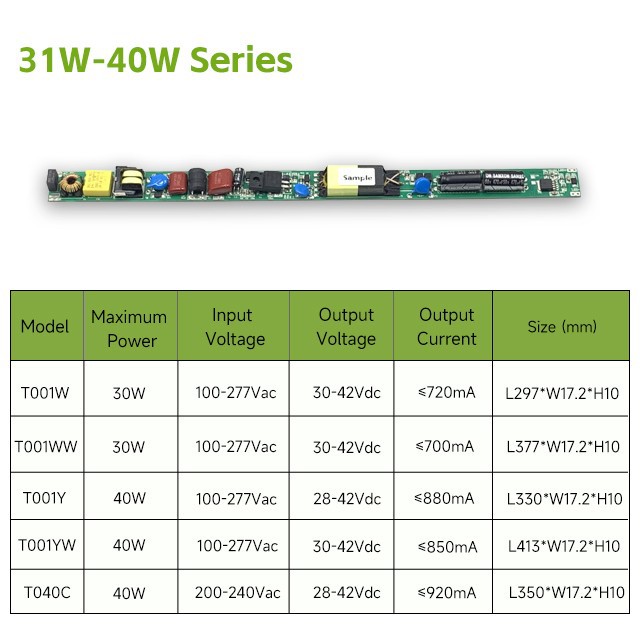

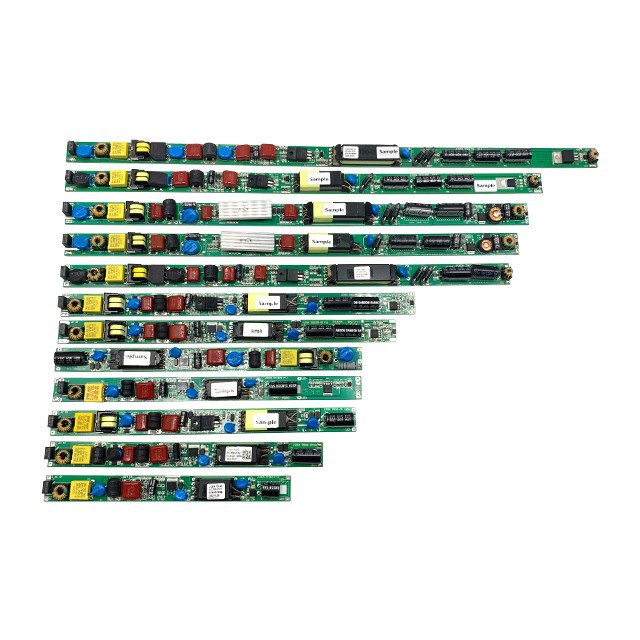

Series
Model	Max power	Input voltage	Output voltage	Output current	Efficiency	Power factor	Size(mm)	Meet with	Remark
T014E	12W	100-277Vac	30-42Vdc	≤300mA	0.86	0.90	L167W17.2H10	EMC,CE,UL
T014EW	12W	100-277Vac	30-42Vdc	≤300mA	0.84	0.90	L220W17.2H10	EMC,CE,UL	Flicker free
T001Z	18W	100-277Vac	28-42Vdc	≤450mA	0.86	0.90	L190W17.2H10	EMC,CE,UL
T001S	18W	100-277Vac	30-42Vdc	≤450mA	0.88	0.90	L222W17.2H10	EMC,CE,UL	3KV surge
T001KW	18W	100-277Vac	28-42Vdc	≤450mA	0.85	0.90	L243W17.2H10	CCC	Flicker free
T001J	25W	100-277Vac	30-42Vdc	≤600mA	0.88	0.90	L215W17.2H10	CCC	CCC
T001JW	25W	100-277Vac	30-42Vdc	≤600mA	0.86	0.90	L263W17.2H10	EMC,CE,UL	Flicker free
T001W	30W	100-277Vac	30-42Vdc	≤720mA	0.89	0.90	L297W17.2H10	EMC,CE,UL
T001WW	30W	100-277Vac	30-42Vdc	≤700mA	0.86	0.90	L377W17.2H10	EMC,CE,UL	Flicker free
T001Y	40W	100-277Vac	30-42Vdc	≤880mA	0.89	0.90	L330W17.2H10	EMC,CE,UL
T001YW	40W	100-277Vac	30-42Vdc	≤850mA	0.86	0.90	L413W17.2H10	EMC,CE,UL	Flicker free
T040C	40W	200-240Vac	30-42Vdc	≤920mA	0.87	0.92	L350W18.5H12	FCC,TUV,UL	Flicker free
T050C	50W	200-240Vac	30-42Vdc	≤1200mA	0.88	0.92	L360W18.2H13	FCC,TUV,UL	Flicker free

FAQ

Q1. Are you a manufacturer or trading company?

A1. We are a professional manufacturer of producing led drivers for more than 10 years.

Q2. What is your MOQ?

A2. Our MOQ is 200pcs. But can be negotiable based on different models

Q3. What is your delivery time ?

A3. Our delivery time is 7-20 days which is depended on models and quantity.

Q4. Do you accept OEM/ODM?

A4. Yes. We accept OEM/ODM. And one of our advantage is doing customized drivers for customers.

Q5. Service

A5. We have a professional service team to solve all the questions and problems. No worry about the after-sales service.

Q6. How about your R&D capability?

A6. We have professional engineers for certificates and research&development.

We have passed cUL, FCC, SAA, TUV, ROHS, CE, CB, CCC.
