Super slim led driver
Super slim led driver is the perfect solution for long, narrow lighting fixtures. With an integrated power factor correction circuit and a slim design, it is globally applicable and suitable for any application. Additionally, it features a no flicker function that is safe and non-harmful to the human eye. With the added benefit of being able to take photos without any frequency disturbances, this product truly stands out. Choose Super slim led driver for the perfect combination of convenience, functionality, and safety.
Top Features and Benefits:
|
|
|
|
|
|
100-277Vac |
Flicker free |
3 years warranty |

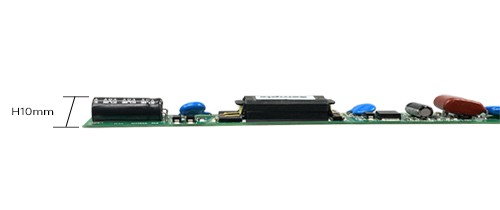

Ultra small thin |
1.Flicker-free&Radiation-free
2.Over Load Protection
3.Meet with UL,TUV,FCC certificate
4.3years warranty

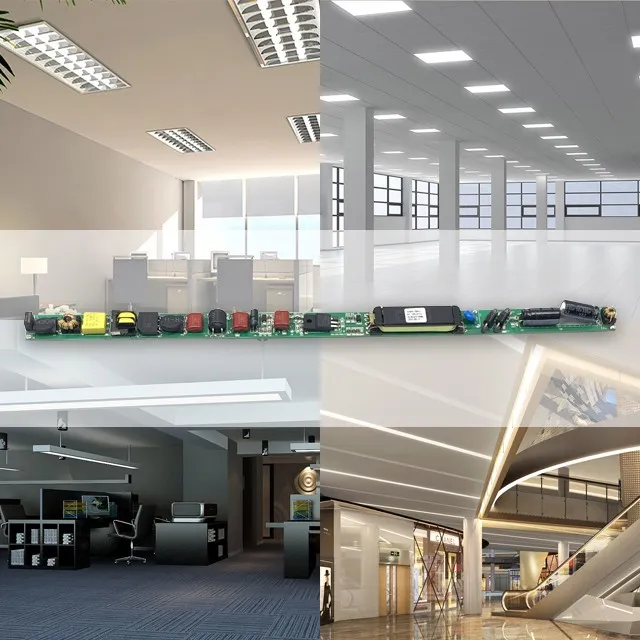

Application Scenario:

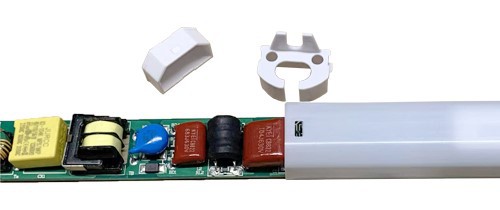

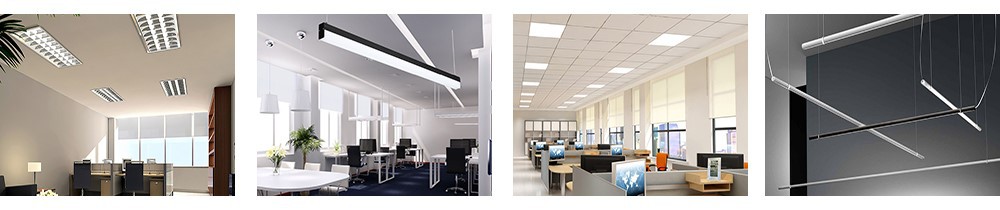

Wide range of applications: fluorescent lamp, grille lamp, tri-proof lamp, line lamp

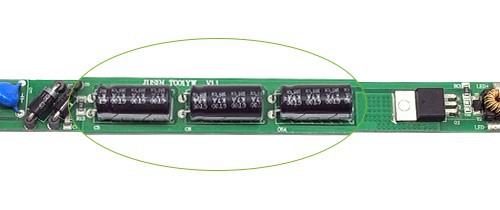

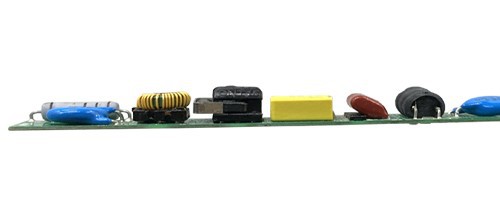

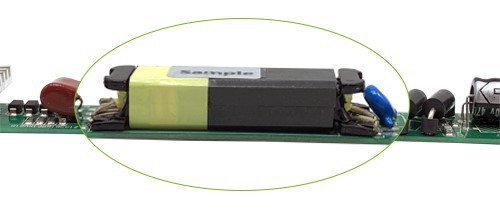

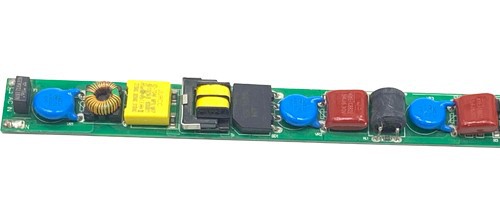

Product Details:

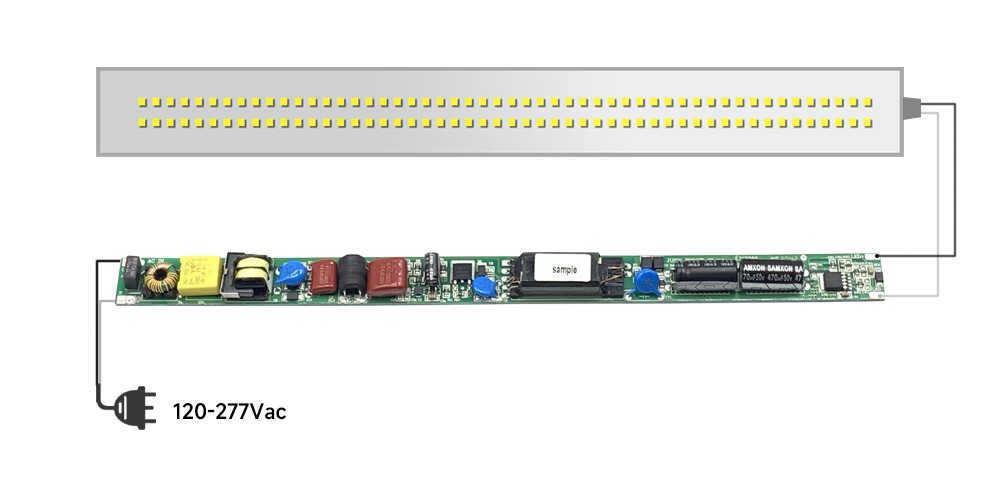

Wiring Instructions:
AC input terminal, this terminal is connected to the mains power(120-277Vac), and the other terminal is the DC output terminal + and -, which are connected to the positive and negative poles of the LED light respectively.
Product Packaging:
Hot Tags: super slim led driver, China super slim led driver manufacturers, suppliers, factory, tuya system driver, 12V aux, 0-10V dimmer, 2500mA, multipower drivers, slim strip driver

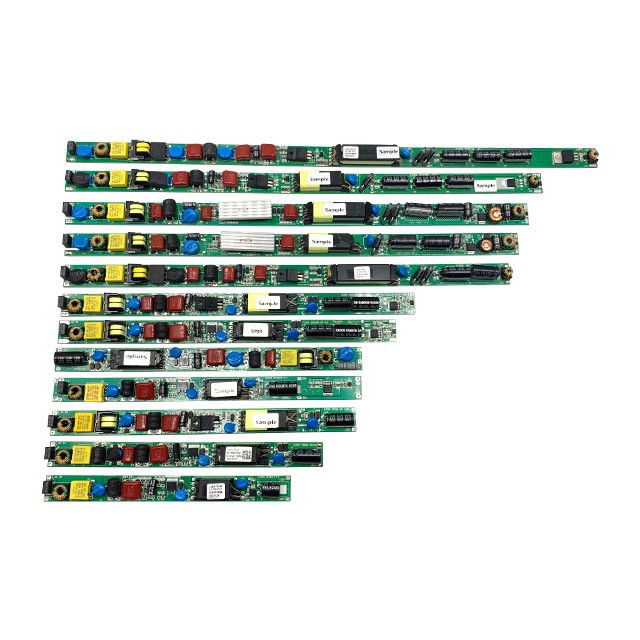

T series (isolated)
T014E T014EW T001Z T001S T001KW
|
Performance |
|
|
Model |
T014E T014EW T001Z T001S T001KW |
|
Input Voltage |
100-277 Vac |
|
Input Current Max |
0.2A@100Vac Full load |
|
Input Power Max |
12-18W |
|
Input Frequency |
50/60Hz |
|
Power Factor |
> 0.9 |
|
Output Voltage (Refer to Driver Operating Range) |
30-42Vdc |
|
Max. Output Current |
450mA |
|
Output Power |
18W |
|
Power Efficiency |
87%@220Vac Input,Output 42V/450mA |
|
No flicker |
Optional(T001KW T014EW Model) |
|
Surge 3KV |
Optional(T001S Model) |
|
Environmental |
|
|
EMC Standard |
EN55015,EN55022 |
|
Operating Temperature |
-20°C to 50°C |
|
Storage Temperature |
-20°C to 85°C |
|
Surge protection |
L-N 0.5KV |
|
Product Net Weight |
29.5g
|
|
Certificate |
Meet CE /FCC/ UL certificate |
|

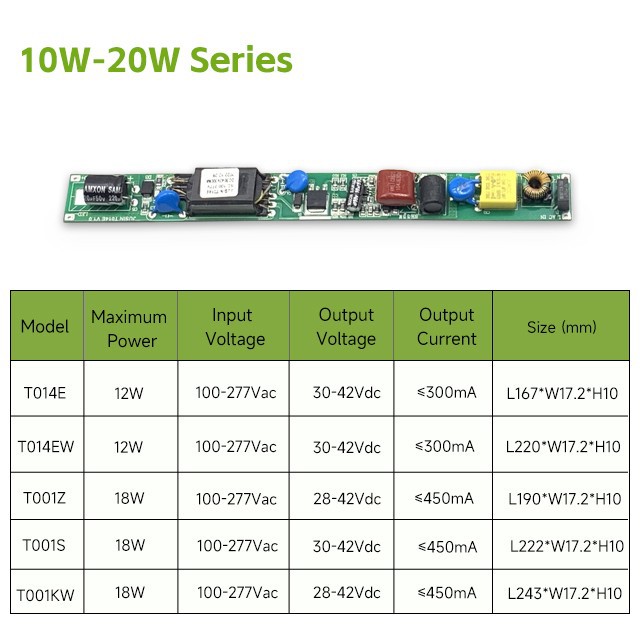

Series |
|||||||||
|
Model |
Max power |
Input voltage |
Output voltage |
Output current |
Efficiency |
Power factor |
Size(mm) |
Meet with |
Remark |
|
T014E |
12W |
100-277Vac |
30-42Vdc |
≤300mA |
0.86 |
0.90 |
L167*W17.2*H10 |
EMC,CE,UL |
|
|
T014EW |
12W |
100-277Vac |
30-42Vdc |
≤300mA |
0.84 |
0.90 |
L220*W17.2*H10 |
EMC,CE,UL |
Flicker free |
|
T001Z |
18W |
100-277Vac |
28-42Vdc |
≤450mA |
0.86 |
0.90 |
L190*W17.2*H10 |
EMC,CE,UL |
|
|
T001S |
18W |
100-277Vac |
30-42Vdc |
≤450mA |
0.88 |
0.90 |
L222*W17.2*H10 |
EMC,CE,UL |
3KV surge |
|
T001KW |
18W |
100-277Vac |
28-42Vdc |
≤450mA |
0.85 |
0.90 |
L243*W17.2*H10 |
CCC |
Flicker free |
|
T001J |
25W |
100-277Vac |
30-42Vdc |
≤600mA |
0.88 |
0.90 |
L215*W17.2*H10 |
CCC |
CCC |
|
T001JW |
25W |
100-277Vac |
30-42Vdc |
≤600mA |
0.86 |
0.90 |
L263*W17.2*H10 |
EMC,CE,UL |
Flicker free |
|
T001W |
30W |
100-277Vac |
30-42Vdc |
≤720mA |
0.89 |
0.90 |
L297*W17.2*H10 |
EMC,CE,UL |
|
|
T001WW |
30W |
100-277Vac |
30-42Vdc |
≤700mA |
0.86 |
0.90 |
L377*W17.2*H10 |
EMC,CE,UL |
Flicker free |
|
T001Y |
40W |
100-277Vac |
30-42Vdc |
≤880mA |
0.89 |
0.90 |
L330*W17.2*H10 |
EMC,CE,UL |
|
|
T001YW |
40W |
100-277Vac |
30-42Vdc |
≤850mA |
0.86 |
0.90 |
L413*W17.2*H10 |
EMC,CE,UL |
Flicker free |
|
T040C |
40W |
200-240Vac |
30-42Vdc |
≤920mA |
0.87 |
0.92 |
L350*W18.5*H12 |
FCC,TUV,UL |
Flicker free |
|
T050C |
50W |
200-240Vac |
30-42Vdc |
≤1200mA |
0.88 |
0.92 |
L360*W18.2*H13 |
FCC,TUV,UL |
Flicker free |
