Step-Down Mode CC DC-DC LED Driver
It is an advanced LED driver designed specifically for machine tool lighting. It ensures high efficiency and reliability for continuous operation, offering excellent power conversion capabilities. This driver is optimized to deliver the right voltage and current for a range of LED lighting applications.
DC24V/36V High Efficiency LED driver
Designed for machine tool lighting applications.
High-efficiency power conversion.
Reliable and stable performance.

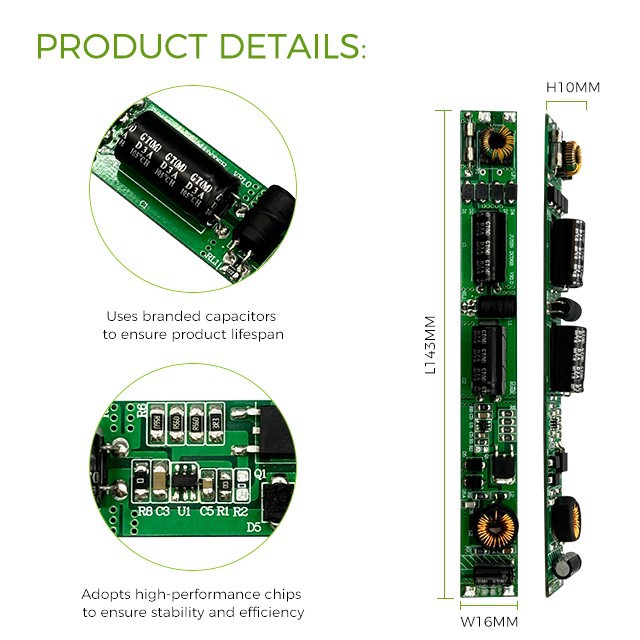

Product Details:
|
Feature |
DC to DC LED Tube Driver |
AC to DC LED Tube Driver |
|
Input power type |
Direct current (DC) |
Alternating current (AC) |
|
Conversion process |
Directly convert DC input to voltage and current suitable for LEDs |
First convert AC to DC (AC to DC), then adjust to voltage and current suitable for LEDs |
|
Efficiency |
Usually higher, can reach more than 90%, reducing conversion losses |
Overall efficiency is low, AC to DC conversion has losses |
|
Size |
Small |
Slightly bigger than DC |
|
Applicable |

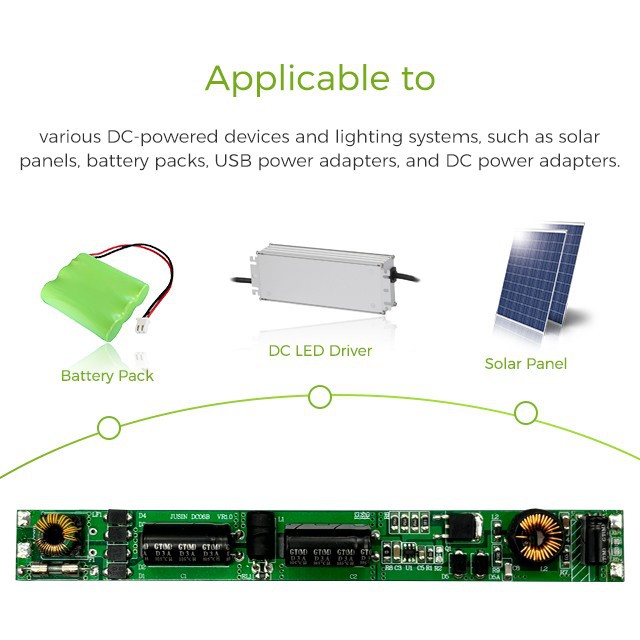

Applicable to DC power systems, such as batteries |
Applicable to AC power lighting systems, commonly used in home and commercial lighting |
|
EMI |
Generally good, reduces electromagnetic interference |
May generate higher electromagnetic interference, requiring additional electromagnetic shielding measures |
.DC to DC drivers can provide high power output in a small size, suitable for compact designs.

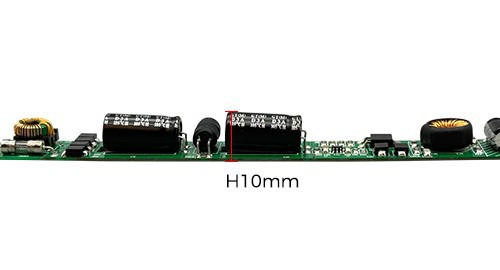

Ultra small thin size,the height is only 10 mm.

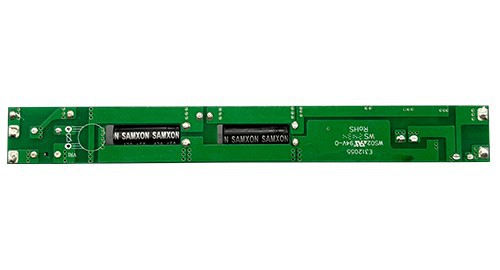

It has good heat resistance, stable electrical insulation performance and high mechanical strength.

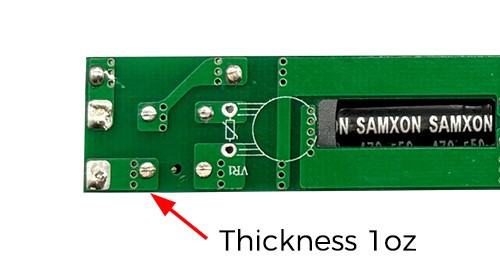

Copper foil thickness is about 1oz.

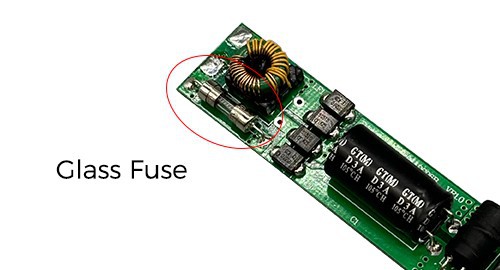

Glass fuses are usually heat-resistant and can adapt to certain temperature changes.

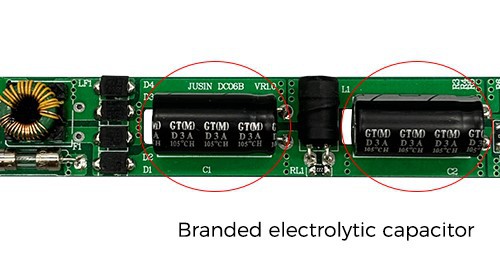

High ripple current, longer life assurance, low-impedance capacitor.

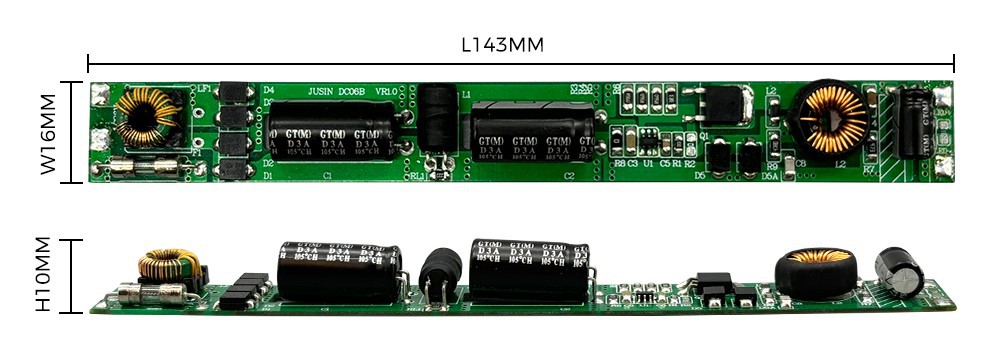

Dimension (mm)

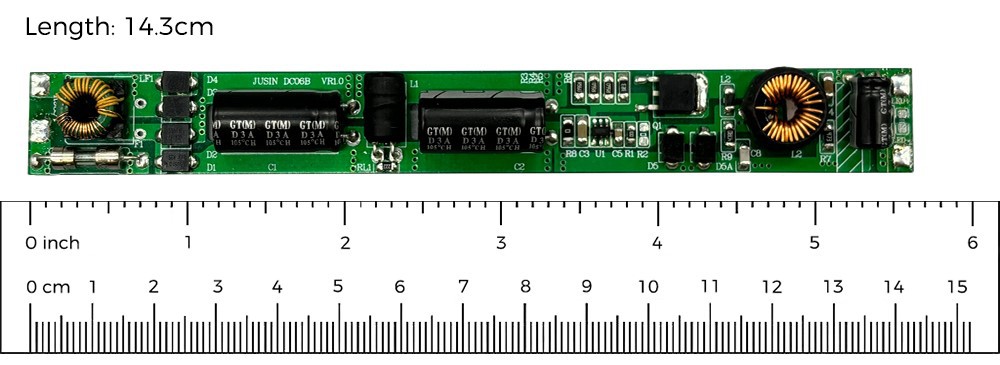

Length 143 Width 16 Height 10

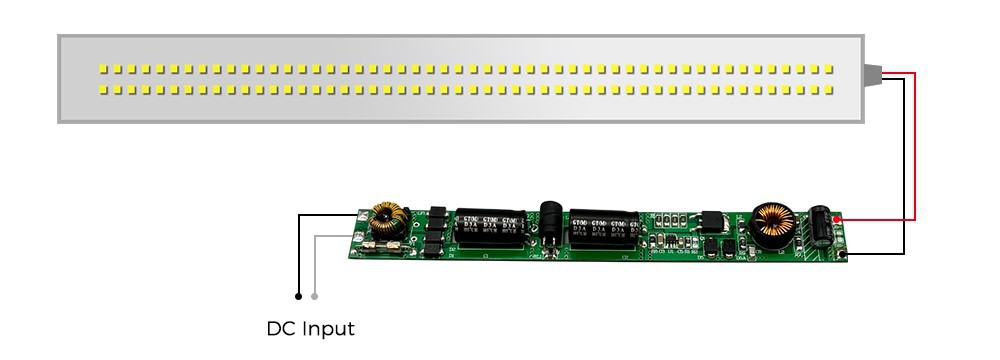

Wiring Diagram：
Input terminal, connected to DC power supply, input voltage 36V. Output terminal connected to LED lights
Hot Tags: step-down mode cc dc-dc led driver, China step-down mode cc dc-dc led driver manufacturers, suppliers, factory, 0 10V dimming line lights, CE LED Sensor Driver, 1 10V dimmer, 920mA, 1000mA led driver, Accurate PWM LED Dimming

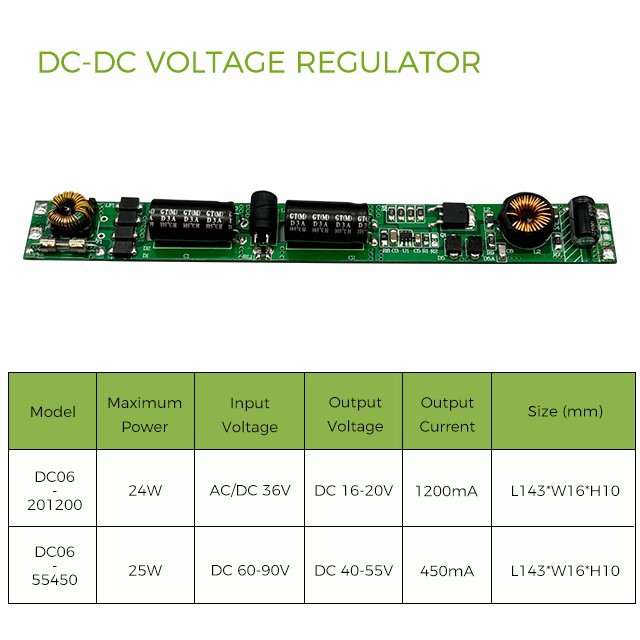

DC06
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Size(mm) |
||
|
DC06-201200 |
24W |
AC/DC180-265V |
DC16-20V |
1200mA |
L143*W16*H10 |
||
|
|
25W |
DC60-90V |
DC40-55V |
450mA |
L143*W16*H10 |
||
|
Size |
|||||||
|
Length |
143 mm |
||||||
|
Width |
16mm |
||||||
|
Height |
10mm |
||||||
|
Weight (g) |
20g |
||||||
OEM/ODM

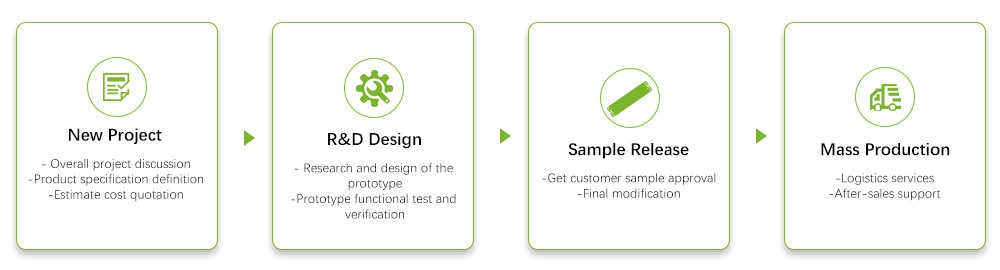

Jusinpower team has been specializing in the design and manufacturing services of LED driver and customized products for 12 years. We can provide OEM&ODM service. According to the customer's lamp structure, required functions, parameters, certification, etc., we provide a full set of design, manufacturing and after-sales services.
Warranty
Our products all come with3-year warranty or 5-year warranty, so you don’t have to worry about any service quality issues.
Advantage
Certificate
Have passed the "ISO9001:2015" quality management system certification.and national High-tech enterprise certificate.
The products are compatible with multi-national certifications, including China CQC certification and international UL, TUV, ROHS, CE, CB, SAA, FCC, CCC.
