Buck Converter DC-DC led driver
This driver features an optimized input voltage range of DC60-90V, making it adaptable for various power supply conditions. It is particularly beneficial for industrial applications, where input voltage fluctuations are common, ensuring consistent and stable lighting performance.
Input voltage range of DC60-90V.
Suitable for environments with voltage fluctuations.
Stable power supply for LED lights.
Reliable operation in demanding industrial settings.
Product Details:
|
Feature |
DC to DC LED Tube Driver |
AC to DC LED Tube Driver |
|
Input power type |
Direct current (DC) |
Alternating current (AC) |
|
Conversion process |
Directly convert DC input to voltage and current suitable for LEDs |
First convert AC to DC (AC to DC), then adjust to voltage and current suitable for LEDs |
|
Efficiency |
Usually higher, can reach more than 90%, reducing conversion losses |
Overall efficiency is low, AC to DC conversion has losses |
|
Size |
Small |
Slightly bigger than DC |
|
Applicable |
Applicable to DC power systems, such as batteries |
Applicable to AC power lighting systems, commonly used in home and commercial lighting |
|
EMI |
Generally good, reduces electromagnetic interference |
May generate higher electromagnetic interference, requiring additional electromagnetic shielding measures |
Since it does not require an AC to DC conversion module, the design may be more compact, smaller in size and weight, and suitable for space-constrained applications.

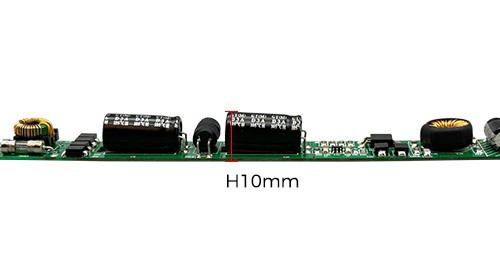

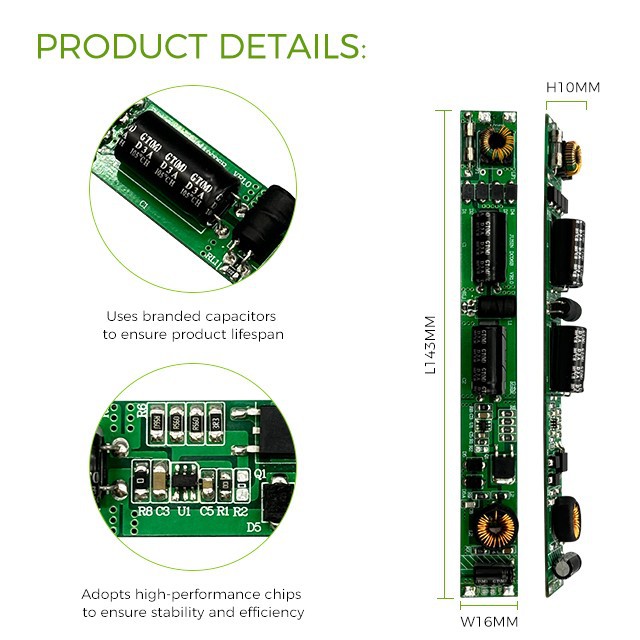

The product boasts slender,with a height measuring a mere 10mm.

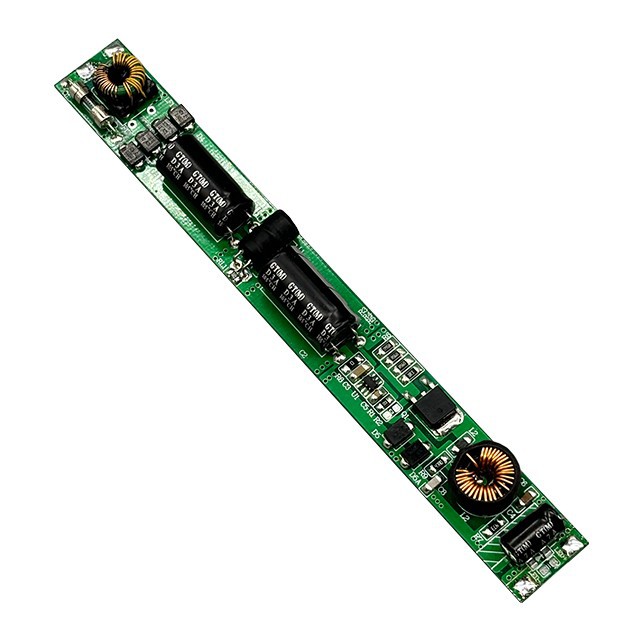

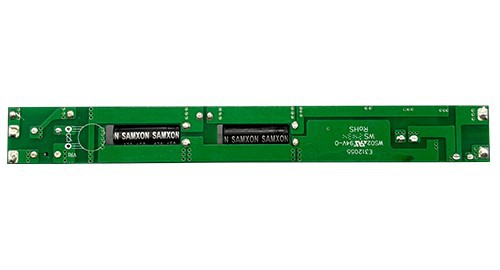

The FR4 material used in PCB has excellent resistance to high temperatures, consistent and reliable electrical insulation properties, and impressive mechanical durability and resilience.

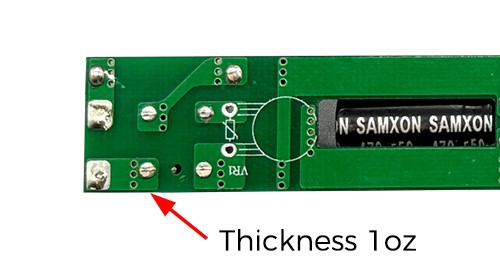

The thickness of copper foil is approximately 1oz.

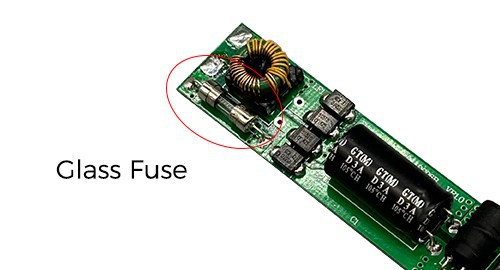

Using glass fuses can avoid wear and tear of components during transportation.

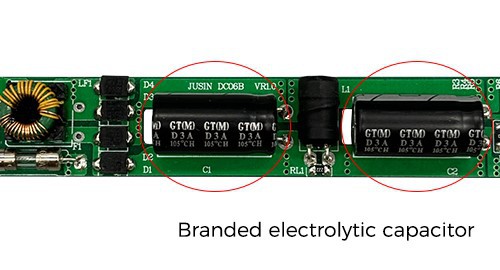

Maximize the lifespan of your driver with high-capacity capacitors from SAMXON Electrolytic Capacitors, boasting a remarkable longevity.

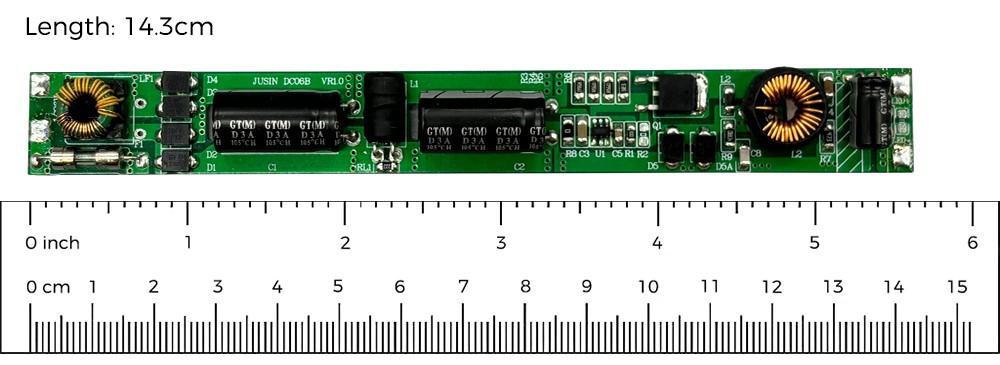

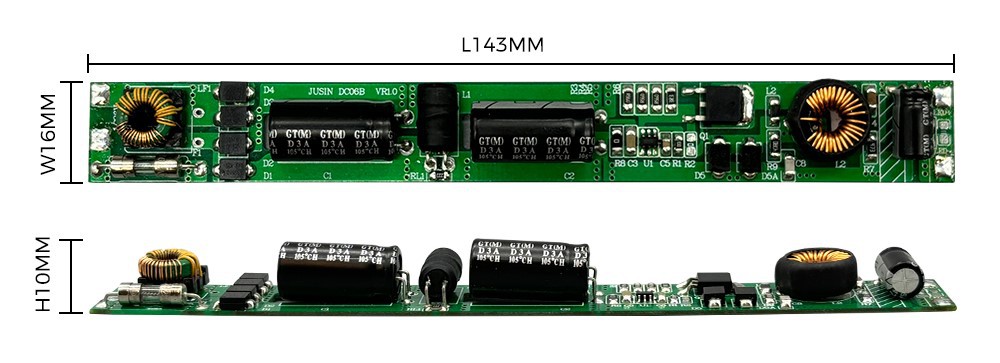

Dimension (mm)
Length 143 Width 16 Height 10

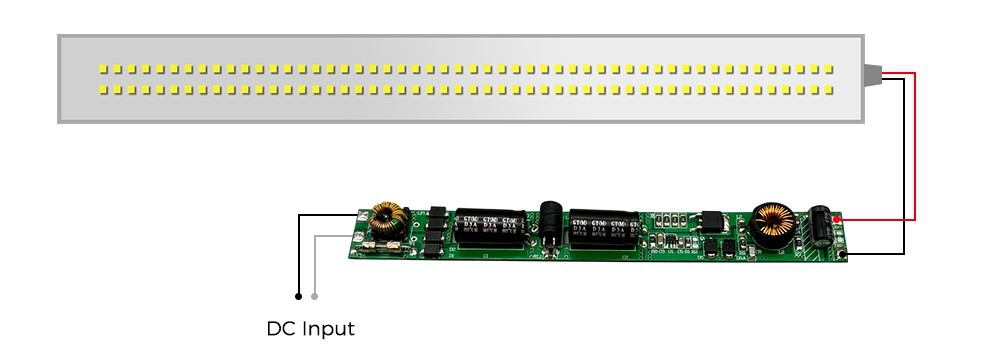

Wiring Diagram：
Input terminal, connected to DC power supply, input voltage 36V. Output terminal connected to LED lights
Hot Tags: buck converter dc-dc led driver, China buck converter dc-dc led driver manufacturers, suppliers, factory, 75W, Input frequency 47 63 Hz, 3CCT select, 40W tunable white, CCT panel light, 0 5s to start

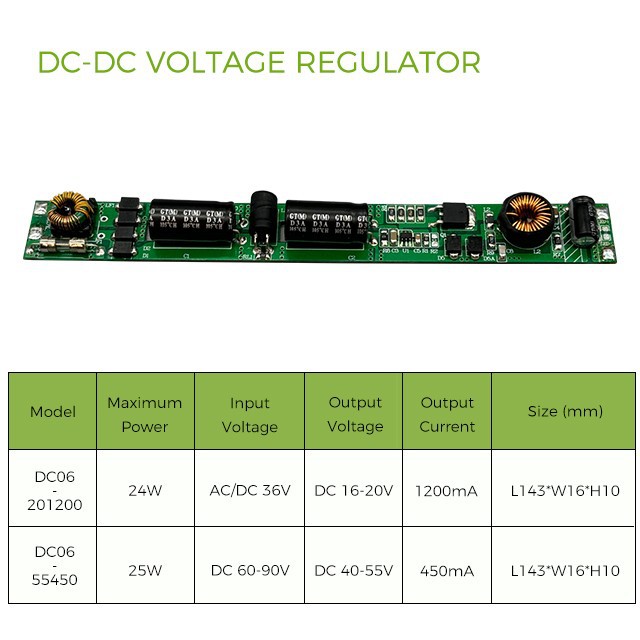

DC06
|
Series Driver |
|||||||
|
Model |
Max Power |
Input Voltage |
Output Voltage |
Output Current |
Size(mm) |
||
|
DC06-201200 |
24W |
AC/DC180-265V |
DC16-20V |
1200mA |
L143*W16*H10 |
||
|
DC06-55450 |
25W |
DC60-90V |
DC40-55V |
450mA |
L143*W16*H10 |
||
|
Size |
|||||||
|
Length |
143 mm |
||||||
|
Width |
16mm |
||||||
|
Height |
10mm |
||||||
|
Weight (g) |
20g |
||||||

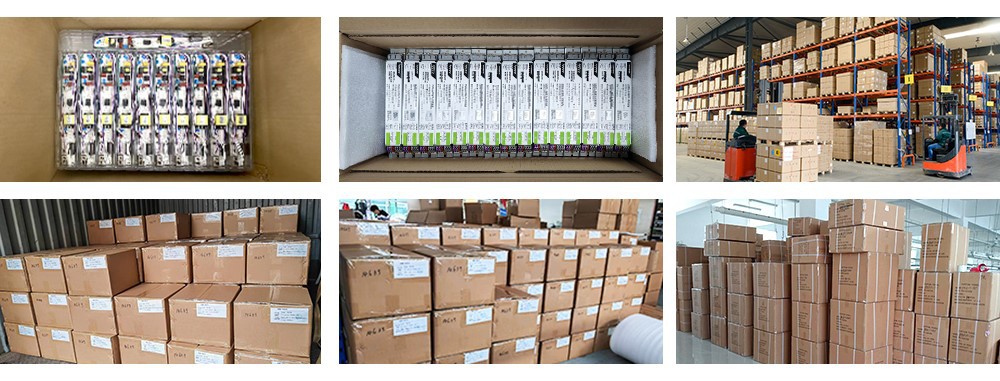

Packing
